The ultimate energy efficiency for your tertiary spaces

The Panel Prisma ADVANCE 9 is the ideal solution for your office, meeting room, and tertiary space lighting projects. It combines maximum energy performance, visual comfort, and reliability thanks to its exceptional efficiency of 150 lm/W and its Backlight technology that guarantees excellent light uniformity.

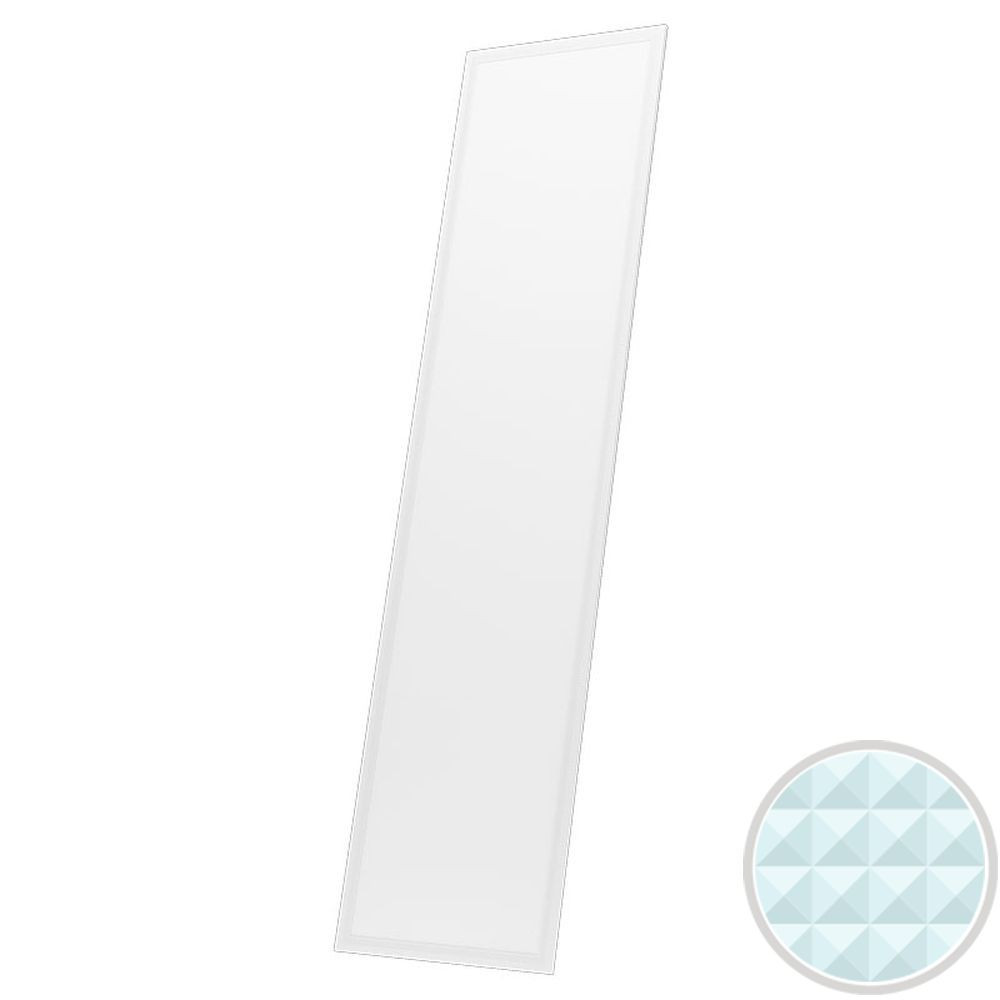

Its prismatic diffuser ensures a UGR below 16, offering optimal visual comfort for workstations even during extended use. The CCT Switch version 3000-4000-6000K available as an option allows the colour temperature to be adapted to each ambiance.

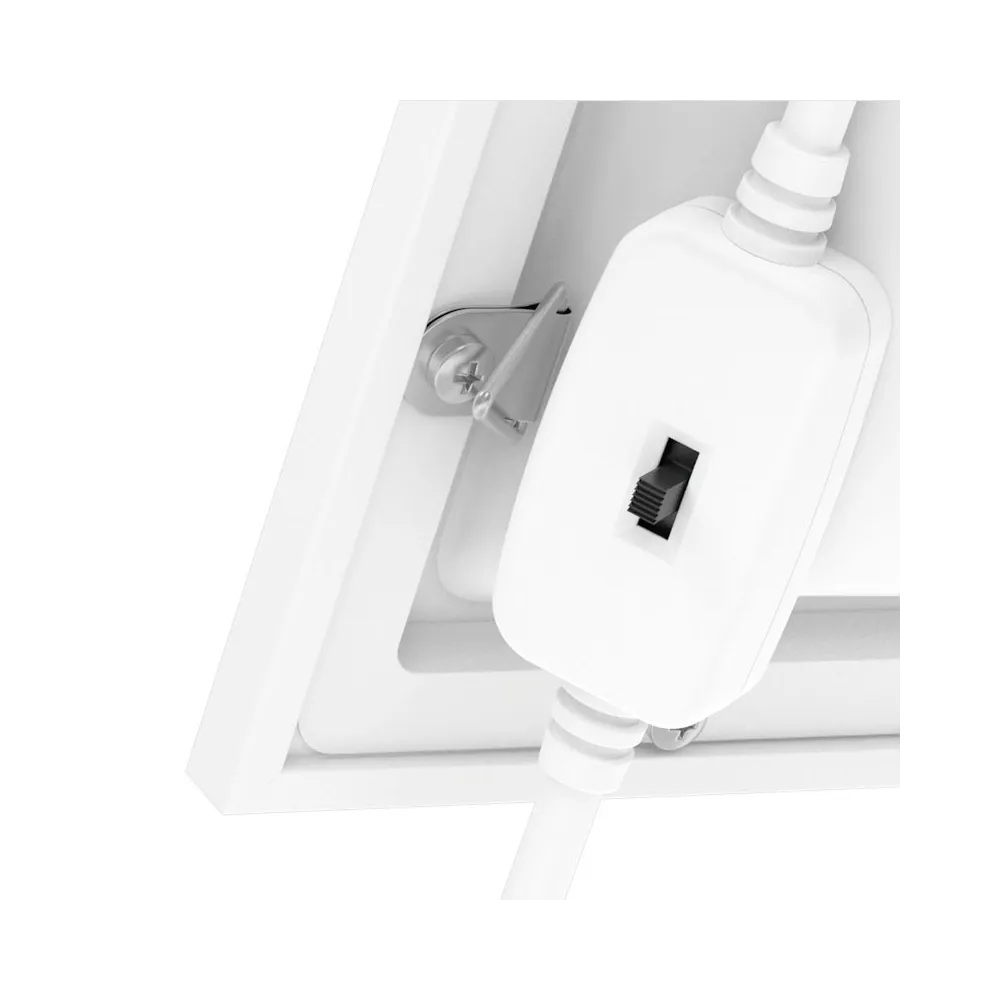

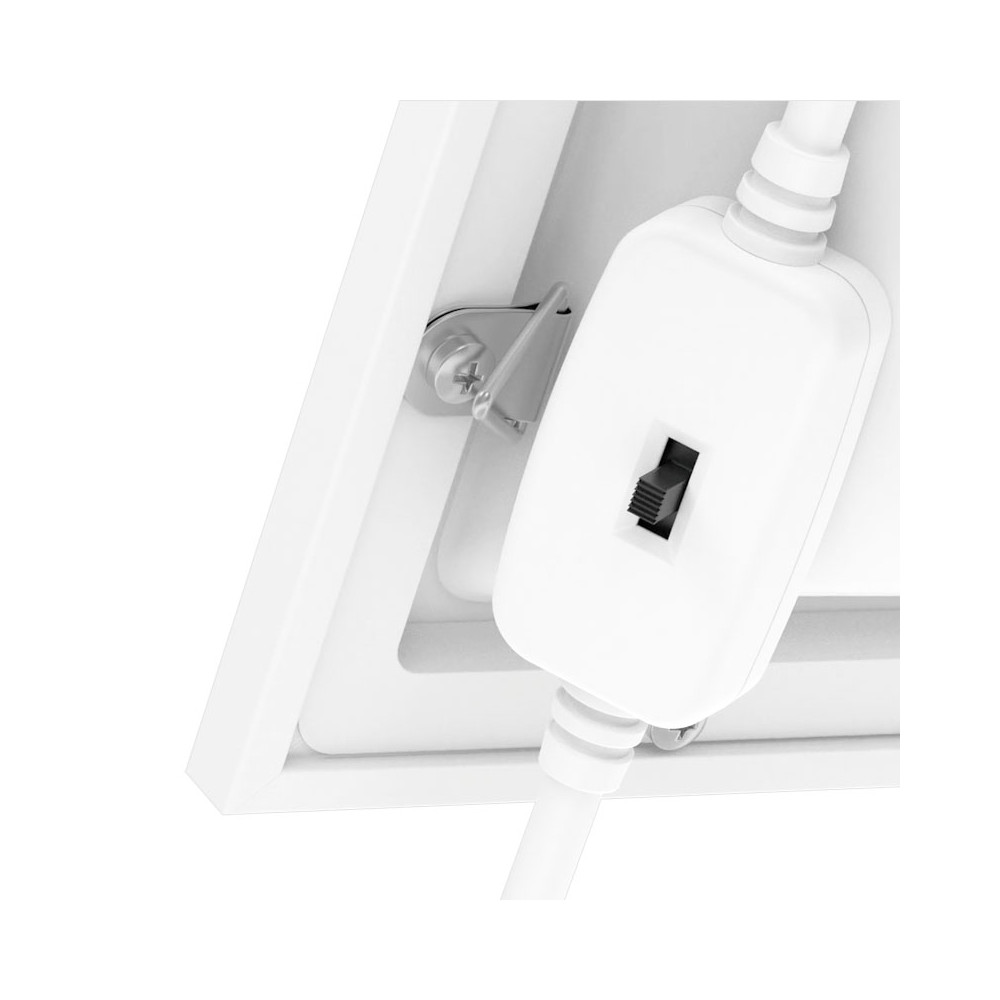

Its quarter-turn connector and included safety cable ensure fast and secure installation. Available in recessed, surface-mounted, or suspended versions, it adapts to all your configurations.

Designed for intensive use, it benefits from a lifespan L80B10 of 100,000 hours and a 7-year warranty.

Box contents: 1 Panel Prisma ADVANCE 9 + 1 safety cable + 1 quarter-turn connector

Key highlights:

  • Exceptional efficiency of 150 lm/W
  • Prismatic diffuser with UGR < 16
  • Backlight technology for optimal light uniformity
  • CCT Switch version available (3000-4000-6000K)
  • 7-year warranty

PEP certified

Ref: PAN.9364A9

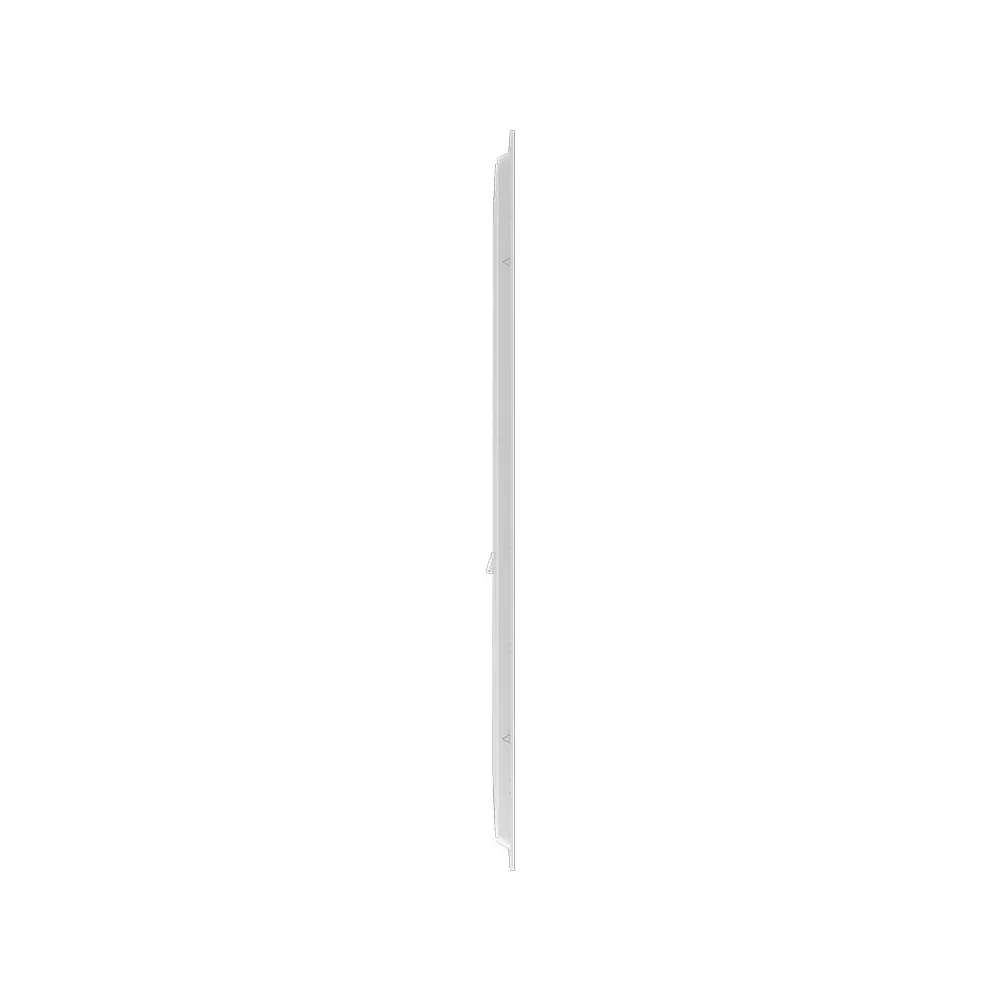

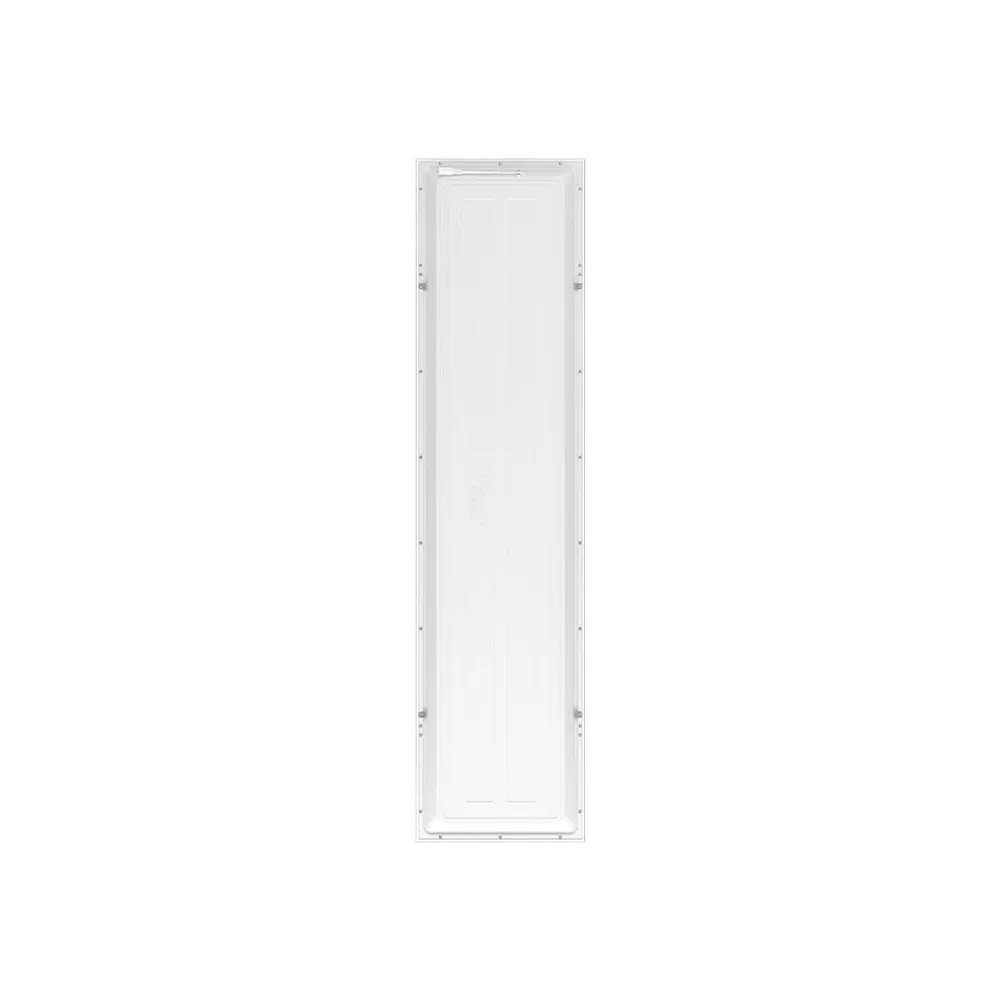

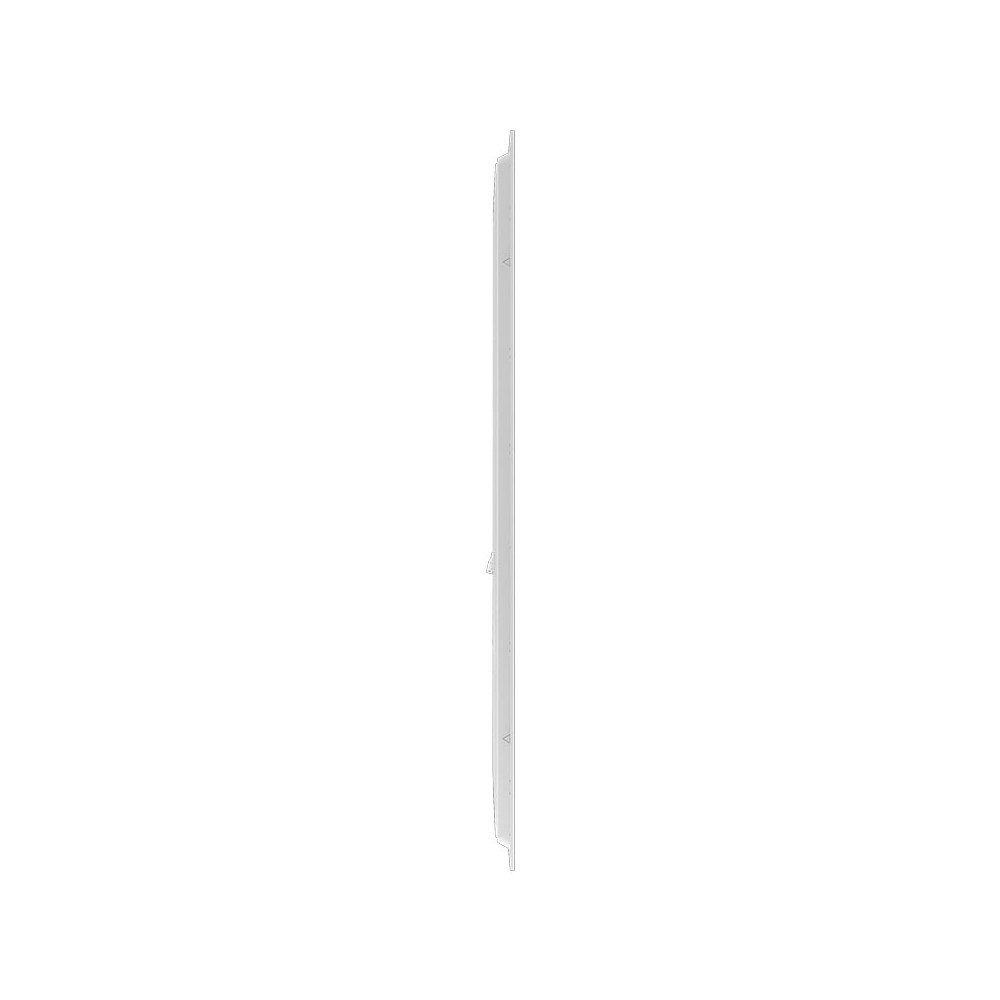

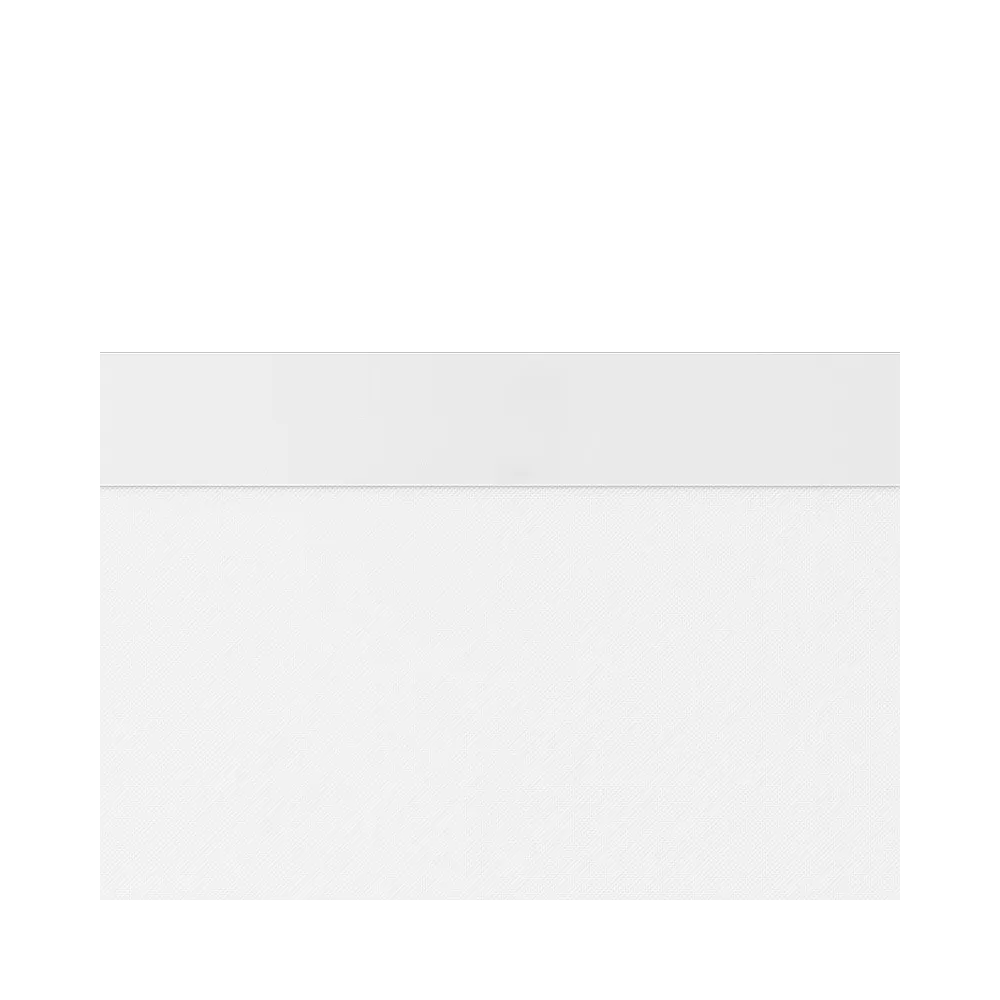

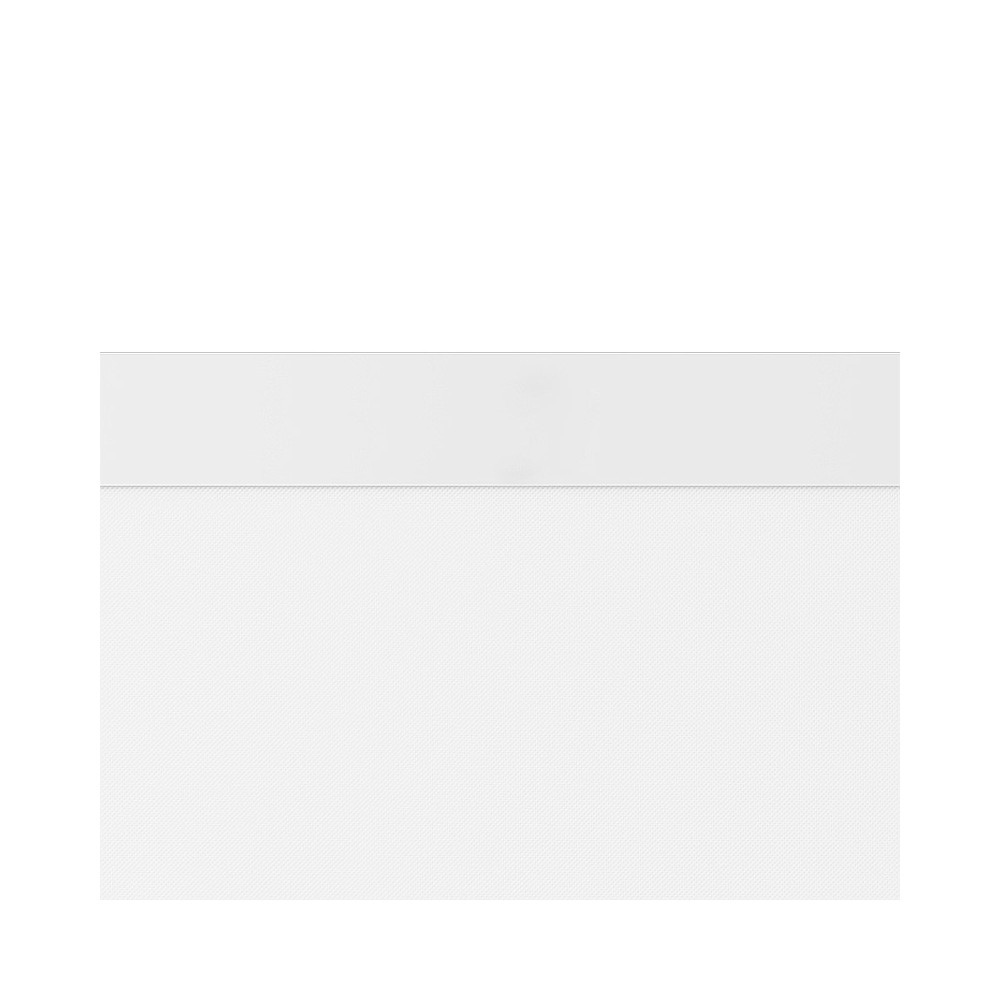

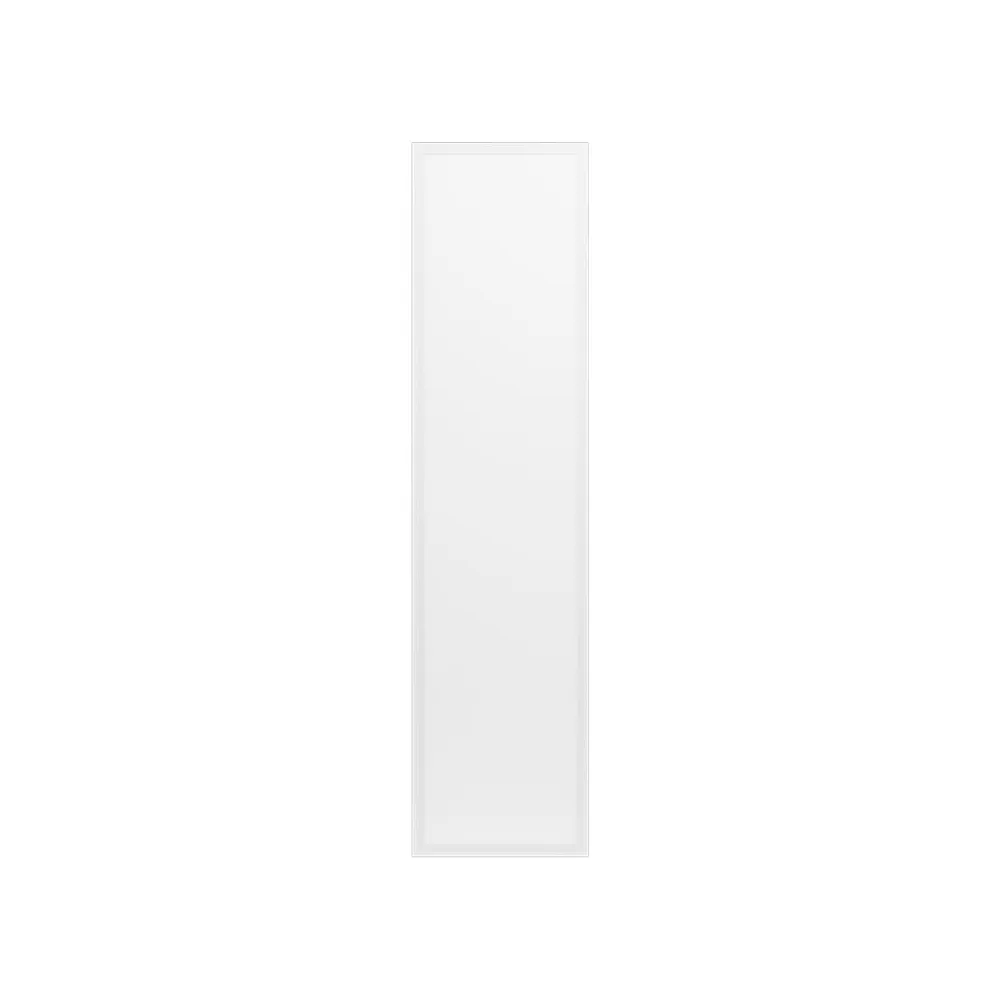

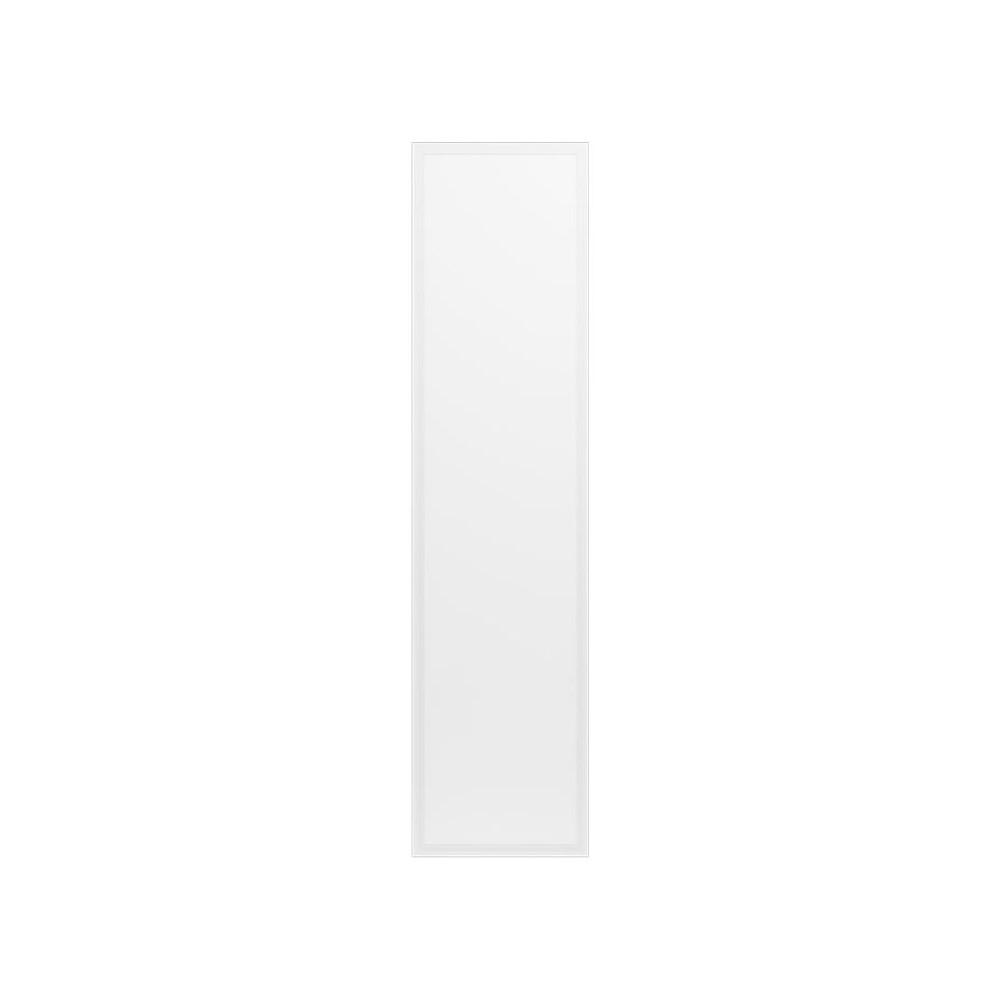

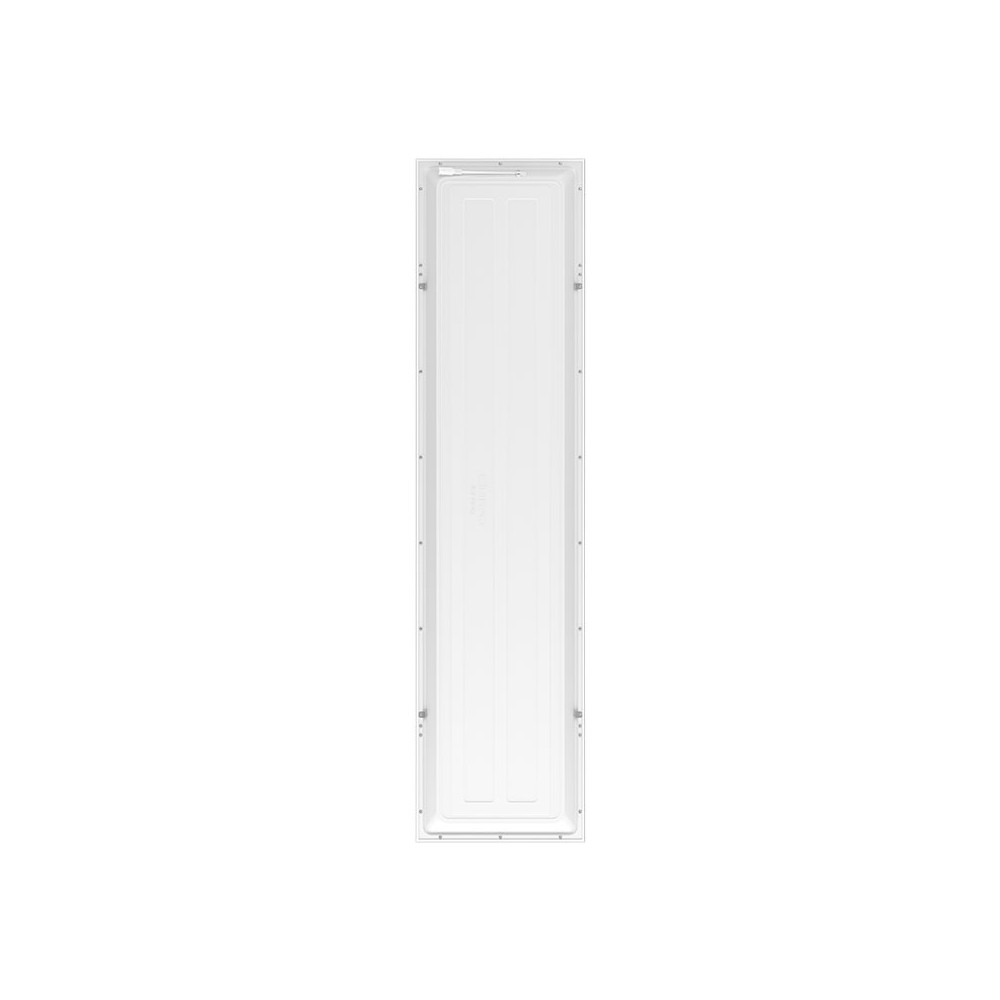

CLAREO Panel 1200x300 24W 150lm/W Prisma ADVANCE 9 Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

The ultimate energy efficiency for your tertiary spaces

The Panel Prisma ADVANCE 9 is the ideal solution for your office, meeting room, and tertiary space lighting projects. It combines maximum energy performance, visual comfort, and reliability thanks to its exceptional efficiency of 150 lm/W and its Backlight technology that guarantees excellent light uniformity.

Its prismatic diffuser ensures a UGR below 16, offering optimal visual comfort for workstations even during extended use. The CCT Switch version 3000-4000-6000K available as an option allows the colour temperature to be adapted to each ambiance.

Its quarter-turn connector and included safety cable ensure fast and secure installation. Available in recessed, surface-mounted, or suspended versions, it adapts to all your configurations.

Designed for intensive use, it benefits from a lifespan L80B10 of 100,000 hours and a 7-year warranty.

Box contents: 1 Panel Prisma ADVANCE 9 + 1 safety cable + 1 quarter-turn connector

Key highlights:

  • Exceptional efficiency of 150 lm/W
  • Prismatic diffuser with UGR < 16
  • Backlight technology for optimal light uniformity
  • CCT Switch version available (3000-4000-6000K)
  • 7-year warranty

PEP certified

General characteristics
Lifetime 100,000 h
Brand CLAREO
Range ADVANCE
Product family Panels
Installation environment Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Current Up to 600 mA
Power 24 W
Electrical class Class III
EU energy class 2019/2015 B
Lighting characteristics
Technology LED
Lumens output 3300 - 3456 lm
Energy savings - 40 %
Lumens efficiency 150 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 90 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 16
Physical characteristics and dimensions
Height 32 mm
Width 295 mm
Length 1,195 mm
Net weight 1,2 kg
Materials Steel
Waterproof No
IP IP44
IK IK03
Product color White
Working temperature Max 45 °C
Standard panel dimensions 1200 x 300
Detailed color White
Type SMD 2835
Standards and regulations
Standards CE, ENEC, RoHS
Carbon footprint 19.7 kgCO2eq
