PEP certified

New CLAREO ADVANCE 8 Panel

Energy efficiency up to 120 lm/W

Available in 2 powers:

  • 27W - 3400 lm --> Driver 700mA
  • 40W - 4200 lm --> Driver 1050mA

Equipped with "Backlight" technology, this luminaire has excellent uniformity.

Ideal installation and compatible in all offices or rooms equipped with a suspended ceiling.

Designed for intensive use, with a 5-year warranty and 50,000 hours.

Opal diffuser for UGR < 19 for optimal eye comfort.

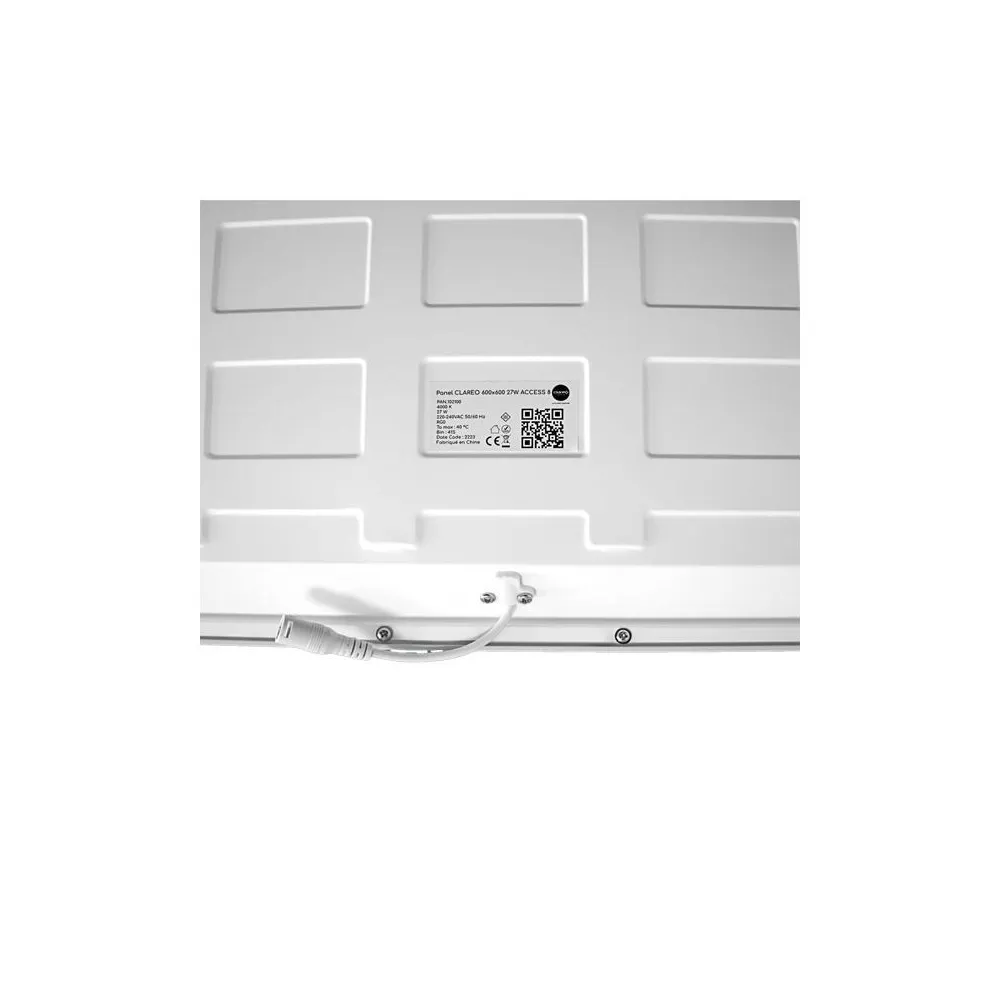

Box contents: 1 panel with a safety wire included and a quarter-turn connector.

Other possible installation modes: with integration frame, surface-mounted and suspension kit (with surface-mounted frame), sold separately.

Notable points:

  • Value for money
  • Long lifespan: L80B10 = 50,000 hours
  • Warranty: 5 years
  • UGR < 19
Ref: PAN.102099

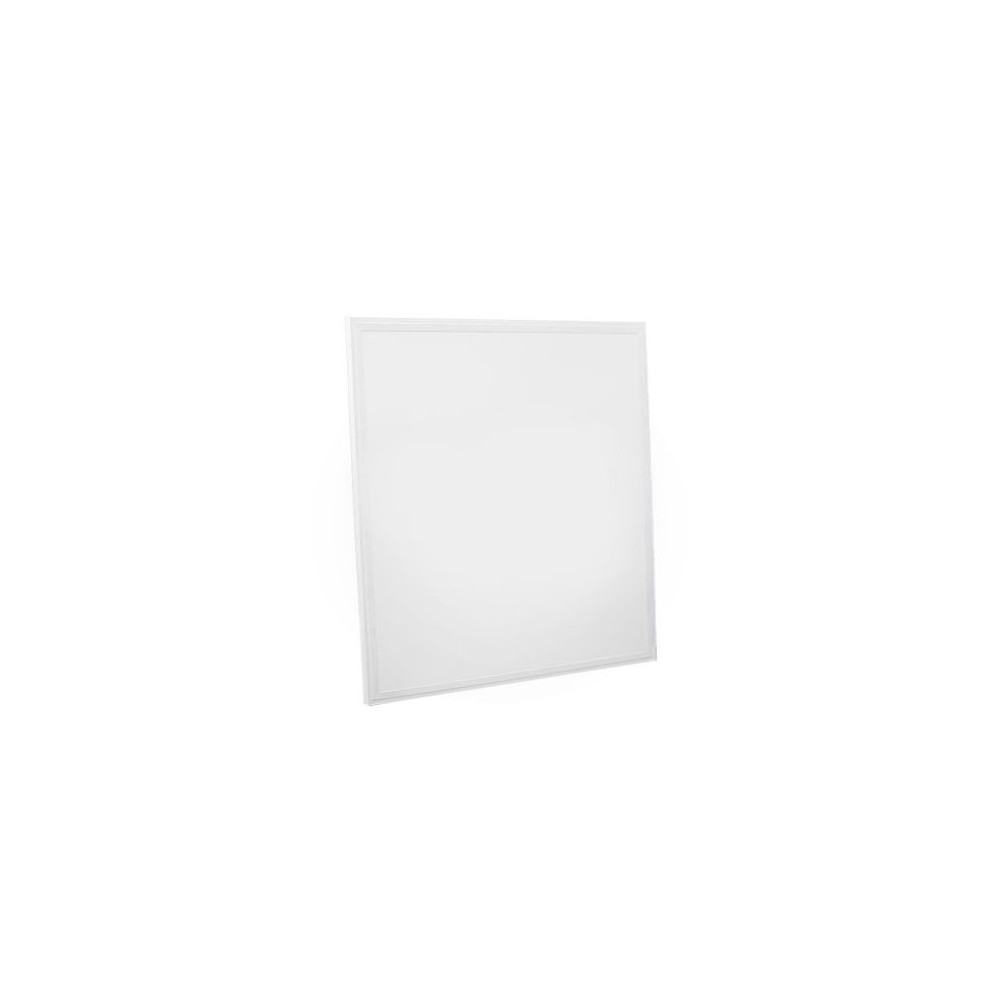

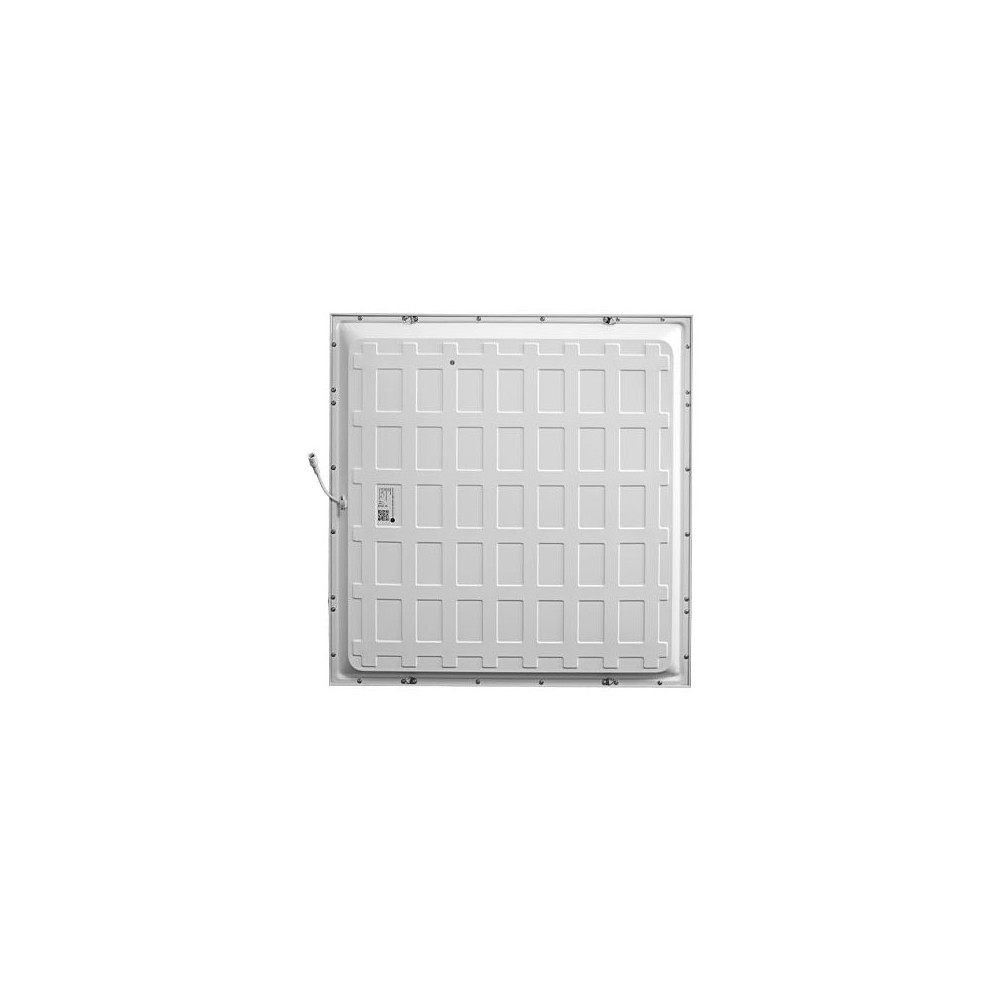

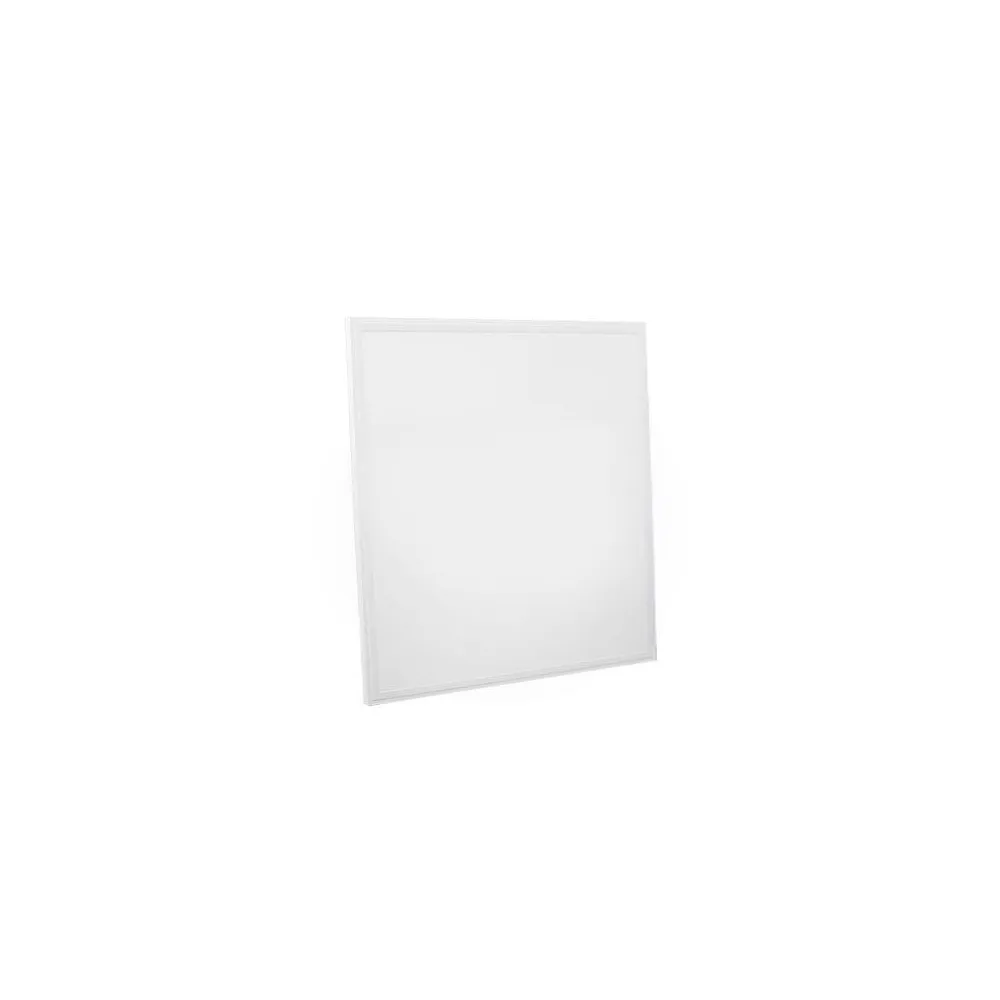

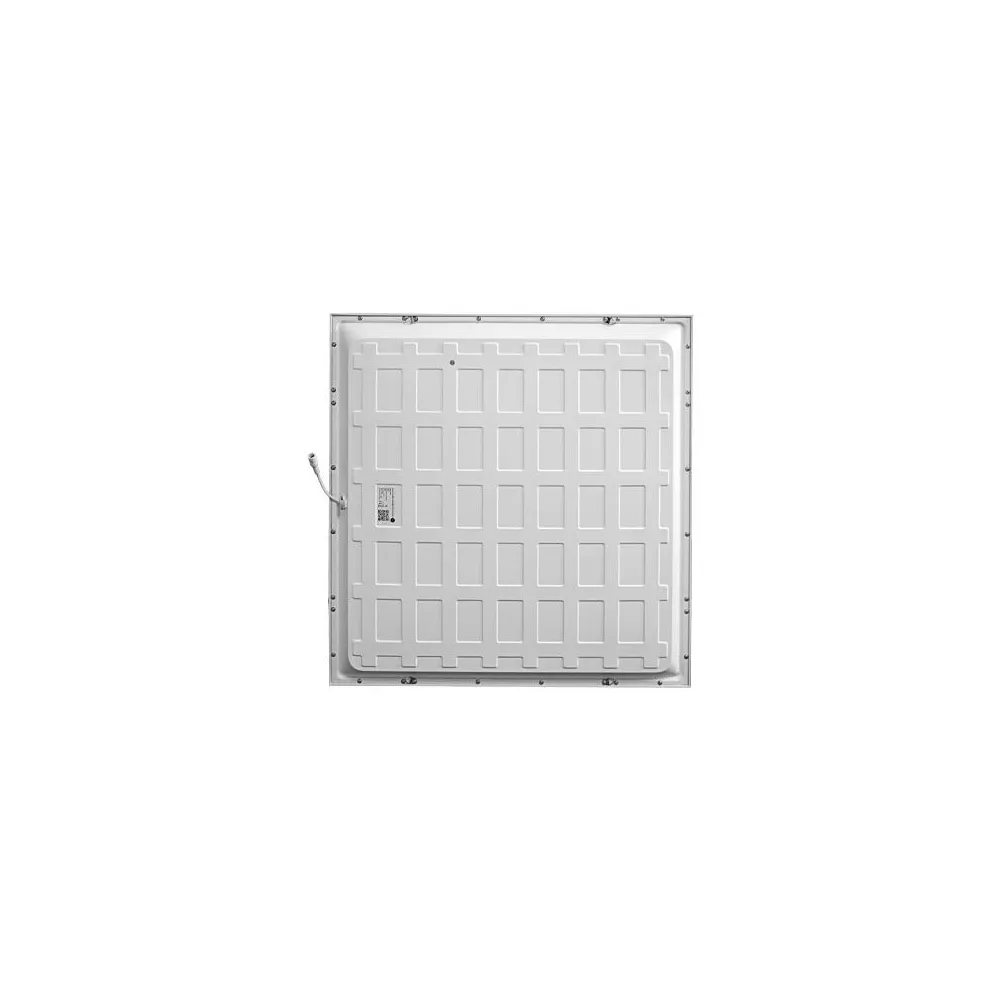

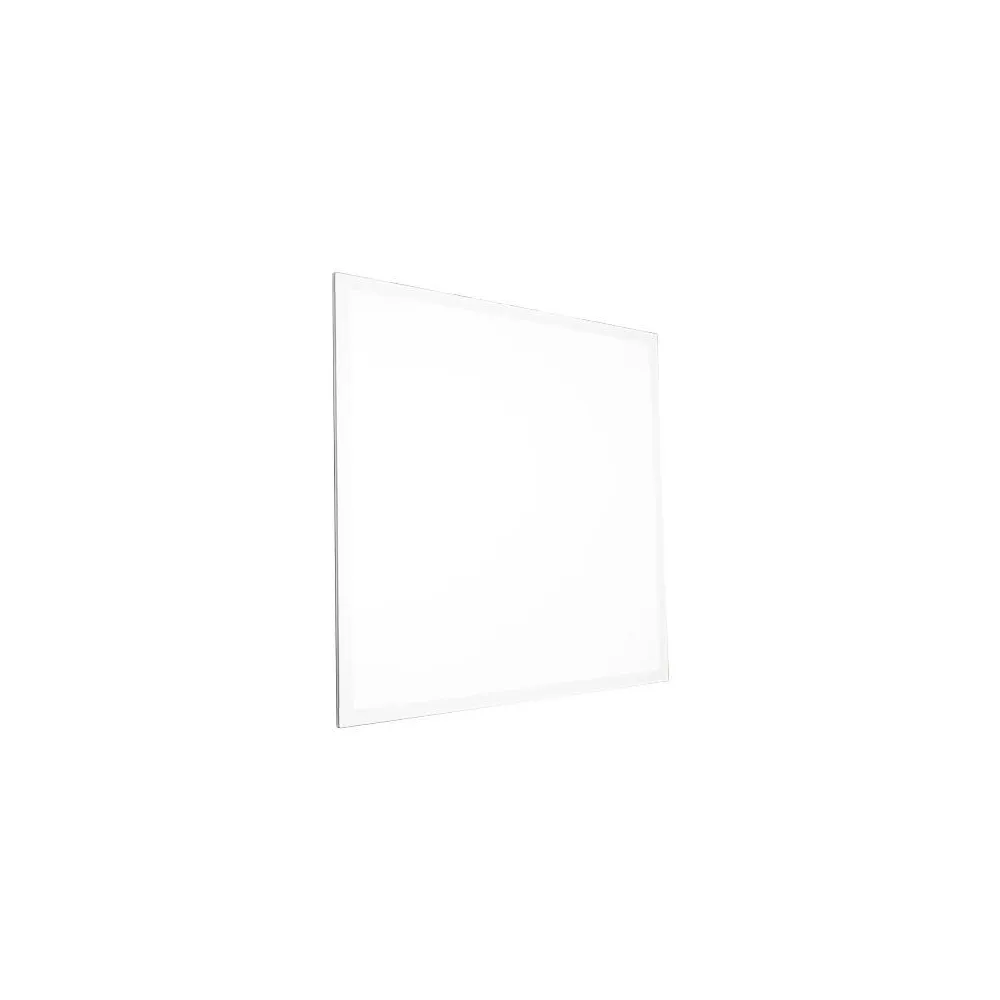

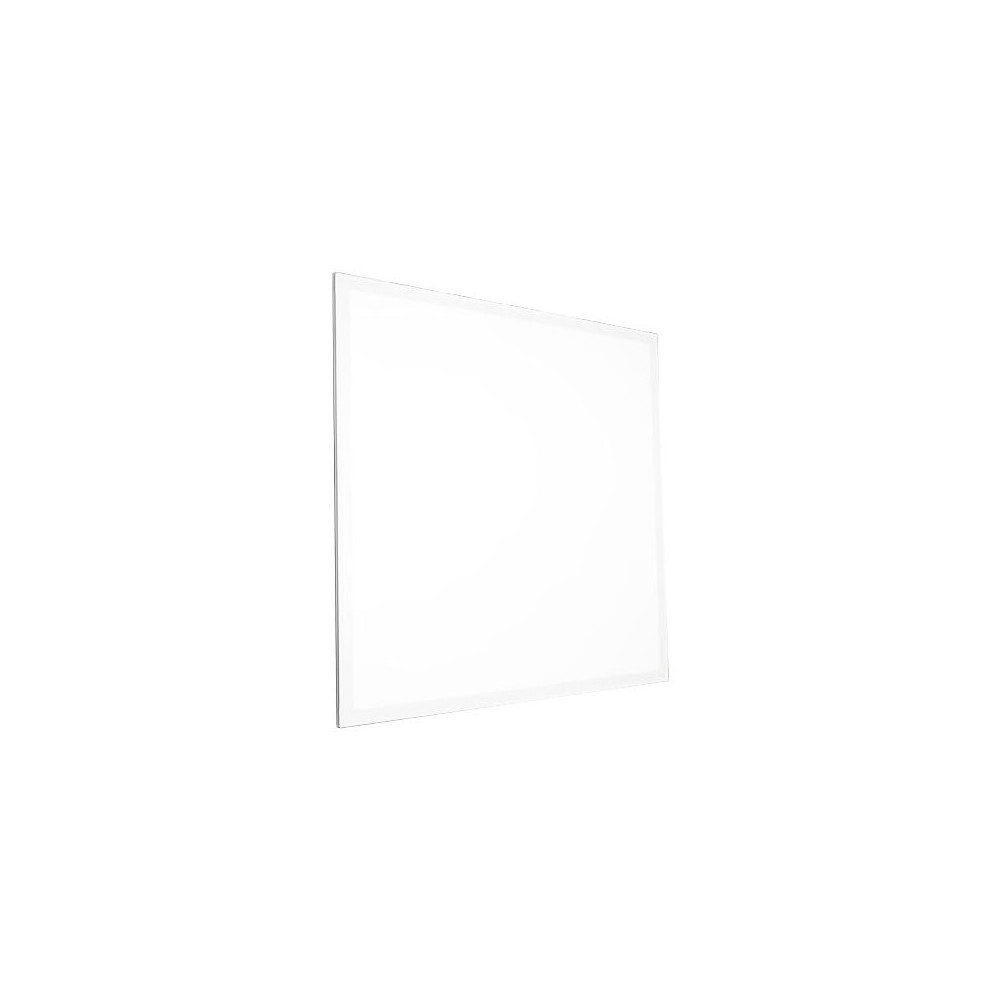

Panel CLAREO 600x600 ADVANCE 8 Without Driver

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

PEP certified

New CLAREO ADVANCE 8 Panel

Energy efficiency up to 120 lm/W

Available in 2 powers:

  • 27W - 3400 lm --> Driver 700mA
  • 40W - 4200 lm --> Driver 1050mA

Equipped with "Backlight" technology, this luminaire has excellent uniformity.

Ideal installation and compatible in all offices or rooms equipped with a suspended ceiling.

Designed for intensive use, with a 5-year warranty and 50,000 hours.

Opal diffuser for UGR < 19 for optimal eye comfort.

Box contents: 1 panel with a safety wire included and a quarter-turn connector.

Other possible installation modes: with integration frame, surface-mounted and suspension kit (with surface-mounted frame), sold separately.

Notable points:

  • Value for money
  • Long lifespan: L80B10 = 50,000 hours
  • Warranty: 5 years
  • UGR < 19

General characteristics
Lifetime 50 000 h
Brand CLAREO
Range ADVANCE
Product family Panels
Installation environment Office
Repairable YES
Warranty 5 years
Electrical characteristics
Current Up to 1,050 mA
Power 27 to 40W
Electrical class Class III
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 3400 - 4200 lm
Energy savings - 30 %
Lumens efficiency 130 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
Physical characteristics and dimensions

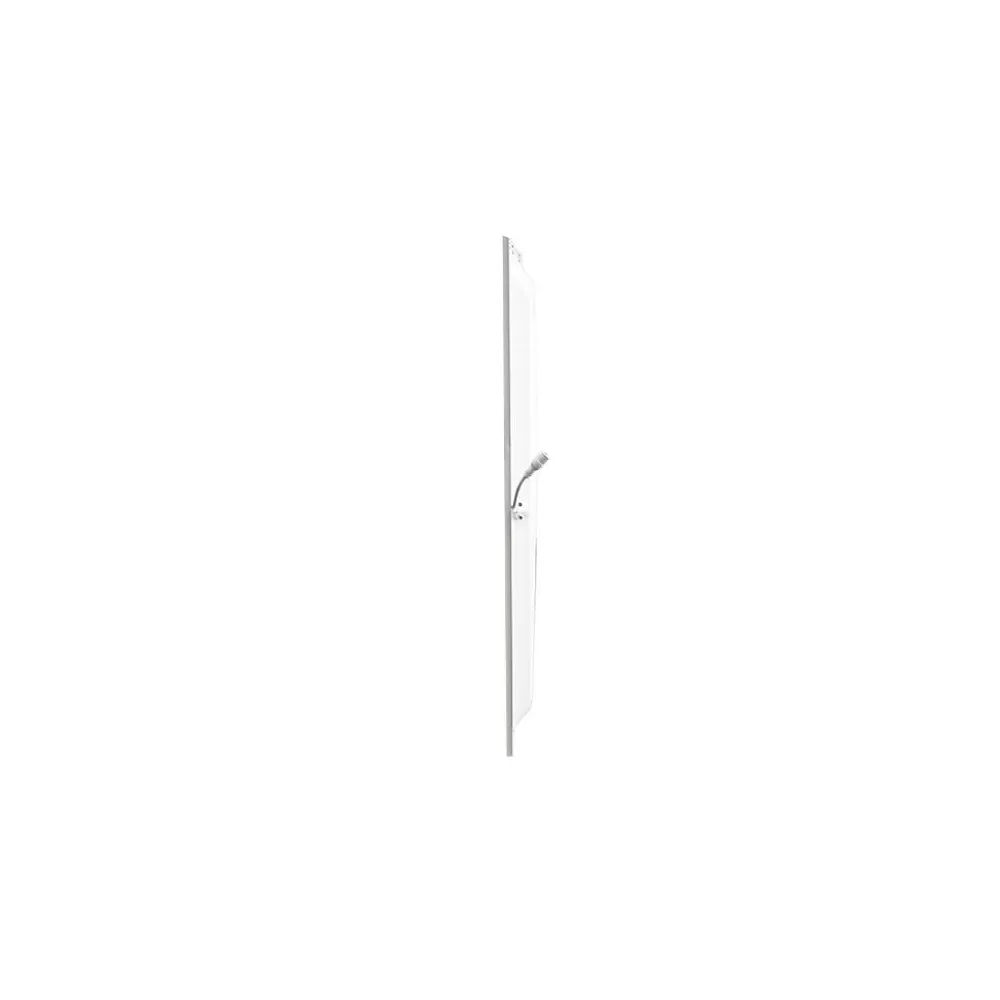

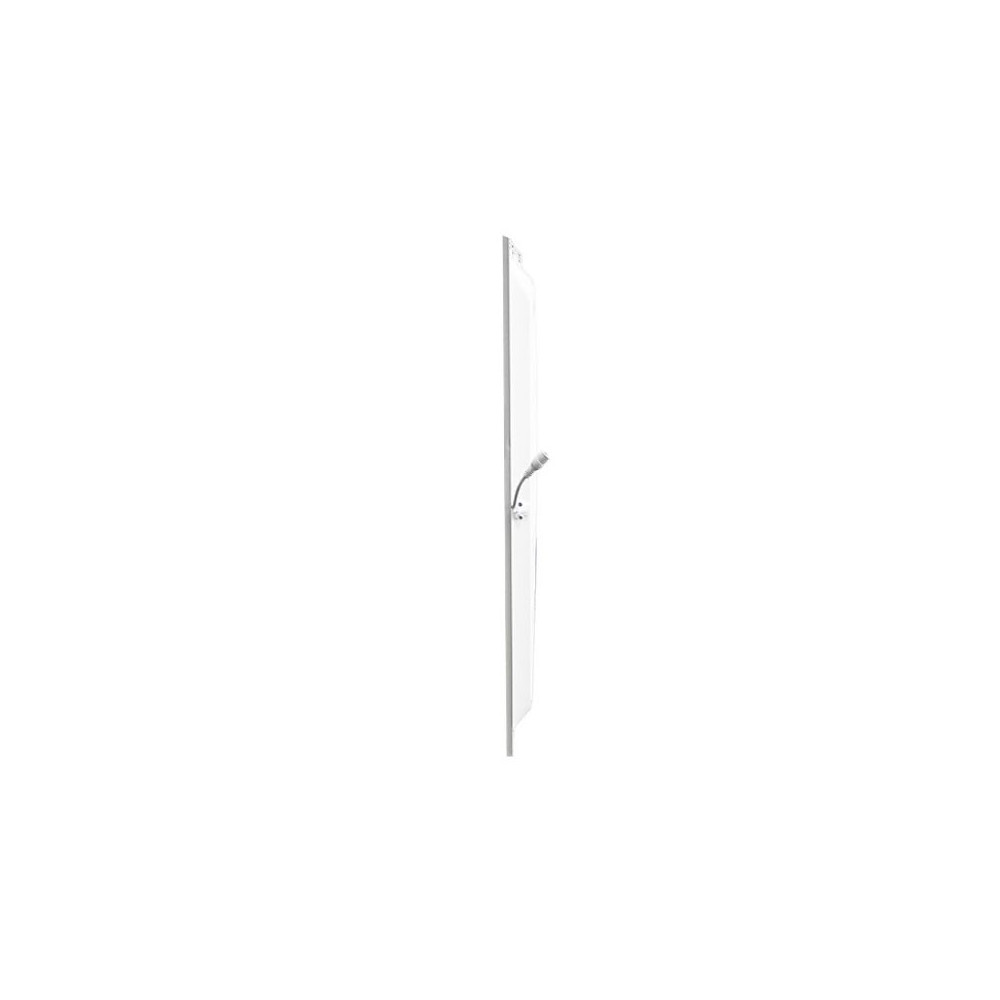

Height 30 mm
Width 595 mm
Length 595 mm
Net weight 1.7 kg
Waterproof No
IP IP44
IK IK03
Product color White
Standard panel dimensions 600 x 600
Detailed color White
Standards and regulations
Carbon footprint 435 kgCO2eq
