PEP certified

New CLAREO ADVANCE 9 Panel

Energy efficiency up to 160 lm/W

Equipped with "Backlight" technology, this luminaire provides excellent uniformity.

Ideal installation and compatible in all offices or rooms equipped with a false ceiling.

Designed for intensive use, with a 7-year warranty and 100,000 hours.

Opal diffuser for UGR < 19 for optimal eye comfort.

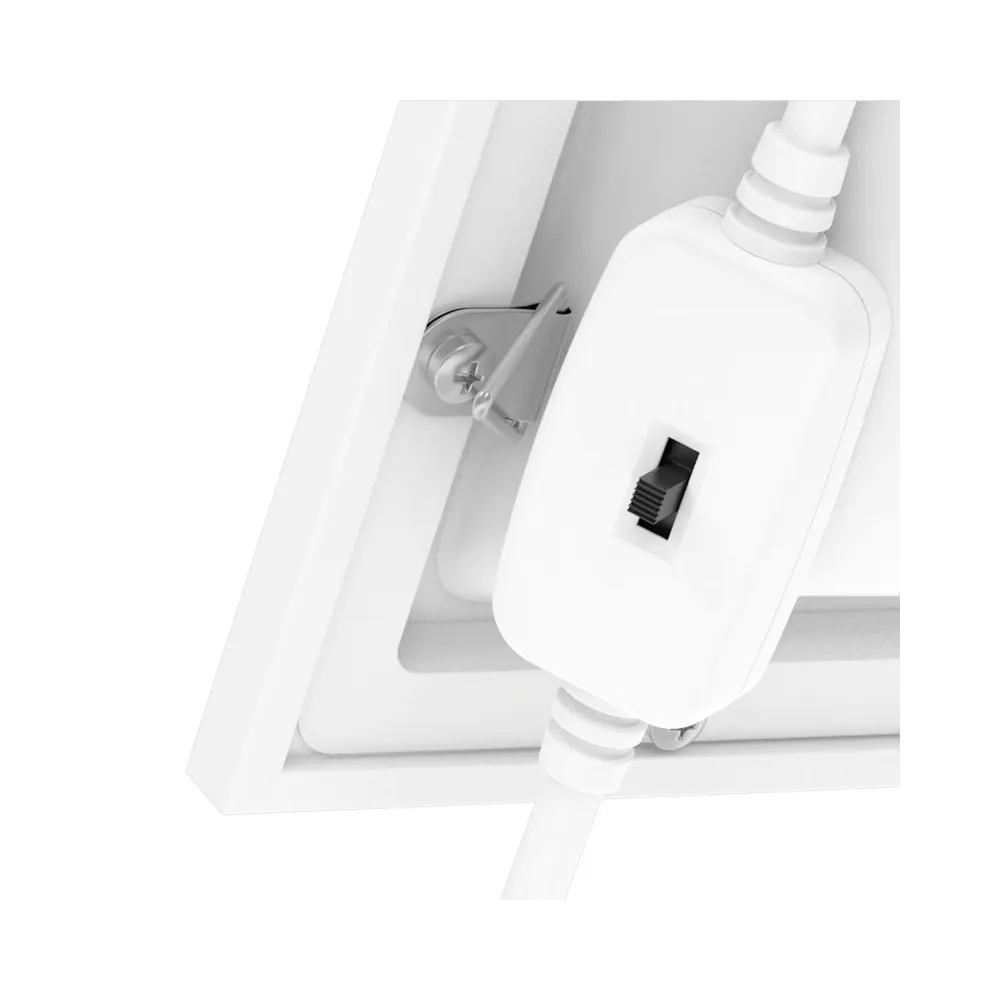

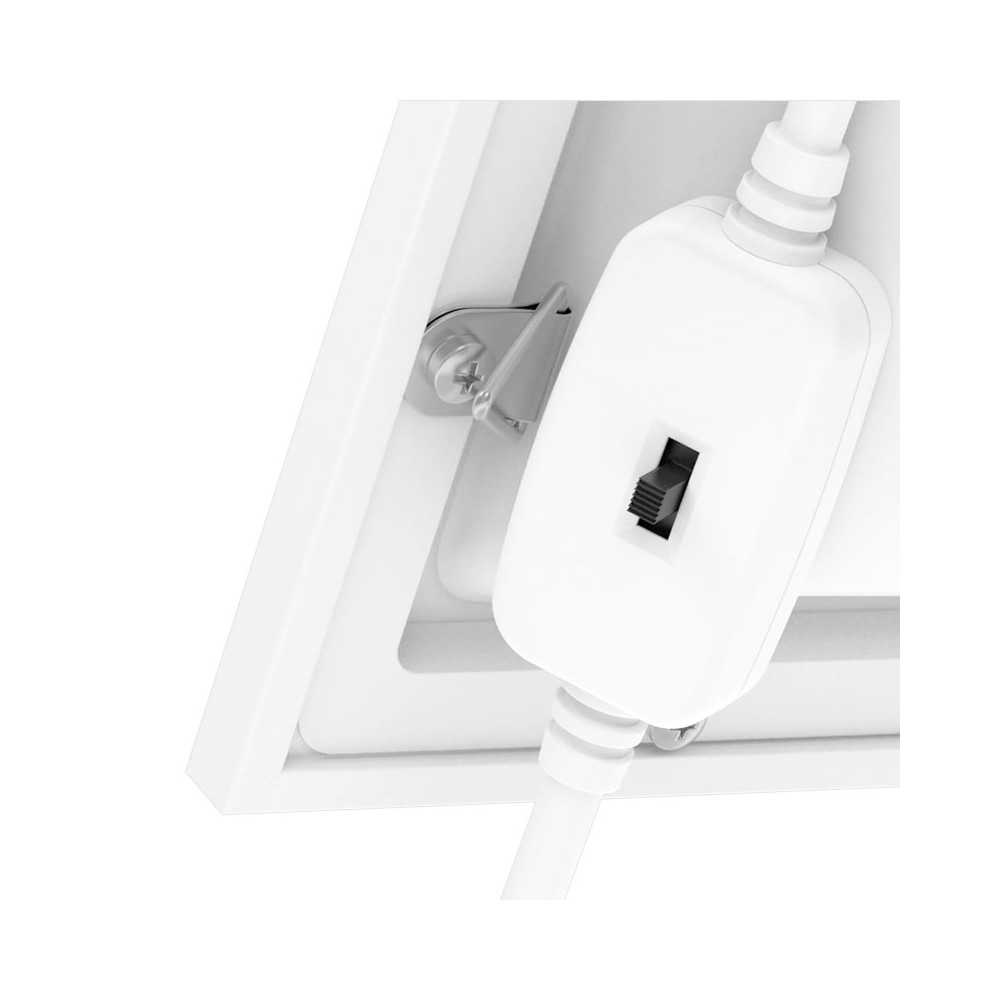

A version available with CCT switch 3000-4000-6000K to provide you with more flexibility.

Box contents: 1 panel with safety cable included and a quarter-turn connector.

Other installation options available: with integration frame, surface mounting and suspension kit (with surface frame), sold separately.

Notable points:

  • Value for money
  • Long lifespan: L80B10 = 100,000 hours
  • Warranty: 7 years
  • UGR < 19

Ref: PAN.9356A9

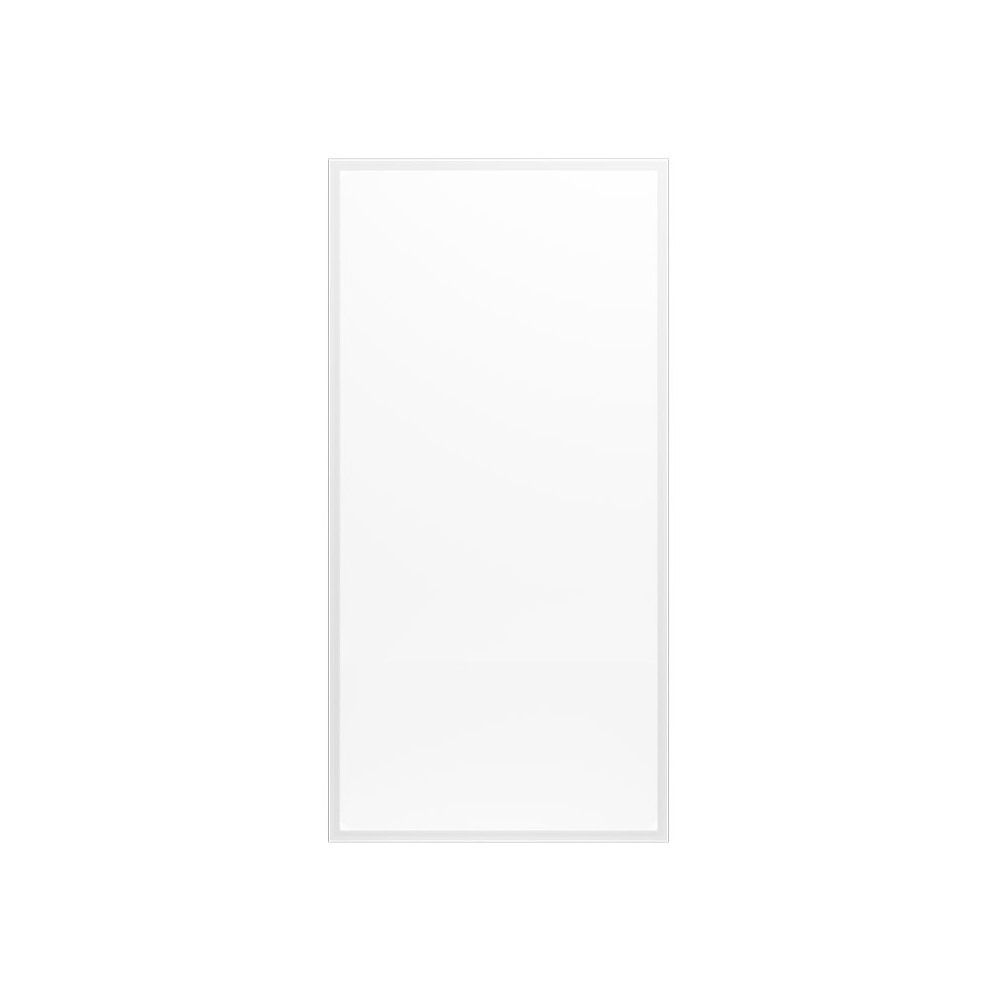

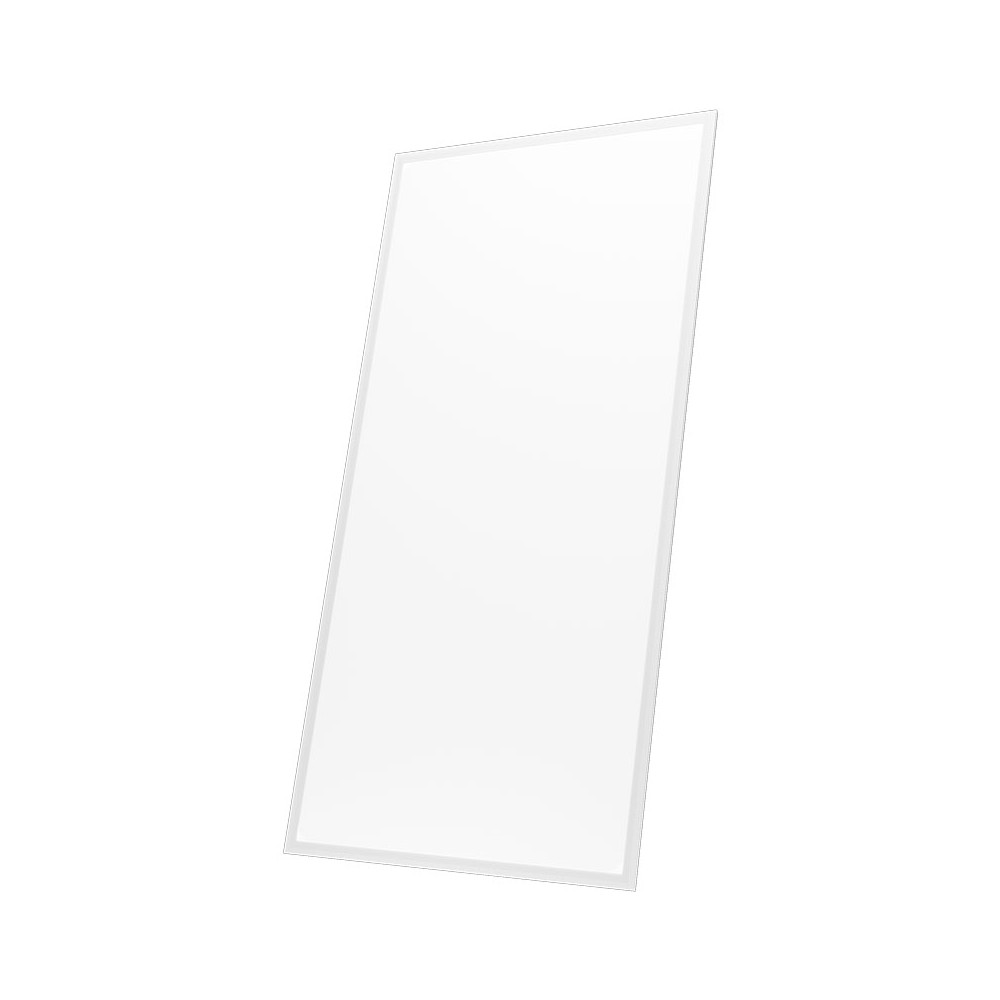

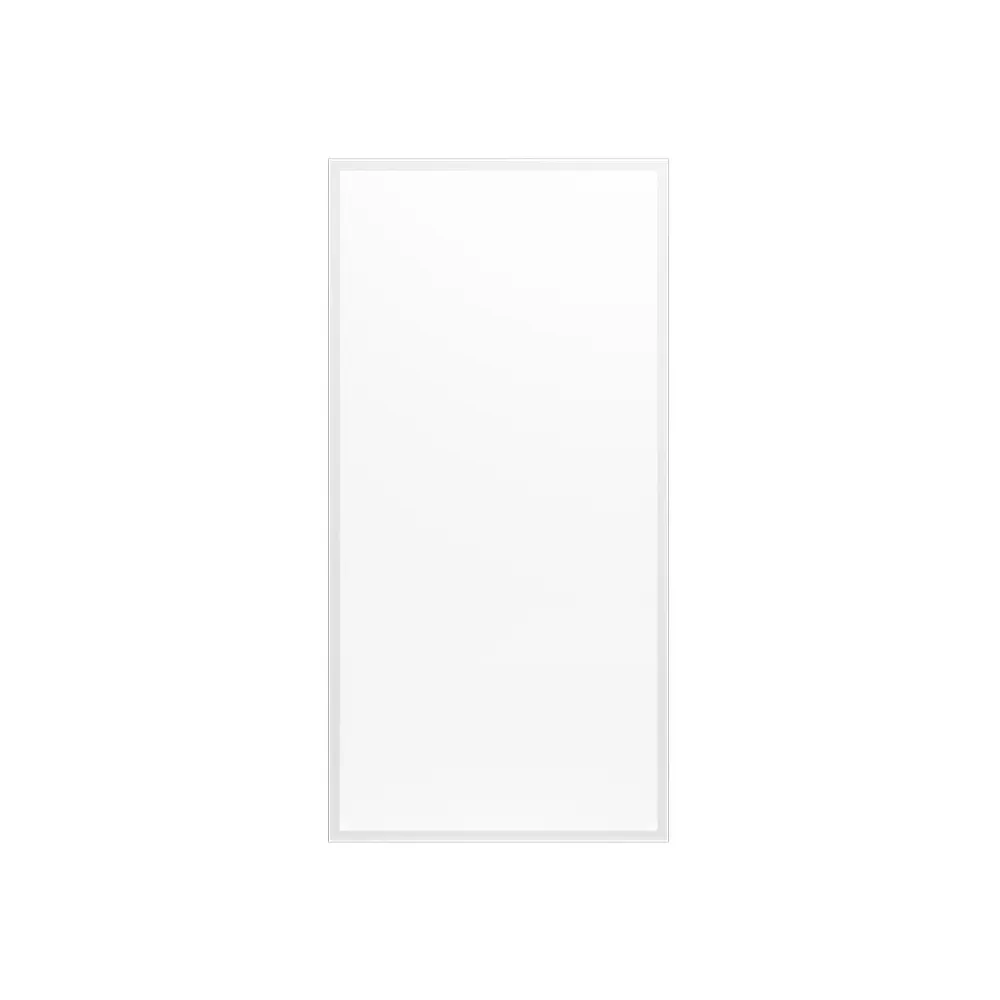

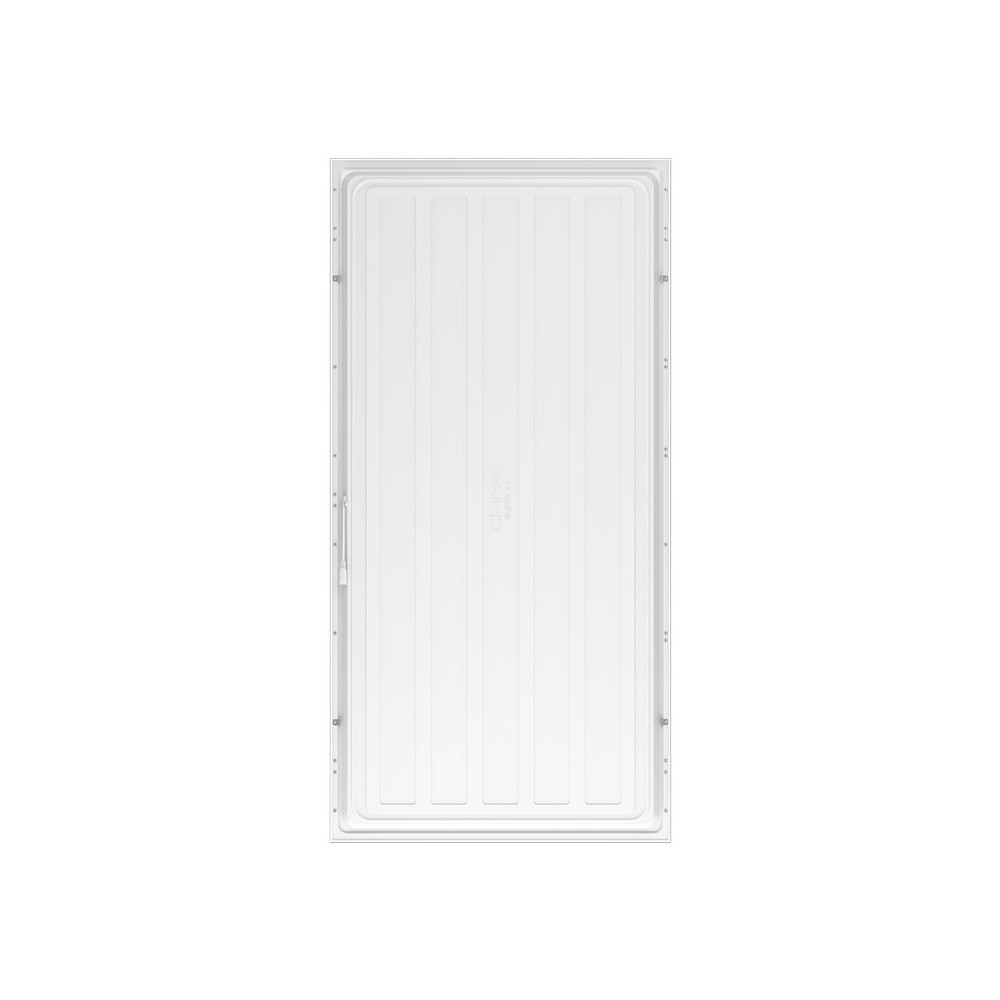

CLAREO Panel 1200x600 40W 160lm/W ADVANCE 9 Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

PEP certified

New CLAREO ADVANCE 9 Panel

Energy efficiency up to 160 lm/W

Equipped with "Backlight" technology, this luminaire provides excellent uniformity.

Ideal installation and compatible in all offices or rooms equipped with a false ceiling.

Designed for intensive use, with a 7-year warranty and 100,000 hours.

Opal diffuser for UGR < 19 for optimal eye comfort.

A version available with CCT switch 3000-4000-6000K to provide you with more flexibility.

Box contents: 1 panel with safety cable included and a quarter-turn connector.

Other installation options available: with integration frame, surface mounting and suspension kit (with surface frame), sold separately.

Notable points:

  • Value for money
  • Long lifespan: L80B10 = 100,000 hours
  • Warranty: 7 years
  • UGR < 19


General characteristics
Lifetime 100,000 h
Brand CLAREO
Range ADVANCE
Product family Panels
Installation environment Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Current Up to 1,050 mA
Power 40 W
Electrical class Class III
Power range 26-50 W
EU energy class 2019/2015 B
Lighting characteristics
Technology LED
Lumens output 6150 - 6400 lm
Energy savings - 50 %
Lumens efficiency 160 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 110 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 19
Lumens range 5000-7499 lm
Physical characteristics and dimensions

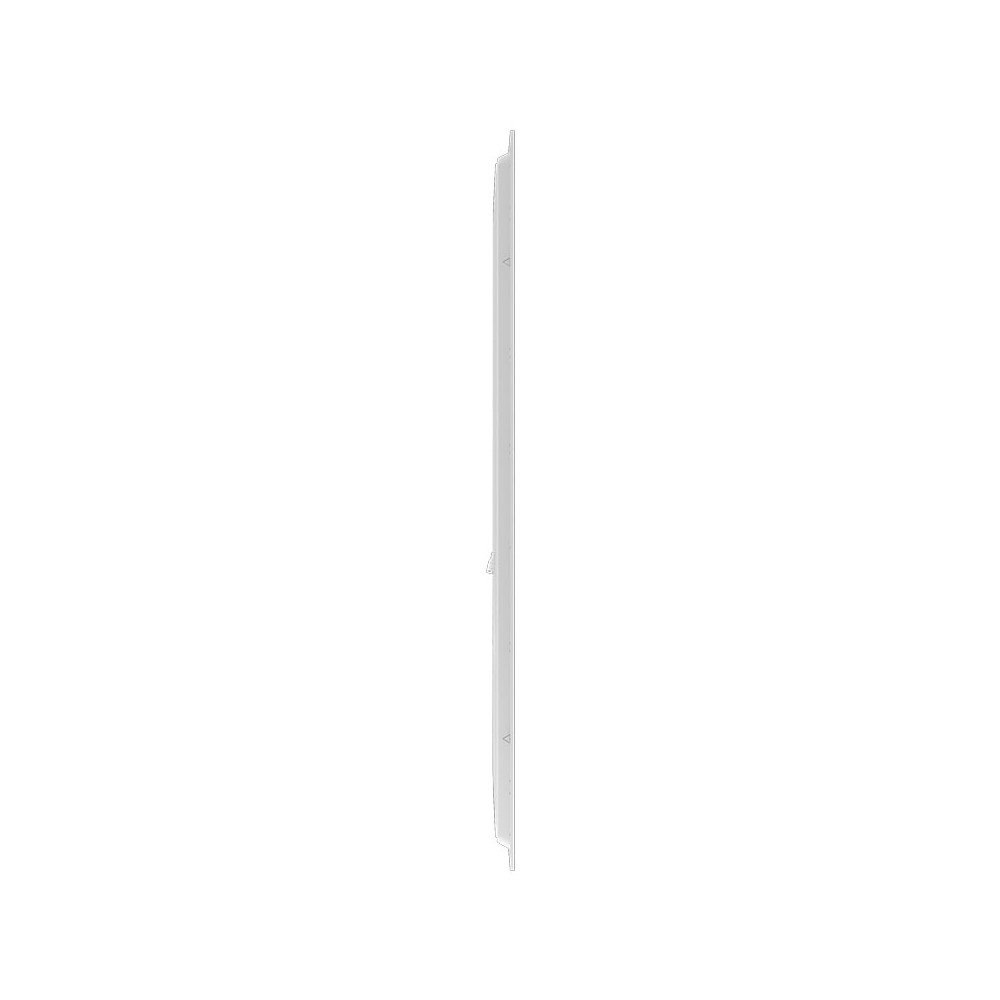

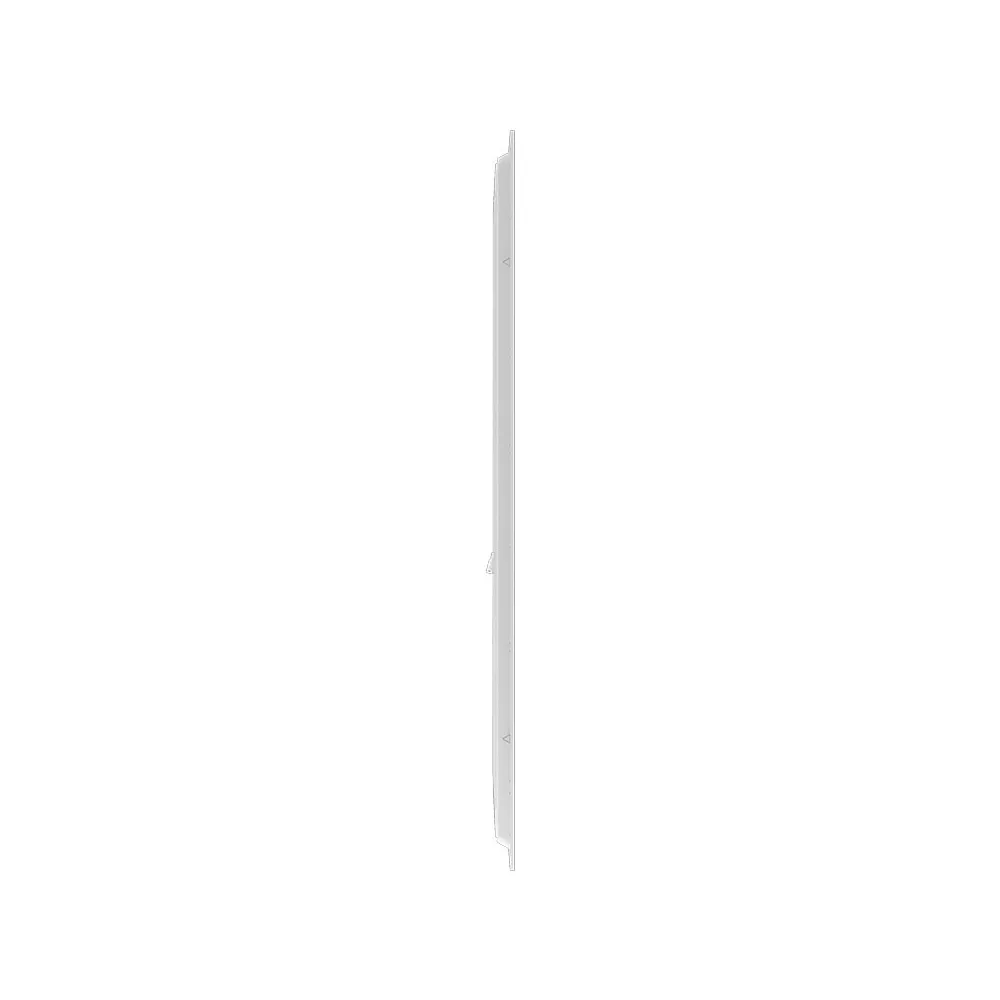

Height 32 mm
Standard length 120 cm
Width 595 mm
Length 1,195 mm
Net weight 2.5 kg
Materials Steel
Waterproof No
IP IP44
IK IK03
Product color White
Working temperature Max 45 °C
Standard panel dimensions 1200 x 600
Detailed color White
Type SMD 2835
Standards and regulations
CEE BAT-EQ-127
Standards CE
