The robust waterproof fixture for your technical spaces



The EverPark ADVANCE 4 is the ideal solution for your lighting projects in demanding environments: car parks, technical rooms and storage areas. Combining exceptional robustness and ease of installation, it adapts to any project requiring performance and simplicity of implementation.

With its high IP66 and IK10 protection, the EverPark is perfectly suited to humid and dusty environments, offering maximum resistance to impacts and water. Its installation is also simple and fast thanks to tool-free wiring with push-in terminal blocks and 304 stainless steel clips adjustable along the full length, ideal for relamping. Its through-wiring design also allows multiple luminaires to be connected in series, thereby limiting cabling costs on large installations.

Compatible with surface mounting or suspension (with accessory kit), it adapts to all your configurations. Its 7-year warranty and service life L80B10 of 60,000 hours also demonstrate its exceptional reliability.

Box contents: 1 Everpark, 2 surface-mounting clips (304 stainless steel), 2 M6 40 mm screws, 2 wall plugs, 2 suspension brackets, 2 waterproof caps for cable gland

Key features:

  • Available in ON/OFF or DALI
  • Screw-in PIR or HF detector available as an accessory
  • Luminous efficacy up to 170 lm/W
  • IP66 / IK10
  • 7-year warranty
Ref: TUB.8273A4

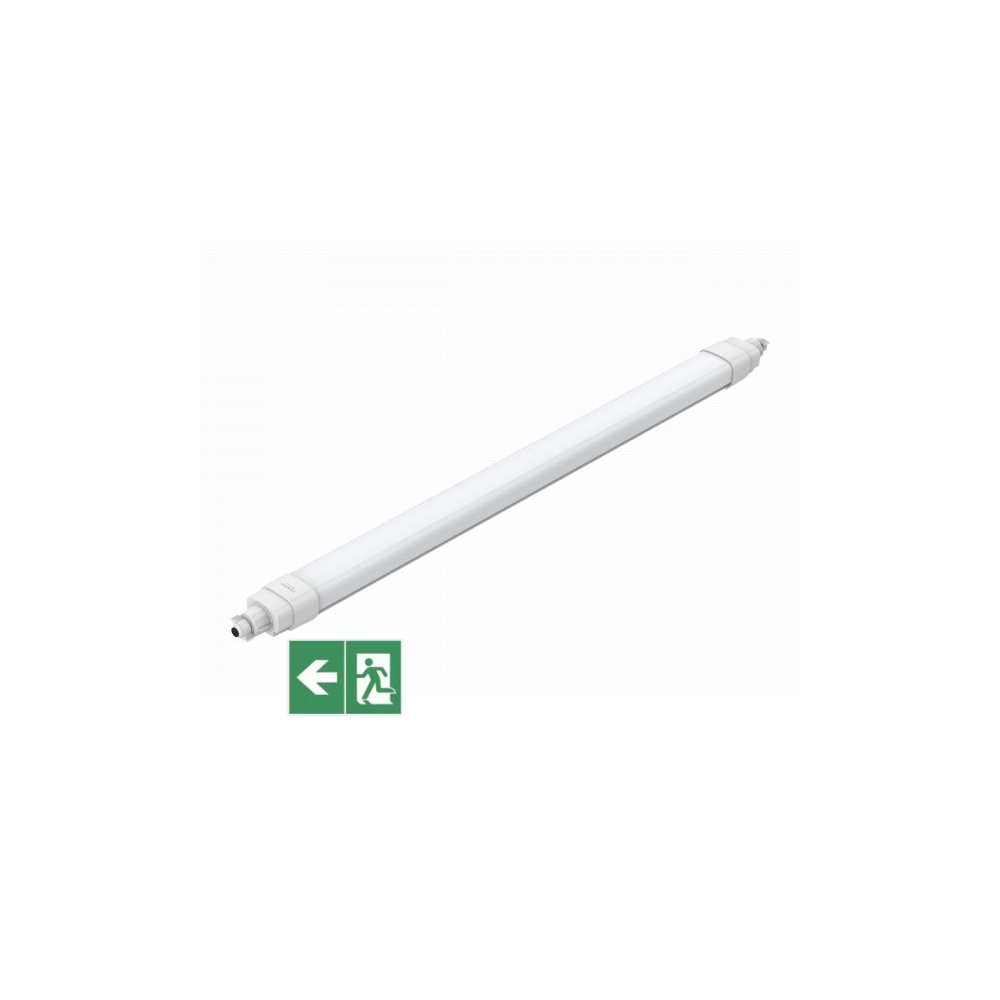

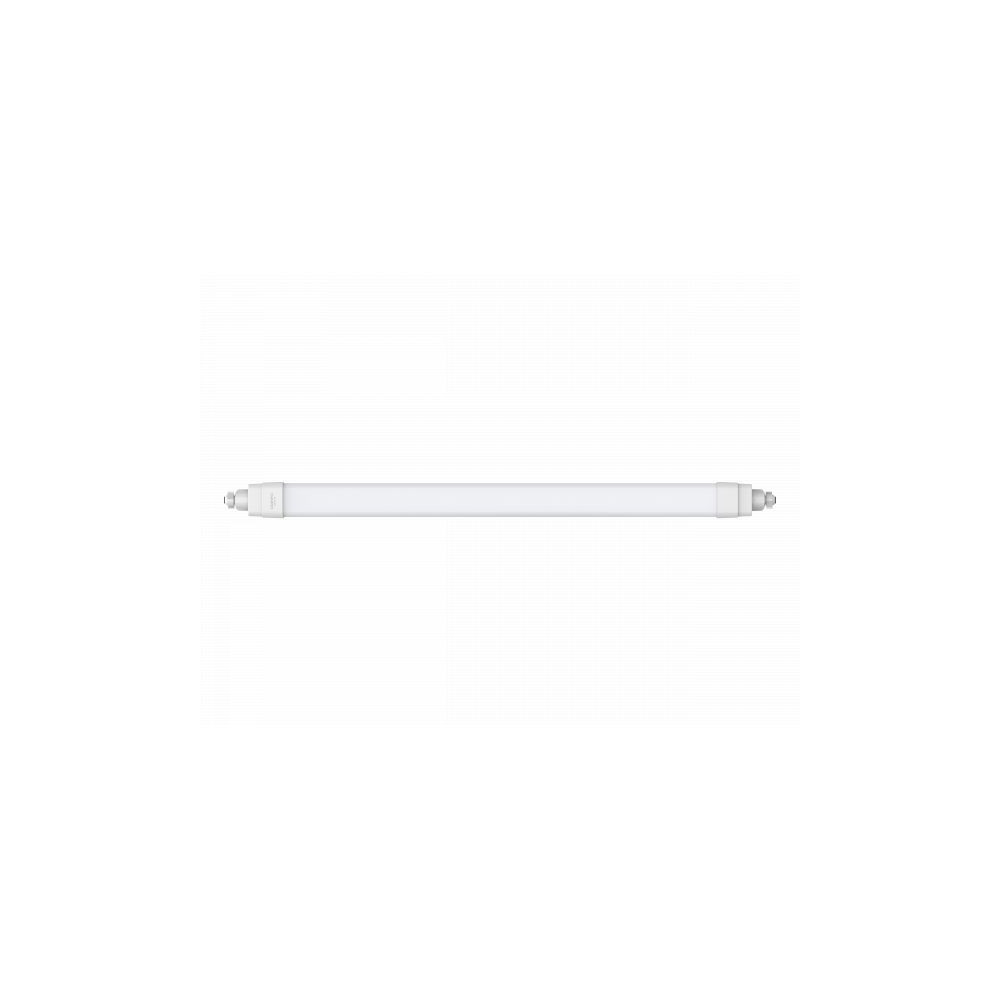

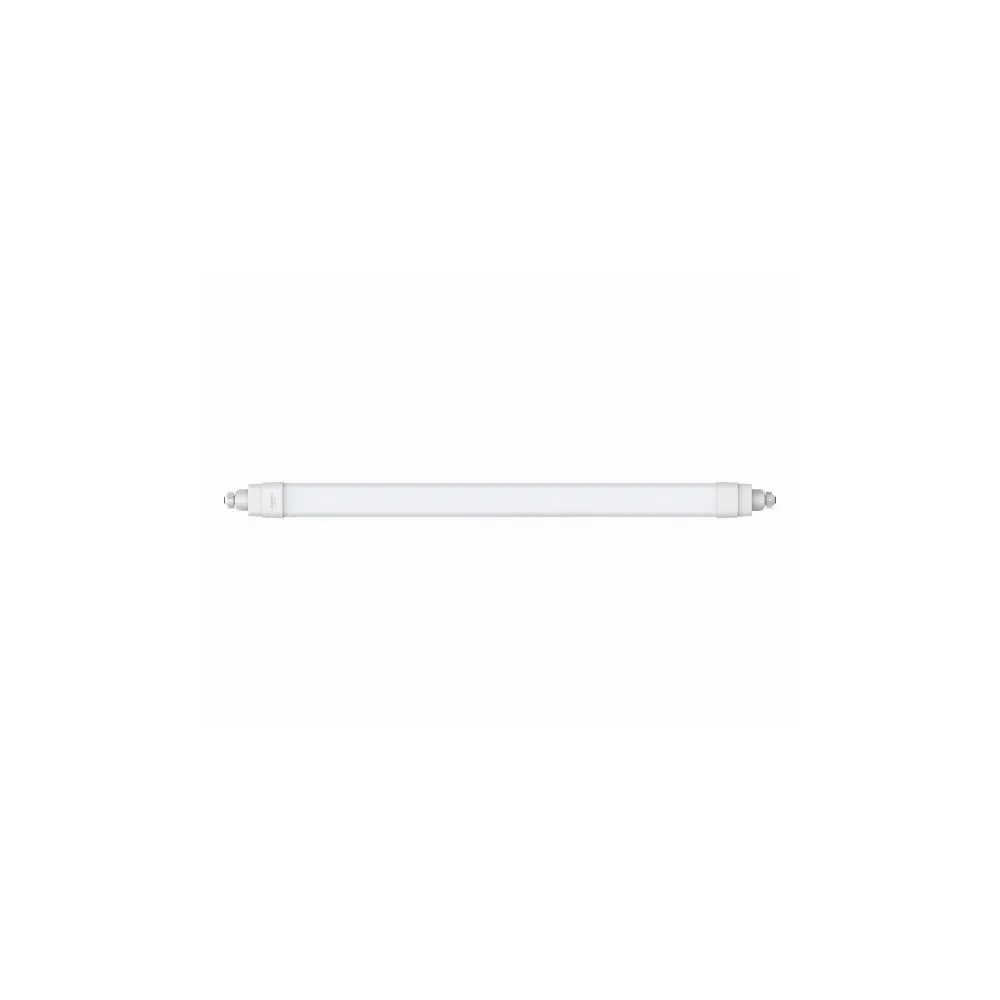

EverPark Emergency 120cm 25W 160lm/W ADVANCE 4

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

Currently out of stock
Delivery: contact us
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

The robust waterproof fixture for your technical spaces



The EverPark ADVANCE 4 is the ideal solution for your lighting projects in demanding environments: car parks, technical rooms and storage areas. Combining exceptional robustness and ease of installation, it adapts to any project requiring performance and simplicity of implementation.

With its high IP66 and IK10 protection, the EverPark is perfectly suited to humid and dusty environments, offering maximum resistance to impacts and water. Its installation is also simple and fast thanks to tool-free wiring with push-in terminal blocks and 304 stainless steel clips adjustable along the full length, ideal for relamping. Its through-wiring design also allows multiple luminaires to be connected in series, thereby limiting cabling costs on large installations.

Compatible with surface mounting or suspension (with accessory kit), it adapts to all your configurations. Its 7-year warranty and service life L80B10 of 60,000 hours also demonstrate its exceptional reliability.

Box contents: 1 Everpark, 2 surface-mounting clips (304 stainless steel), 2 M6 40 mm screws, 2 wall plugs, 2 suspension brackets, 2 waterproof caps for cable gland

Key features:

  • Available in ON/OFF or DALI
  • Screw-in PIR or HF detector available as an accessory
  • Luminous efficacy up to 170 lm/W
  • IP66 / IK10
  • 7-year warranty

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Triproofs
Installation environment Retail, Parking
Quick installation YES
Warranty 7 years
Electrical characteristics
Voltage 220-240 V AC
Power 25 W
Electrical class Class II
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 0-25 W
EU energy class 2019/2015 C
Lighting characteristics
Technology LED
Lumens output 4000 lm
Energy savings - 50 %
Lumens efficiency 160 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 25
Lumens range 4000-4999 lm
Physical characteristics and dimensions
Height 59 mm
Standard length 120 cm
Width 79 mm
Length 1,200 mm
Net weight 1,2 kg
Materials Polycarbonate
Waterproof YES
IP IP66
IK IK10
Product color White
Working temperature 32 °F to 104 °F
Detailed color White
Installation mode Surface mounted, Wall mounted, Pendant mounted
Standards and regulations
CEE BAR-EQ-110
Standards CE, RoHS
Carbon footprint 15.75 kgCO2eq
