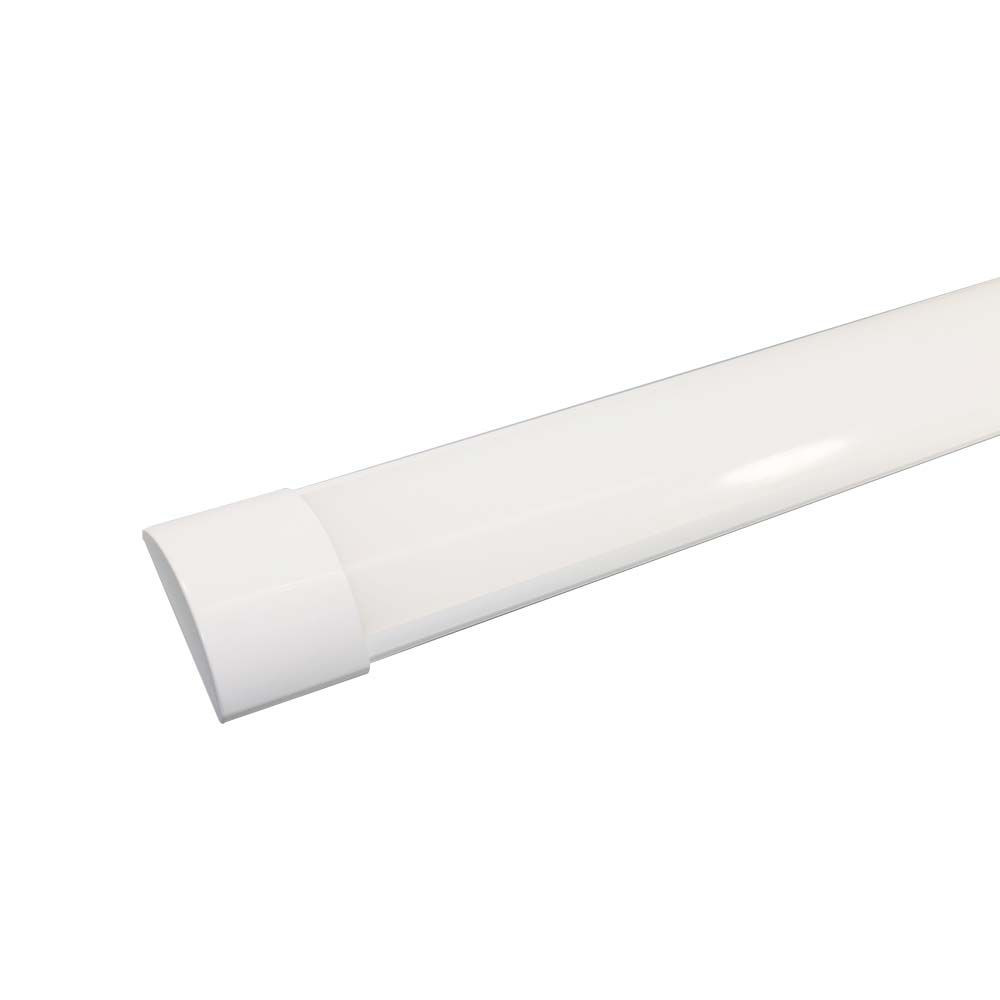

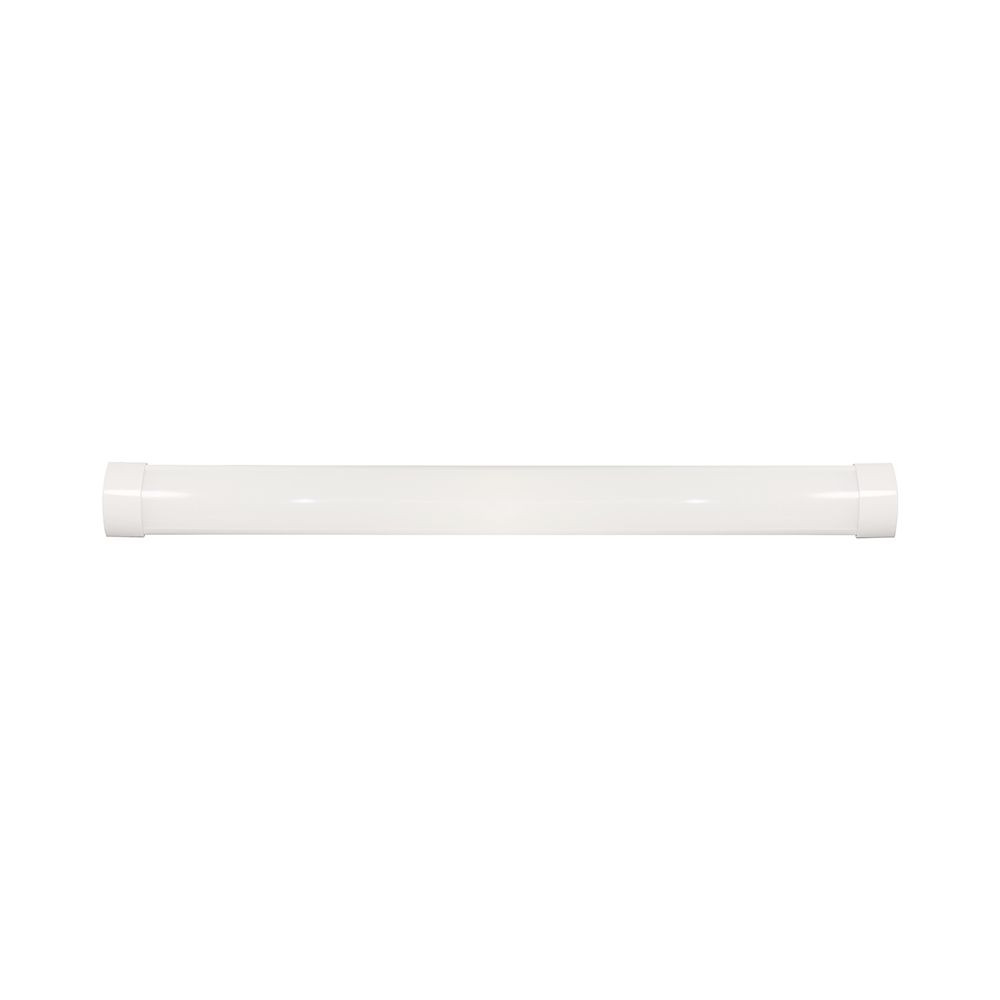

LED Batten V-TAC 60cm 20W 120lm/W CREE Chip START VT-8-20

For your sleek surface-mounted installations, choose this IP20 LED batten V-TAC equipped with a CREE chip!

With a lifespan of 30,000 hours and a 6-year warranty, this LED batten is a highly reliable product.

Size: 60 cm
Power: 20 W
Luminous efficacy: 120 lm/W
Strengths: its price, its sleek design

V-TAC 60cm 20W 120lm/W CREE Chip START VT-8-20 LED Batten

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

For your sleek surface-mounted installations, choose this IP20 LED batten V-TAC equipped with a CREE chip!

With a lifespan of 30,000 hours and a 6-year warranty, this LED batten is a highly reliable product.

Size: 60 cm
Power: 20 W
Luminous efficacy: 120 lm/W
Strengths: its price, its sleek design

General characteristics

Lifetime	30,000 h
Brand	V-TAC

Range	START
Product family	Triproofs
Warranty	6 years

Electrical characteristics

Voltage	220-240 V AC
Power	20 W

Facteur de puissance >	0.7
EU energy class 2019/2015	E
ON/OFF Cycles	15,000

Lighting characteristics

Technology	LED
Lumens output	2050 - 2400 lm
Energy savings	- 30 %

Lumens efficiency	120 lm/W
Beam Angle	120 deg
IRC >	80

Physical characteristics and dimensions

Height	24 mm
Standard length	55 cm
Width	76 mm
Length	566 mm
Net weight	0.2 kg
Materials	Plastic
Waterproof	No

IP	IP20
IK	IK06
Product color	White
Working temperature	-20 °C to 40 °C
Detailed color	White
Installation mode	Surface mount
Type	CREE

Standards and regulations

Carbon footprint	24.6 kgCO2eq

Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here
