Trackline CLAREO 150cm 70W TECH 2 for Multi-Phase Rail: High-performance linear lighting for your modular system

The Trackline TECH 2 150cm 70W delivers powerful and efficient linear lighting for your CLAREO Multi-Phase Rail, with its 13,300 lumens and its exceptional efficiency of 195 lm/W. Ideal for demanding industrial and commercial applications.

This Trackline connects directly to the 12-phase rail (DALI, Emergency, and other uses), offering a 50% energy saving while ensuring optimal visual comfort (CRI> 80). Its lifespan of 70,000 hours ensures reduced maintenance and a long-lasting investment.

Its IP40 and IK06 protection makes it suitable for tertiary and industrial environments.

Robust and high-performing, it benefits from the 7-year CLAREO warranty.



Key highlights:

  • 13,300 lm with an efficiency of 195 lm/W
  • CRI> 80 for optimal visual comfort, UGR < 19 for 30°
  • Lifespan of 70,000 hours
  • Compatible with the 12-conductor Multi-Phase Rail (DALI, Emergency)
  • IP40 and IK06
  • 7-year warranty
Ref: RST.3386T1

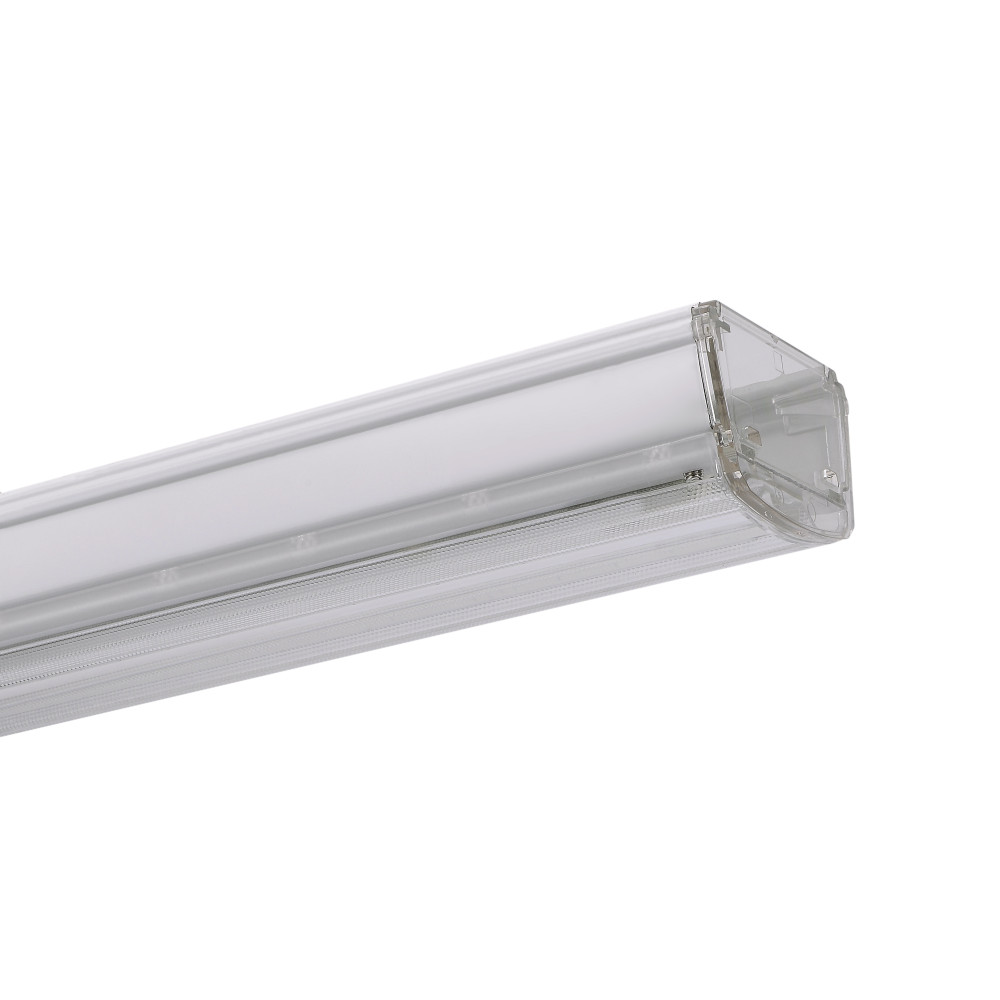

Trackline CLAREO 150cm 70W TECH 2 for Multi-Phase Track

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

Diffuser

Driver

Type

Product color

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

Trackline CLAREO 150cm 70W TECH 2 for Multi-Phase Rail: High-performance linear lighting for your modular system

The Trackline TECH 2 150cm 70W delivers powerful and efficient linear lighting for your CLAREO Multi-Phase Rail, with its 13,300 lumens and its exceptional efficiency of 195 lm/W. Ideal for demanding industrial and commercial applications.

This Trackline connects directly to the 12-phase rail (DALI, Emergency, and other uses), offering a 50% energy saving while ensuring optimal visual comfort (CRI> 80). Its lifespan of 70,000 hours ensures reduced maintenance and a long-lasting investment.

Its IP40 and IK06 protection makes it suitable for tertiary and industrial environments.

Robust and high-performing, it benefits from the 7-year CLAREO warranty.



Key highlights:

  • 13,300 lm with an efficiency of 195 lm/W
  • CRI> 80 for optimal visual comfort, UGR < 19 for 30°
  • Lifespan of 70,000 hours
  • Compatible with the 12-conductor Multi-Phase Rail (DALI, Emergency)
  • IP40 and IK06
  • 7-year warranty

General characteristics
Lifetime 70 000 h
Brand CLAREO
Range TECH
Product family Track Lights
Warranty 7 years
Electrical characteristics
Voltage 220-240 V AC
Current 430 mA
Power 70W/65W/60W/55W
Electrical class Class I
Facteur de puissance > 0,95
Taux de distorsion harmonique < 5%
EU energy class 2019/2015 A
Max power 70 W Max
Lighting characteristics
Technology LED
Lumens output 13300 lm
Energy savings - 50 %
Lumens efficiency 195 lm/W
Lifetime LXBY L80B10
Diffuser Microprismatic
Beam Angle Asymmetrical double
Photobiological risk GR1 - Low risk
IRC > 80
UGR < 30
Physical characteristics and dimensions
Height 1 449 mm
Width 39.5 mm
Length 69.5 mm
Net weight 1.9 kg
Materials Plastic
Waterproof No
IP IP40
IK IK06
Product color White
Working temperature -25 °C to 40 °C
Installation mode Pendant light with accessory
Type SMD
Standards and regulations
Standards CE, RoHS
Carbon footprint 11.4 kgCO2eq
