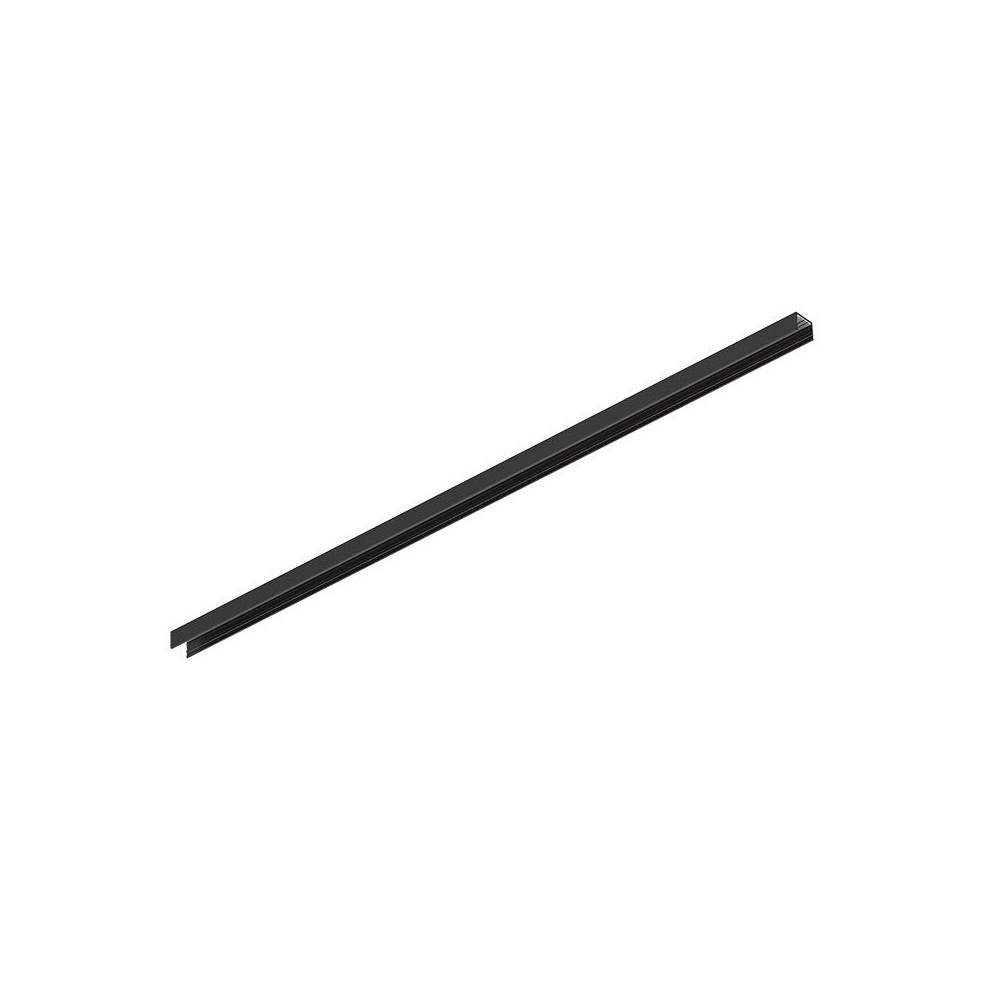

Mini Magnetic Rail ZAMBELIS DESIGN Sand Black 1.1m: the ultra-compact 24V system for slim integrations

The ZAMBELIS DESIGN mini magnetic rail of 1.1 m in sand black is the most discreet profile in the magnetic range, with an ultra-slim cross-section of only 12.5 × 10.5 mm. Operating on 24V, it is designed for installations in constrained spaces, integrated furniture, or very low-clearance supports where standard magnetic rails would be too bulky.

Its sand black aluminum construction ensures maximum durability and discretion. The 1,100 mm length allows precise lighting configurations in niches, shelves, and display areas of boutiques, high-end residences, and creative spaces.

Key features:

  • Ultra-slim cross-section 12.5 × 10.5 mm, the most compact in the magnetic range
  • 24V magnetic system for installations in constrained spaces
  • Length 1.1 m in sand black aluminum
  • 3-year warranty
Ref: ZAM.22261

Mini Magnetic Rail ZAMBELIS 1.1m DESIGN Sand Black 22261

save_alt Download the technical sheet
Currently out of stock
Delivery: contact us
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

Mini Magnetic Rail ZAMBELIS DESIGN Sand Black 1.1m: the ultra-compact 24V system for slim integrations

The ZAMBELIS DESIGN mini magnetic rail of 1.1 m in sand black is the most discreet profile in the magnetic range, with an ultra-slim cross-section of only 12.5 × 10.5 mm. Operating on 24V, it is designed for installations in constrained spaces, integrated furniture, or very low-clearance supports where standard magnetic rails would be too bulky.

Its sand black aluminum construction ensures maximum durability and discretion. The 1,100 mm length allows precise lighting configurations in niches, shelves, and display areas of boutiques, high-end residences, and creative spaces.

Key features:

  • Ultra-slim cross-section 12.5 × 10.5 mm, the most compact in the magnetic range
  • 24V magnetic system for installations in constrained spaces
  • Length 1.1 m in sand black aluminum
  • 3-year warranty

General characteristics
Brand ZAMBELIS
Range DESIGN
Product family Accessories
Installation environment Reception, Point of Sale, Architectural
Warranty 3 years
Lighting characteristics
Technology LED
Physical characteristics and dimensions
Height 12.5 mm
Standard length 115 cm
Width 10.5 mm
Length 1,100 mm
Net weight 0.3 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK02
Product color Black
Detailed color Sandy Black
