HYTRONIK
A remote 0-10V detector for commercial buildings and industry:
Thanks to a simple architecture based on the 0-10V communication protocol, benefit from smart lighting that adapts to lighting conditions in real-time, and will generate significant savings.
The Duo PIR/HF Technology combines PIR and HF detection in a single detector to eliminate false positives related to both detection technologies.
This detector, adjustable by remote control, makes it easy to control luminaires according to presence and ambient brightness:
- Light output power
- Detection range
- Hold time
- Switch-off warning: standby time
- Switch-off warning: power
- Twilight threshold
Choice between 4 detection modes: PIR only - HF only - Combined PIR and HF - Combined PIR or HF as needed.
Pre-setting via DIP-switch and adjustable by remote control once installed at height.
Key features:
- Maximum installation height: 12 m
- Maximum detection diameter: 20 m
- Detection type: PIR/HF

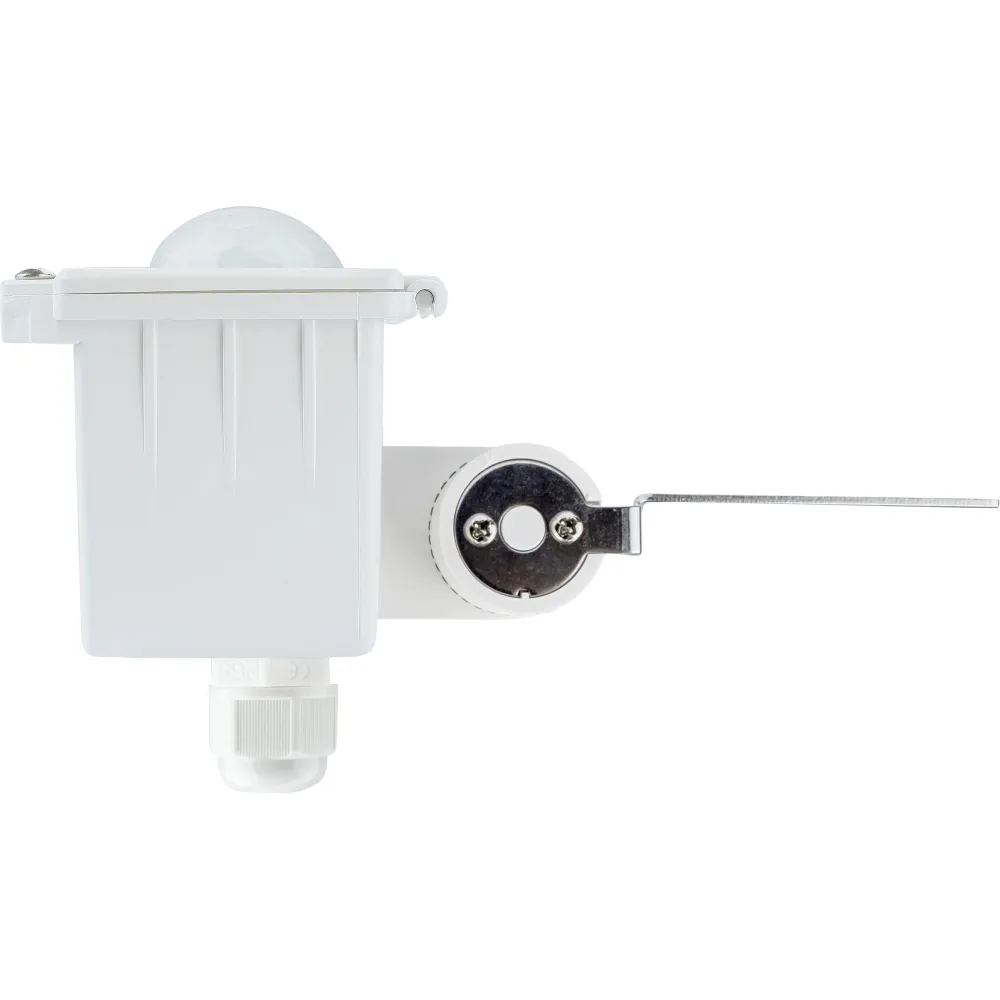

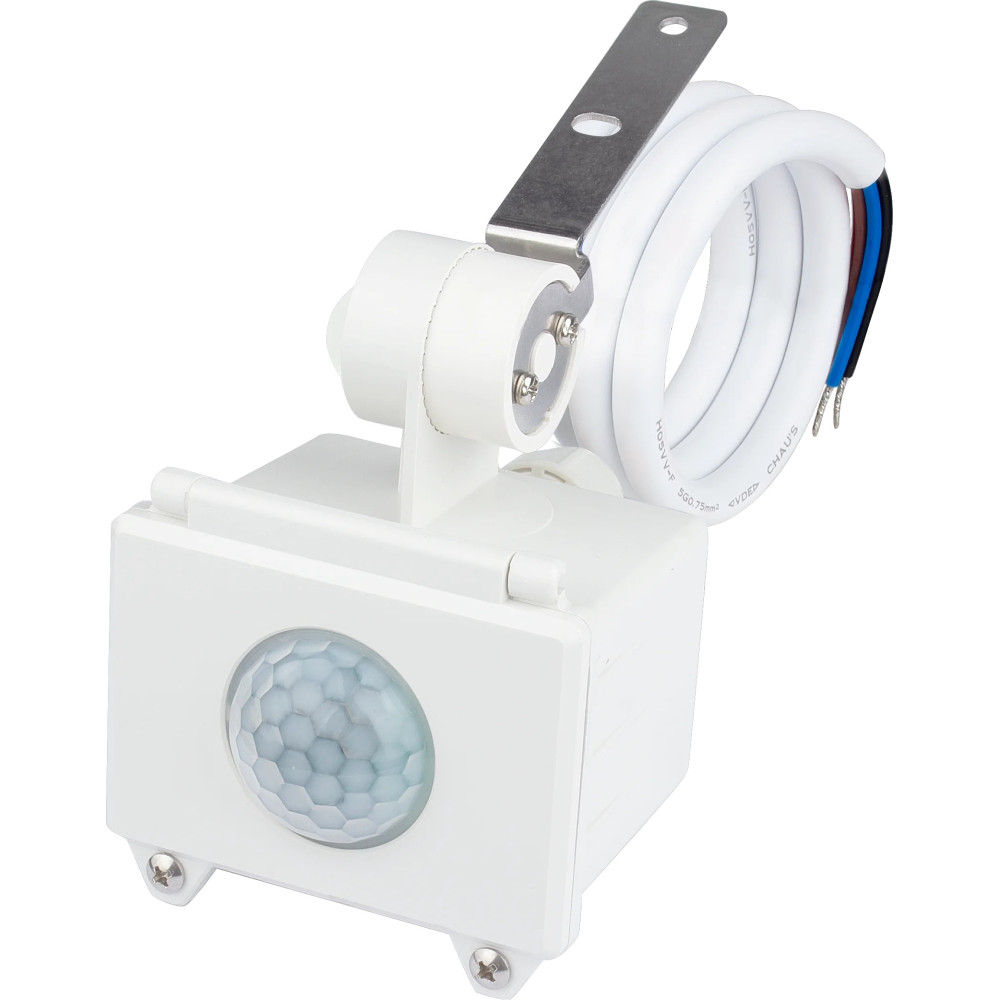

Delivered with adjustable C mounting and lens No. 1. To order other variations, please contact your sales representative.
