A remote DALI detector for commercial buildings and industry:

Thanks to a simple architecture based on the DALI communication protocol, enjoy intelligent lighting that adapts to brightness conditions in real-time, resulting in significant energy savings.

The Duo PIR/HF Technology combines PIR and HF detection in a single detector to eliminate false positives associated with both detection technologies.

This detector, adjustable by remote control, allows easy control of luminaires based on presence and ambient brightness:

• Light output power
• Detection range
• Hold time
• Switch-off warning: standby time
• Switch-off warning: power
• Daylight threshold

Option to choose between 4 detection modes: PIR only - HF only - Combined PIR and HF - Combined PIR or HF as needed.

Pre-set via DIP-switch and adjustable by remote control once installed at height.

Key features:

• Maximum installation height: 12 m
• Maximum detection diameter: 20 m
• Detection type: PIR/HF

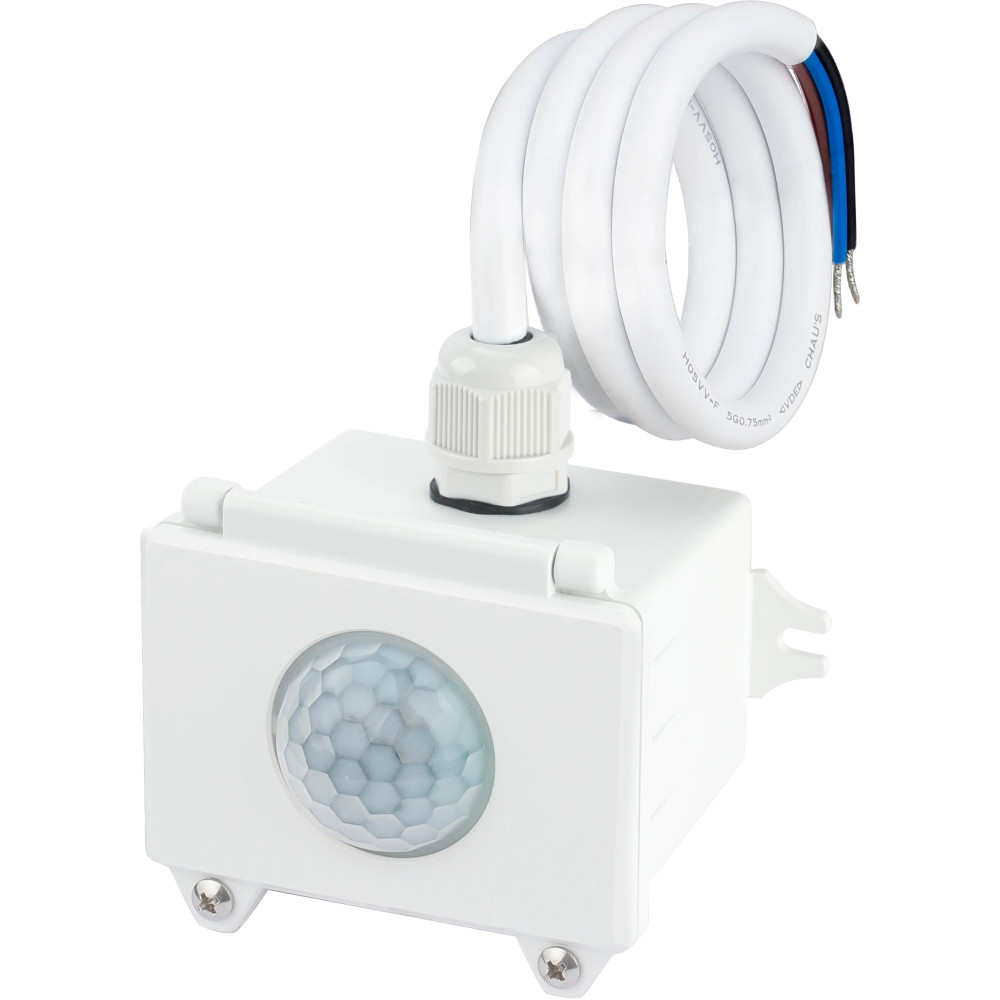

Supplied with surface mounting bracket A and lens No. 1. To order other variations, please contact your sales representative.
