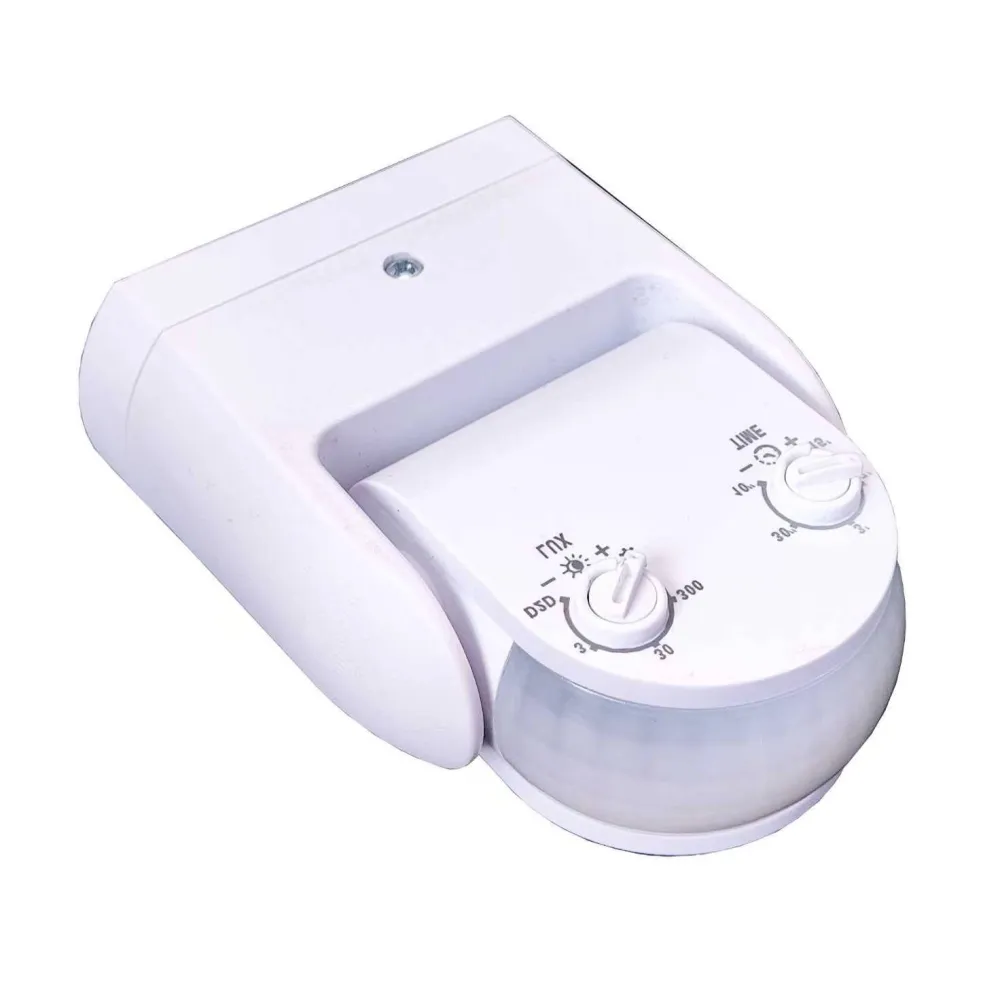

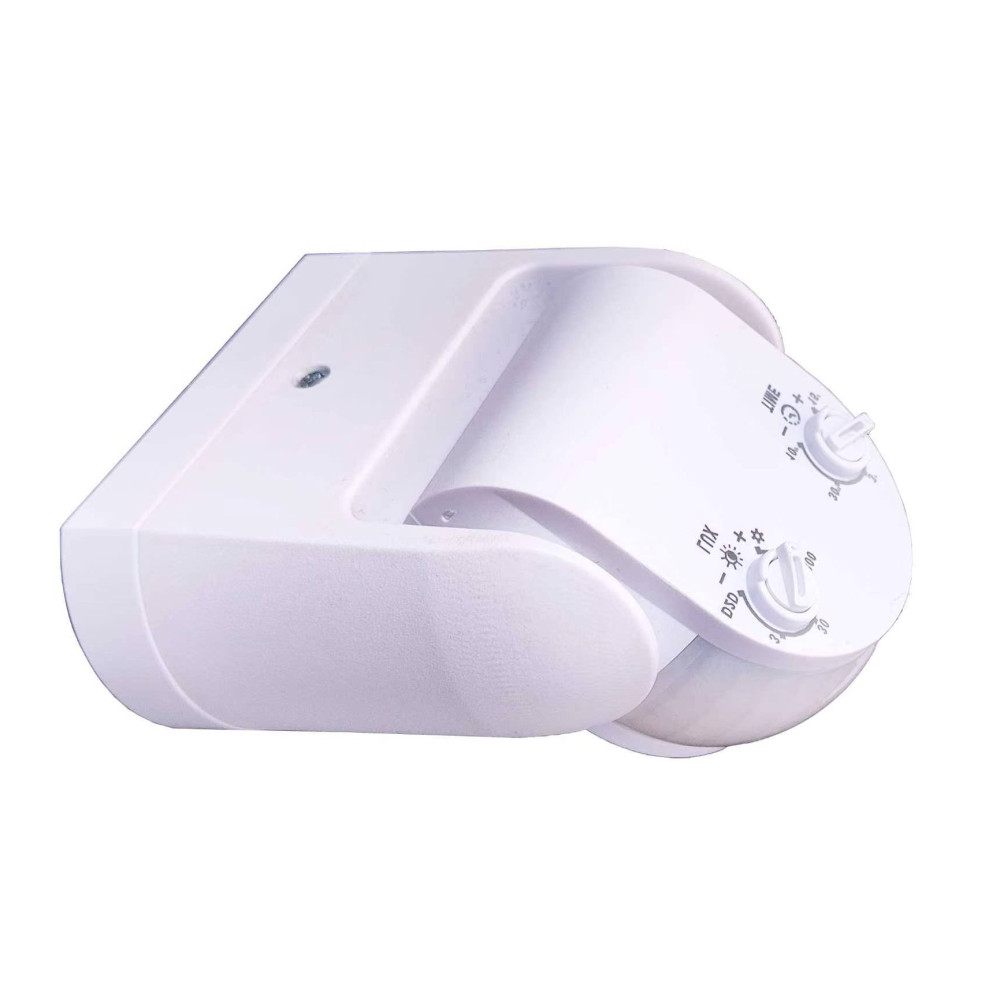

CLAREO ON/OFF Adjustable IP65 Wall-Mounted PIR Detector START

CLAREO ON/OFF Adjustable Wall PIR Detector IP65 START: Orientation flexibility and weatherproofing for optimal detection

The Adjustable Wall PIR Detector IP65 START is the ideal solution for all your projects requiring adjustable wall detection, combining weatherproofing, reliability and ease of installation. Designed to meet the essential needs of tertiary, commercial spaces and transit areas, it offers an excellent value for money without compromising on efficiency.

With its 180° detection angle covering up to Ø 12 m and 2.5 m in height and its adjustable twilight threshold from 10 to 2000 lux, the Adjustable Wall PIR Detector IP65 START perfectly adapts to your most demanding lighting constraints.

Thanks to its IP65 protection and its adjustable head, it guarantees enhanced weatherproofing and a precise adaptation of the detection zone according to your needs.

Its two adjustment dials also ensure simple and quick configuration directly on the device.

Key highlights:

Adjustable 180° wall detection with range Ø 12 m x 2.5 m
Adjustable twilight threshold from 10 to 2000 lux
Adjustable hold time from 10s to 15min
IP65 for enhanced weatherproofing
3-year warranty

CLAREO ON/OFF Adjustable IP65 Wall-Mounted PIR Detector START

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

CLAREO ON/OFF Adjustable Wall PIR Detector IP65 START: Orientation flexibility and weatherproofing for optimal detection

Thanks to its IP65 protection and its adjustable head, it guarantees enhanced weatherproofing and a precise adaptation of the detection zone according to your needs.

Its two adjustment dials also ensure simple and quick configuration directly on the device.

Key highlights:

Adjustable 180° wall detection with range Ø 12 m x 2.5 m
Adjustable twilight threshold from 10 to 2000 lux
Adjustable hold time from 10s to 15min
IP65 for enhanced weatherproofing
3-year warranty

General characteristics

Brand	CLAREO
Range	START
Product family	Accessories

Installation environment	Reception, Office, Circulation, Corridor, Exterior
Quick installation	YES
Warranty	3 years

Electrical characteristics

Voltage	220-240 V AC
Power	0.5 W
Electrical class	Class II
Dimmable	ON/OFF

Sensor	YES
Max power	300 W Max
Detector type	PIR
Maximum ground detection diameter	12 m

Physical characteristics and dimensions

Height	100 mm
Width	38 mm
Length	80 mm
Net weight	0.1 kg
Materials	ABS
Waterproof	No

IP	IP65
Product color	White
Working temperature	-20 °C to 40 °C
Detailed color	White
Maximum installation height	2 m
Installation mode	Wall light

Standards and regulations

Standards	CE, RoHS
