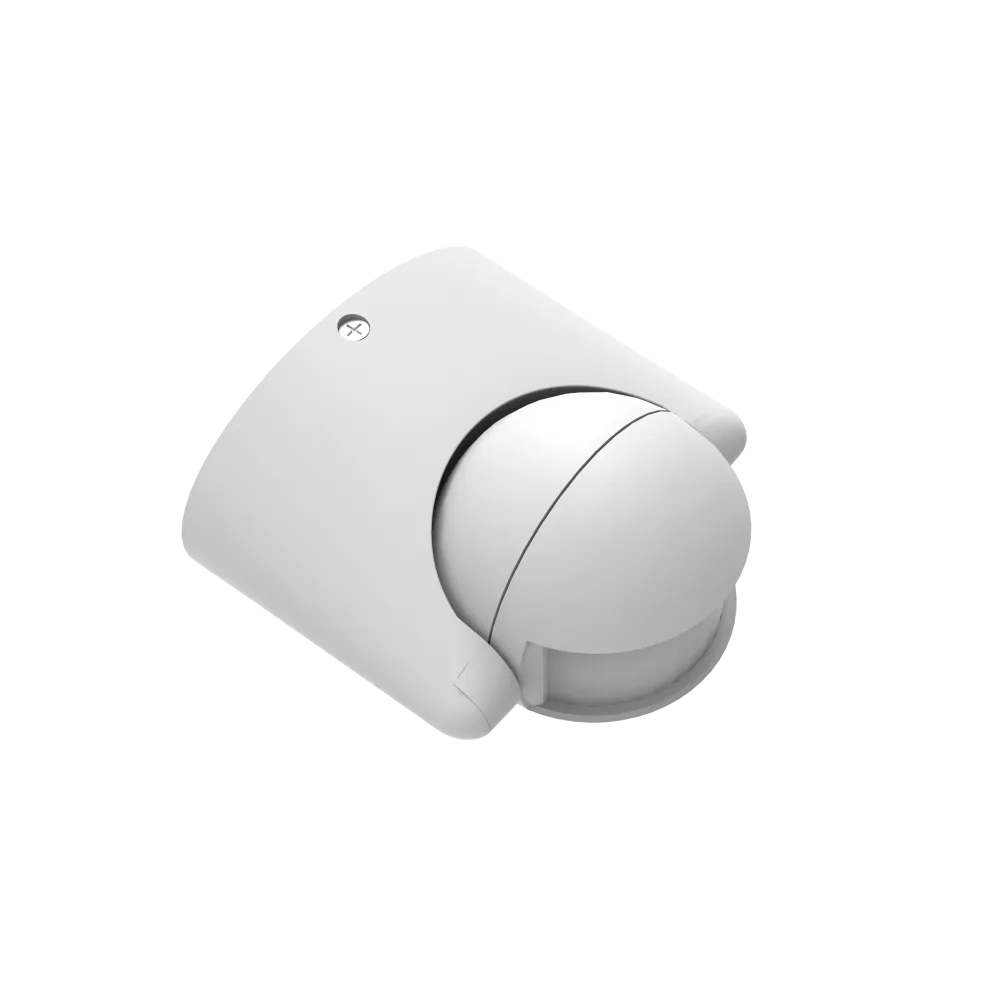

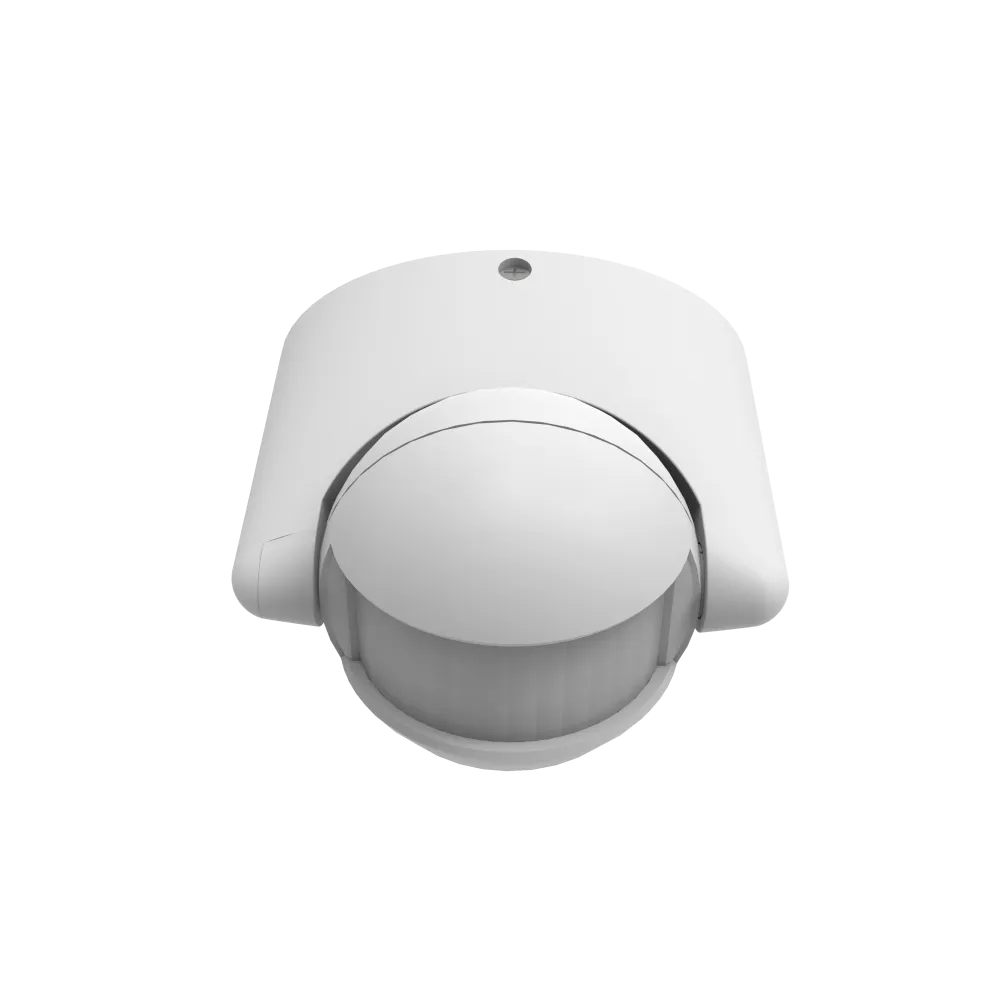

CLAREO ON/OFF Wall-Mounted Adjustable PIR Detector START: Orientation flexibility for customized detection

Combining ease of installation, reliability and performance, the Wall-Mounted Adjustable PIR Detector START is the ideal solution for all your projects requiring adjustable wall detection. Designed to meet the essential needs of tertiary, commercial and high-traffic spaces, it offers an excellent value for money without compromising on efficiency.

With its 180° detection angle covering up to Ø 12 m at 2.5 m height and its adjustable twilight threshold from 10 to 2000 lux, the Wall-Mounted Adjustable PIR Detector START perfectly adapts to your lighting constraints.

Its adjustable hold time from 10 seconds to 7 minutes allows optimizing energy consumption according to the use of each space, and its adjustable head enables precise adaptation of the detection zone to your needs.

Its two adjustment dials also ensure simple and quick configuration directly on the device.

Key features:

  • Adjustable wall detection 180° (range of 12 m x 2.5 m)
  • Adjustable twilight threshold from 10 to 2000 lux
  • Adjustable hold time from 10s to 7min
  • 3-year warranty
Ref: DET.1125S1

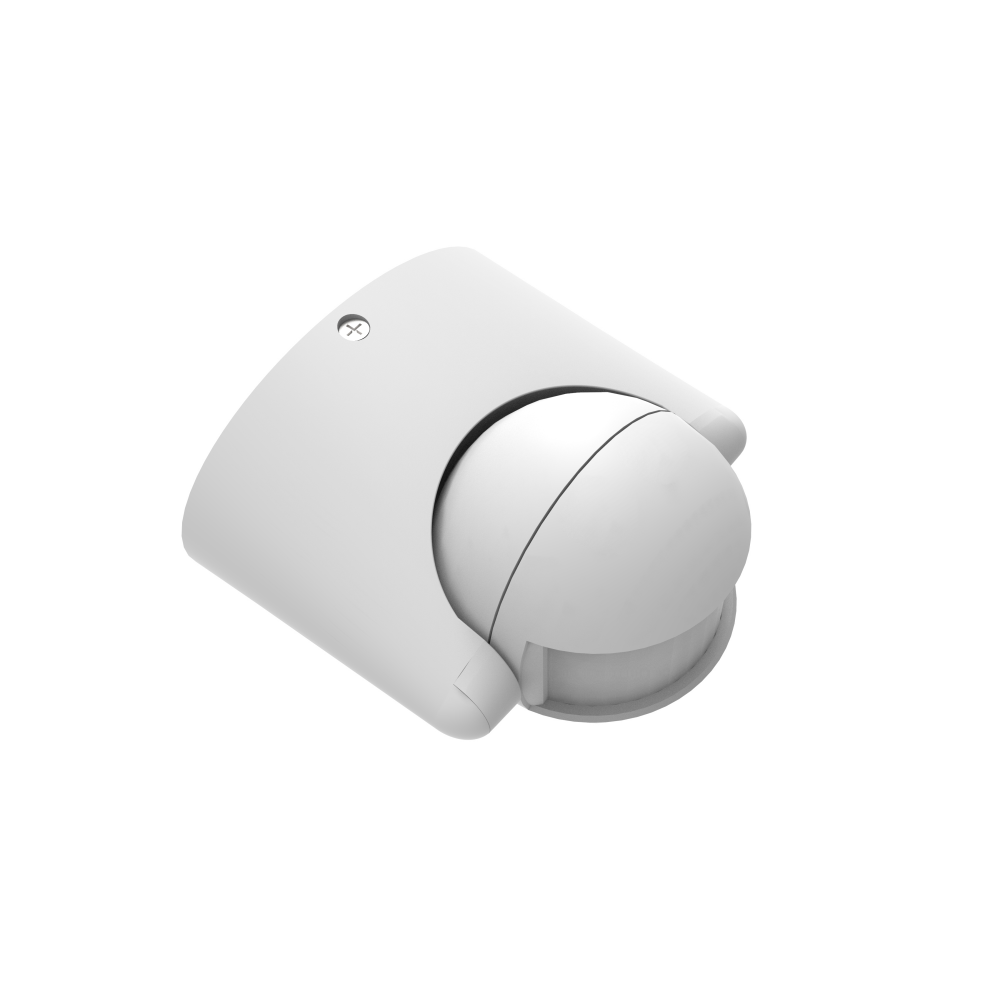

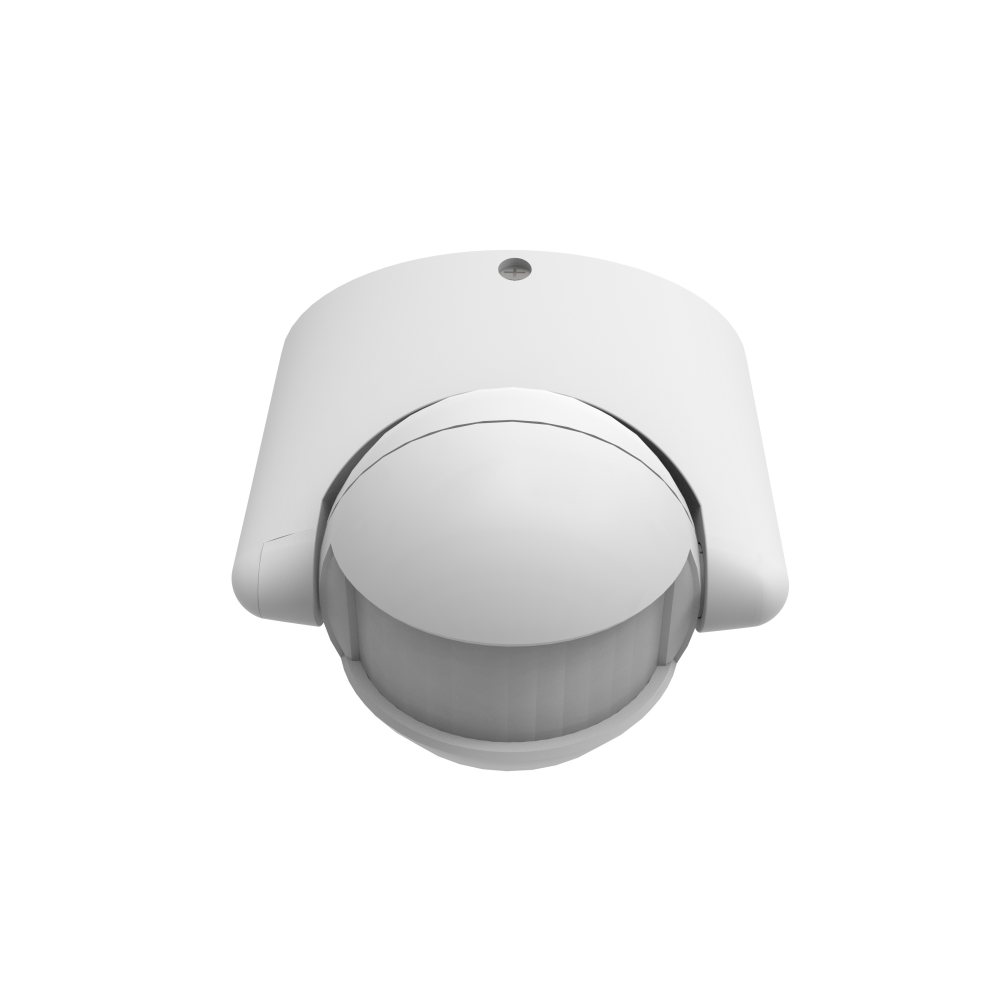

CLAREO ON/OFF Wall-Mounted Adjustable PIR Detector START

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

CLAREO ON/OFF Wall-Mounted Adjustable PIR Detector START: Orientation flexibility for customized detection

Combining ease of installation, reliability and performance, the Wall-Mounted Adjustable PIR Detector START is the ideal solution for all your projects requiring adjustable wall detection. Designed to meet the essential needs of tertiary, commercial and high-traffic spaces, it offers an excellent value for money without compromising on efficiency.

With its 180° detection angle covering up to Ø 12 m at 2.5 m height and its adjustable twilight threshold from 10 to 2000 lux, the Wall-Mounted Adjustable PIR Detector START perfectly adapts to your lighting constraints.

Its adjustable hold time from 10 seconds to 7 minutes allows optimizing energy consumption according to the use of each space, and its adjustable head enables precise adaptation of the detection zone to your needs.

Its two adjustment dials also ensure simple and quick configuration directly on the device.

Key features:

  • Adjustable wall detection 180° (range of 12 m x 2.5 m)
  • Adjustable twilight threshold from 10 to 2000 lux
  • Adjustable hold time from 10s to 7min
  • 3-year warranty

General characteristics
Brand CLAREO
Range START
Product family Accessories
Installation environment Reception, Office, Circulation, Staircase, Parking
Quick installation YES
Warranty 3 years
Electrical characteristics
Voltage 220-240 V AC
Power 0.5 W
Electrical class Class II
Dimmable ON/OFF
Sensor YES
Max power 300 W Max
Detector type PIR
Maximum ground detection diameter 12 m
Physical characteristics and dimensions
Height 97 mm
Width 65 mm
Length 96.5 mm
Net weight 0.1 kg
Materials ABS
Waterproof No
IP IP44
Product color White
Working temperature -20 °C to 40 °C
Detailed color White
Maximum installation height 2 m
Installation mode Wall light
Standards and regulations
Standards CE, RoHS
