CLAREO ON/OFF Dual Zone PIR Detector START: Performance and versatility for your high-traffic spaces

Combining ease of installation, robustness and performance, the Dual Zone PIR Detector START is the ideal solution for all your projects requiring extended detection coverage. Designed to meet the needs of tertiary and commercial spaces, it offers an excellent value for money without compromising on efficiency.

With its dual detection zone (180° and 360°) covering up to Ø 12 m at 2.5 m height and its adjustable twilight threshold from 10 to 2000 lux, the Dual Zone PIR Detector START perfectly adapts to your most demanding lighting constraints.

Its adjustable hold time from 10 seconds to 15 minutes allows optimizing energy consumption according to the use of each space, and its two adjustment dials ensure simple and quick configuration directly on the device.

Key features:

  • Dual detection zone 180° and 360° (max range of 12 m)
  • Adjustable twilight threshold from 10 to 2000 lux
  • Adjustable hold time from 10 s to 15 min
  • 3-year warranty
Ref: DET.1126S1

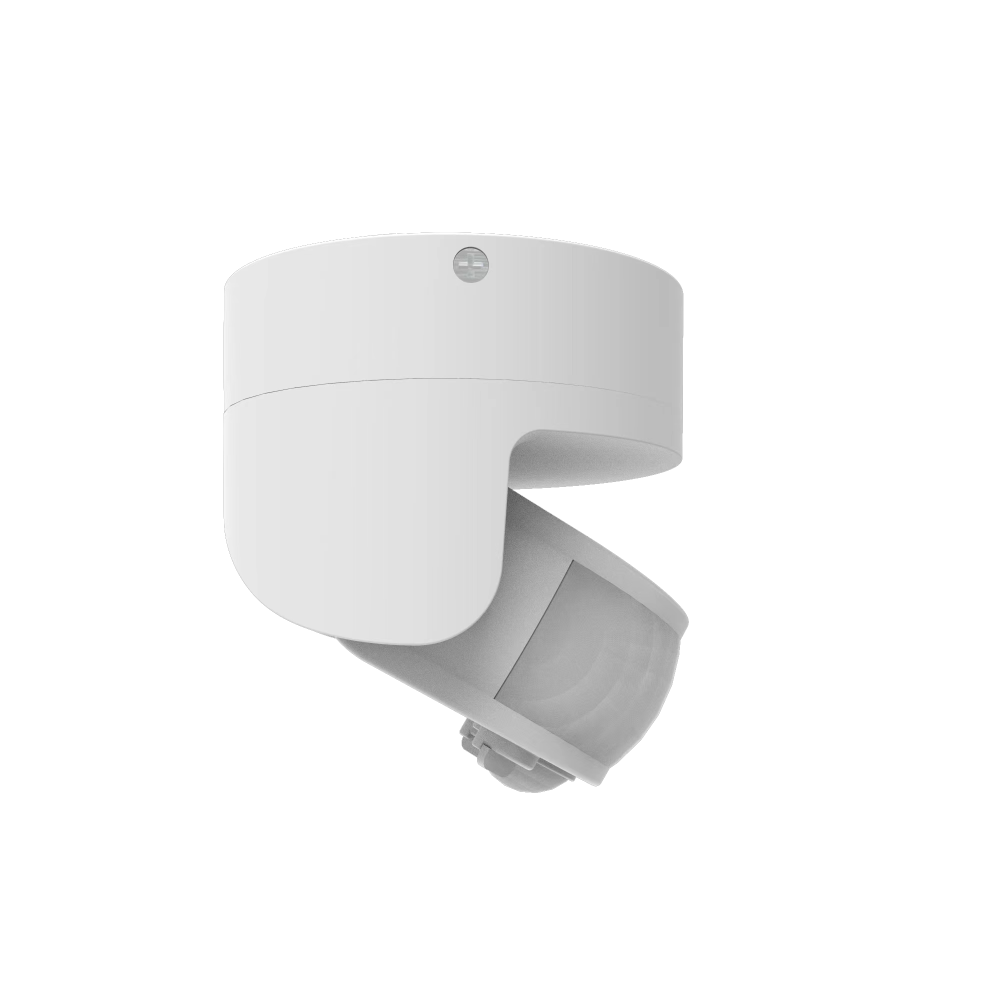

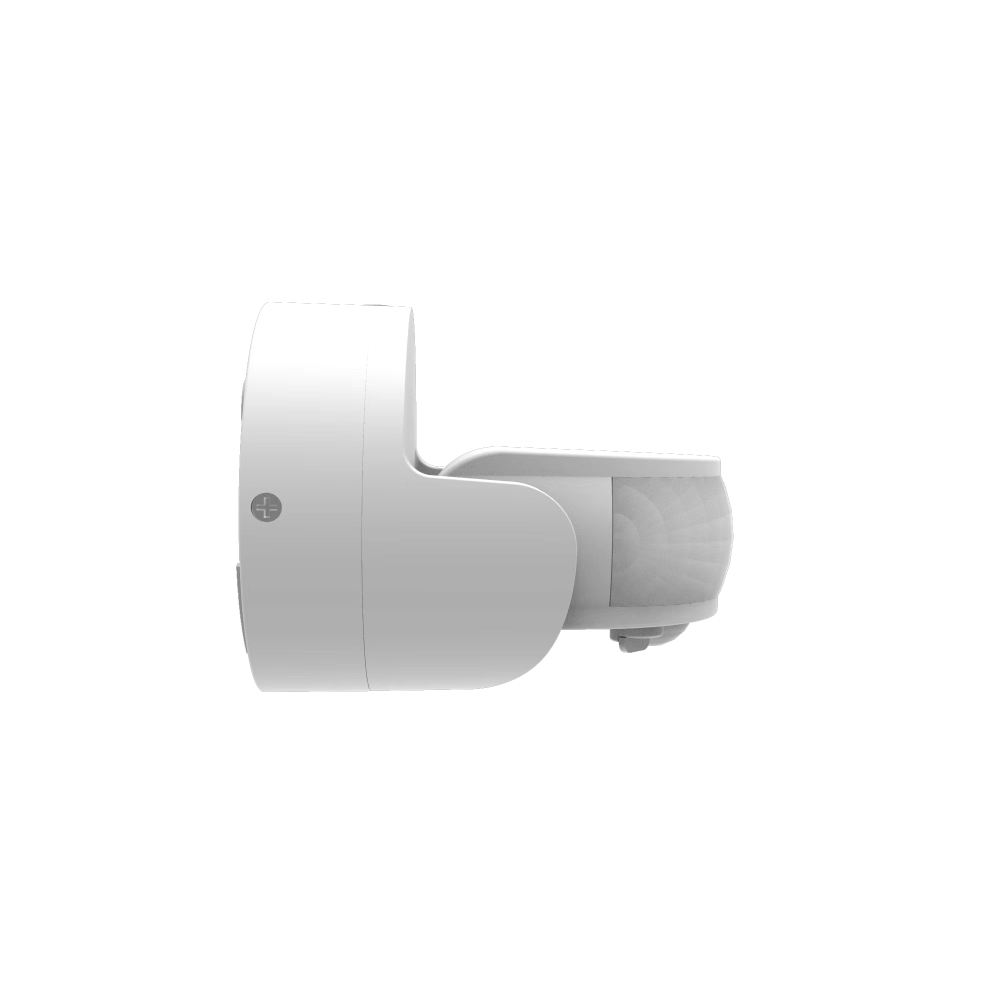

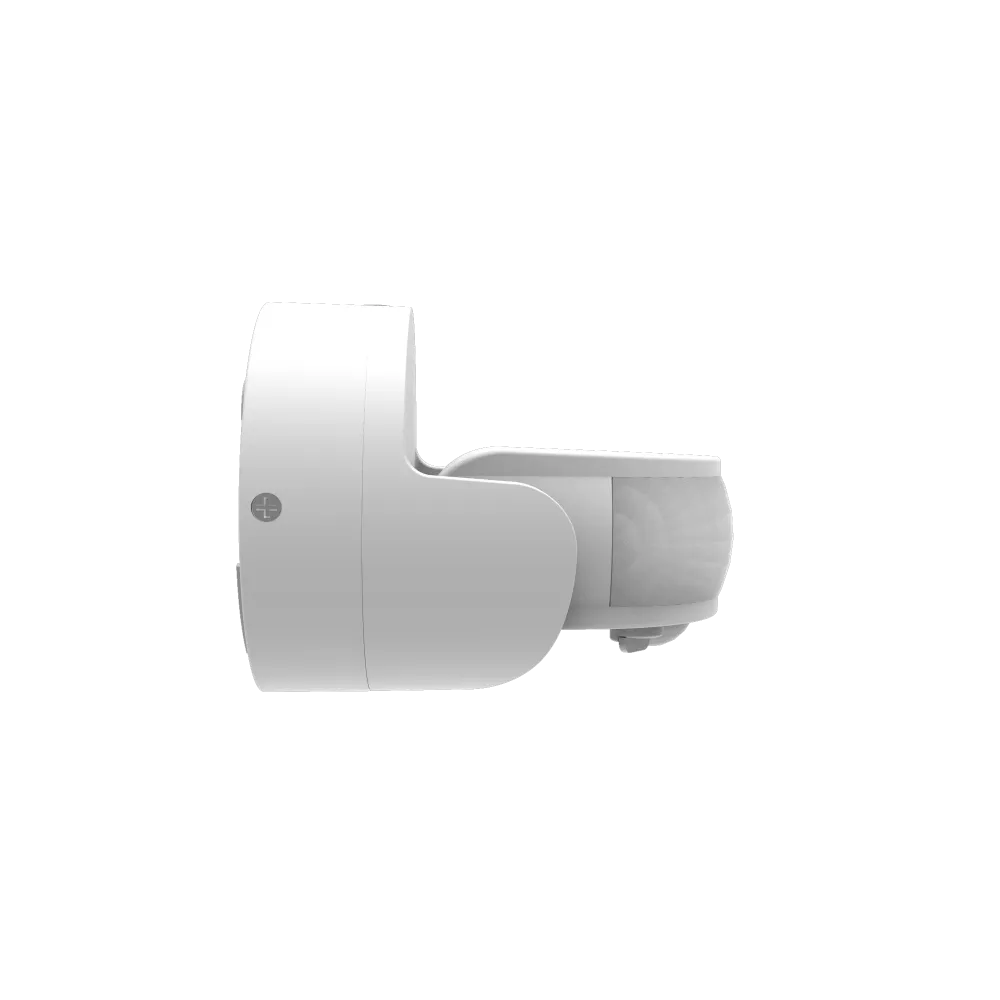

CLAREO ON/OFF Dual Zones START PIR Detector

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

CLAREO ON/OFF Dual Zone PIR Detector START: Performance and versatility for your high-traffic spaces

Combining ease of installation, robustness and performance, the Dual Zone PIR Detector START is the ideal solution for all your projects requiring extended detection coverage. Designed to meet the needs of tertiary and commercial spaces, it offers an excellent value for money without compromising on efficiency.

With its dual detection zone (180° and 360°) covering up to Ø 12 m at 2.5 m height and its adjustable twilight threshold from 10 to 2000 lux, the Dual Zone PIR Detector START perfectly adapts to your most demanding lighting constraints.

Its adjustable hold time from 10 seconds to 15 minutes allows optimizing energy consumption according to the use of each space, and its two adjustment dials ensure simple and quick configuration directly on the device.

Key features:

  • Dual detection zone 180° and 360° (max range of 12 m)
  • Adjustable twilight threshold from 10 to 2000 lux
  • Adjustable hold time from 10 s to 15 min
  • 3-year warranty

General characteristics
Brand CLAREO
Range START
Product family Accessories
Installation environment Reception, Office, Corridor, Staircase, Exterior
Quick installation YES
Warranty 3 years
Electrical characteristics
Voltage 220-240 V AC
Power 0.5 W
Electrical class Class II
Dimmable ON/OFF
Sensor YES
Max power 1,000 W Max
Detector type PIR
Maximum ground detection diameter 12 m
Physical characteristics and dimensions
Height 98 mm
Width 78 mm
Length 78 mm
Net weight 0.1 kg
Materials ABS
Waterproof YES
IP IP54
Product color White
Working temperature -20 °C to 40 °C
Detailed color White
Maximum installation height 2 m
Installation mode Surface mount
Standards and regulations
Standards CE, RoHS

Log in to access downloadable documents
Technical data sheets, IES files, installation instructions, certificates... are only downloadable for customers whose access has been validated. To request access, go here

Log in to access the prescription
To access the prescription text, you must have an account and log in.
