ADVANCE 2 Board Lighting: Lighting in the service of learning

Designed to enhance the lighting of blackboards in classrooms, the ADVANCE 2 luminaire combines performance, flexibility and ease of installation.
Its adjustable 70° beam angle allows precise light direction onto the board surface, for optimal visual comfort for teachers and students.

With a very high luminous efficacy of 160 lm/W and a CCT Switch 3000/4000 K, it combines power and adaptability to all lighting configurations.

The tool-free removable and replaceable LED module, as well as the driver, facilitates maintenance and extends the product's lifespan.
Moreover, its installation versatility makes it an ideal choice for all types of rooms:

  • Recessed mounting in T15/T24 ceilings or surface mounting

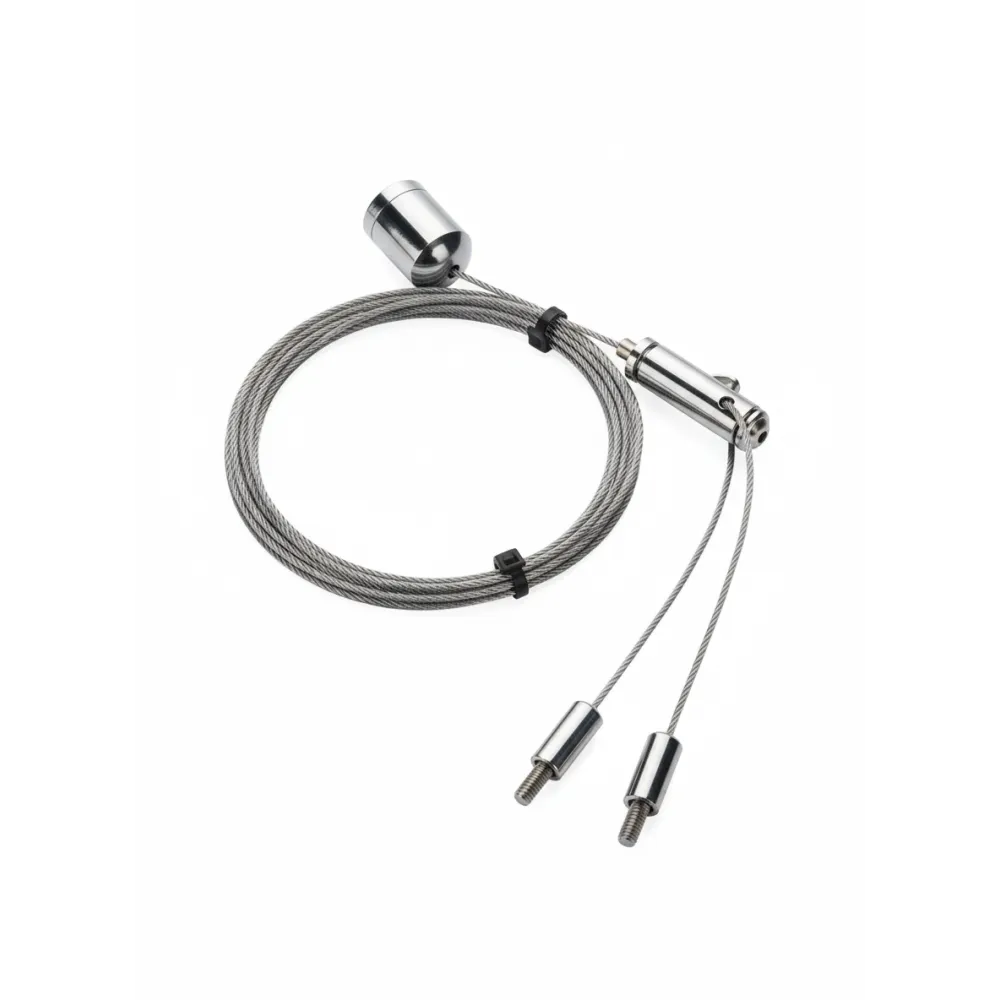

  • Thanks to available accessories: installation in STAFF ceilings, as pendant or as wall-mounted fixture

Key features:

  • 2 lengths: 120cm and 150cm
  • Luminous efficacy of 160 lm/W
  • Adjustable 70° angle
  • Removable and replaceable LED module
  • 5 installation modes
Ref: PAN.9264A2

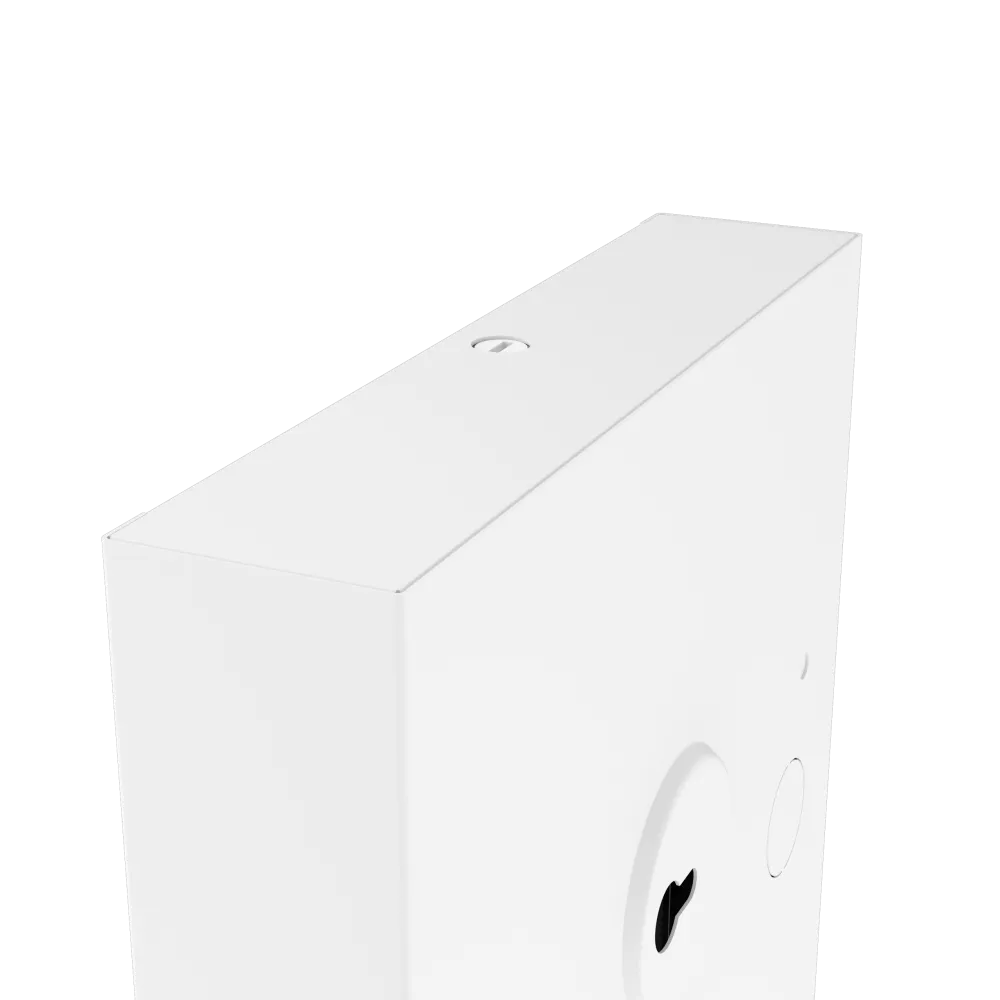

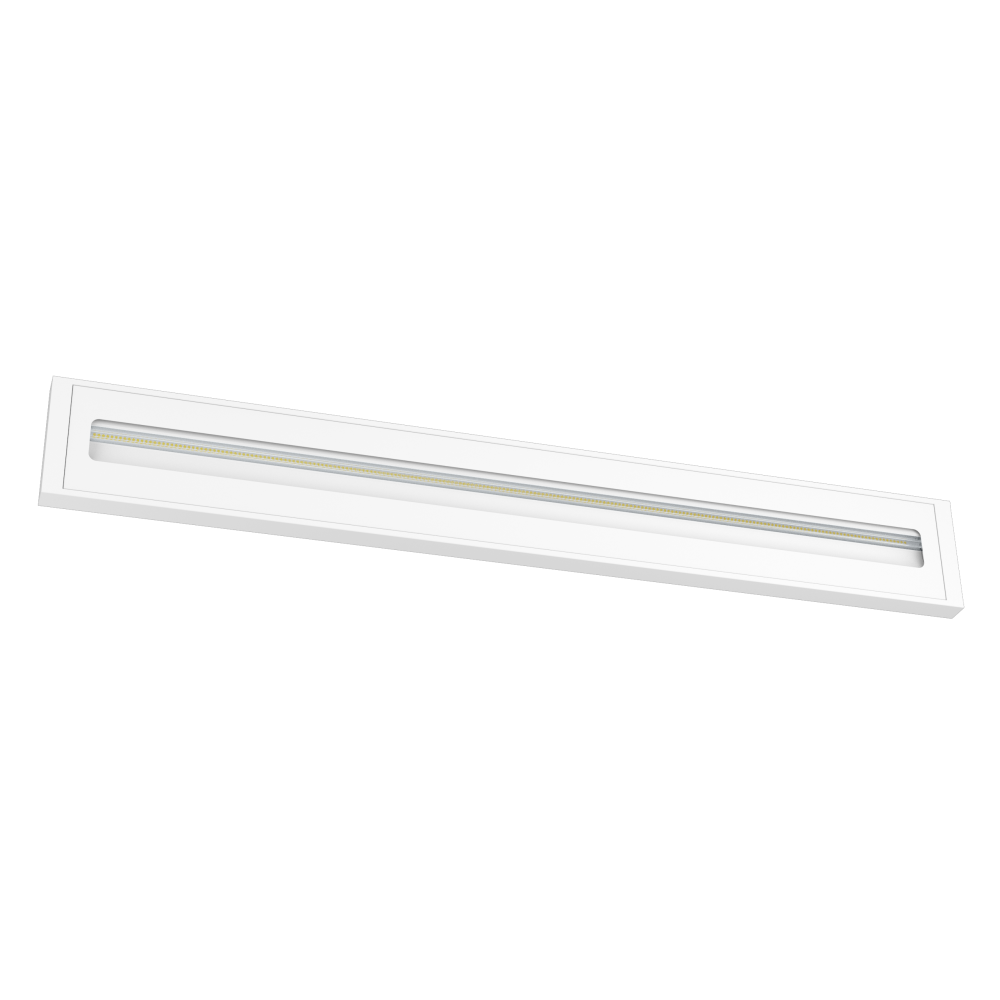

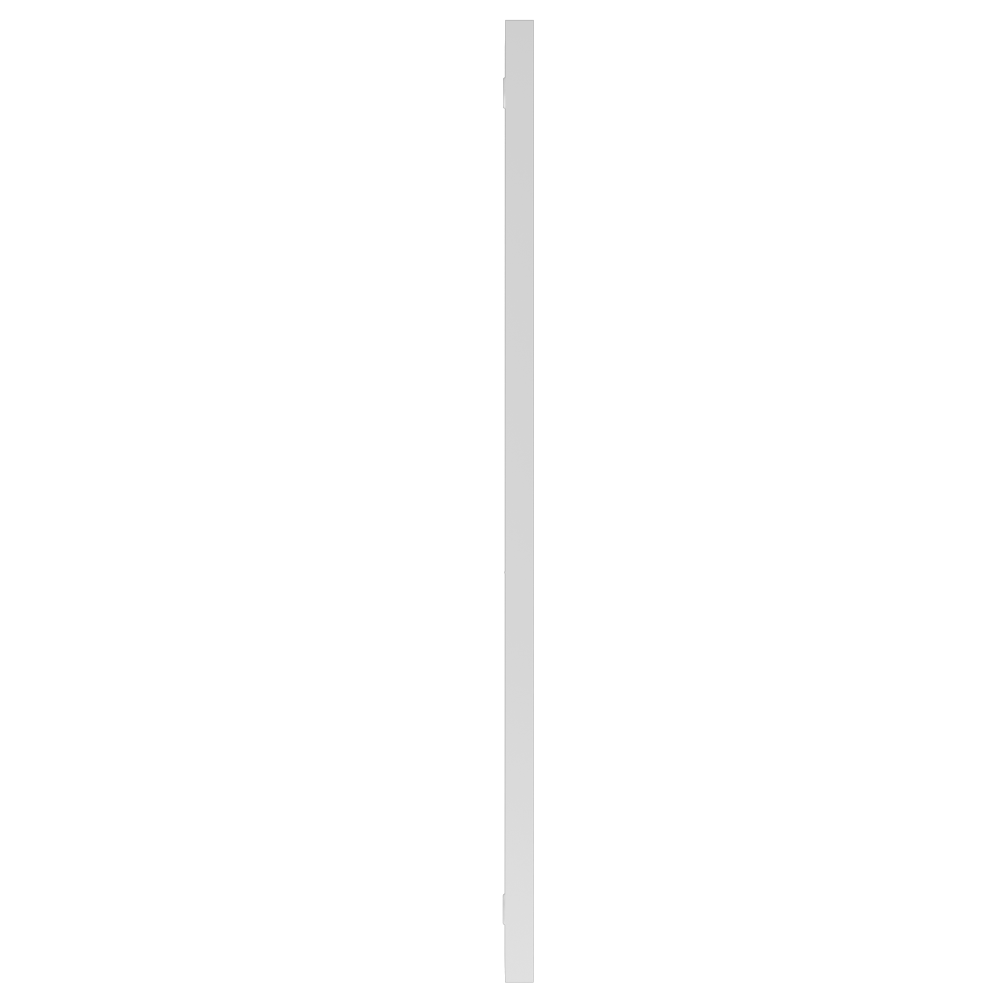

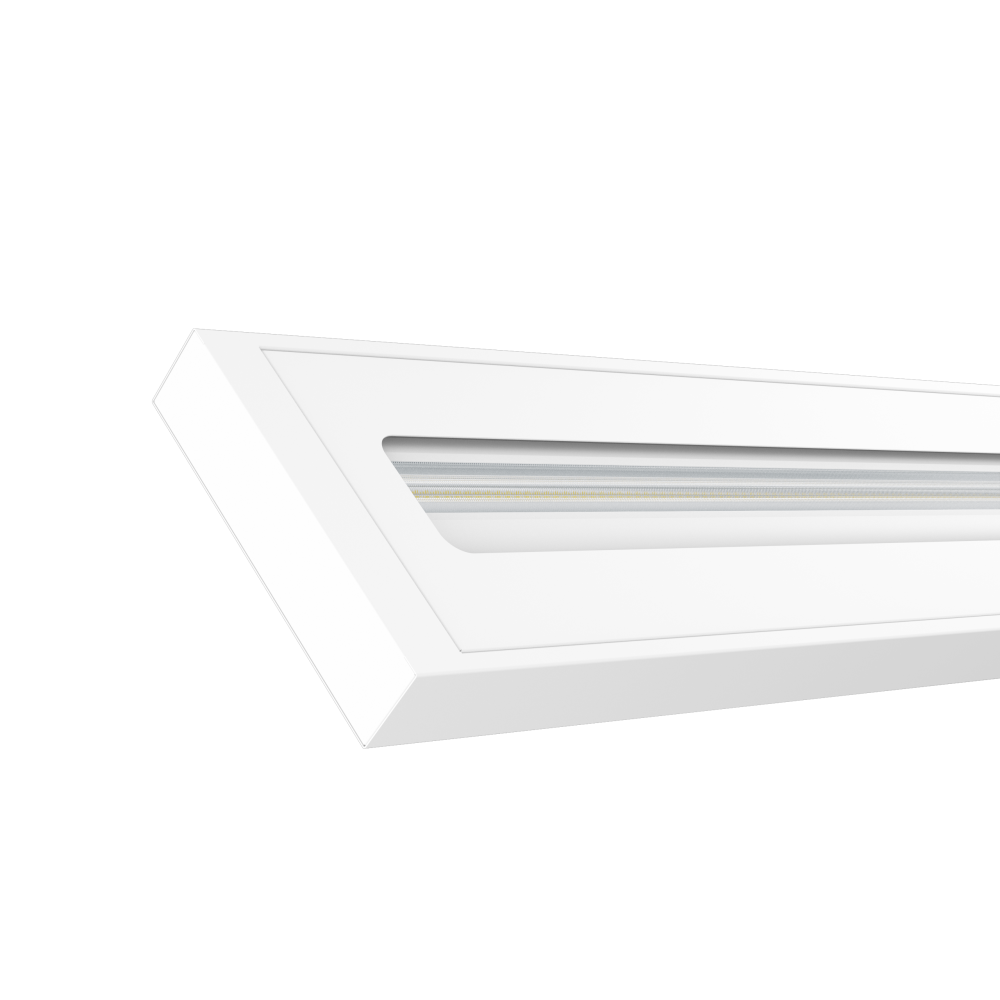

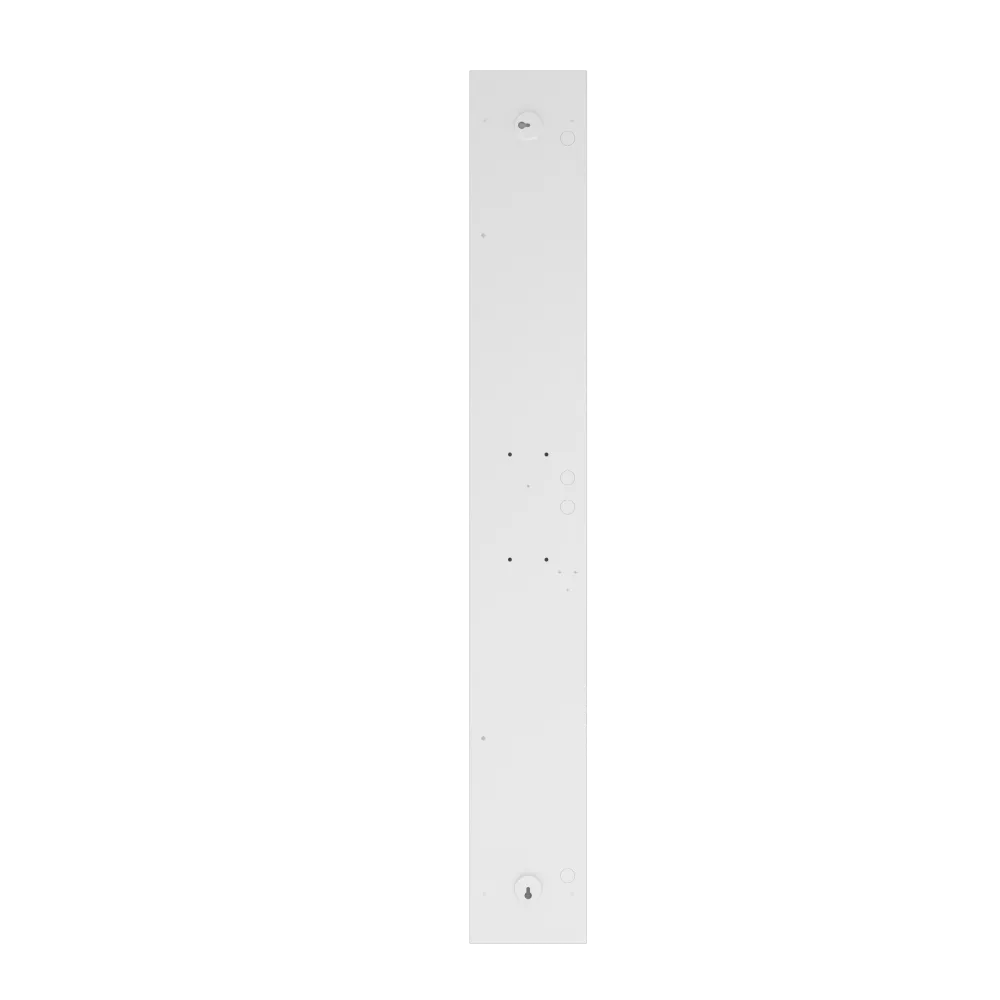

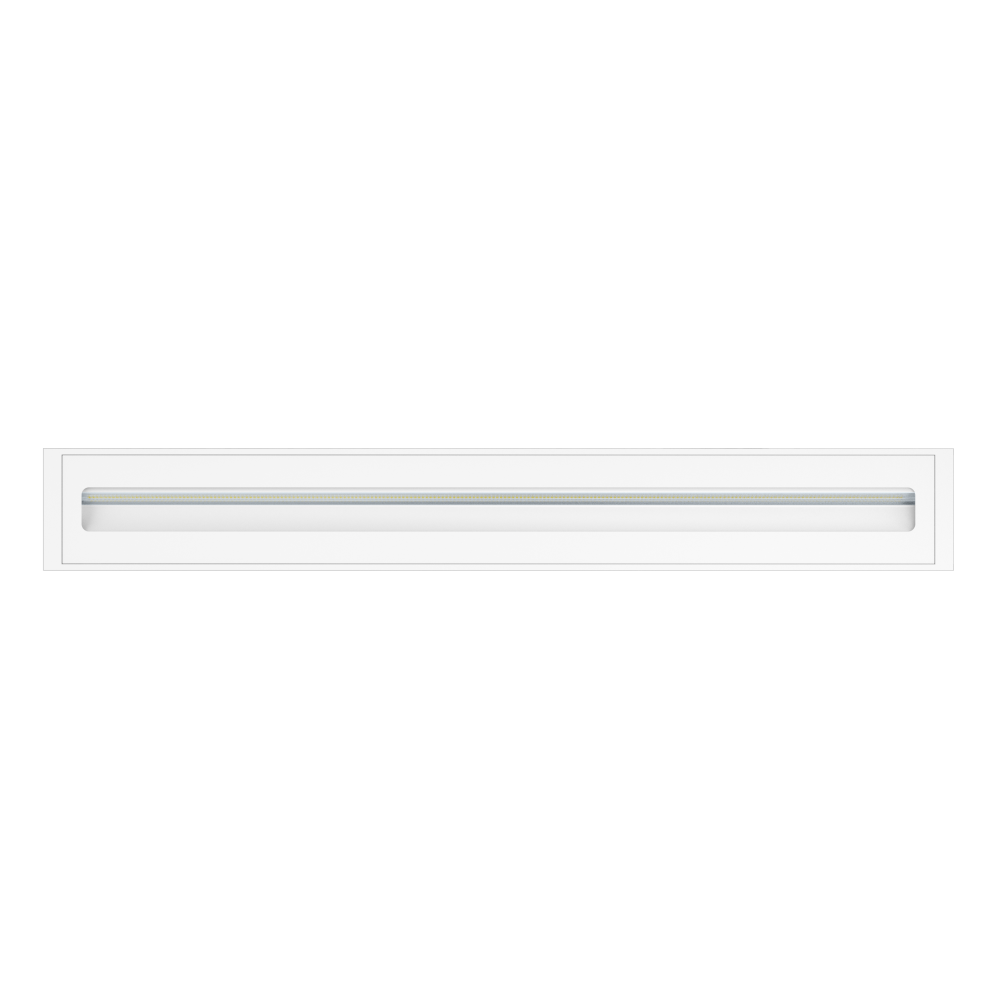

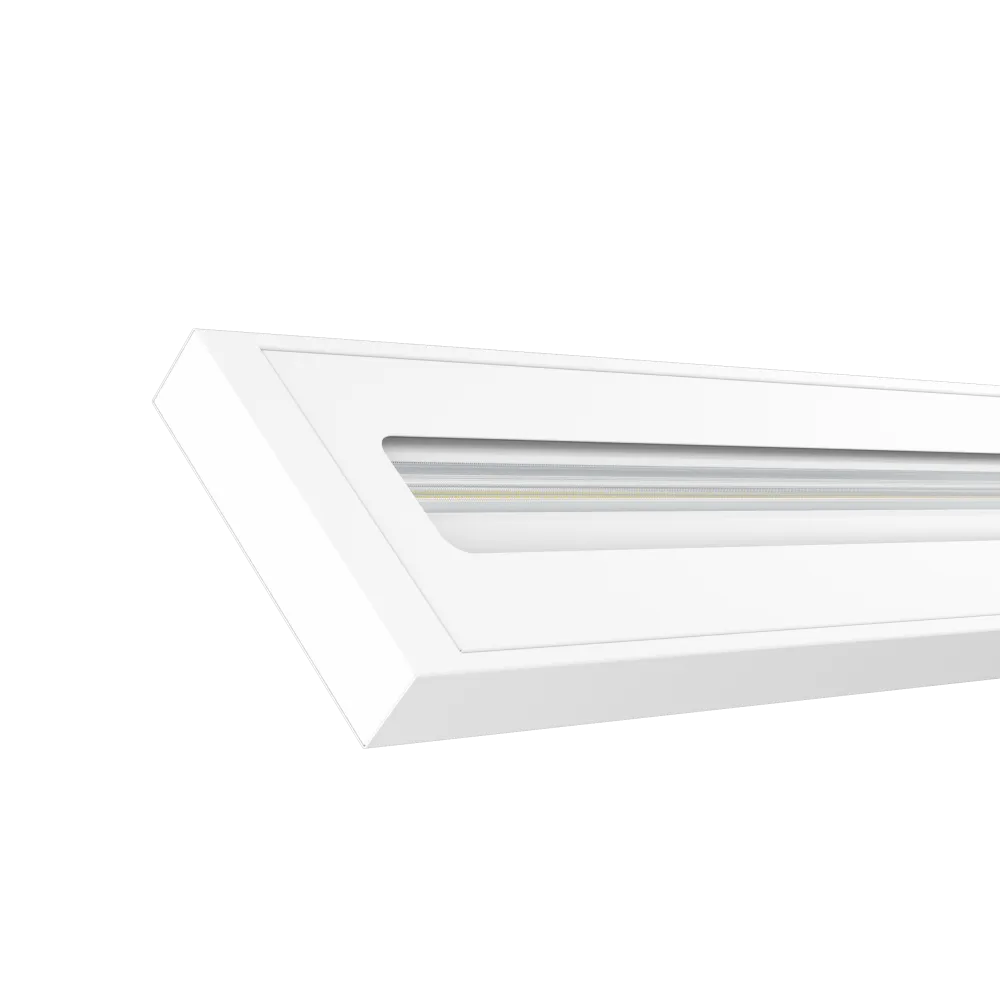

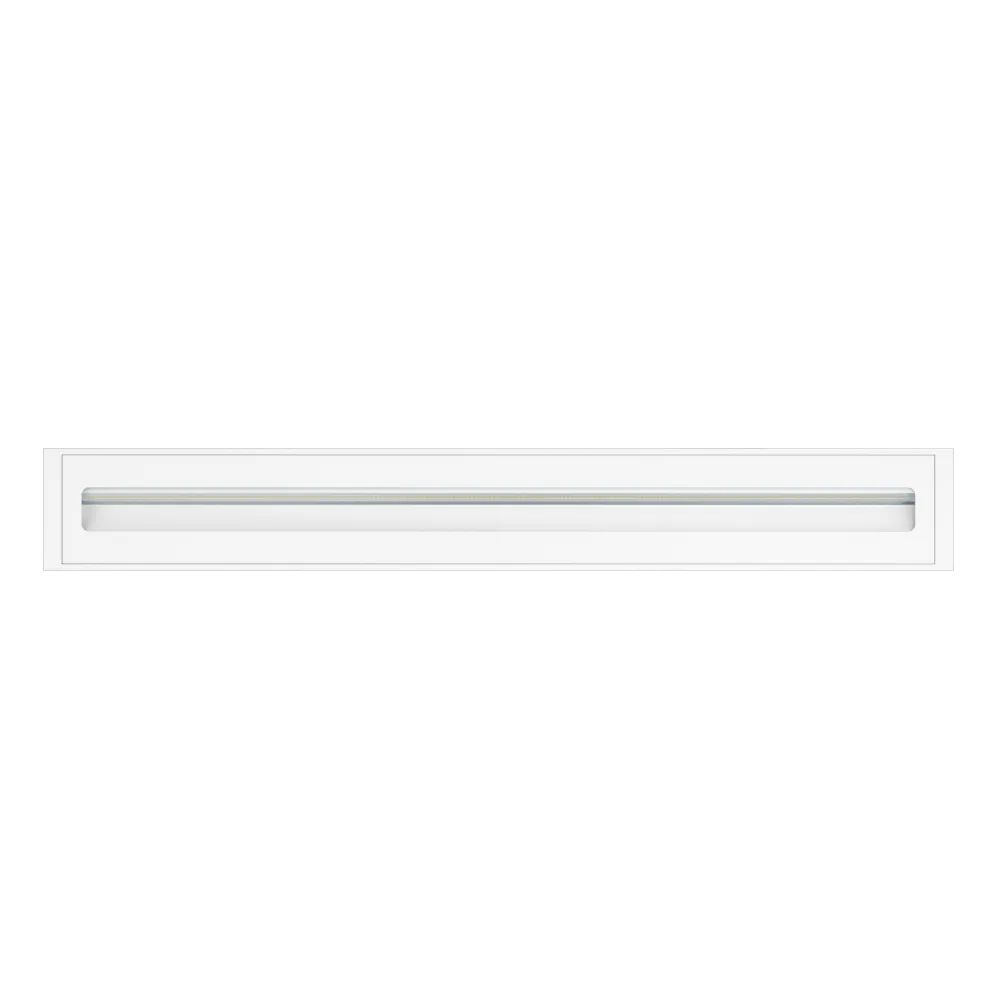

Picture Lighting CLAREO 120cm 22W 160lm/W ADVANCE 2

save_alt Download the technical sheet

Color

Switch 3000-4000K

Angle

Driver

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

ADVANCE 2 Board Lighting: Lighting in the service of learning

Designed to enhance the lighting of blackboards in classrooms, the ADVANCE 2 luminaire combines performance, flexibility and ease of installation.
Its adjustable 70° beam angle allows precise light direction onto the board surface, for optimal visual comfort for teachers and students.

With a very high luminous efficacy of 160 lm/W and a CCT Switch 3000/4000 K, it combines power and adaptability to all lighting configurations.

The tool-free removable and replaceable LED module, as well as the driver, facilitates maintenance and extends the product's lifespan.
Moreover, its installation versatility makes it an ideal choice for all types of rooms:

  • Recessed mounting in T15/T24 ceilings or surface mounting

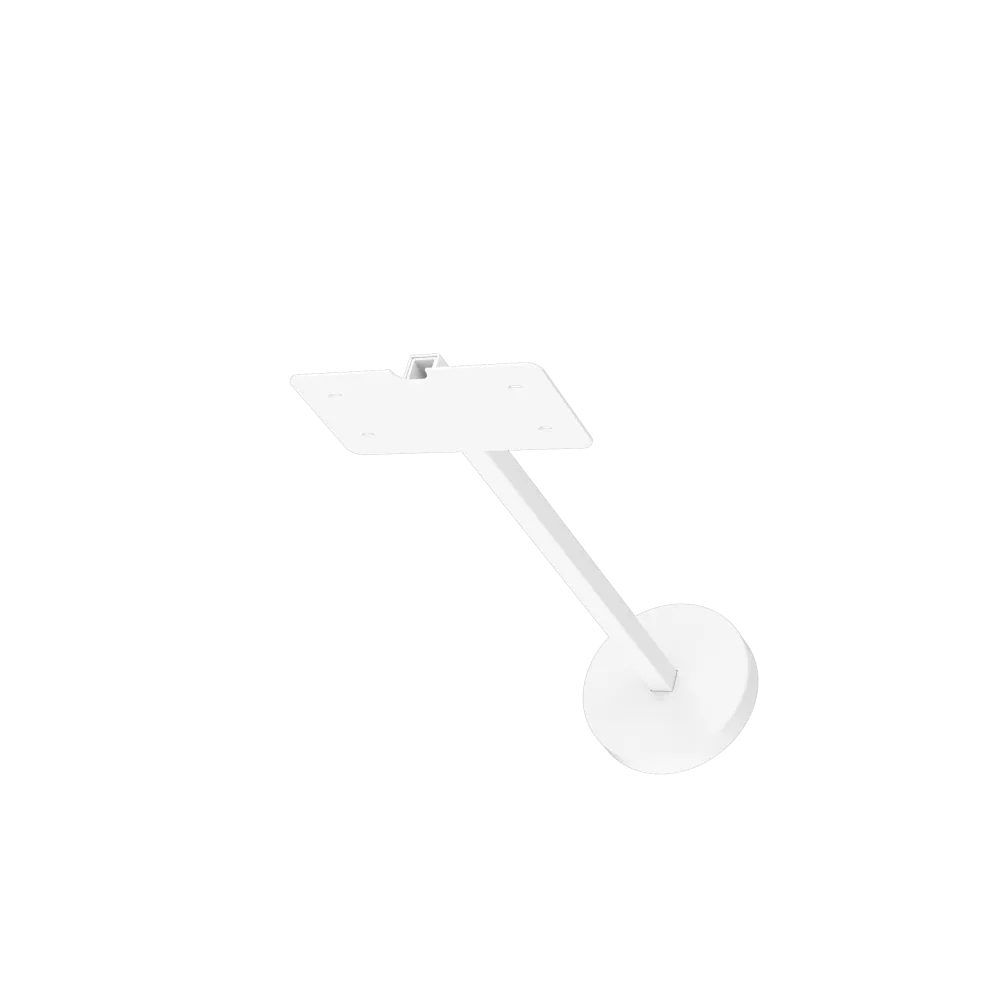

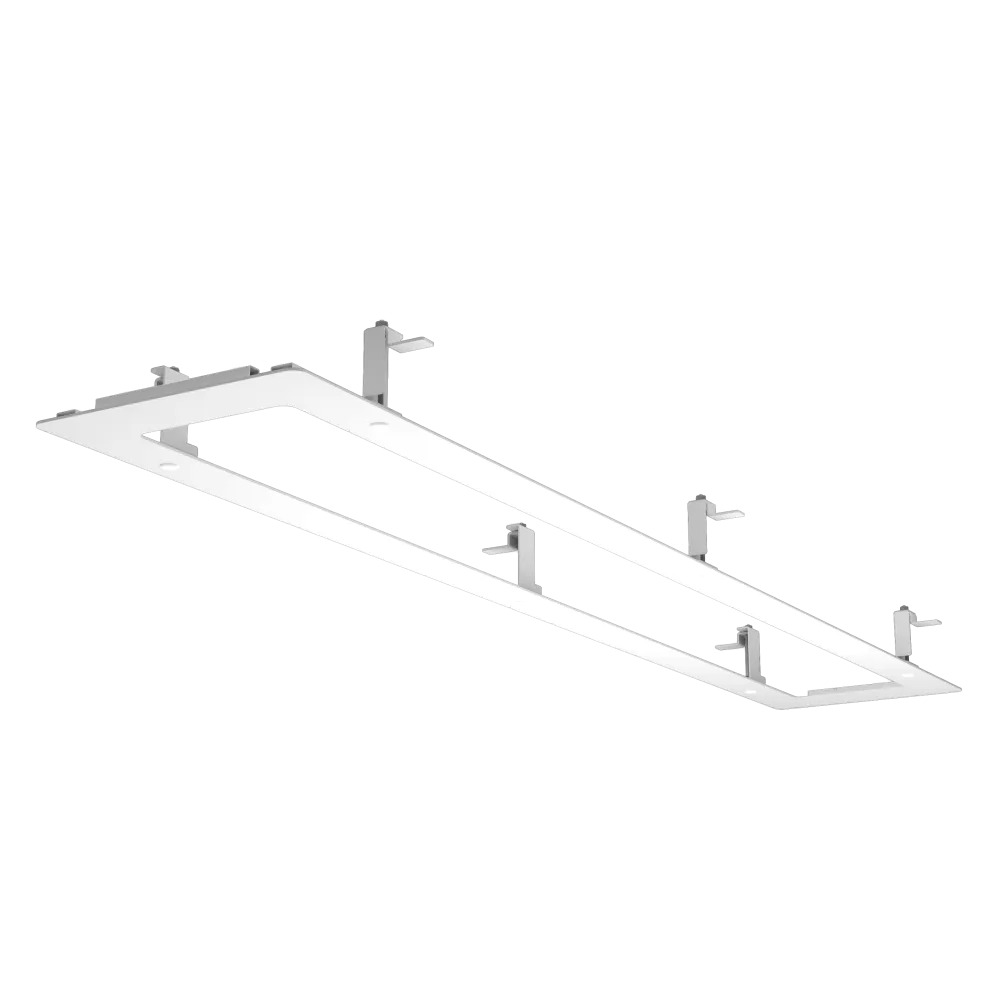

  • Thanks to available accessories: installation in STAFF ceilings, as pendant or as wall-mounted fixture

Key features:

  • 2 lengths: 120cm and 150cm
  • Luminous efficacy of 160 lm/W
  • Adjustable 70° angle
  • Removable and replaceable LED module
  • 5 installation modes

General characteristics
Lifetime 80,000 h
Brand CLAREO
Range ADVANCE
Product family Panels
Installation environment Schools
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 200-240 V AC
Power 22 W
Electrical class Class I
Dimmable Yes : depending on the reference
Facteur de puissance > 0,9
Taux de distorsion harmonique < 15%
EU energy class 2019/2015 C
Lighting characteristics
Technology LED
Lumens output 3403 - 3520 lm
Energy savings - 50 %
Lumens efficiency 160 lm/W
Lifetime LXBY L80B10
Diffuser Asymmetric
Beam Angle 70 deg
Photobiological risk GR0 - No risk
IRC > 80
SDCM < 3
Physical characteristics and dimensions
Height 35 mm
Width 160 mm
Length 1,195 mm
Net weight 3.8 kg
Materials Steel
IP IP40
IK IK04
Product color White
Working temperature -20 °C to 40 °C
Detailed color White
Installation mode Recessed, Surface-mounted, Wall light, Pendant
Type SMD2835
Standards and regulations
Standards CE, RoHS
Carbon footprint 16,6 kgCO2eq
