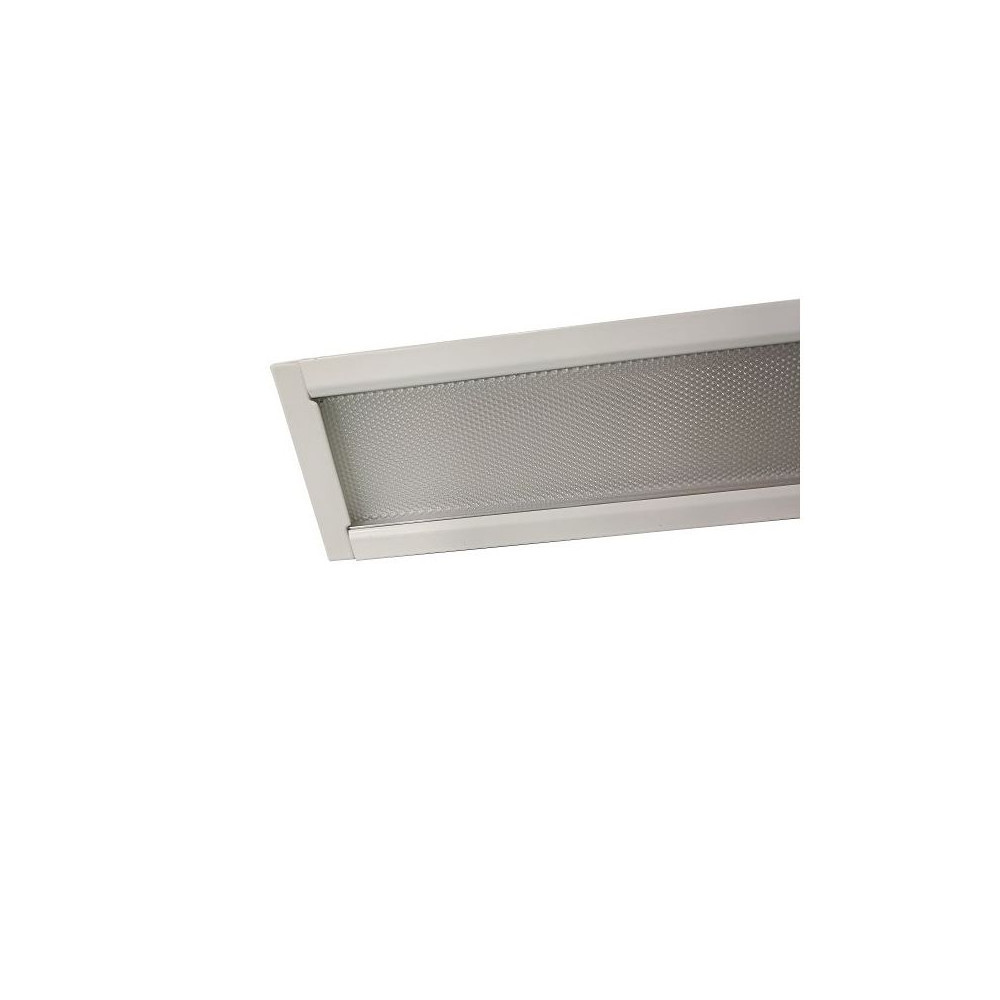

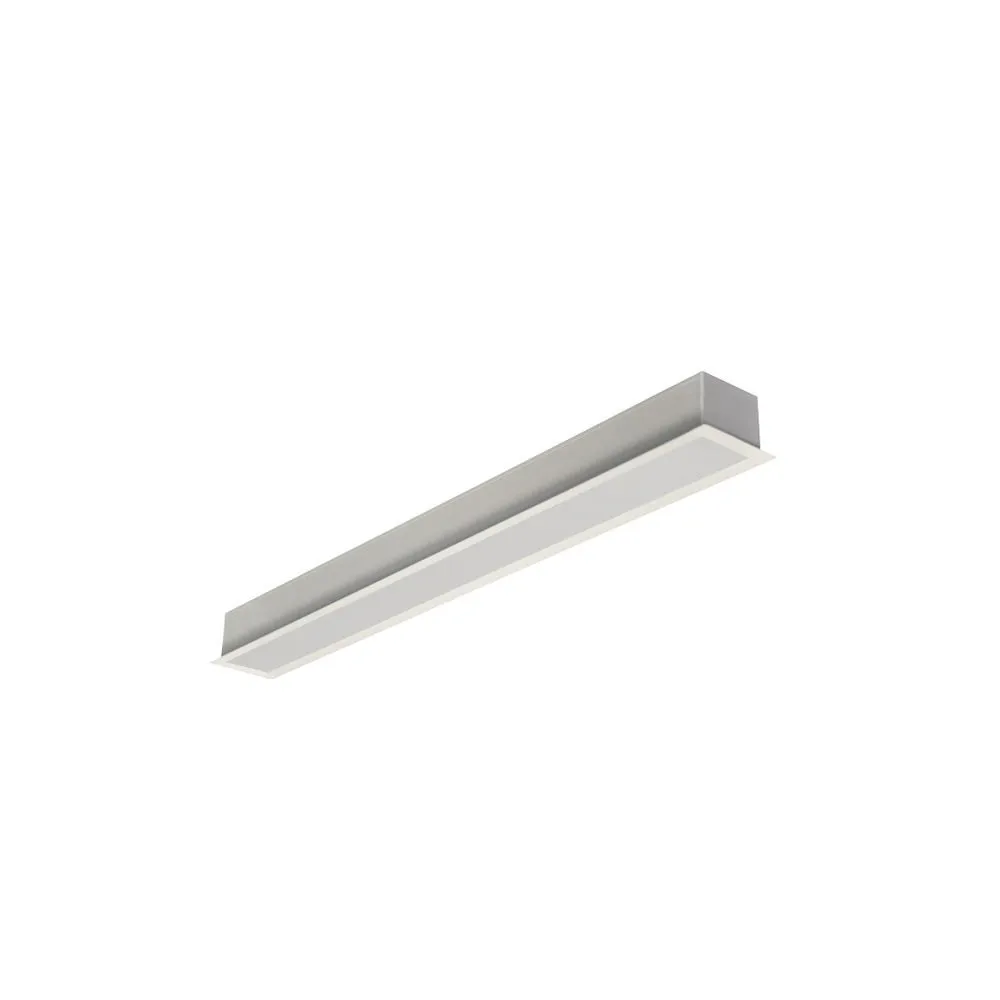

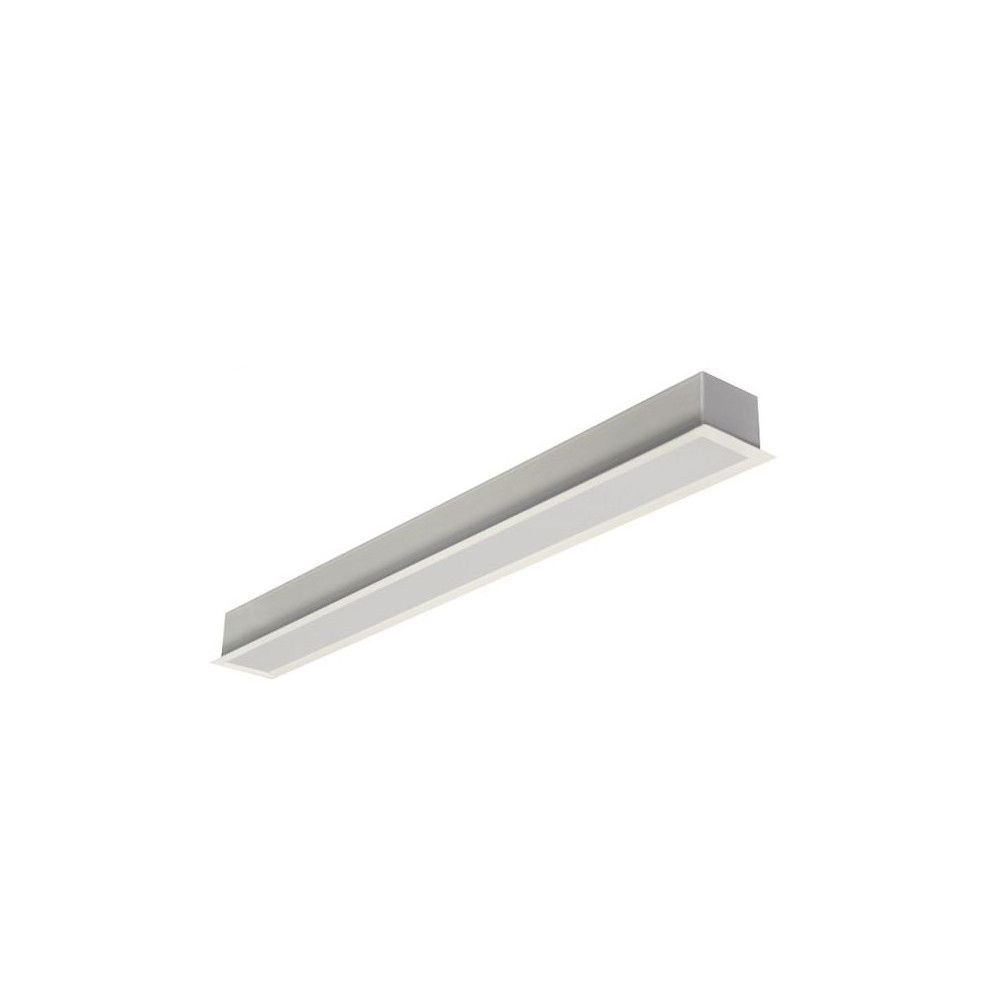

LineLED CLAREO 47x50 150cm 40W 120lm/W Recessed ADVANCE 2

The new LineLED CLAREO Recessed ADVANCE 2:

This new light line has been specially designed to illuminate your lighting projects in offices, retail spaces or hotels.

This light line is sold with integrated driver and for recessed installation.

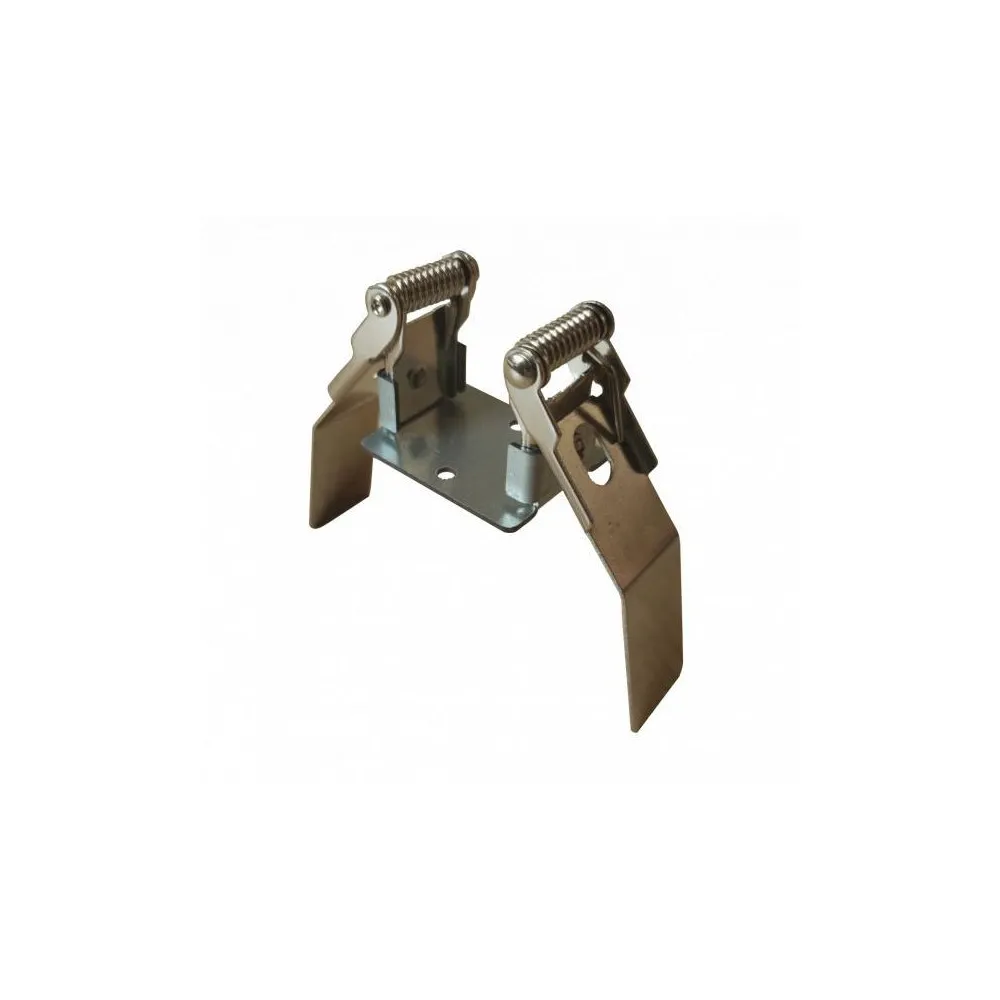

The spring clips for recessed installation are already pre-mounted on the LineLED.

Designed for intensive use, with a 7-year warranty and a lifespan of 70,000 hours.

Box contents: 1 Lineled CLAREO Recessed ADVANCE 2

It is equipped with a CCT Switch 3000-3500-4000K

Key features:

Luminous efficiency of 120 lm/W
Long lifespan L80B10 70,000h
Recessed mounting
7-year warranty
Many custom optics available
Many custom colors available
BOKE brand driver

LineLED CLAREO 47x50 150cm 40W 120lm/W Recessed ADVANCE 2

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

General characteristics

Lifetime	70 000 h
Brand	CLAREO
Range	ADVANCE
Product family	Linear lights

Installation environment	Point of sale, Office
Quick installation	YES
Repairable	YES
Warranty	7 years

Electrical characteristics

Voltage	230 V AC
Power	40 W
Electrical class	Class I
Dimmable	Yes : depending on the reference

Facteur de puissance >	0,95
Taux de distorsion harmonique <	15%
Power range	26-50 W
EU energy class 2019/2015	E

Lighting characteristics

Technology	LED
Lumens output	4800 lm
Energy savings	- 30 %
Lumens efficiency	120 lm/W
Lifetime LXBY	L80B10

Diffuser	Prismatic
Beam Angle	70 deg
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	19
Lumens range	4000-4999 lm

Physical characteristics and dimensions

Height	47 mm
Standard length	150 cm
Width	64 mm
Length	1 500 mm
Net weight	2.1 kg
Materials	Aluminum
Waterproof	No

IP	IP20
IK	IK07
Product color	White
Cut-out	55x1504 mm
Working temperature	-20 °C to 45 °C
Detailed color	White
Type	SMD 2835

Standards and regulations

Standards	CE, RoHS
