HighBay START 150/190/240W SENSOR One CLAREO: The essential solution for your industrial spaces

The HighBay SENSOR One START is the optimal solution for modernizing the lighting in your warehouses, workshops and production halls

It combines exceptional energy performance and rapid return on investment thanks to available financial incentives.

With its luminous efficacy of 185 lm/W and its integrated Power Switch (145/190/240W), the HighBay SENSOR One START easily meets your lighting intensity needs while maximizing your energy savings. The included PIR detector SENSOR One automatically optimizes consumption based on occupancy and natural light availability, with no additional installation. Its 90° beam angle ensures uniform light coverage for your high-ceiling spaces.

 With its 5-year warranty and its lifespan L80B10 of 103,000 hours, it is a reliable and durable investment to minimize maintenance costs.

Key highlights:

  • Power of 240W
  • Efficacy of 185 lm/W combined with a Power Switch
  • PIR detector SENSOR One included
  • IP65 and IK08
Ref: HBA.7912S1

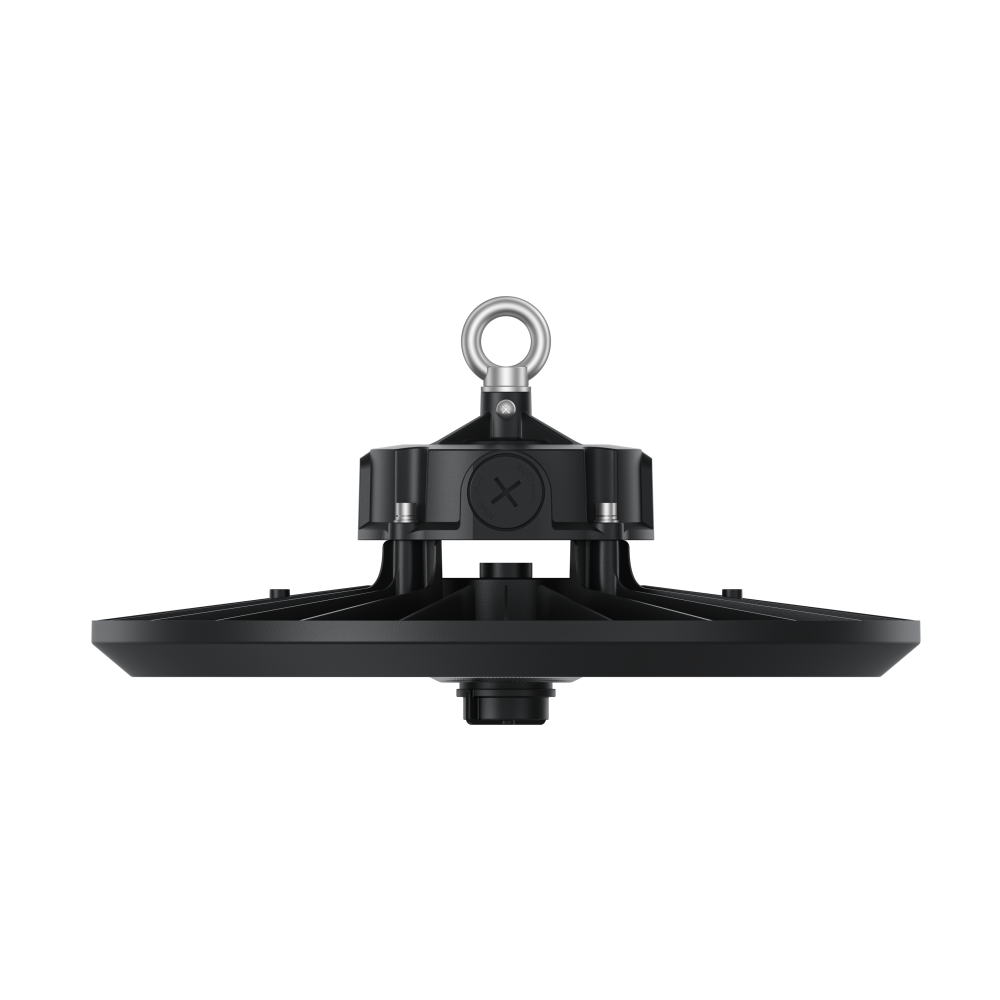

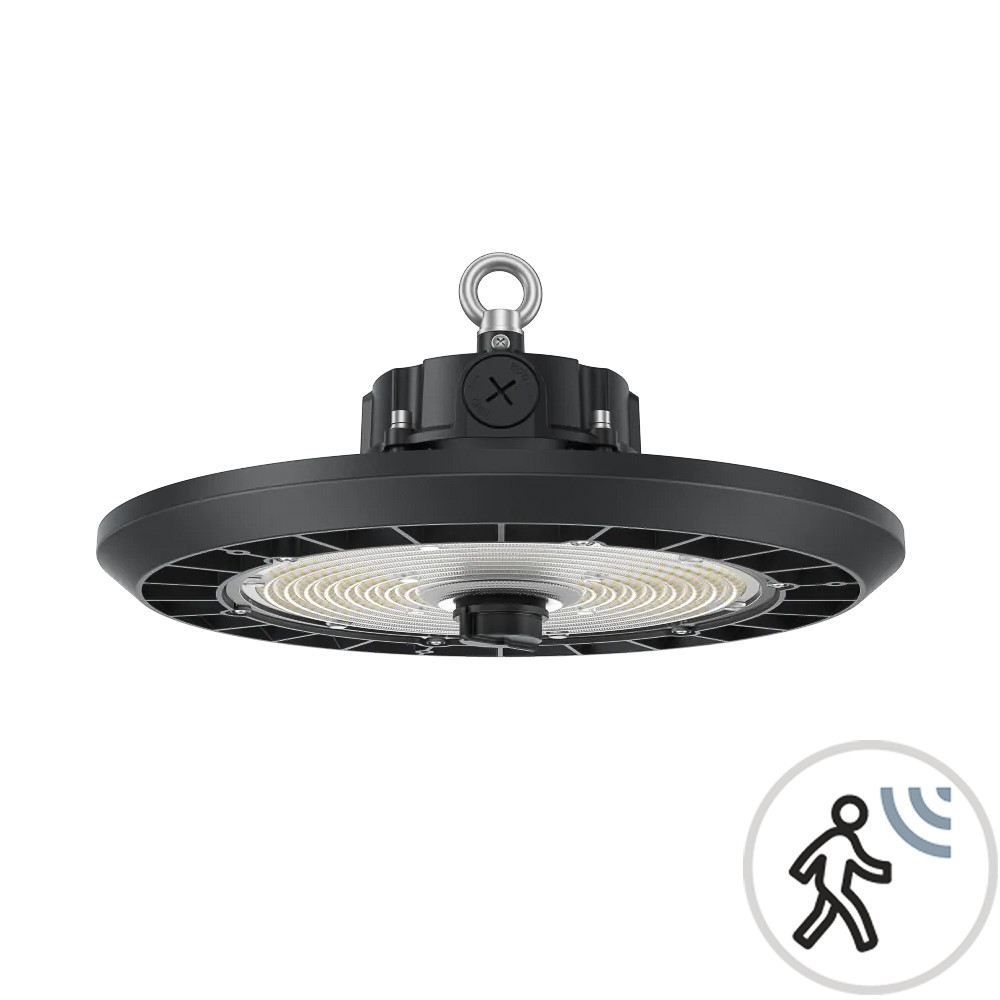

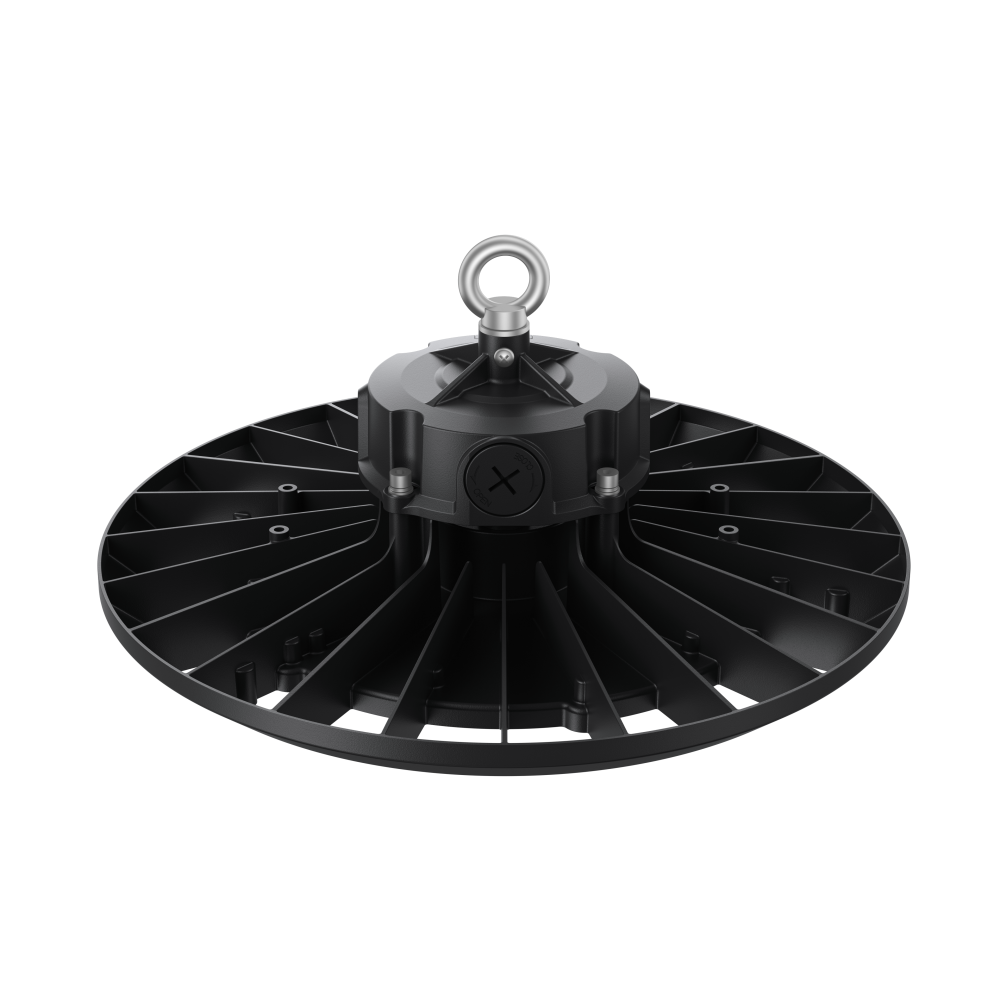

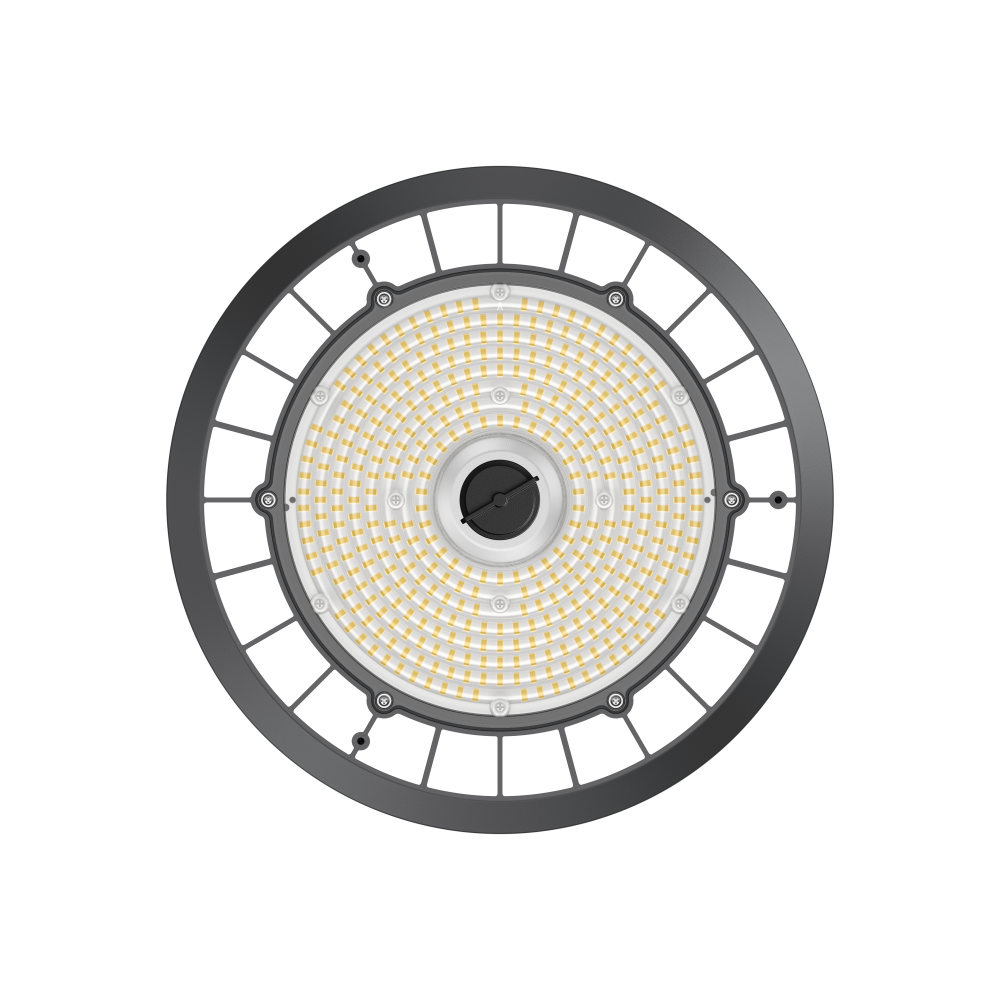

HighBay CLAREO 150/190/240W 185lm/W SENSOR One START

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

Driver

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

HighBay START 150/190/240W SENSOR One CLAREO: The essential solution for your industrial spaces

The HighBay SENSOR One START is the optimal solution for modernizing the lighting in your warehouses, workshops and production halls

It combines exceptional energy performance and rapid return on investment thanks to available financial incentives.

With its luminous efficacy of 185 lm/W and its integrated Power Switch (145/190/240W), the HighBay SENSOR One START easily meets your lighting intensity needs while maximizing your energy savings. The included PIR detector SENSOR One automatically optimizes consumption based on occupancy and natural light availability, with no additional installation. Its 90° beam angle ensures uniform light coverage for your high-ceiling spaces.

 With its 5-year warranty and its lifespan L80B10 of 103,000 hours, it is a reliable and durable investment to minimize maintenance costs.

Key highlights:

  • Power of 240W
  • Efficacy of 185 lm/W combined with a Power Switch
  • PIR detector SENSOR One included
  • IP65 and IK08

General characteristics
Lifetime 103,000 h
Brand CLAREO
Range START
Product family HighBays
Warranty 5 years
Electrical characteristics
Voltage 220-240 V AC
Power 240/190/150
Electrical class Class I
Dimmable 0-10 V
Facteur de puissance > 0,95
Taux de distorsion harmonique < 8%
Sensor YES
EU energy class 2019/2015 B
Detector type PIR
Maximum ground detection diameter 7 m
Lighting characteristics
Technology LED
Lumens output 27750 - 44400 lm
Energy savings - 50 %
Lumens efficiency 185 lm/W
Lifetime LXBY L80B10
Diffuser Transparent
Beam Angle 90 deg
Photobiological risk GR0 - No risk
IRC > 70
UGR < 29
Physical characteristics and dimensions
Diameter 330 mm
Height 174 mm
Net weight 2.3 kg
Materials Aluminum
Waterproof YES
IP IP65
IK IK08
Product color Black
Working temperature -30°C to 40°C
Maximum installation height 12 m
Installation mode Pendant, Surface-mounted with accessory, Surface-mounted with accessory
Type SMD
Standards and regulations
Standards CE, RoHS
Carbon footprint 10.8 kgCO2eq
