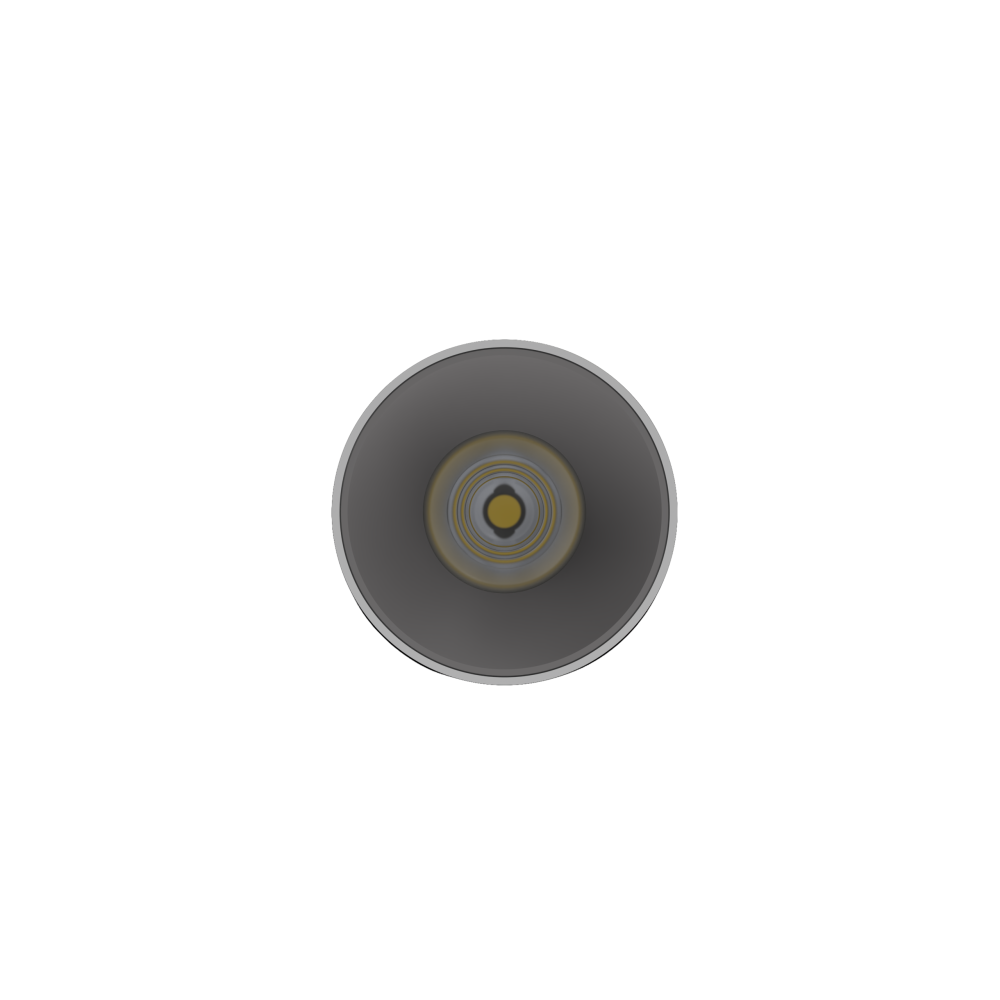

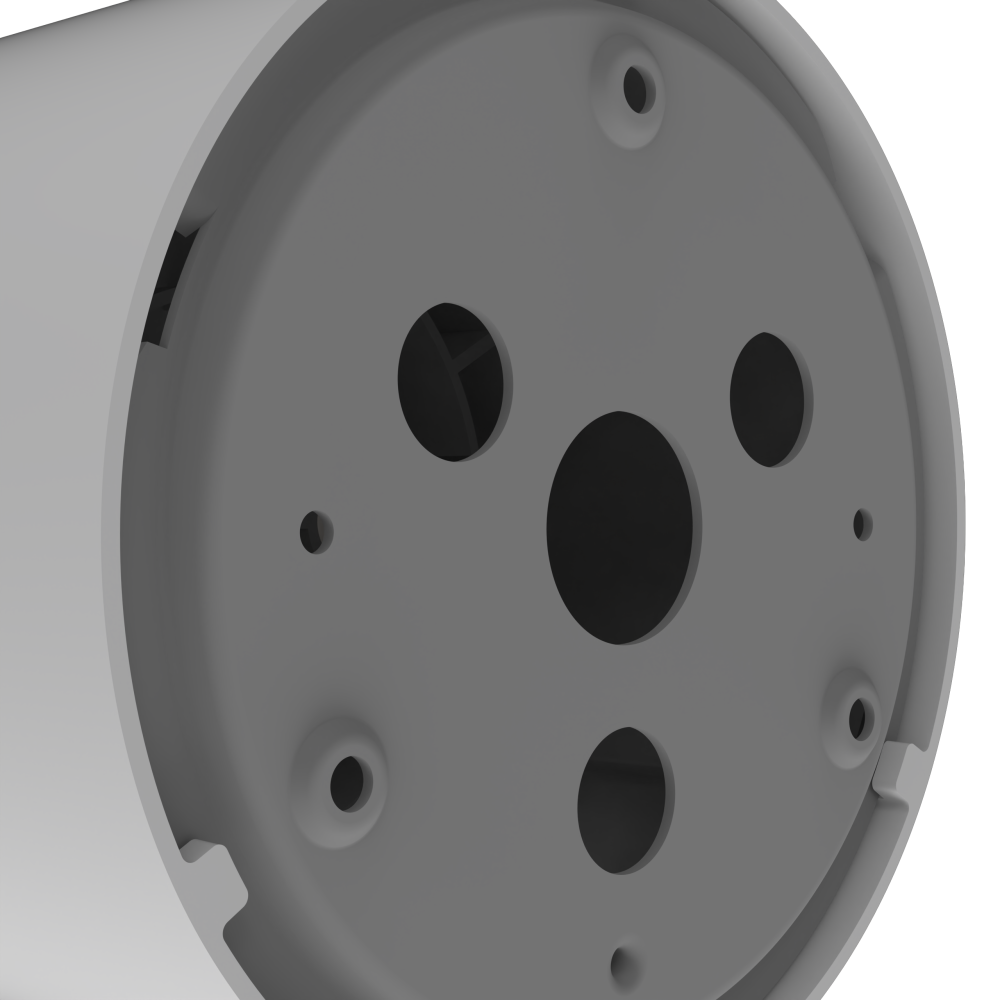

DownRay Surface-Mounted DESIGN 2: The alliance of design and performance

The DownRay Surface-Mounted DESIGN 2 provides precise and aesthetic lighting ideal for enhancing your interior spaces, while offering flexibility and performance.
With its 10 W power and 120 lm/W efficiency (i.e. 1200 lumens), it ensures effective and controlled lighting, suitable for decorative or functional needs.

The CCT Switch 2700/3000/4000 K allows you to adjust the color temperature according to the desired ambiance, while the two available angles, the narrow 24° angle (UGR < 9) or the wide 60° angle (UGR < 16) provide targeted or diffused light, depending on the desired effect.

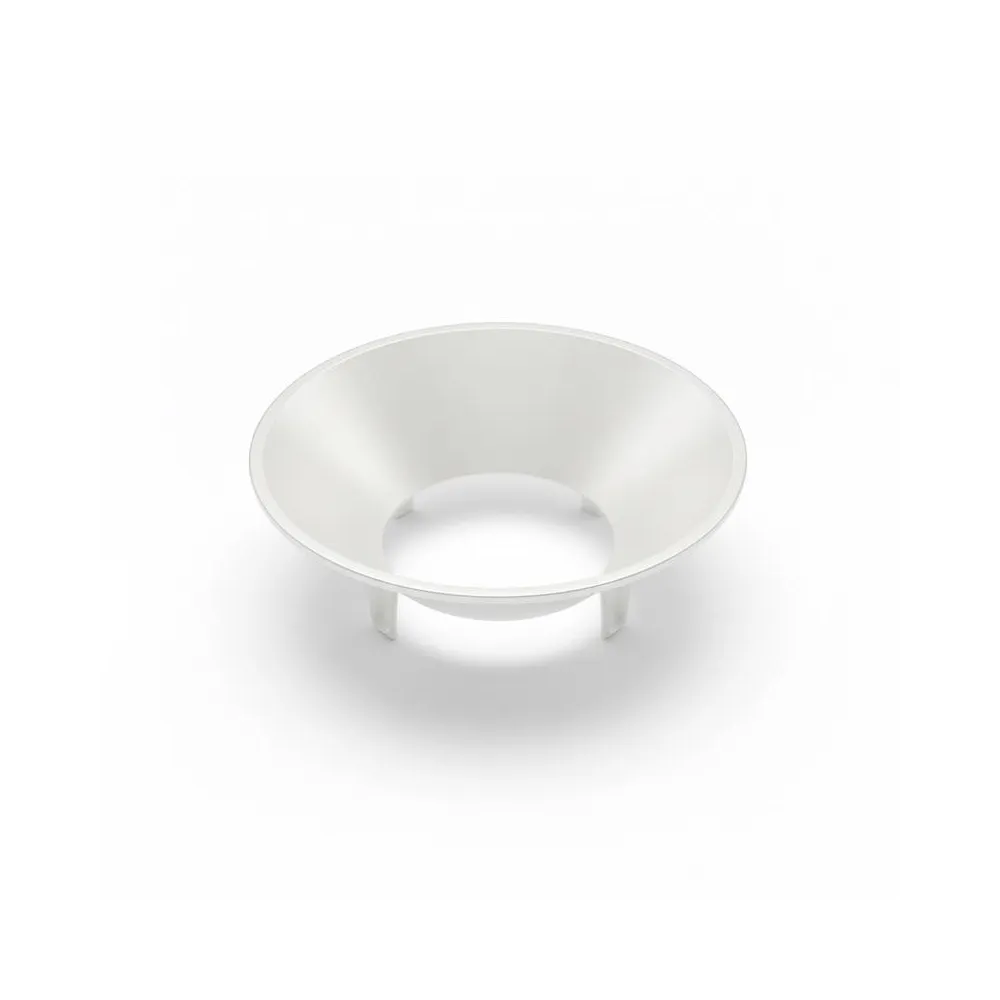

For complete integration, the driver fits directly inside the luminaire and is to be selected as an accessory, while the 5 reflector colors (Black, White, Silver, Specular and Copper) allow you to customize the aesthetic rendering of the luminaire.

Key features:

  • 2 available angles: 24° and 60°
  • CCT Switch 2700-3000-4000K
  • ON/OFF or DALI/BP driver to be selected as an accessory

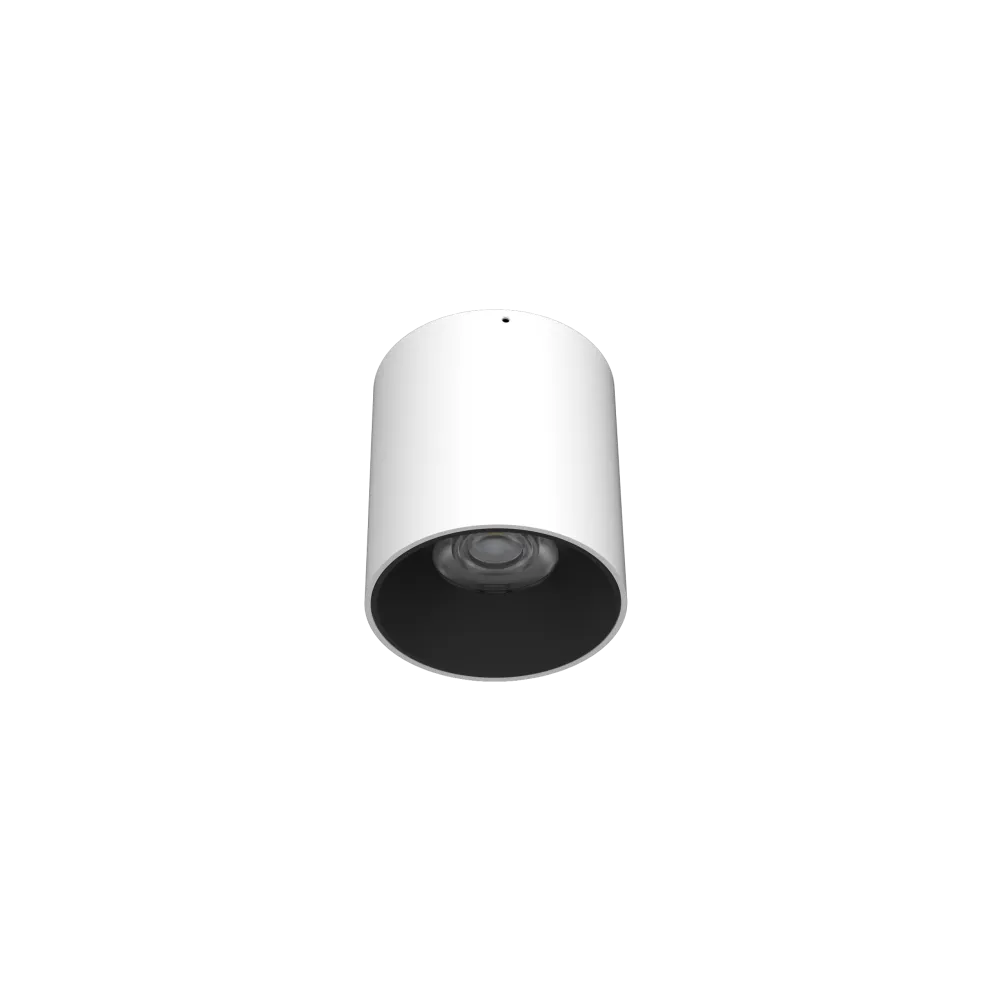

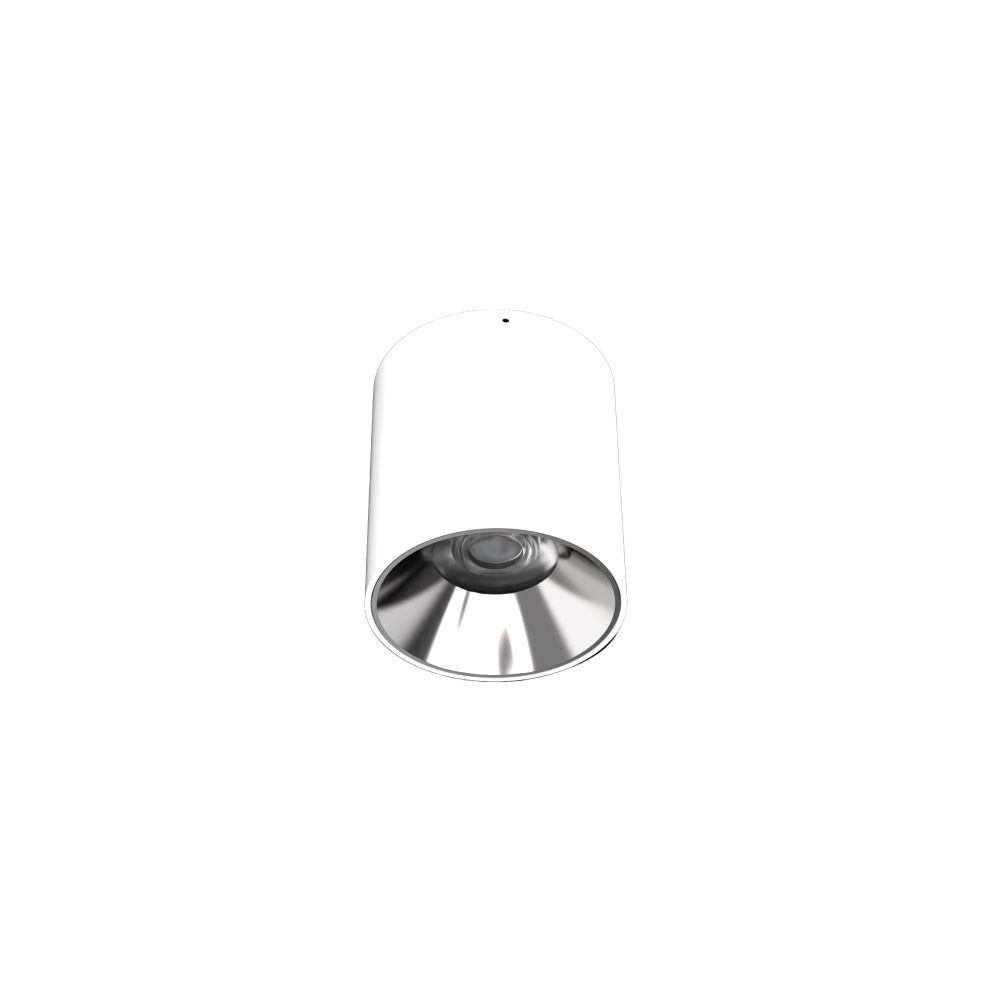

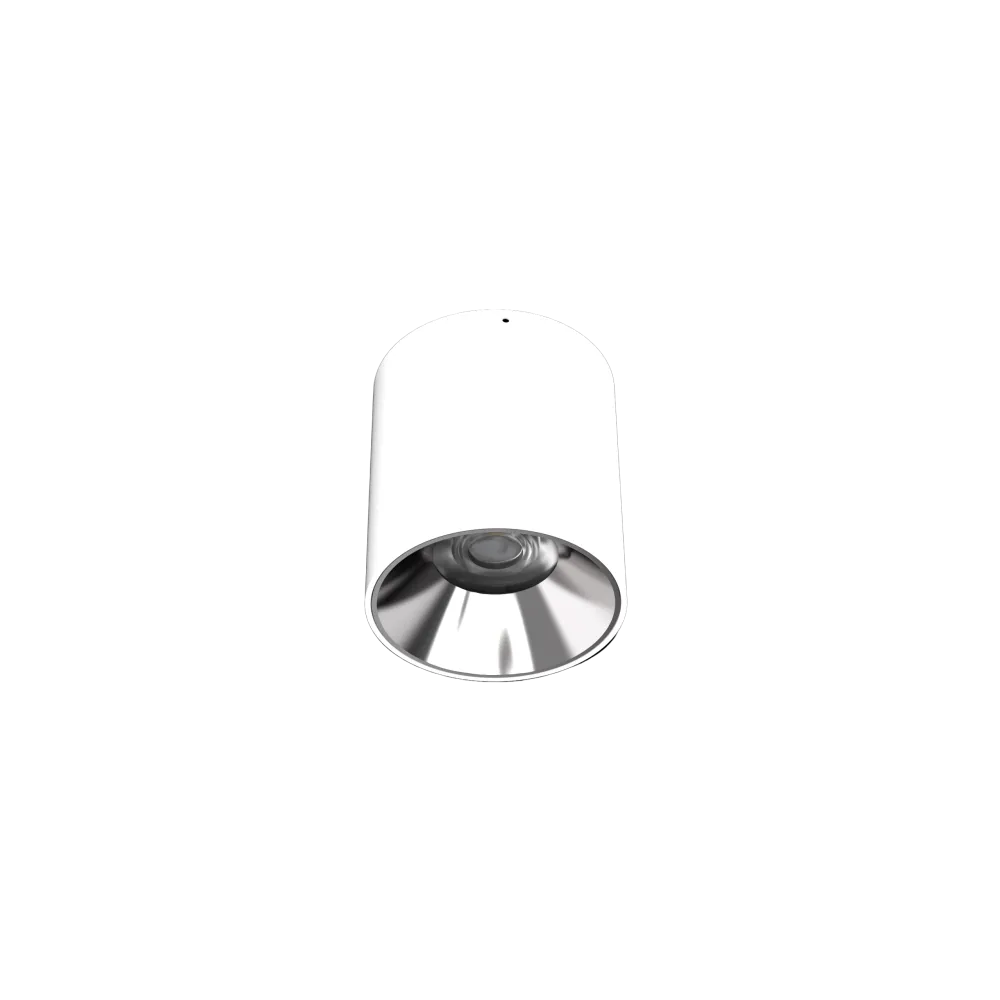

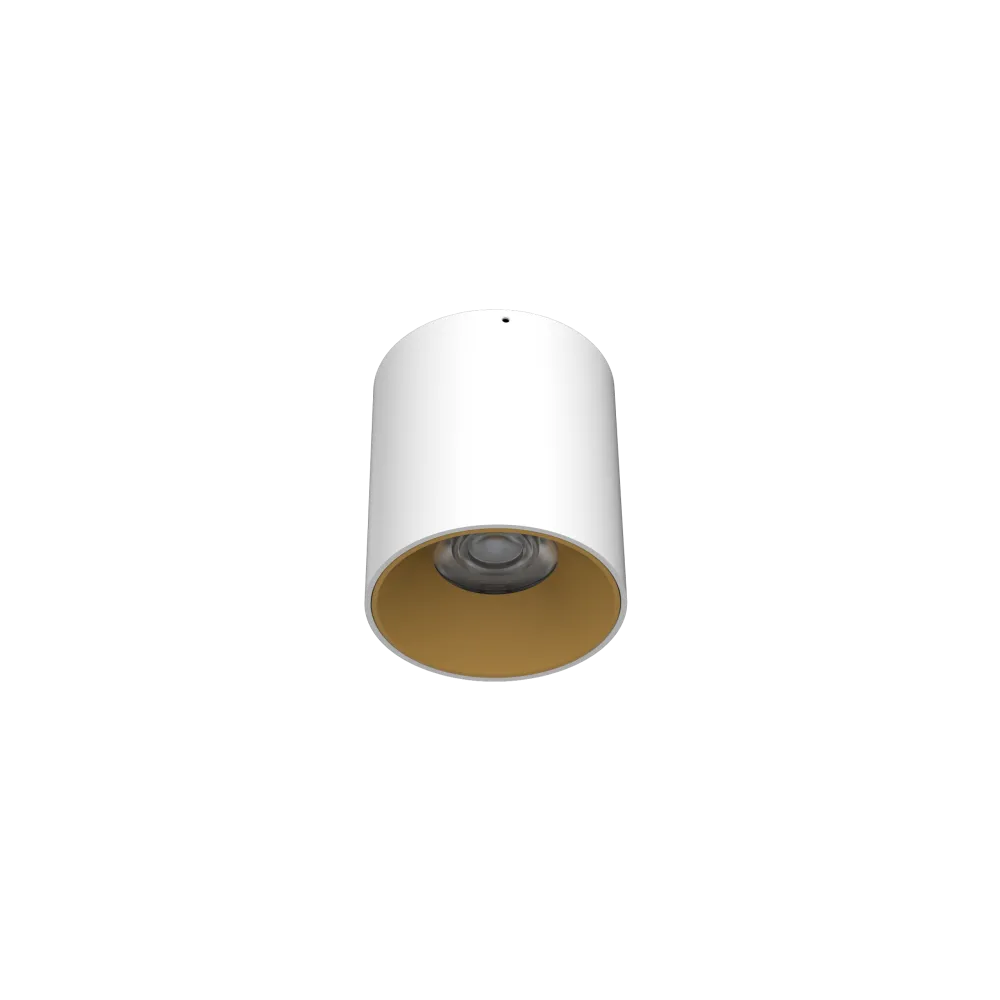

  • 5 reflector colors
  • 5-year warranty
Ref: DOW.5021D2

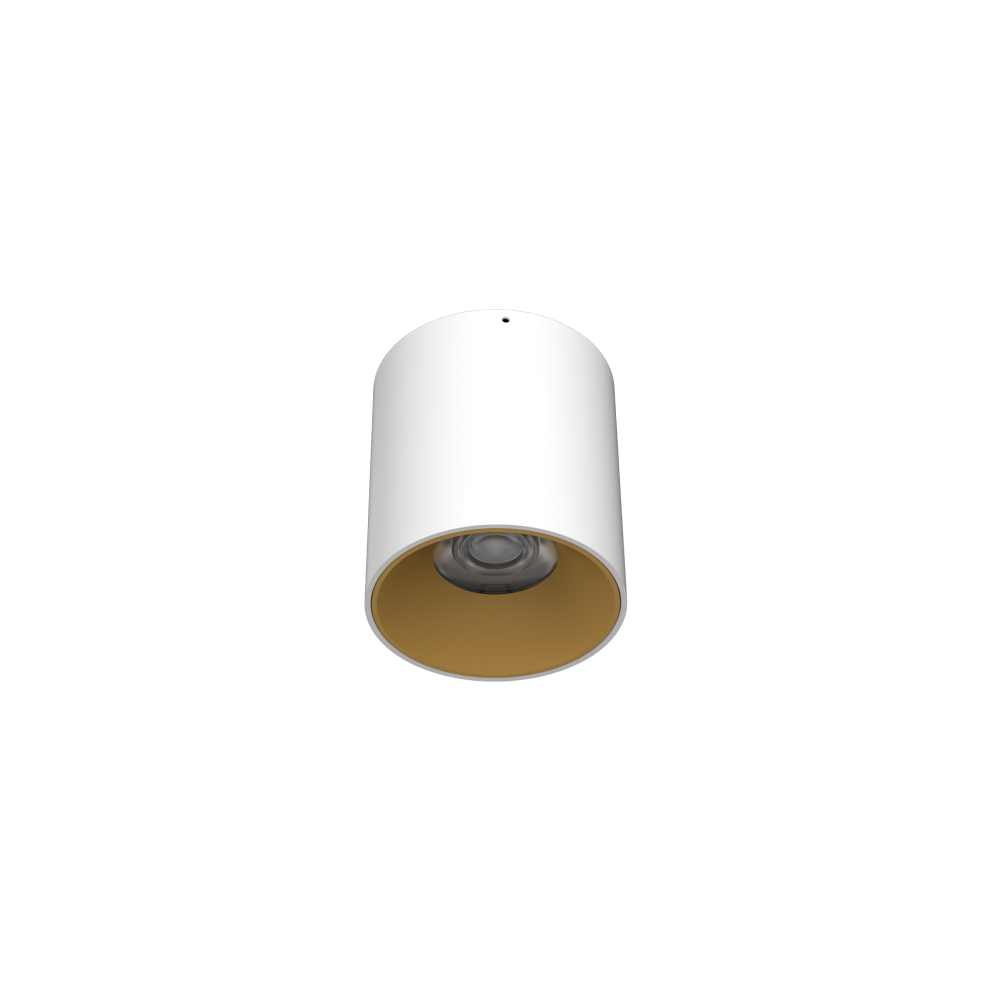

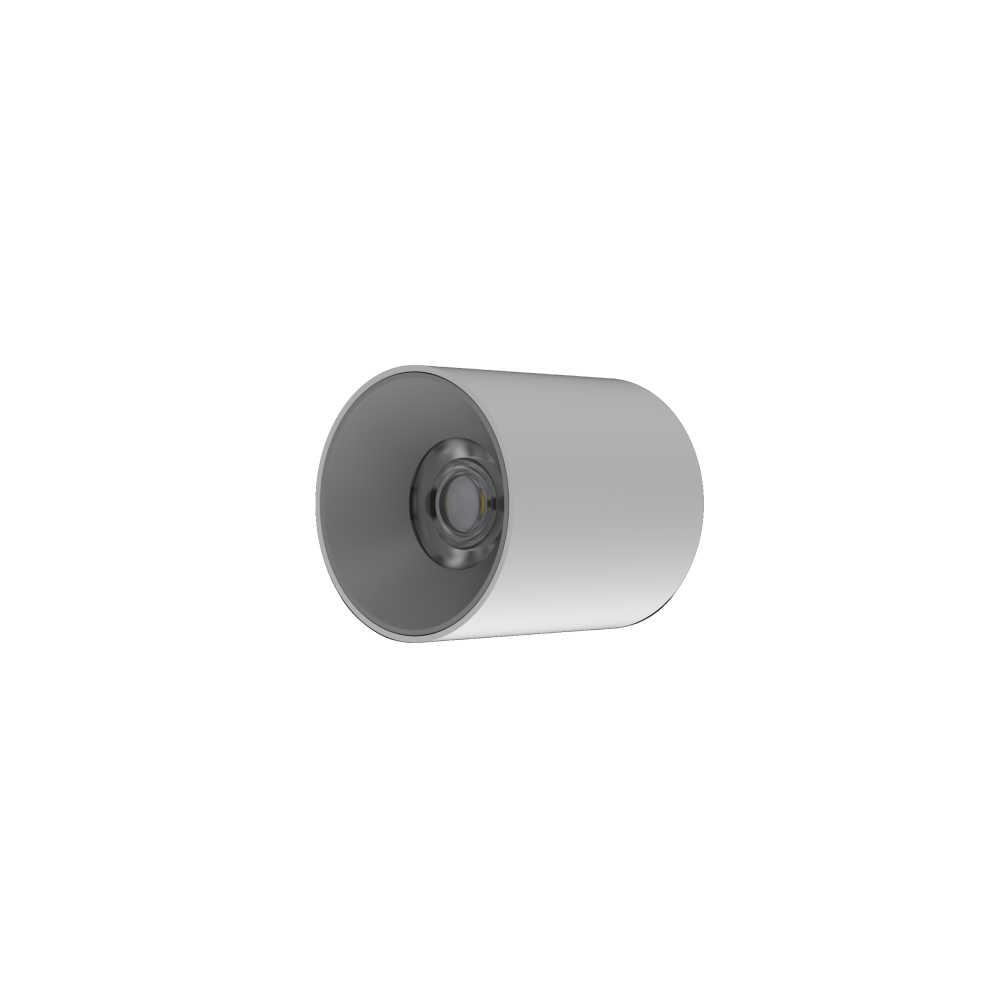

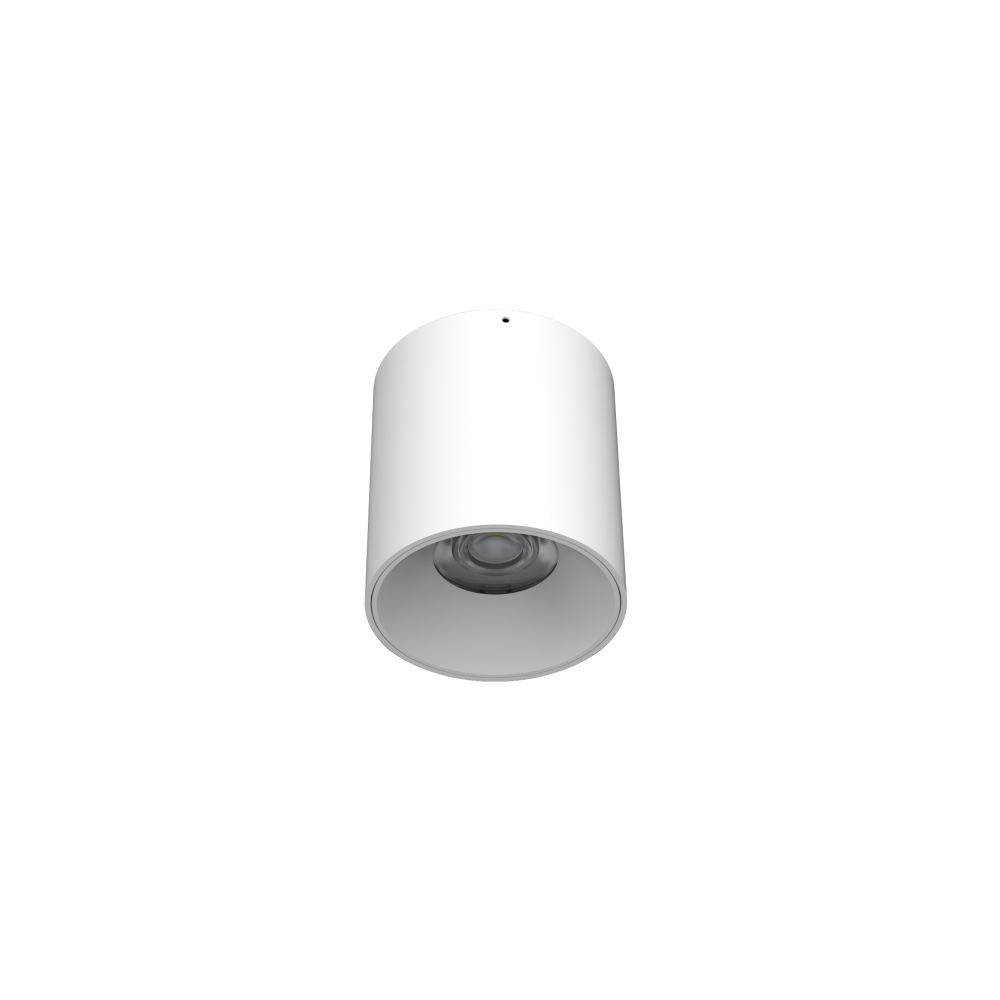

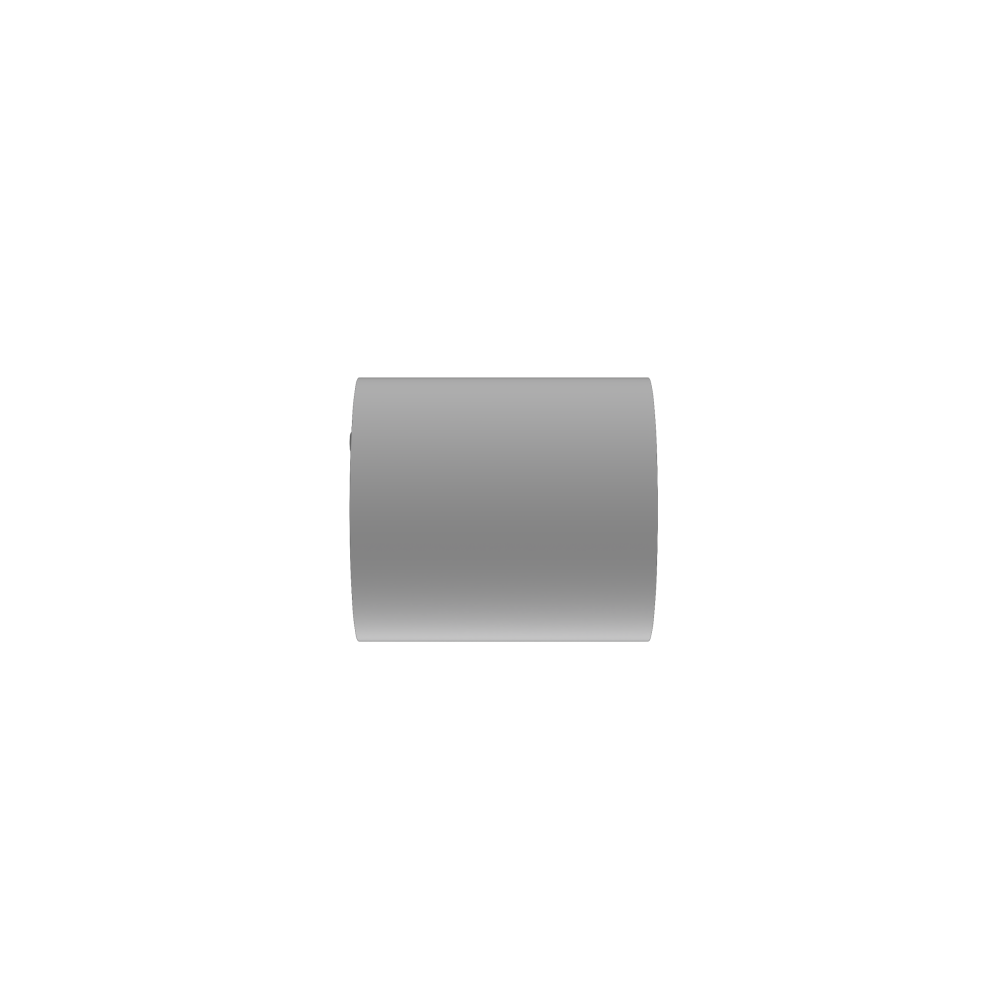

DownRay Surface CLAREO 10W 120lm/W DESIGN 2 White Without Driver

save_alt Download the technical sheet

Color

Switch 2700-3000-4000K

Angle

Diffuser

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

DownRay Surface-Mounted DESIGN 2: The alliance of design and performance

The DownRay Surface-Mounted DESIGN 2 provides precise and aesthetic lighting ideal for enhancing your interior spaces, while offering flexibility and performance.
With its 10 W power and 120 lm/W efficiency (i.e. 1200 lumens), it ensures effective and controlled lighting, suitable for decorative or functional needs.

The CCT Switch 2700/3000/4000 K allows you to adjust the color temperature according to the desired ambiance, while the two available angles, the narrow 24° angle (UGR < 9) or the wide 60° angle (UGR < 16) provide targeted or diffused light, depending on the desired effect.

For complete integration, the driver fits directly inside the luminaire and is to be selected as an accessory, while the 5 reflector colors (Black, White, Silver, Specular and Copper) allow you to customize the aesthetic rendering of the luminaire.

Key features:

  • 2 available angles: 24° and 60°
  • CCT Switch 2700-3000-4000K
  • ON/OFF or DALI/BP driver to be selected as an accessory
  • 5 reflector colors
  • 5-year warranty

General characteristics
Lifetime 90,000 h
Brand CLAREO
Range DESIGN
Product family Downlights
Installation environment Corridor, Architectural, Reception
Quick installation YES
Warranty 5 years
Electrical characteristics
Current 250 mA
EU energy class 2019/2015 D
Lighting characteristics
Technology LED
Lumens output 1080 - 1200 lm
Energy savings - 30 %
Lumens efficiency 120 lm/W
Lifetime LXBY L80B10
Diffuser Prismatic
Beam Angle 24 deg
Photobiological risk GR1 - Low risk
IRC > 80
UGR < 14
Physical characteristics and dimensions
Diameter 95 mm
Height 115 mm
Net weight 0.5 kg
Materials Aluminum
Waterproof No
IP IP54
IK IK06
Product color White
Working temperature -20 °C to 45 °C
Detailed color Matte White
Installation mode Surface mount
Type COB
Standards and regulations
Standards CE, RoHS
