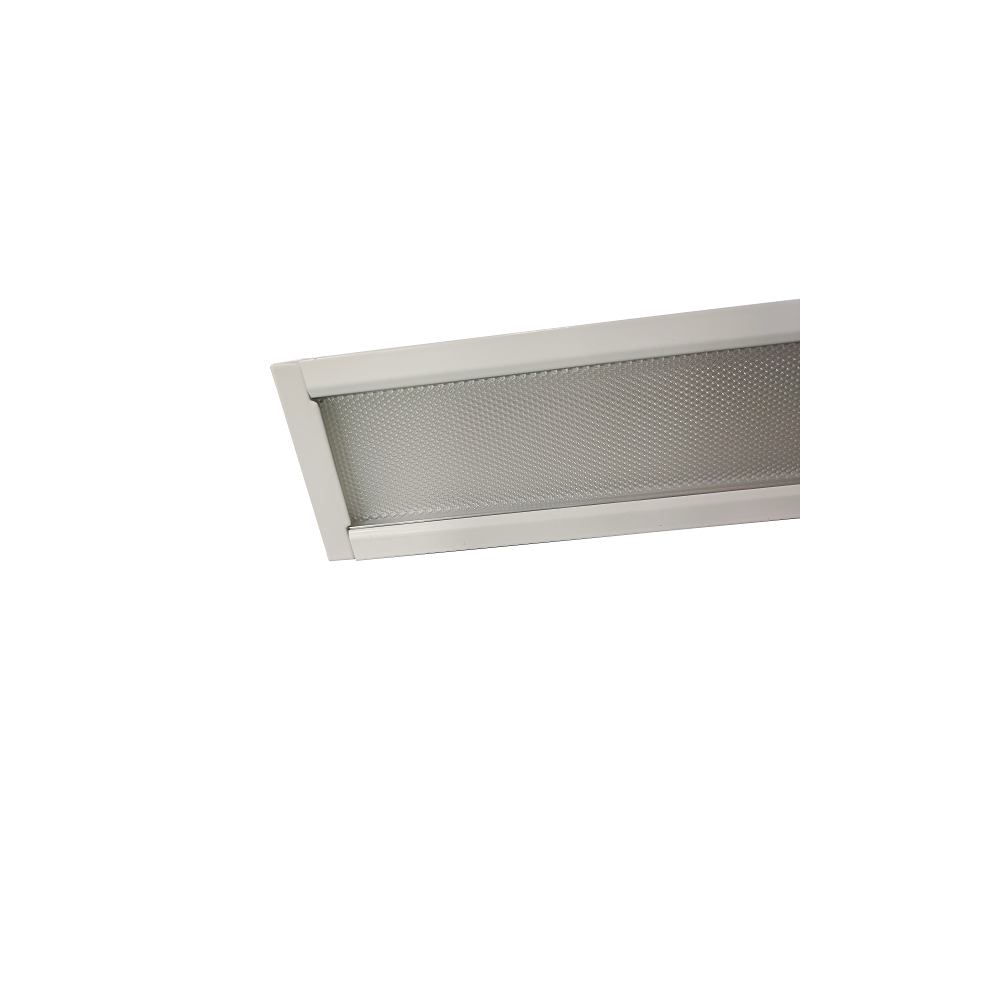

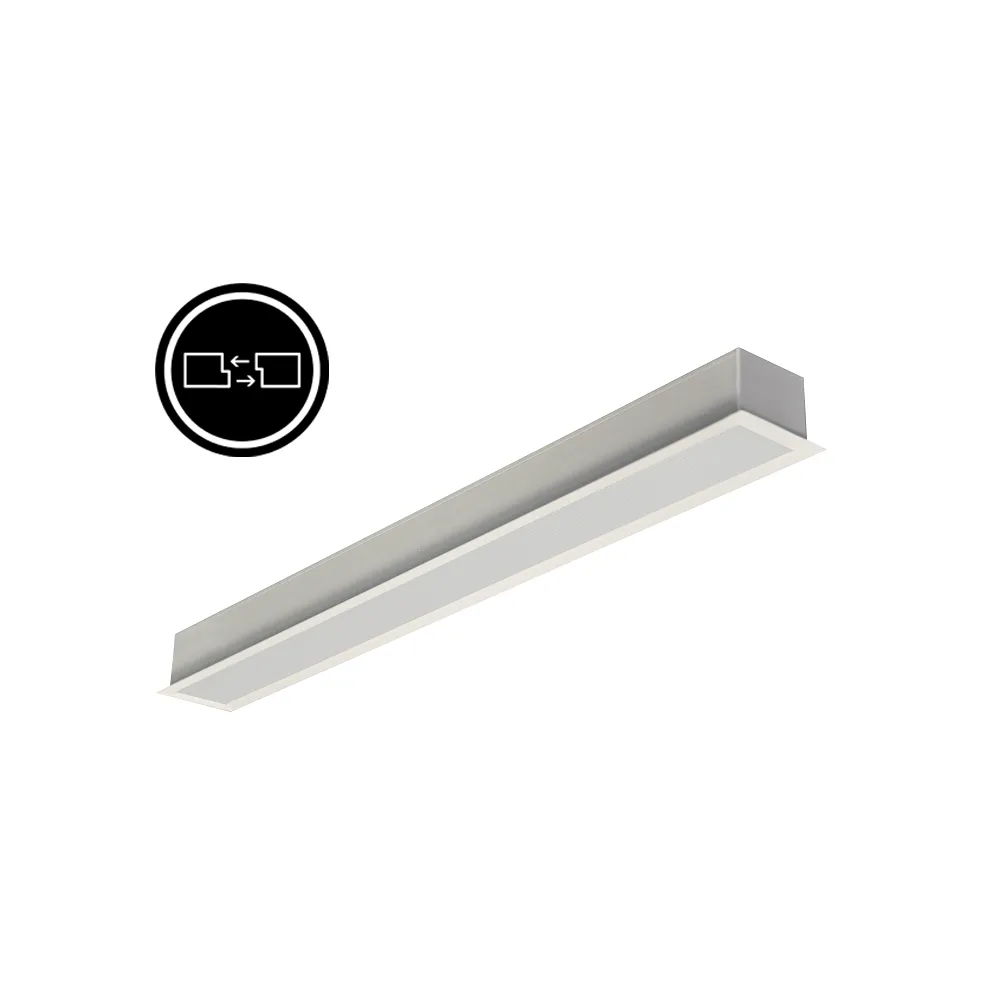

LineLED CLAREO 47x50 150cm 30W 120lm/W Recessed Interconnected ADVANCE 2

The new LineLED CLAREO Recessed Interconnected ADVANCE 2:

This new light line has been specially designed to illuminate your lighting projects in offices, retail spaces or hotels.

This light line comes with integrated driver for recessed and interconnected installation.

Maximum interconnection length = 700W

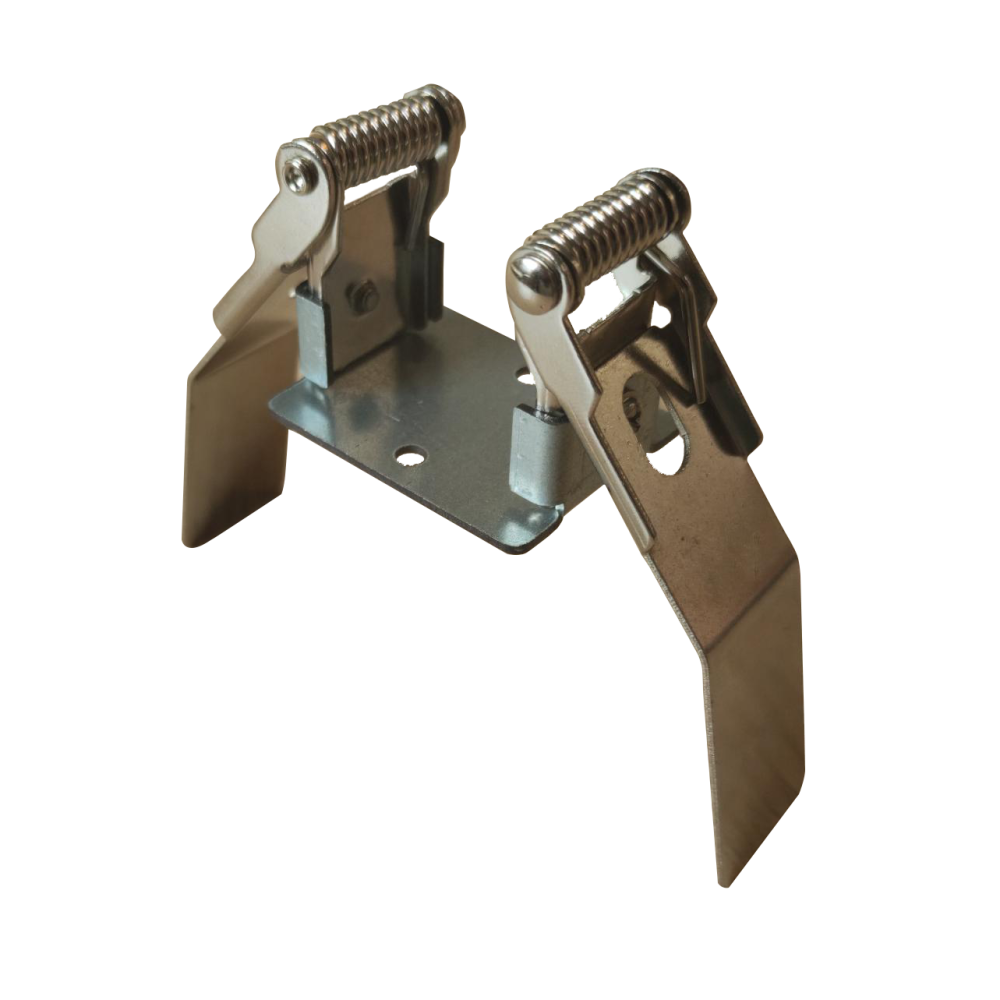

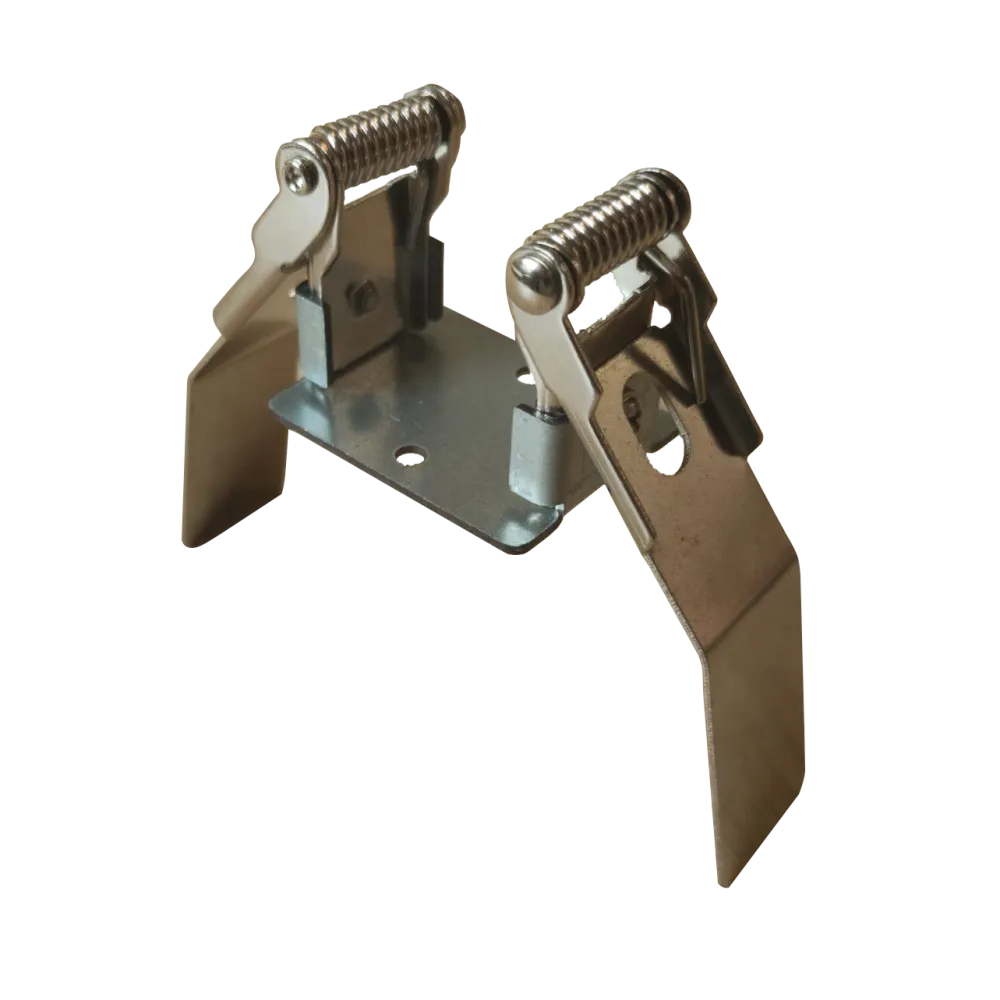

The spring clips for recessed installation are pre-mounted on the LineLED.

Designed for intensive use, with a 7-year warranty and a lifespan of 70,000 hours.

Box contents: 1 LineLED CLAREO Recessed Interconnected ADVANCE 2

It is equipped with a CCT Switch 3000-3500-4000K

Key features:

Light output of 120 lm/W
Long lifespan L80B10 70,000h
Recessed mounting
7-year warranty
Many custom optics available
Many custom colors available
BOKE brand driver

LineLED CLAREO 47x50 150cm 30W 120lm/W Recessed Interconnected ADVANCE 2 FS

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

The new LineLED CLAREO Recessed Interconnected ADVANCE 2:

This new light line has been specially designed to illuminate your lighting projects in offices, retail spaces or hotels.

This light line comes with integrated driver for recessed and interconnected installation.

Maximum interconnection length = 700W

The spring clips for recessed installation are pre-mounted on the LineLED.

Designed for intensive use, with a 7-year warranty and a lifespan of 70,000 hours.

Box contents: 1 LineLED CLAREO Recessed Interconnected ADVANCE 2

It is equipped with a CCT Switch 3000-3500-4000K

Key features:

Light output of 120 lm/W
Long lifespan L80B10 70,000h
Recessed mounting
7-year warranty
Many custom optics available
Many custom colors available
BOKE brand driver

General characteristics

Lifetime	70 000 h
Brand	CLAREO
Range	ADVANCE
Product family	Linear lights

Installation environment	Point of sale, Office
Quick installation	YES
Repairable	YES
Warranty	7 years

Electrical characteristics

Voltage	230 V AC
Power	30 W
Electrical class	Class I

Dimmable	ON/OFF
Facteur de puissance >	0,95
Taux de distorsion harmonique <	15%
EU energy class 2019/2015	E

Lighting characteristics

Technology	LED
Lumens output	3600 lm
Energy savings	- 30 %
Lumens efficiency	120 lm/W
Lifetime LXBY	L80B10

Diffuser	Prismatic
Beam Angle	70 deg
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	19

Physical characteristics and dimensions

Height	47 mm
Standard length	150 cm
Width	64 mm
Length	1 500 mm
Net weight	2.1 kg
Materials	Aluminum
Waterproof	No

IP	IP20
IK	IK07
Product color	White
Cut-out	55 x 1,504 mm
Working temperature	-20 °C to 45 °C
Detailed color	White
Type	SMD 2835

Standards and regulations

Standards	CE, RoHS
