Ideal surface-mounted downlight when recessed mounting is not possible

Suitable for circulation lighting, installation is quick and easy

Product guaranteed for 7 years for 60,000 operating hours

Opal diffuser for very wide and uniform light diffusion

Wall or ceiling surface mounting

Wide range of compatible drivers that fit inside the downlight for light dimming

Inner diameter: 115 mm

Compatible driver height: 29 mm

Box contents: 1 Downlight, 1 quarter-turn male connector wired to the Downlight, 1 quarter-turn female connector, 2 M4 screws 30 mm long and 2 wall plugs

Key features:

  • Value for money
  • Simplified mounting
  • Luminous efficacy of 100lm/W
Ref: DOW.9272

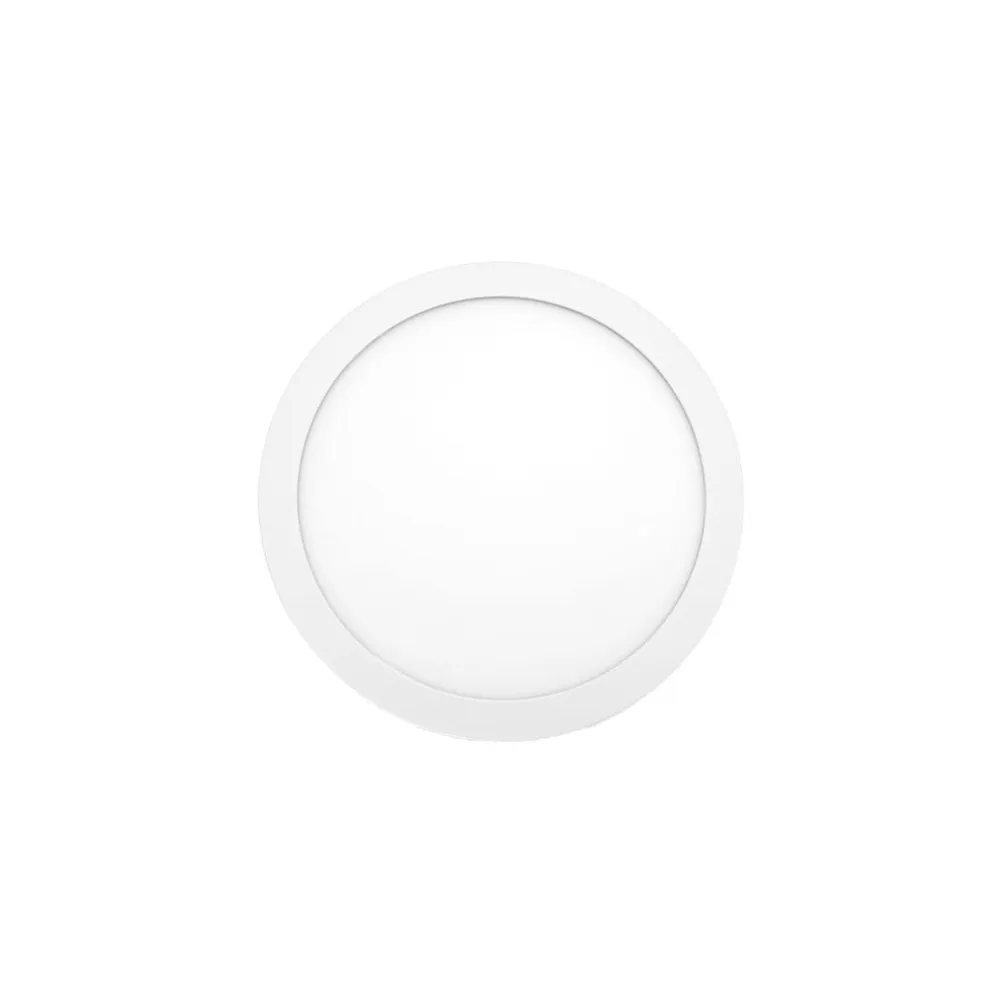

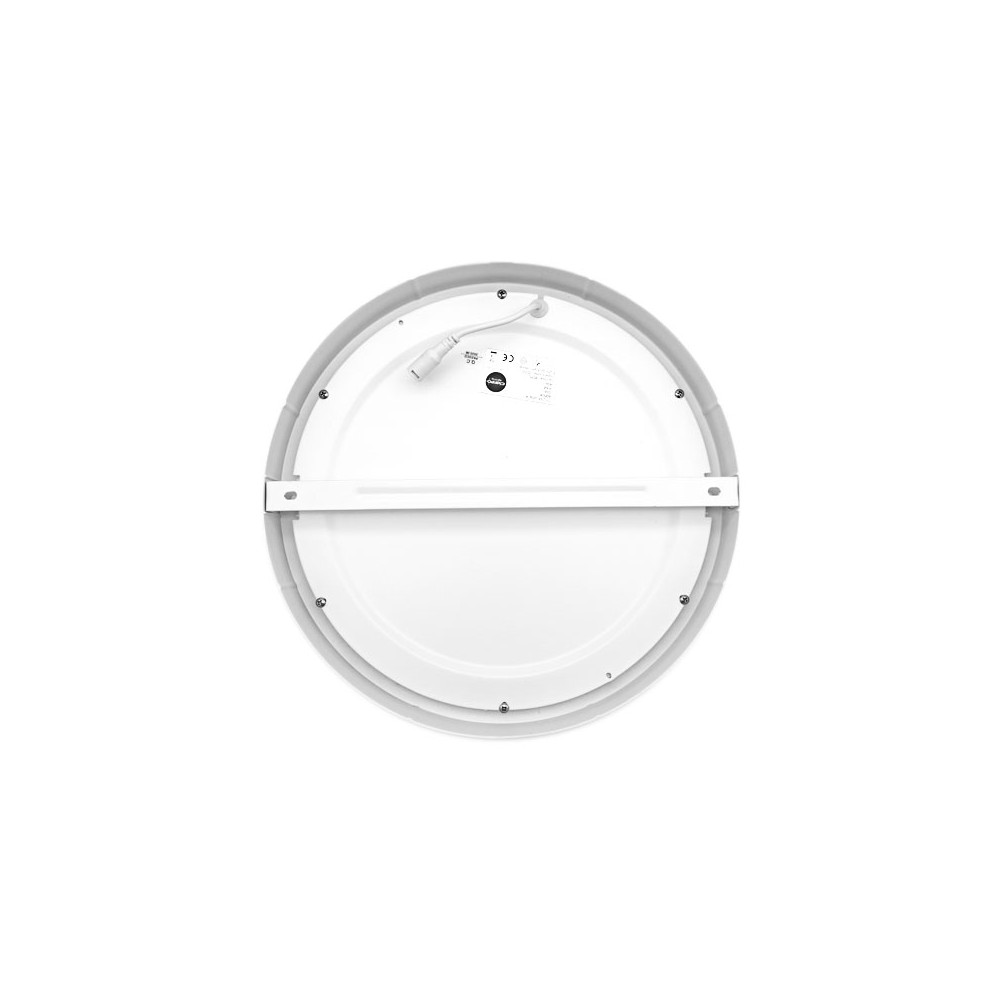

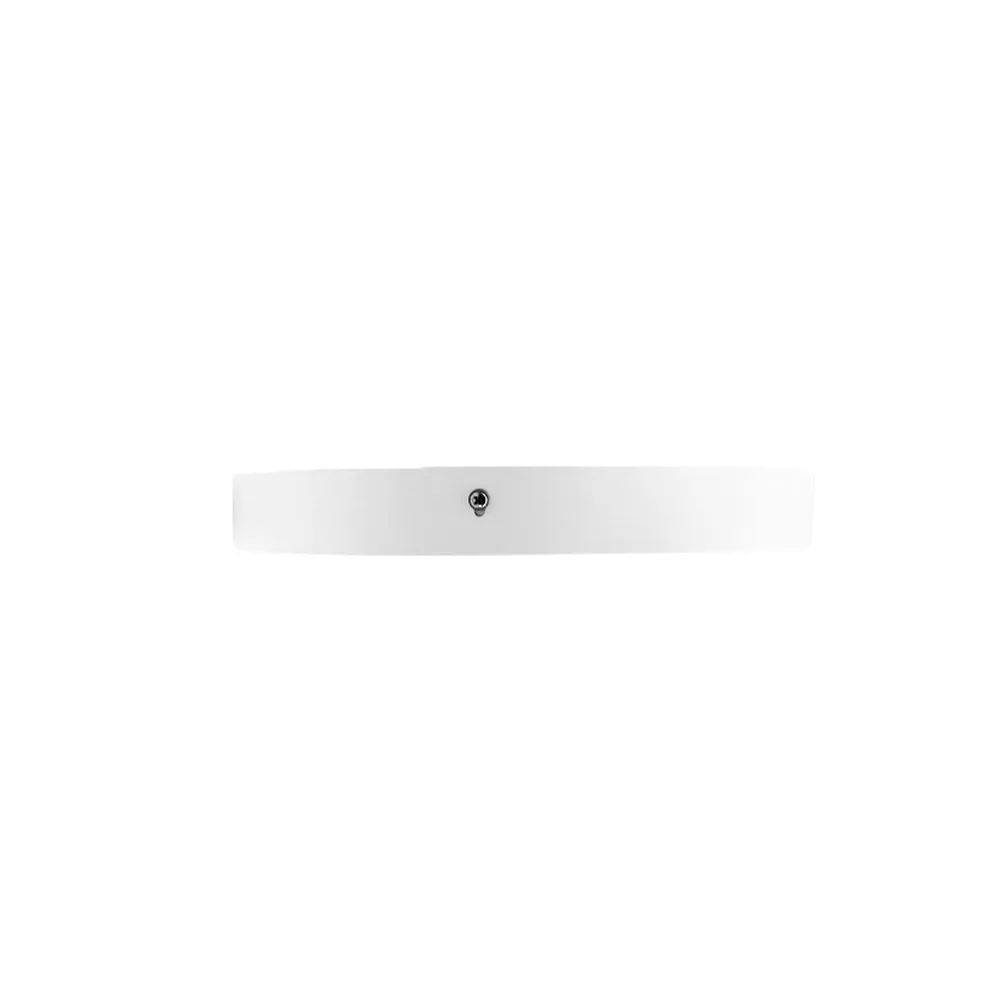

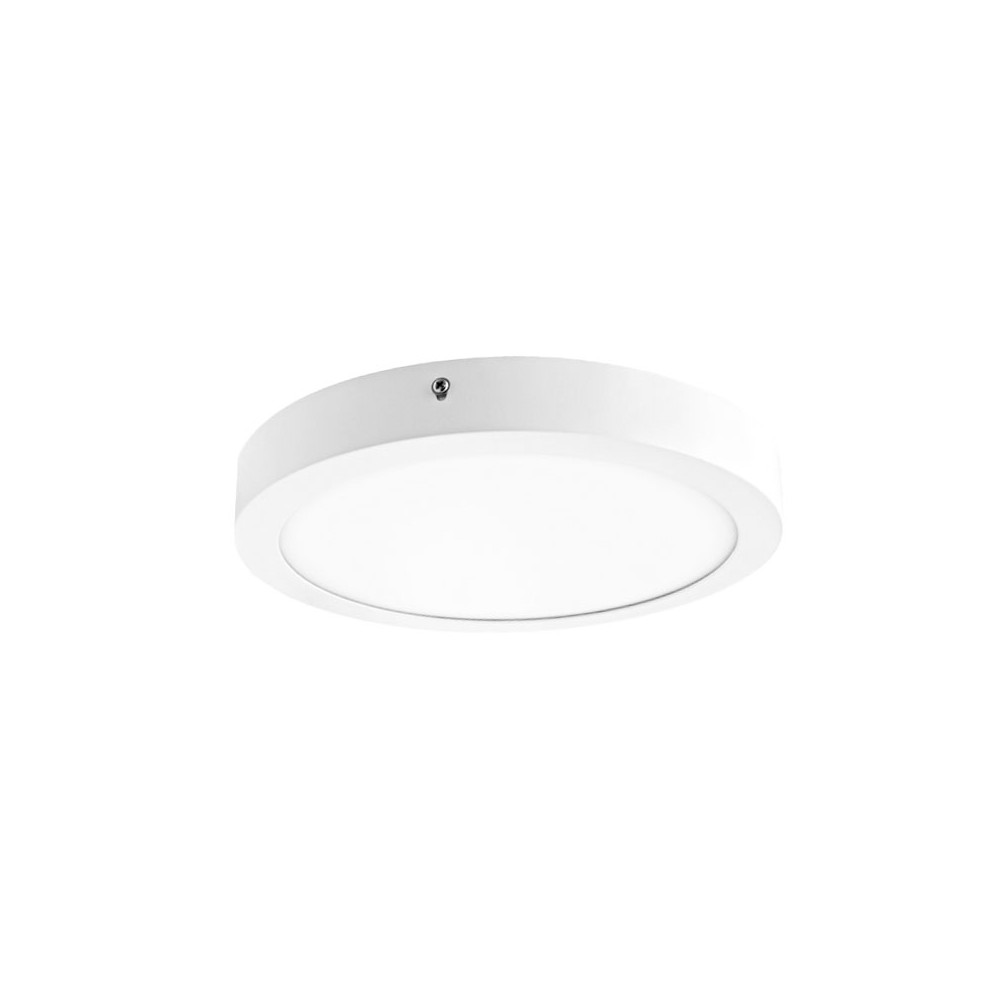

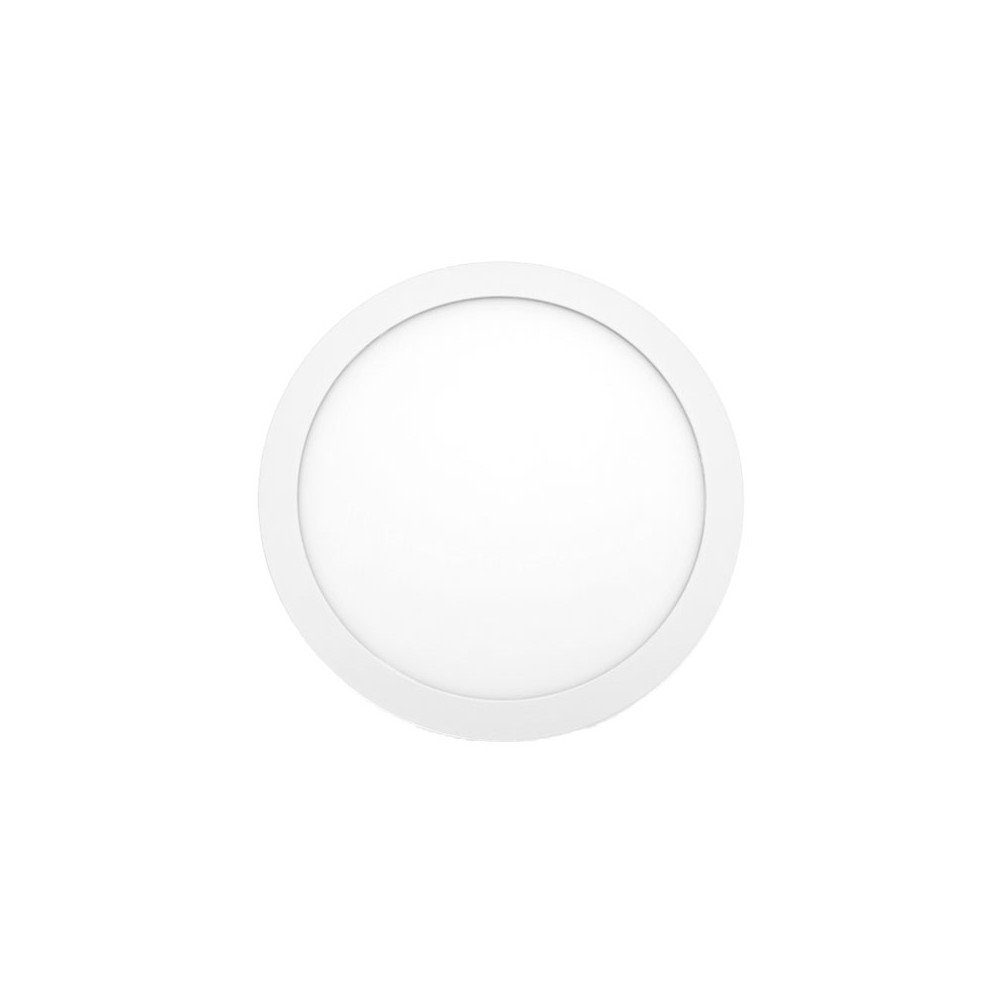

DownRay Surface CLAREO 10W ADVANCE 2 Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, next day delivery before 1pm
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Current Up to 250 mA
Power 10 W
Electrical class Class III
Power range 0-25 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 885 - 950 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 30
Lumens range 800-1099 lm
Physical characteristics and dimensions
Diameter 120 mm
Height 33 mm
Net weight 0.2 kg
Materials Aluminum
Waterproof No
IP IP40
IK IK06
Product color White
Diameter range 101-150 mm
Working temperature -20 °C to 45 °C
Detailed color White
Type SMD 2835
Standards and regulations
Standards CE, RoHS
