Ideal downlight for surface mounting when recessed installation is not possible.

Suitable for circulation lighting, its installation is quick and easy.

Product guaranteed for 7 years for 60,000 hours of operation.

Opal diffuser for very wide and uniform light diffusion.

Wall or ceiling surface installation.

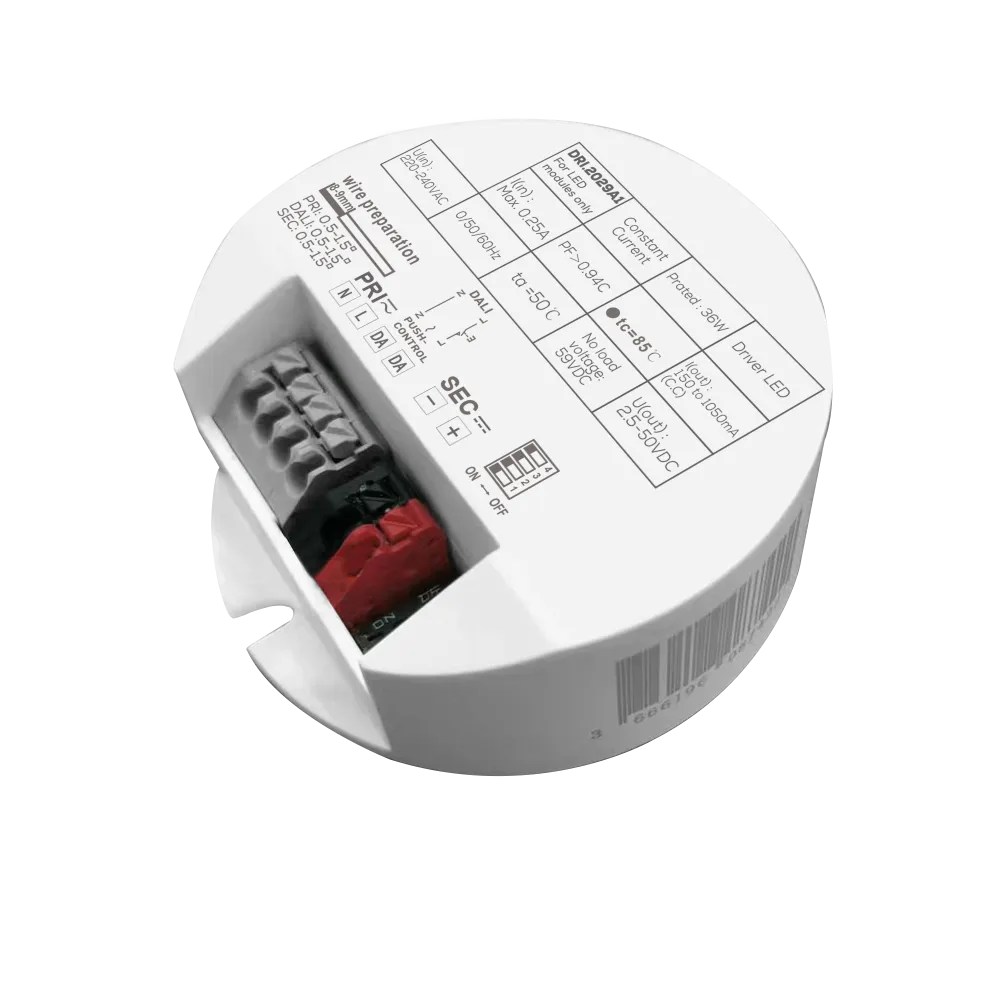

Wide range of compatible drivers that fit inside the downlight for light dimming.

Inner diameter: 300 mm

Compatible driver height: 29 mm

Box contents: 1 Downlight, 1 male quarter-turn connector wired to the Downlight, 1 female quarter-turn connector, 2 M4 screws 30 mm long and 2 anchors.

Notable features:

  • Value for money
  • Simplified assembly
  • Luminous efficiency of 100lm/W
Ref: DOW.9288

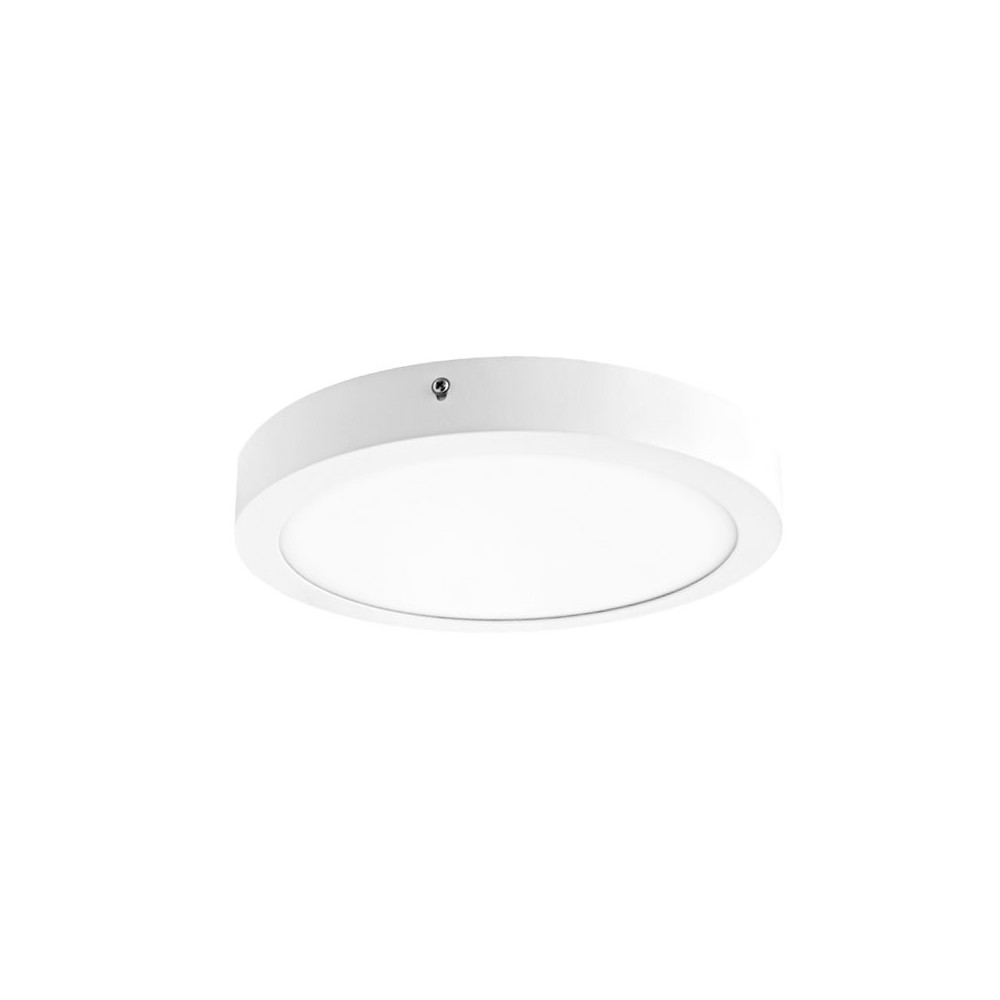

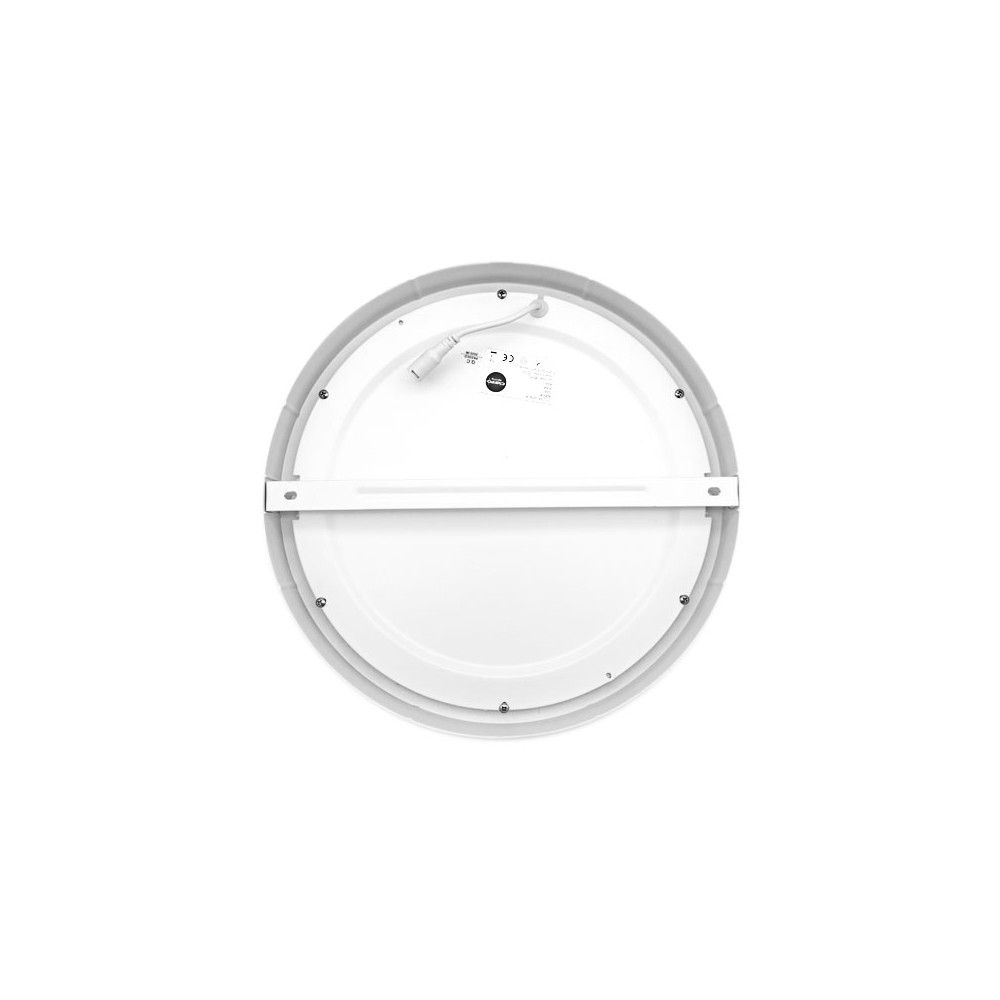

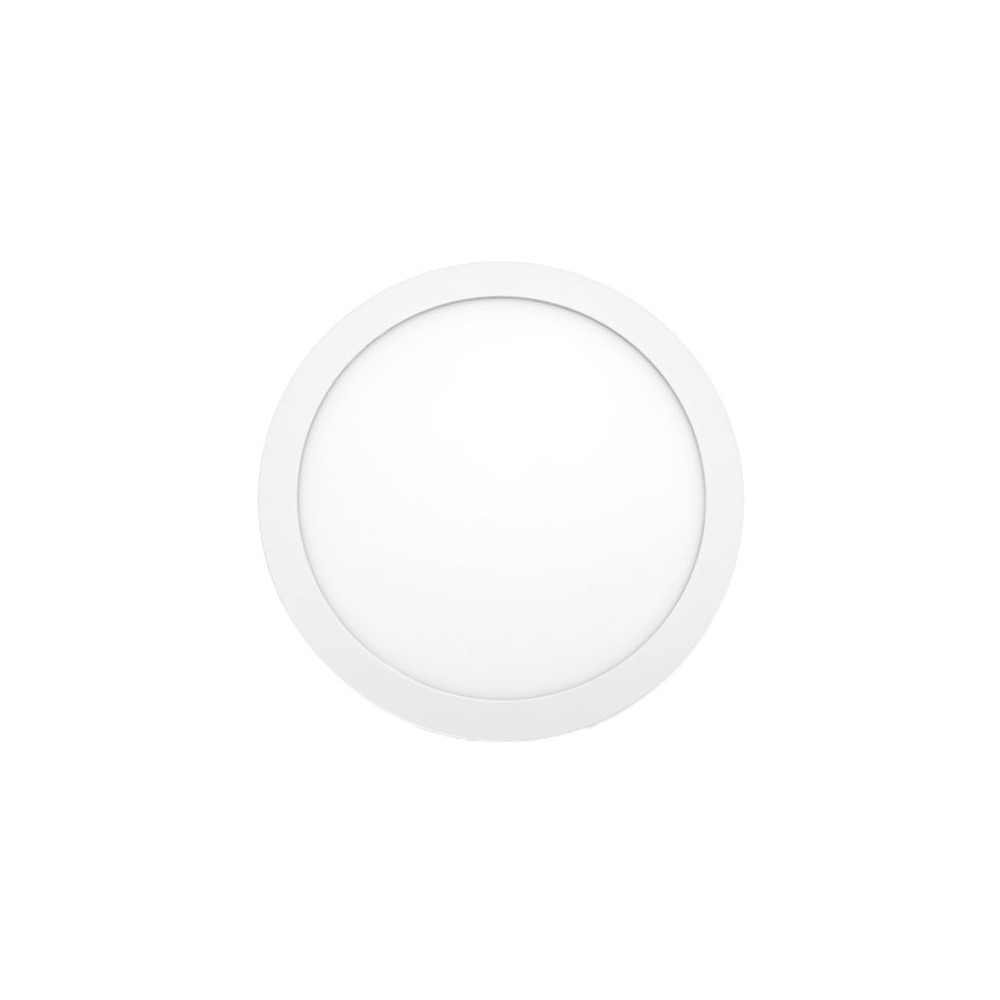

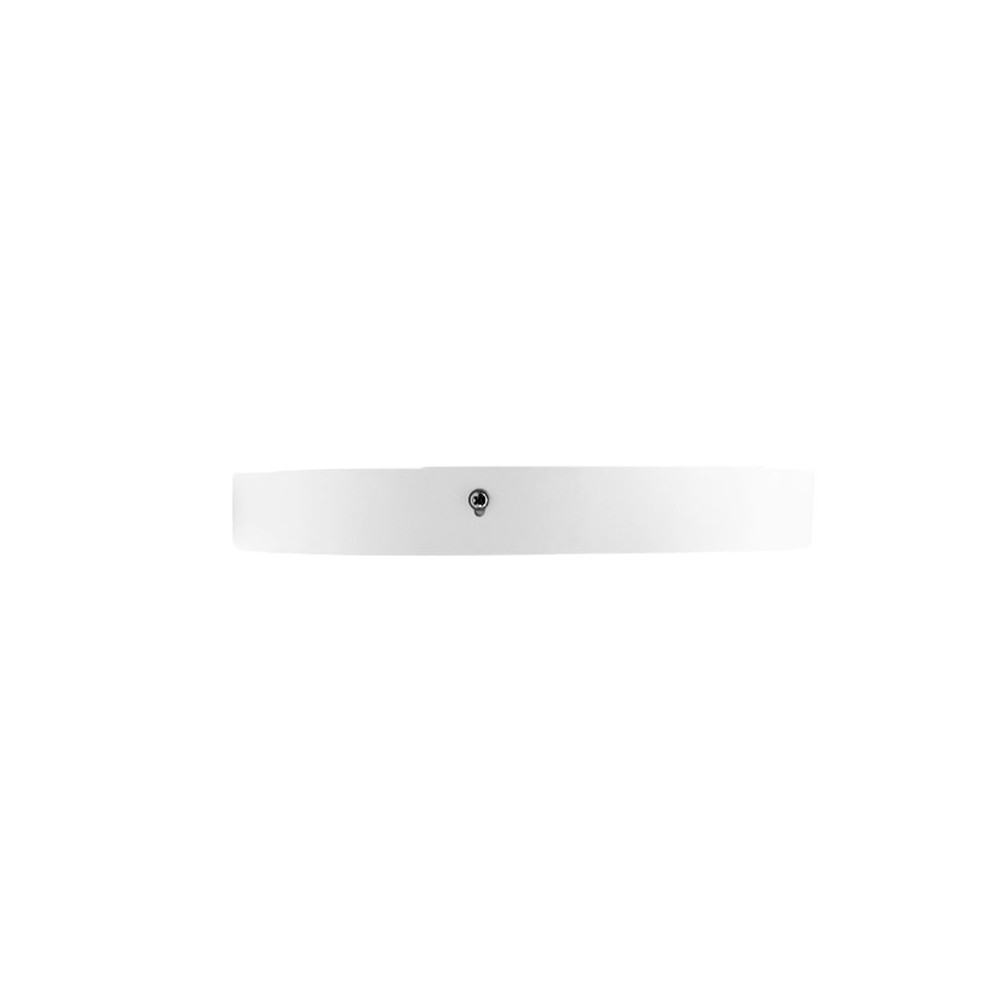

DownRay Surface-mounted CLAREO 40W ADVANCE 2 Without Driver

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

In stock, delivery next day before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Point of sale, Hotel, Office
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Current Up to 1,050 mA
Power 40 W
Electrical class Class III
Power range 26-50 W
EU energy class 2019/2015 E
Lighting characteristics
Technology LED
Lumens output 3942 - 4200 lm
Energy savings - 20 %
Lumens efficiency 110 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 120 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 24
Lumens range 4000-4999 lm
Physical characteristics and dimensions
Diameter 300 mm
Height 33 mm
Net weight 0.9 kg
Materials Aluminum
Waterproof No
IP IP40
IK IK06
Product color White
Diameter range 251-300 mm
Working temperature -20 °C to 45 °C
Detailed color White
Type SMD 2835
Standards and regulations
Standards CE, RoHS
