Square downlight ideal for surface mounting when recessed installation is not possible.

Suitable for circulation lighting, its installation is simple and quick.

Product guaranteed for 7 years for 60,000 hours of operation.

Opal diffuser for very wide and uniform light distribution.

Wall or ceiling surface mounting.

ON/OFF driver included and pre-wired. CCT Switch allowing to change the color temperature and choose between 3000 °K, 4000 °K and 6000 °K.

Box contents: 1 Downlight, 1 pre-wired ON/OFF driver, 2 M4 screws 30 mm long and 2 wall plugs.

Key features:

  • Value for money
  • Simplified assembly
  • Light efficiency of 100 lm/W
Ref: DOW.100402

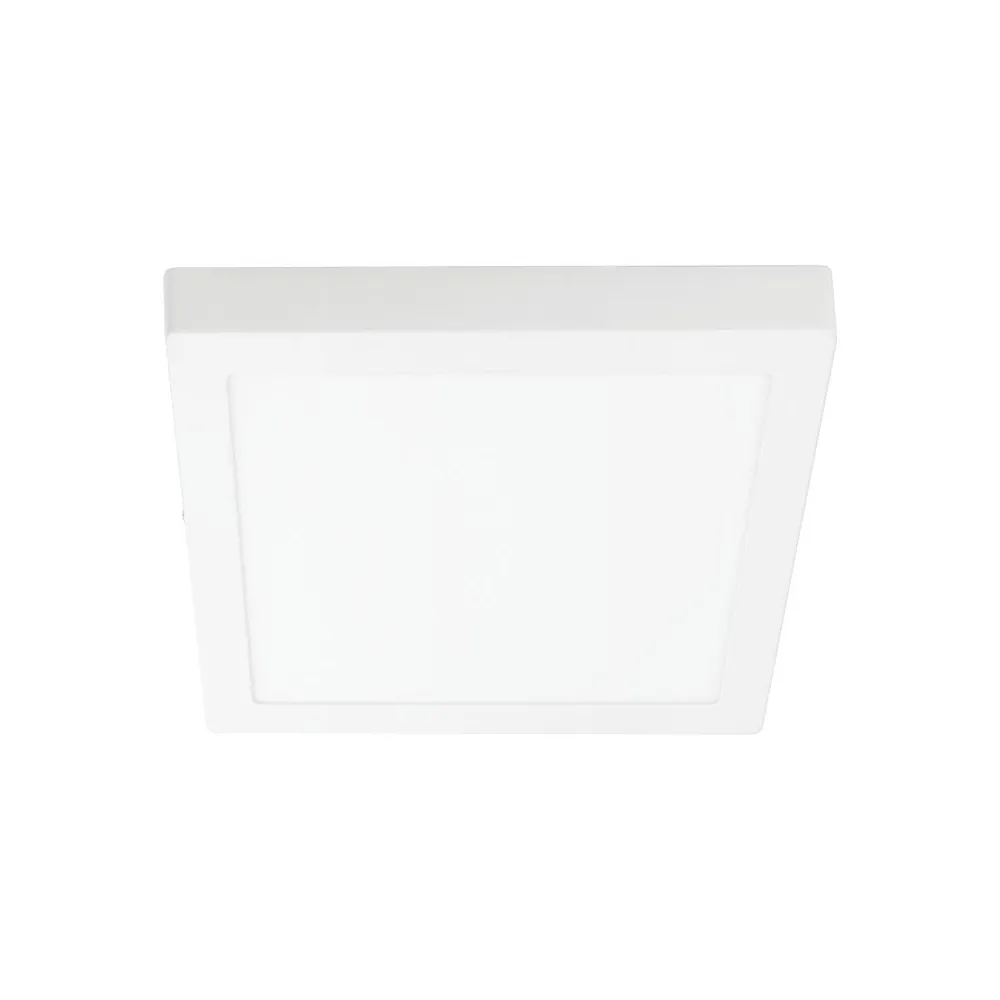

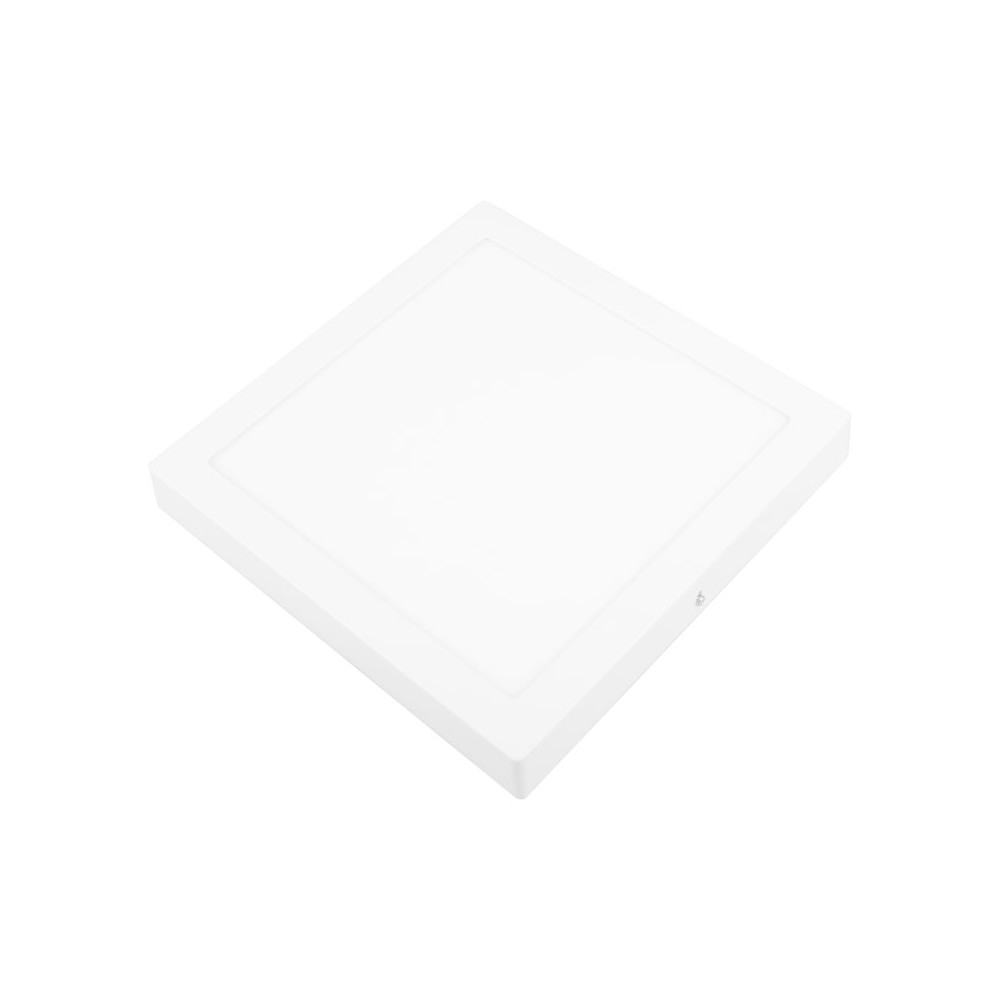

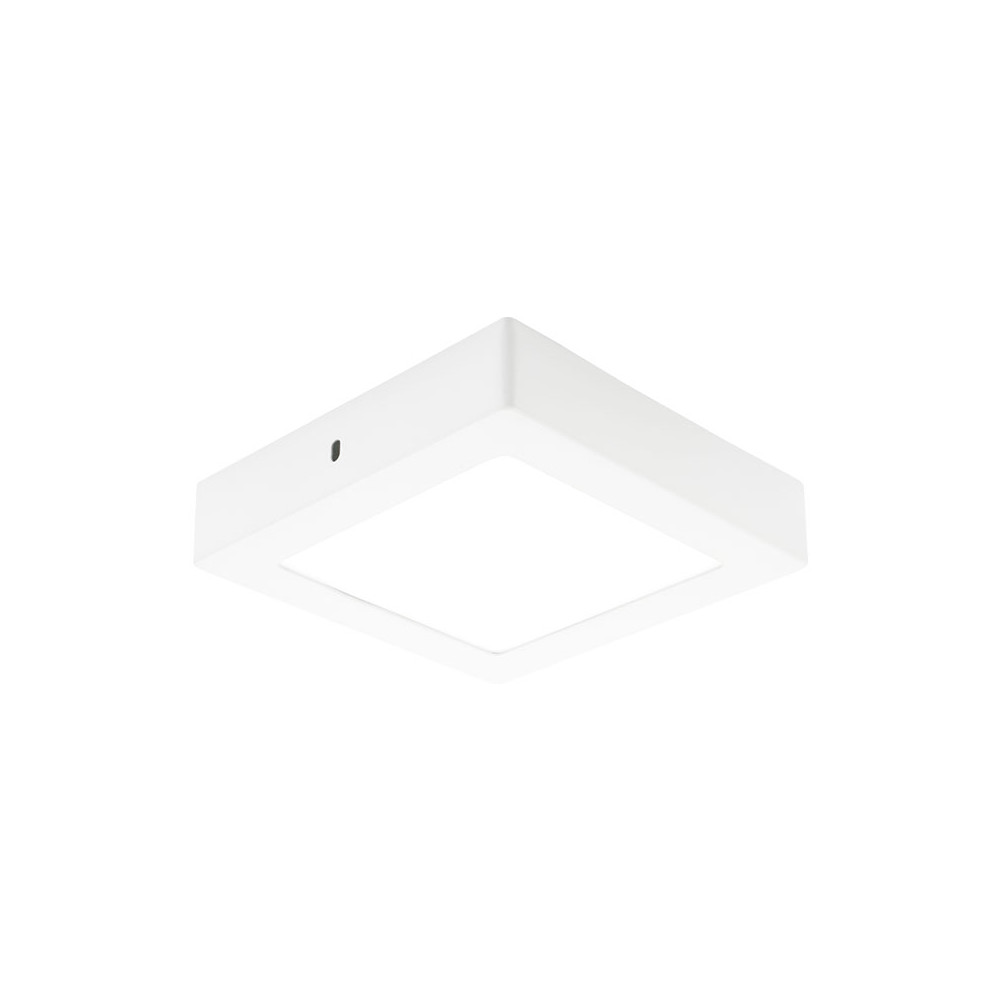

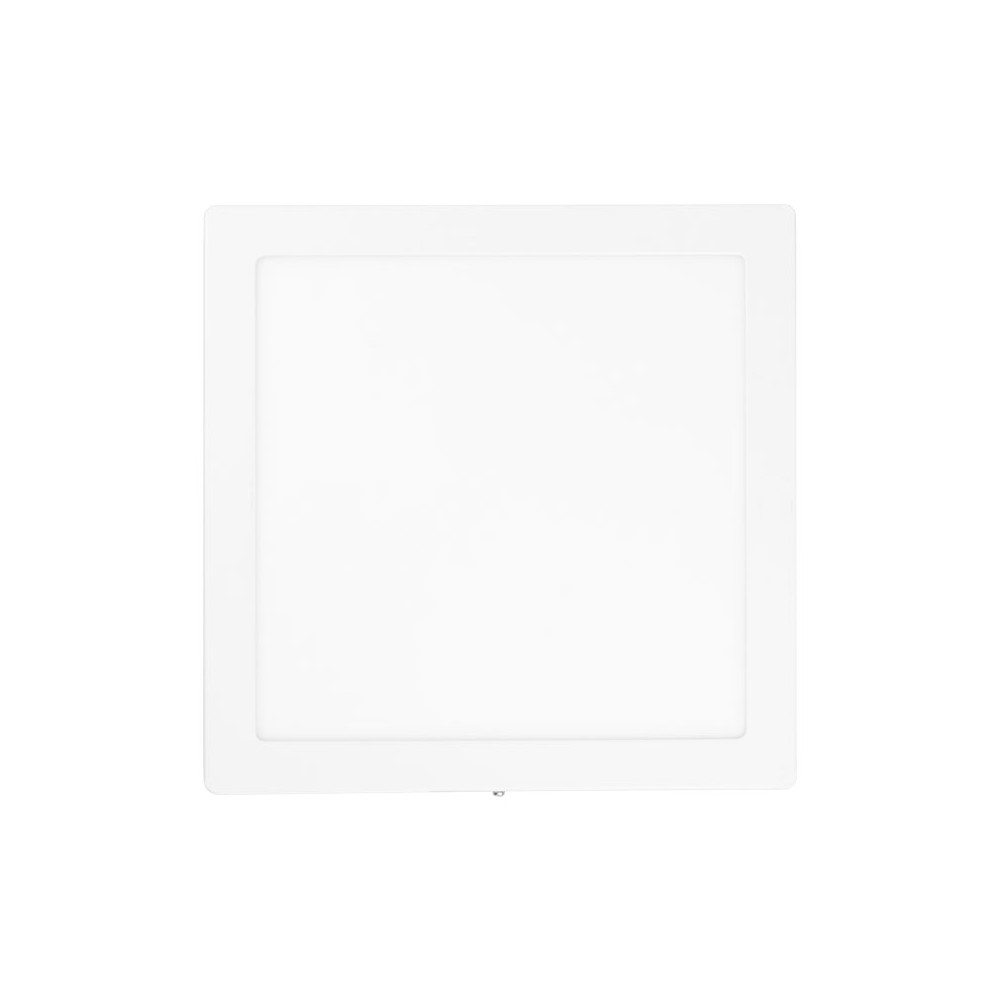

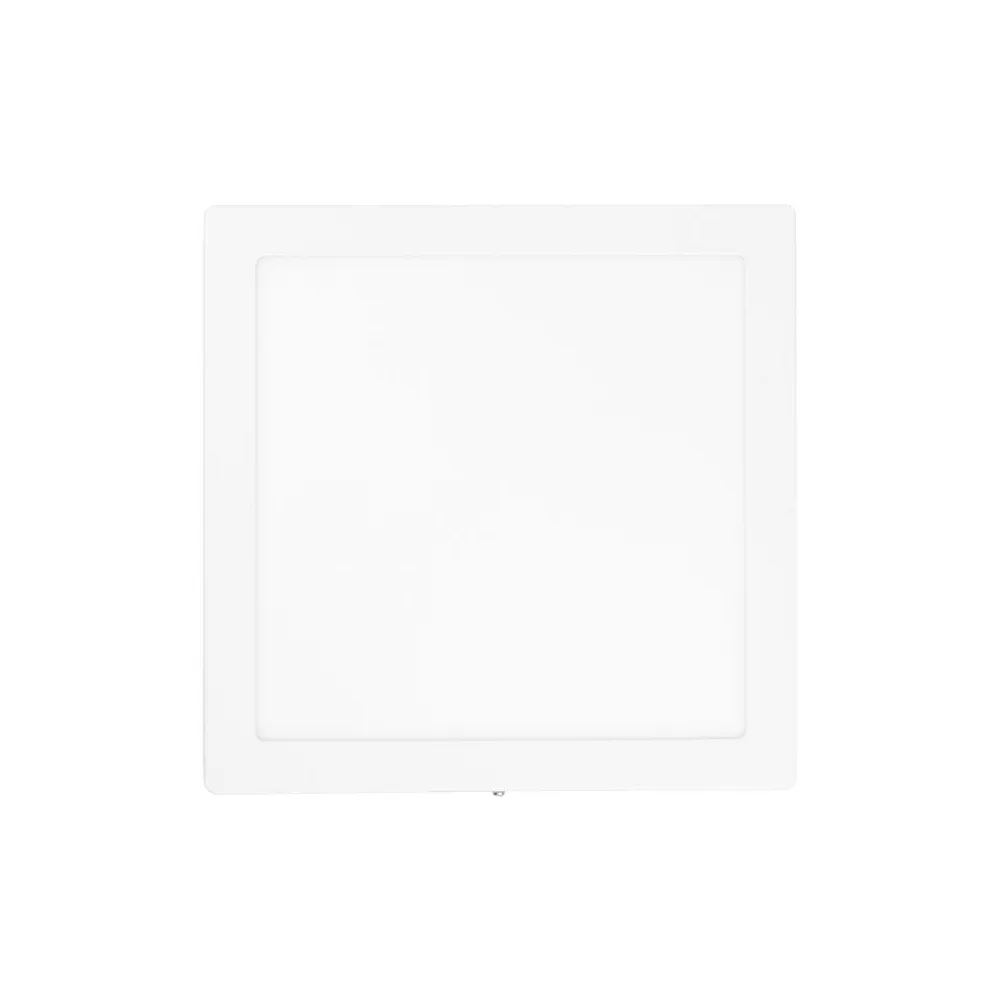

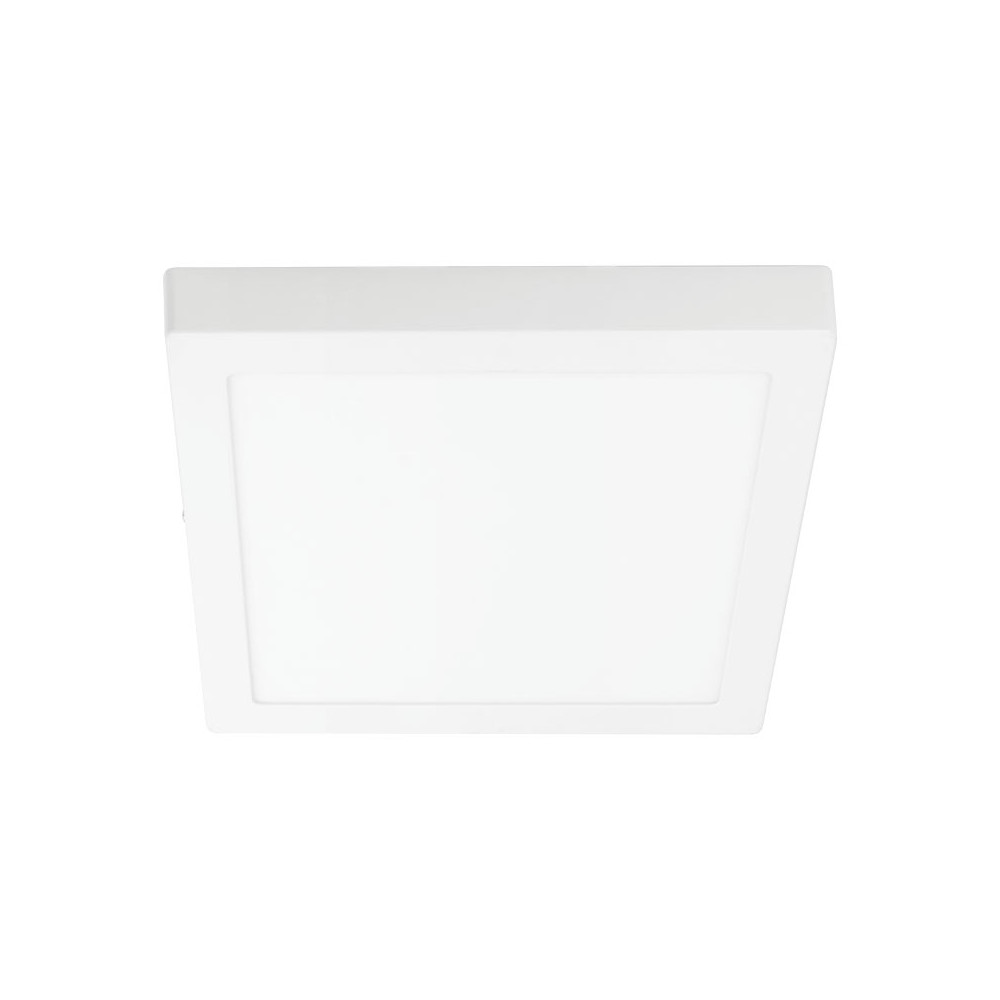

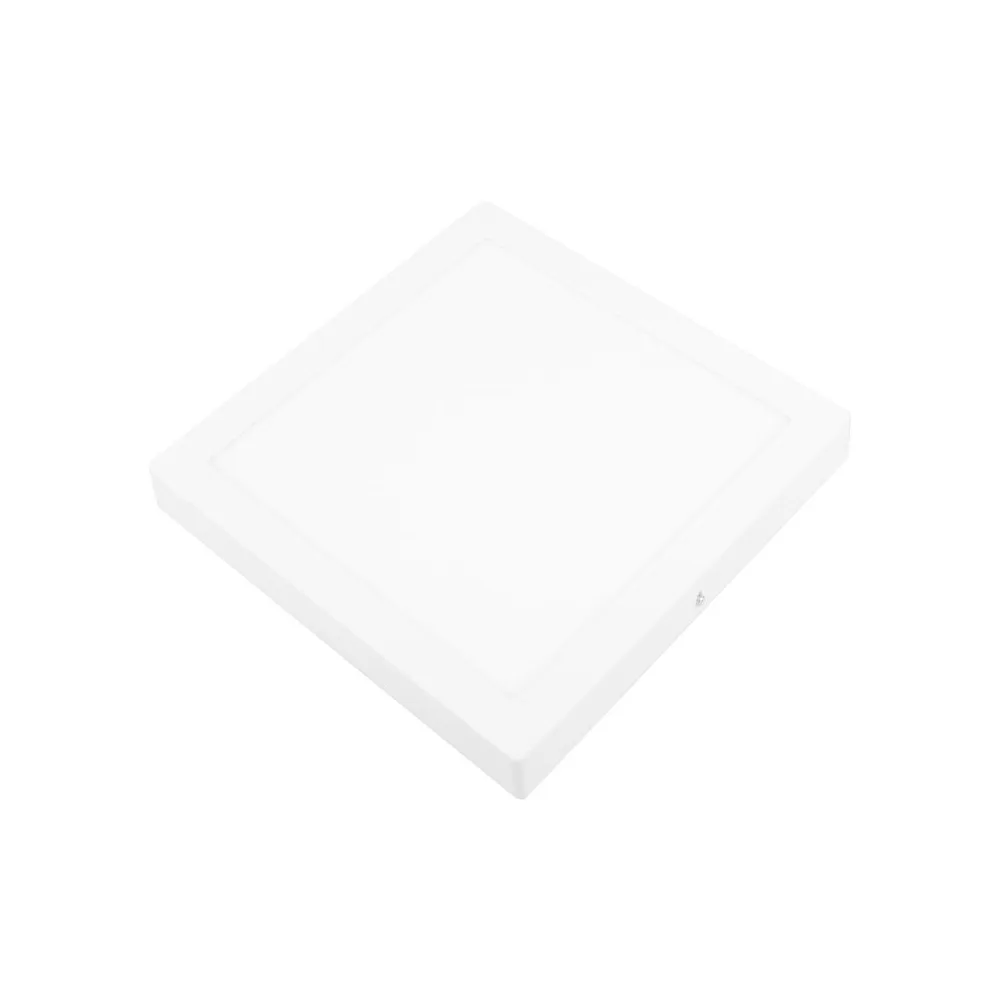

DownRay Surface-Mounted Square CLAREO 30W ADVANCE With Driver

2920 lm 2920 lm
Energy savings - 20 % Energy savings - 20 %
Repairable Repairable
7 years Warranty 7 years Warranty
60 000 h 60 000 h
IP40 IP40
UGR < 23 UGR < 23
IRC > 80 IRC > 80
IK06 IK06
100 lm/W 100 lm/W
save_alt Download the technical sheet

Color

Switch 3000-4000-6000K

Angle

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

Square downlight ideal for surface mounting when recessed installation is not possible.

Suitable for circulation lighting, its installation is simple and quick.

Product guaranteed for 7 years for 60,000 hours of operation.

Opal diffuser for very wide and uniform light distribution.

Wall or ceiling surface mounting.

ON/OFF driver included and pre-wired. CCT Switch allowing to change the color temperature and choose between 3000 °K, 4000 °K and 6000 °K.

Box contents: 1 Downlight, 1 pre-wired ON/OFF driver, 2 M4 screws 30 mm long and 2 wall plugs.

Key features:

  • Value for money
  • Simplified assembly
  • Light efficiency of 100 lm/W

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range ADVANCE
Product family Downlights
Installation environment Retail, Office, Residential
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 230 V AC
Power 30 W
Electrical class Class II
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 26-50 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 2920 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L80B10
Diffuser Opale
Beam Angle 110 deg
Photobiological risk GR0 - No risk
IRC > 80
UGR < 23
Lumens range 2000-2999 lm
Physical characteristics and dimensions
Height 38 mm
Standard length 30 cm
Width 300 mm
Length 300 mm
Net weight 1 kg
Materials Aluminum
Waterproof No
IP IP40
IK IK06
Product color White
Working temperature -20 °C to 45 °C
Detailed color White
Installation mode Surface mount
Type SMD 2835
Standards and regulations
Standards CE, RoHS
