ZAMBELIS DESIGN D600 8W Adjustable Curved Magnetic Spot: adjustable direction on D600 curved rails

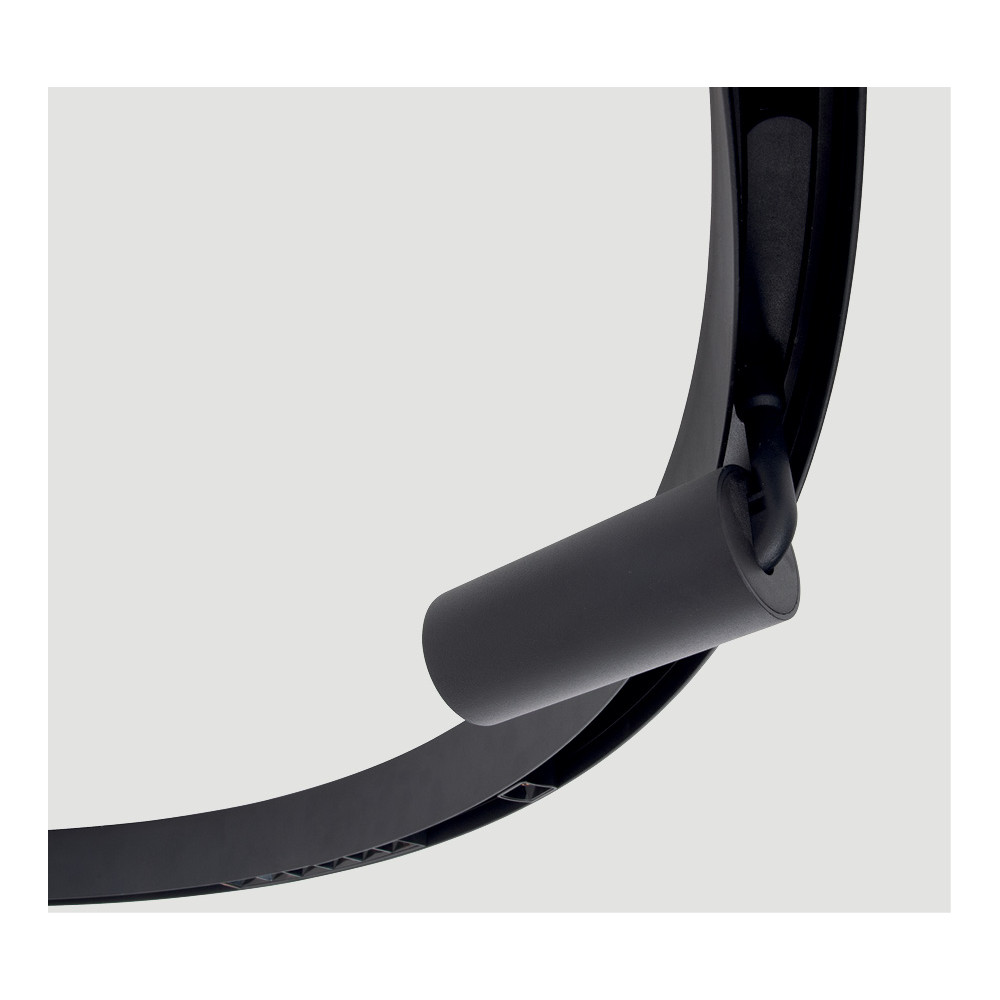

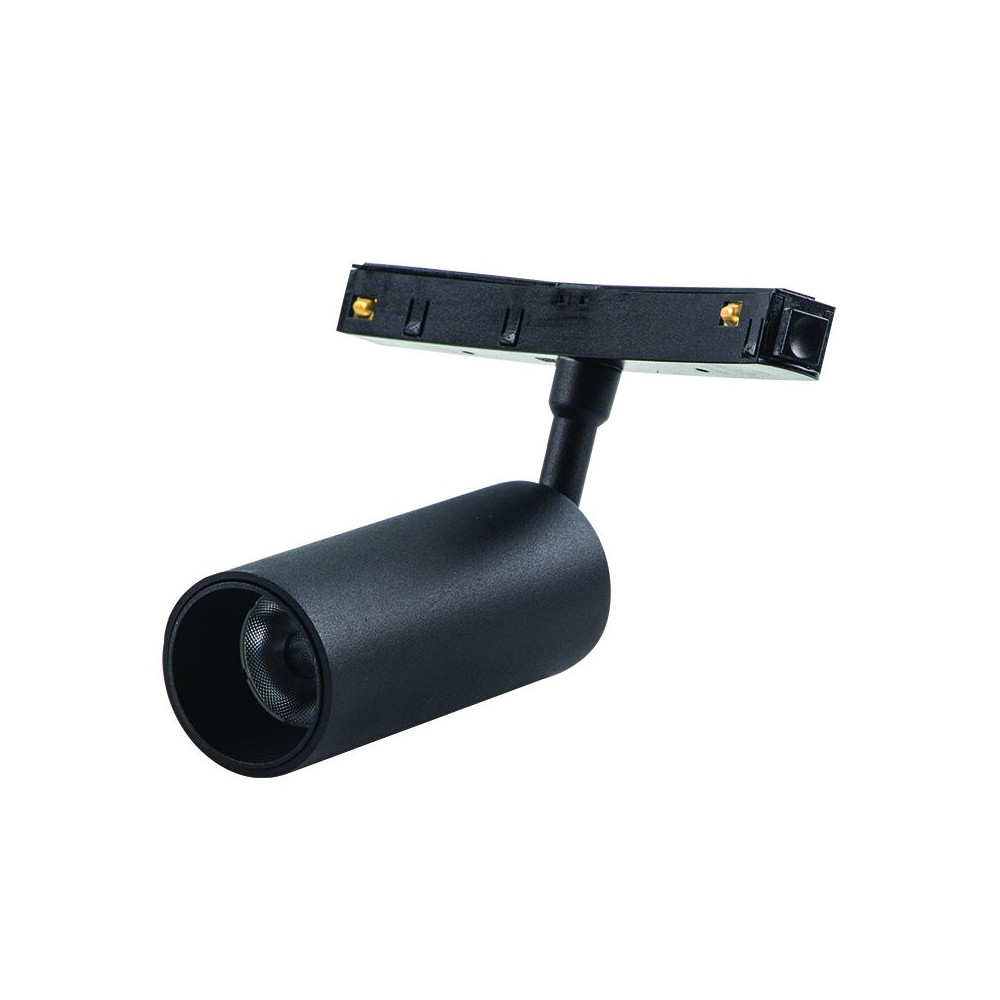

The ZAMBELIS DESIGN 22094 Adjustable Curved Magnetic Spot is a magnetic luminaire in sand black aluminum fitted with an adjustable head, allowing the beam direction to be freely adjusted without moving the luminaire on the rail. This flexibility distinguishes it from the fixed-optic model 22092, making it the preferred choice when directional precision is a priority in niches, alcoves and D600 rail spaces of hotels, boutiques and architectural spaces. Its compact circular format (Ø45 mm, L110 mm) is more compact than the elongated format of the fixed-beam models.

This spot delivers 8W for 780 lm at 3000K (warm white) with a 36° angle and a DALI dimming protocol. Lifespan: 50,000 hours.

Accessories: ZAMBELIS D600 curved magnetic rail not included, available as an accessory (standard or trimless).

Key highlights:

  • Adjustable head to freely direct the beam on the rail
  • Compact circular format Ø45 mm, L110 mm
  • DALI dimmable for fine intensity management
  • Compatible with D600 curved rails
  • 3-year warranty
Ref: ZAM.22094

Adjustable Curved Magnetic Luminaire ZAMBELIS D600 8W Dimmable DESIGN Sand Black 22094

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Currently out of stock
Delivery: contact us
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

ZAMBELIS DESIGN D600 8W Adjustable Curved Magnetic Spot: adjustable direction on D600 curved rails

The ZAMBELIS DESIGN 22094 Adjustable Curved Magnetic Spot is a magnetic luminaire in sand black aluminum fitted with an adjustable head, allowing the beam direction to be freely adjusted without moving the luminaire on the rail. This flexibility distinguishes it from the fixed-optic model 22092, making it the preferred choice when directional precision is a priority in niches, alcoves and D600 rail spaces of hotels, boutiques and architectural spaces. Its compact circular format (Ø45 mm, L110 mm) is more compact than the elongated format of the fixed-beam models.

This spot delivers 8W for 780 lm at 3000K (warm white) with a 36° angle and a DALI dimming protocol. Lifespan: 50,000 hours.

Accessories: ZAMBELIS D600 curved magnetic rail not included, available as an accessory (standard or trimless).

Key highlights:

  • Adjustable head to freely direct the beam on the rail
  • Compact circular format Ø45 mm, L110 mm
  • DALI dimmable for fine intensity management
  • Compatible with D600 curved rails
  • 3-year warranty

General characteristics
Lifetime 50 000 h
Brand ZAMBELIS
Range DESIGN
Product family Track Lights
Installation environment Reception, Point of Sale, Architectural
Warranty 3 years
Electrical characteristics
Voltage 230 V AC
Power 8 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 780 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L80B50
Beam Angle 36 deg
IRC > 80
Physical characteristics and dimensions
Diameter 45 mm
Length 110 mm
Net weight 0.3 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK02
Product color Black
Detailed color Sandy Black
Standards and regulations
Standards CE, RoHS
Carbon footprint 25,8 kgCO2eq
