ZAMBELIS DESIGN D1200 8W Optic Curved Magnetic Spot: targeted DALI lighting for large architectural arcs

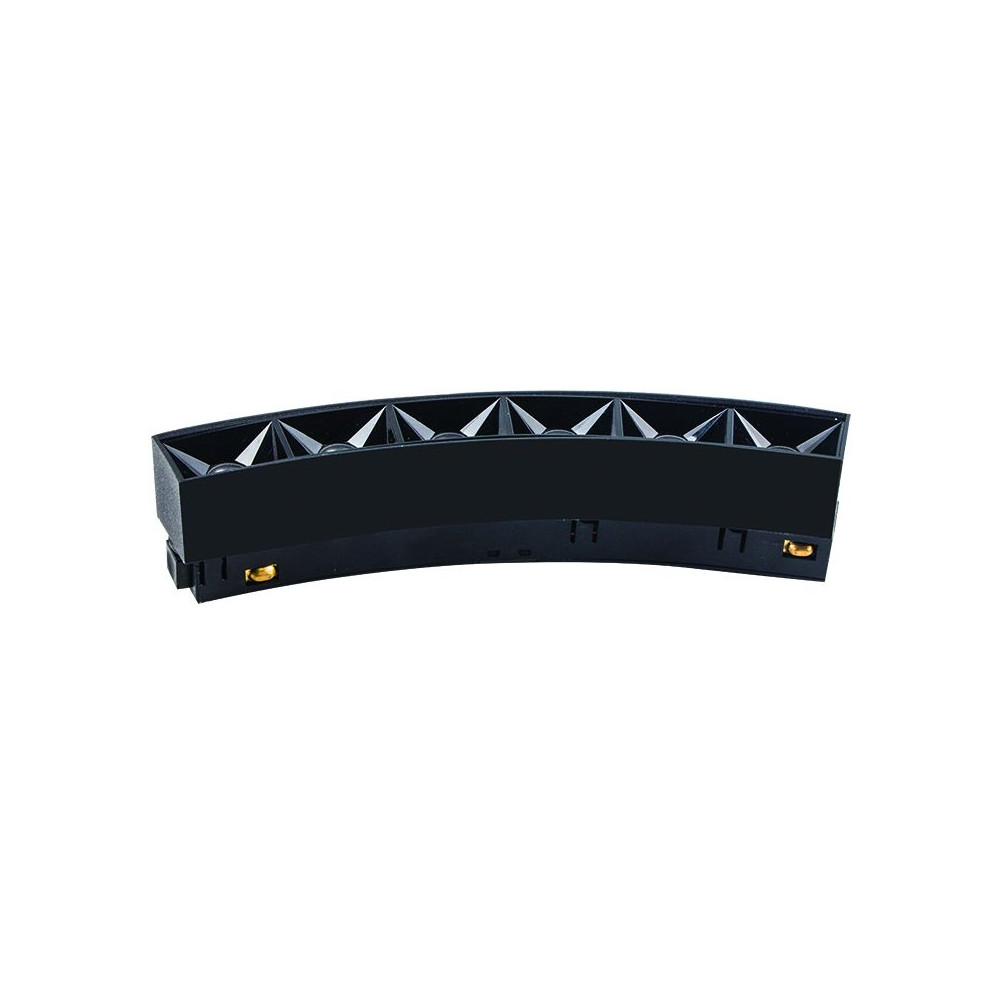

The ZAMBELIS DESIGN 22104 Curved Magnetic Spot is a magnetic luminaire in sand black aluminum, specifically designed for D1200 diameter curved rails, ideal for large volumes, reception halls and hotel lobbies, shopping centers and large-scale architectural spaces. Its Optic optic (grid reflector) concentrates the beam at 36° for precise and directional lighting, perfect for highlighting surfaces, products or areas of interest. Elongated format: H45 mm, L195 mm.

This spot delivers 8W for 780 lm at 3000K (warm white) with a DALI dimming protocol for fine light intensity management. Lifespan: 50,000 hours.

Accessories: ZAMBELIS D1200 curved magnetic rail not included, available as an accessory (standard or trimless).

Key highlights:

  • 36° grid optic for targeted and directional lighting
  • DALI dimmable for fine intensity management
  • Compatible with D1200 curved rails, suitable for large architectural volumes
  • 3-year warranty
Ref: ZAM.22104

Curved Magnetic Luminaire ZAMBELIS D1200 8W Optic Dimmable DESIGN Sand Black 22104

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Currently out of stock
Delivery: contact us
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

ZAMBELIS DESIGN D1200 8W Optic Curved Magnetic Spot: targeted DALI lighting for large architectural arcs

The ZAMBELIS DESIGN 22104 Curved Magnetic Spot is a magnetic luminaire in sand black aluminum, specifically designed for D1200 diameter curved rails, ideal for large volumes, reception halls and hotel lobbies, shopping centers and large-scale architectural spaces. Its Optic optic (grid reflector) concentrates the beam at 36° for precise and directional lighting, perfect for highlighting surfaces, products or areas of interest. Elongated format: H45 mm, L195 mm.

This spot delivers 8W for 780 lm at 3000K (warm white) with a DALI dimming protocol for fine light intensity management. Lifespan: 50,000 hours.

Accessories: ZAMBELIS D1200 curved magnetic rail not included, available as an accessory (standard or trimless).

Key highlights:

  • 36° grid optic for targeted and directional lighting
  • DALI dimmable for fine intensity management
  • Compatible with D1200 curved rails, suitable for large architectural volumes
  • 3-year warranty

General characteristics
Lifetime 50 000 h
Brand ZAMBELIS
Range DESIGN
Product family Track Lights
Installation environment Reception, Point of Sale, Architectural
Warranty 3 years
Electrical characteristics
Voltage 230 V AC
Power 8 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 780 lm
Energy savings - 10%
Lumens efficiency 98 lm/W
Lifetime LXBY L80B50
Beam Angle 36 deg
IRC > 80
Physical characteristics and dimensions
Height 45 mm
Width 23 mm
Length 195 mm
Net weight 0.2 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK02
Product color Black
Detailed color Sandy Black
Standards and regulations
Standards CE, RoHS
Carbon footprint 25,8 kgCO2eq
