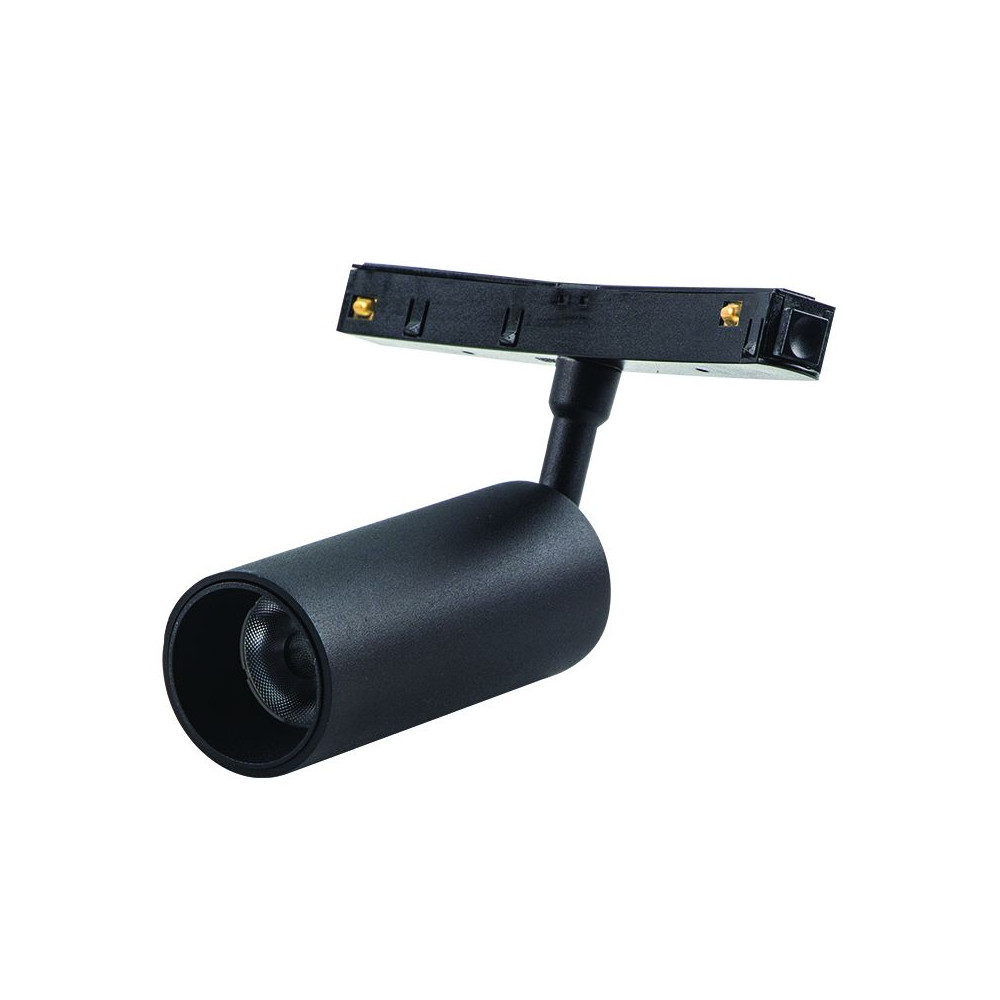

ZAMBELIS DESIGN D1200 8W Dimmable Adjustable Curved Magnetic Spot: free direction on large D1200 architectural arcs

The ZAMBELIS DESIGN 22106 Adjustable Curved Magnetic Spot is the orientable version designed for D1200 diameter curved rails, the largest in the curved magnetic range. Its adjustable head and dimmability (DALI) allow free adjustment of the beam direction and intensity, for perfectly controlled lighting staging in large reception halls, lobbies and open spaces of hotels and business centers. Its compact circular format (Ø45 mm, L110 mm) in sand black aluminum distinguishes it from the fixed-beam models of the D1200 range (22104, 22105) by its directional flexibility.

This spot delivers 8W for 780 lm at 3000K (warm white) with a 36° angle. Lifespan: 50,000 hours, 3-year warranty.

Accessories: ZAMBELIS D1200 curved magnetic rail not included, available as an accessory (standard or trimless).

Key highlights:

  • Adjustable head to freely direct the beam on the rail
  • DALI dimmable for fine intensity management
  • Compatible with D1200 curved rails, suitable for large architectural volumes
  • 3-year warranty
Ref: ZAM.22106

Adjustable Curved Magnetic Luminaire ZAMBELIS D1200 8W Dimmable DESIGN Sand Black 22106

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

Currently out of stock
Delivery: contact us
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

ZAMBELIS DESIGN D1200 8W Dimmable Adjustable Curved Magnetic Spot: free direction on large D1200 architectural arcs

The ZAMBELIS DESIGN 22106 Adjustable Curved Magnetic Spot is the orientable version designed for D1200 diameter curved rails, the largest in the curved magnetic range. Its adjustable head and dimmability (DALI) allow free adjustment of the beam direction and intensity, for perfectly controlled lighting staging in large reception halls, lobbies and open spaces of hotels and business centers. Its compact circular format (Ø45 mm, L110 mm) in sand black aluminum distinguishes it from the fixed-beam models of the D1200 range (22104, 22105) by its directional flexibility.

This spot delivers 8W for 780 lm at 3000K (warm white) with a 36° angle. Lifespan: 50,000 hours, 3-year warranty.

Accessories: ZAMBELIS D1200 curved magnetic rail not included, available as an accessory (standard or trimless).

Key highlights:

  • Adjustable head to freely direct the beam on the rail
  • DALI dimmable for fine intensity management
  • Compatible with D1200 curved rails, suitable for large architectural volumes
  • 3-year warranty

General characteristics
Lifetime 50 000 h
Brand ZAMBELIS
Range DESIGN
Product family Track Lights
Installation environment Reception, Point of Sale, Architectural
Warranty 3 years
Electrical characteristics
Voltage 230 V AC
Power 8 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 780 lm
Energy savings - 10%
Lumens efficiency 98 lm/W
Lifetime LXBY L80B50
Beam Angle 36 deg
IRC > 80
Physical characteristics and dimensions
Diameter 45 mm
Length 110 mm
Net weight 0.3 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK02
Product color Black
Detailed color Sandy Black
Standards and regulations
Standards CE, RoHS
Carbon footprint 25,8 kgCO2eq
