The new range of CLAREO Spotrails!

This range of track lights will enhance your shelving:

  • Choice of angles (15, 24, 36, 45, 60°)
  • Interchangeable reflectors
  • Honeycomb and Snoot accessories available
  • 100 lm/W COB LED
  • Luminaire guaranteed for 5 years with a L70B10 lifespan of 70,000 hours
  • SDCM < 2

Typical installation locations: retail stores, museums

Advantages: Interchangeable reflectors, accessories (Honeycomb and Snoot) to reduce UGR, high luminous efficiency

Ref: SPO.100720

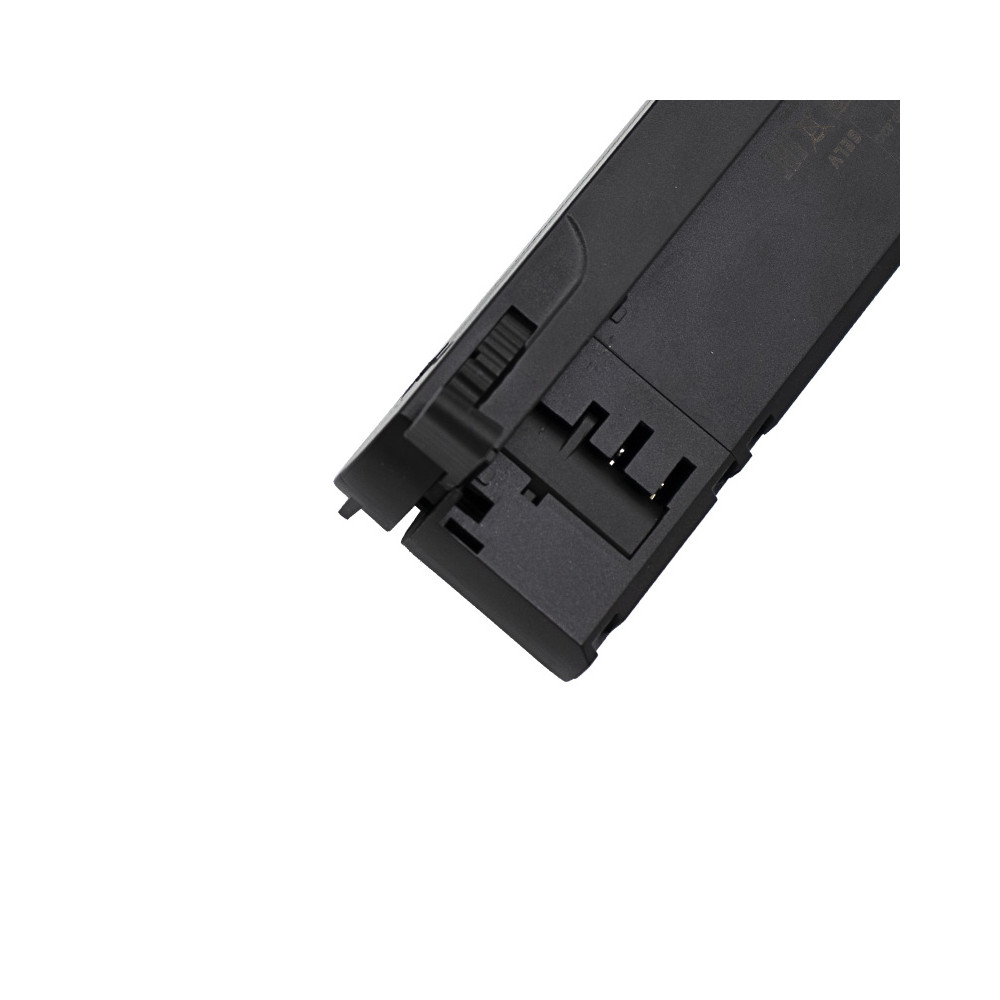

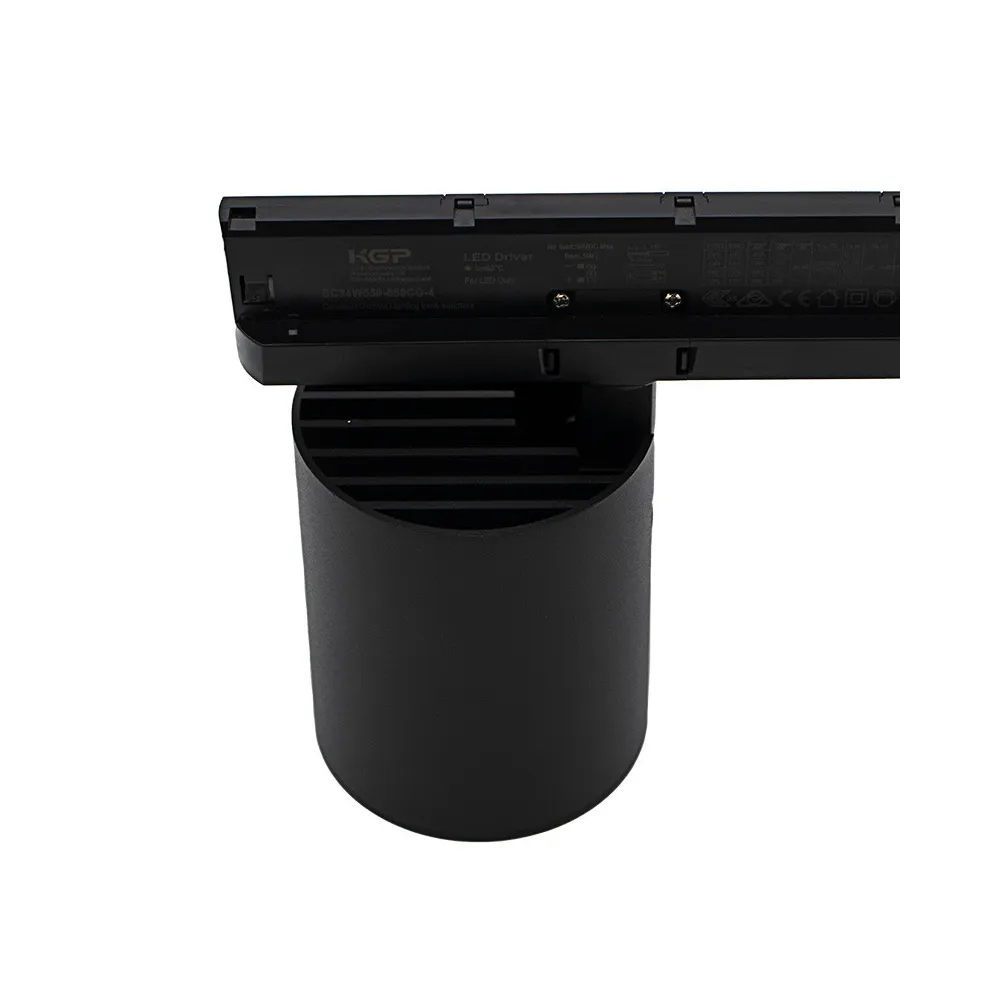

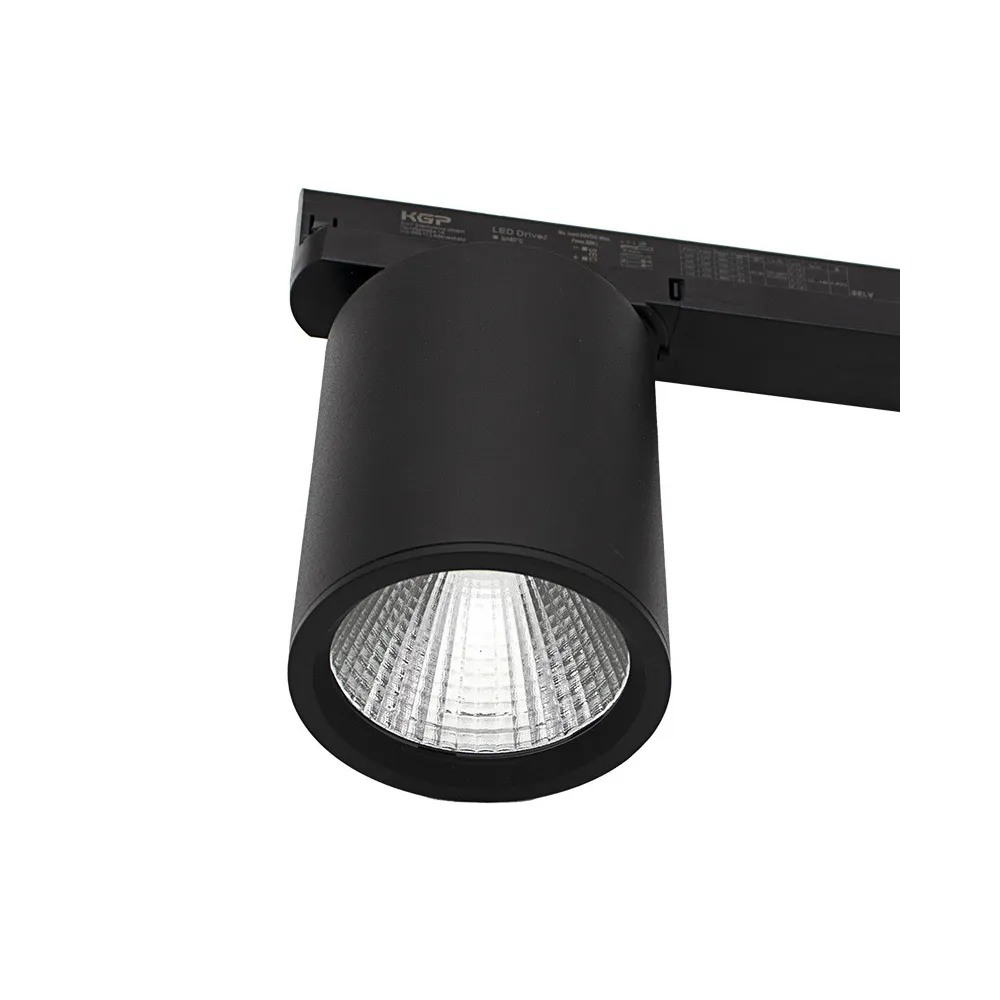

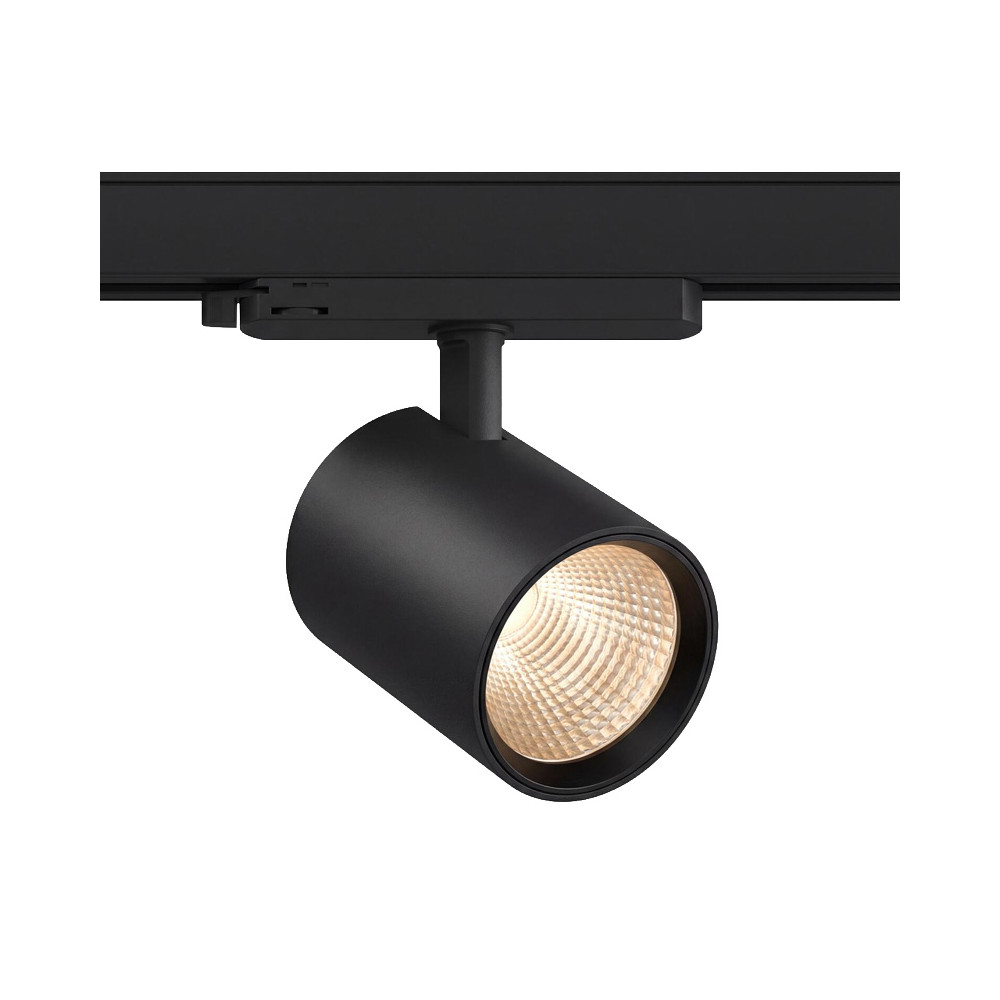

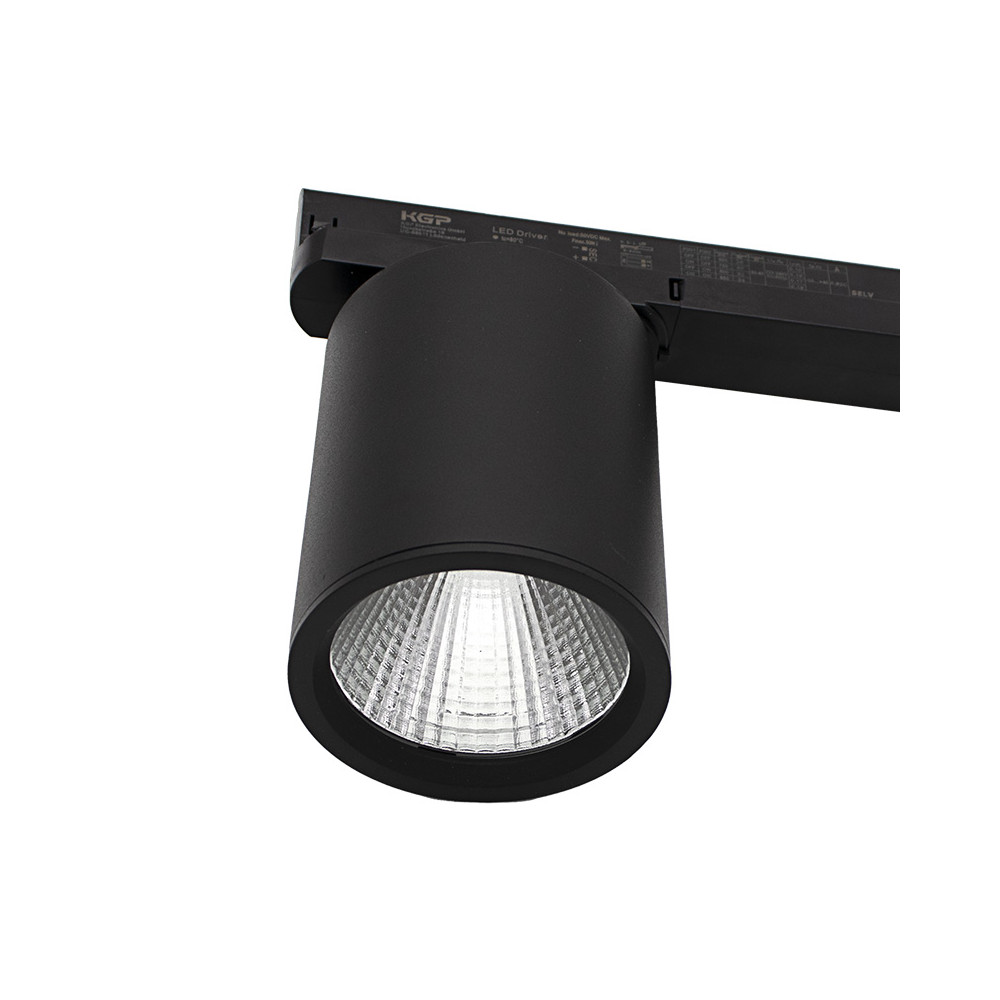

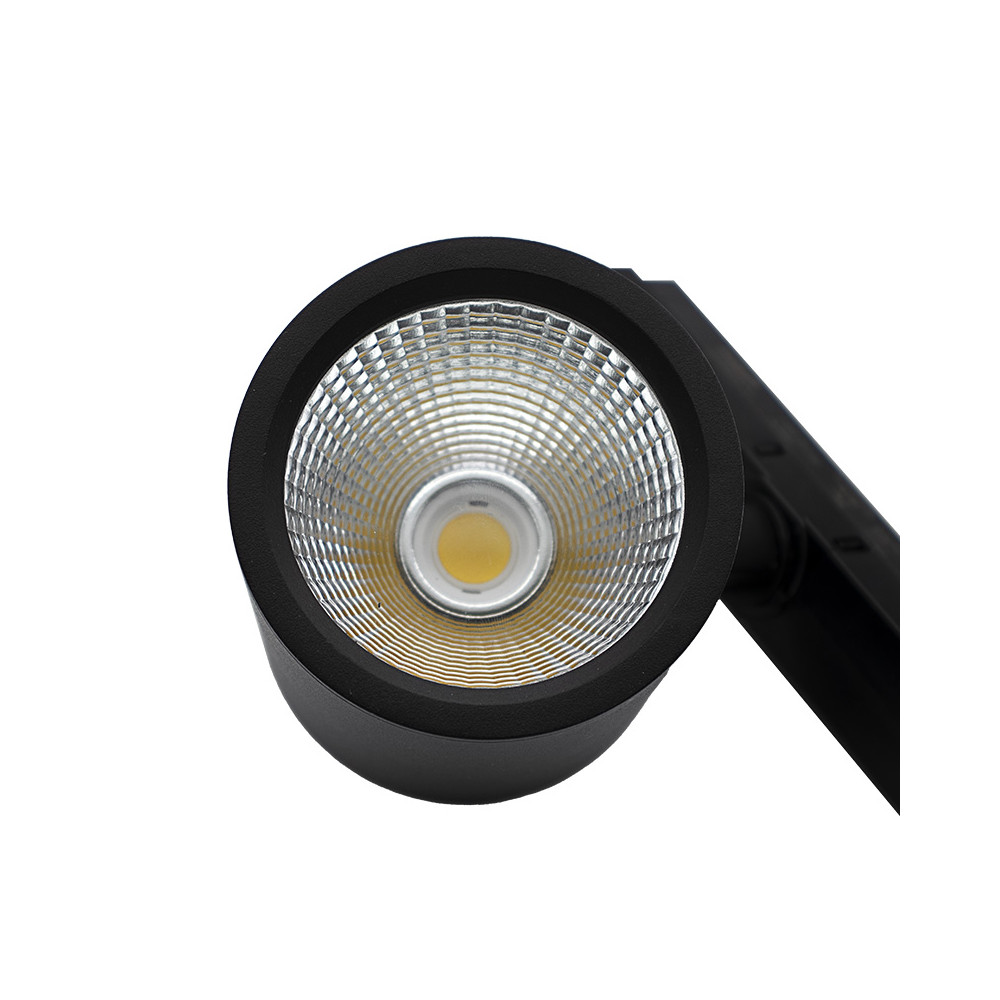

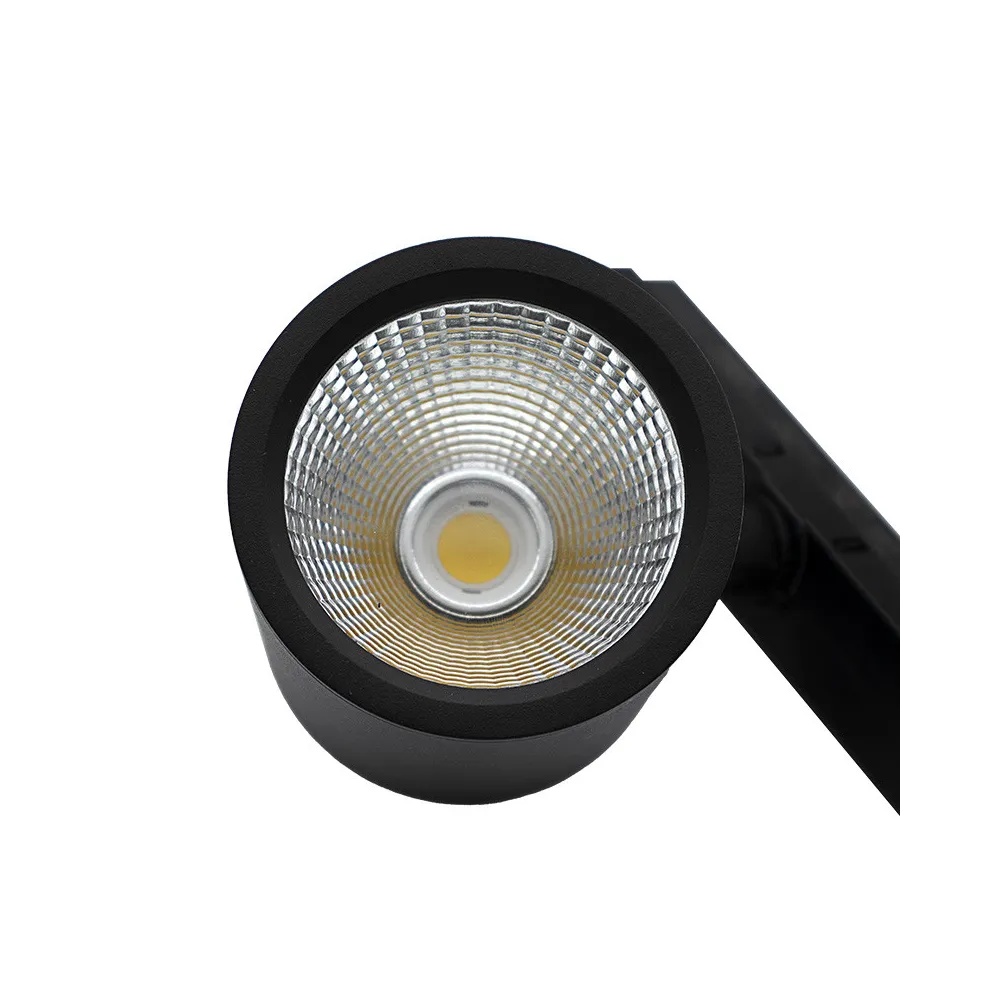

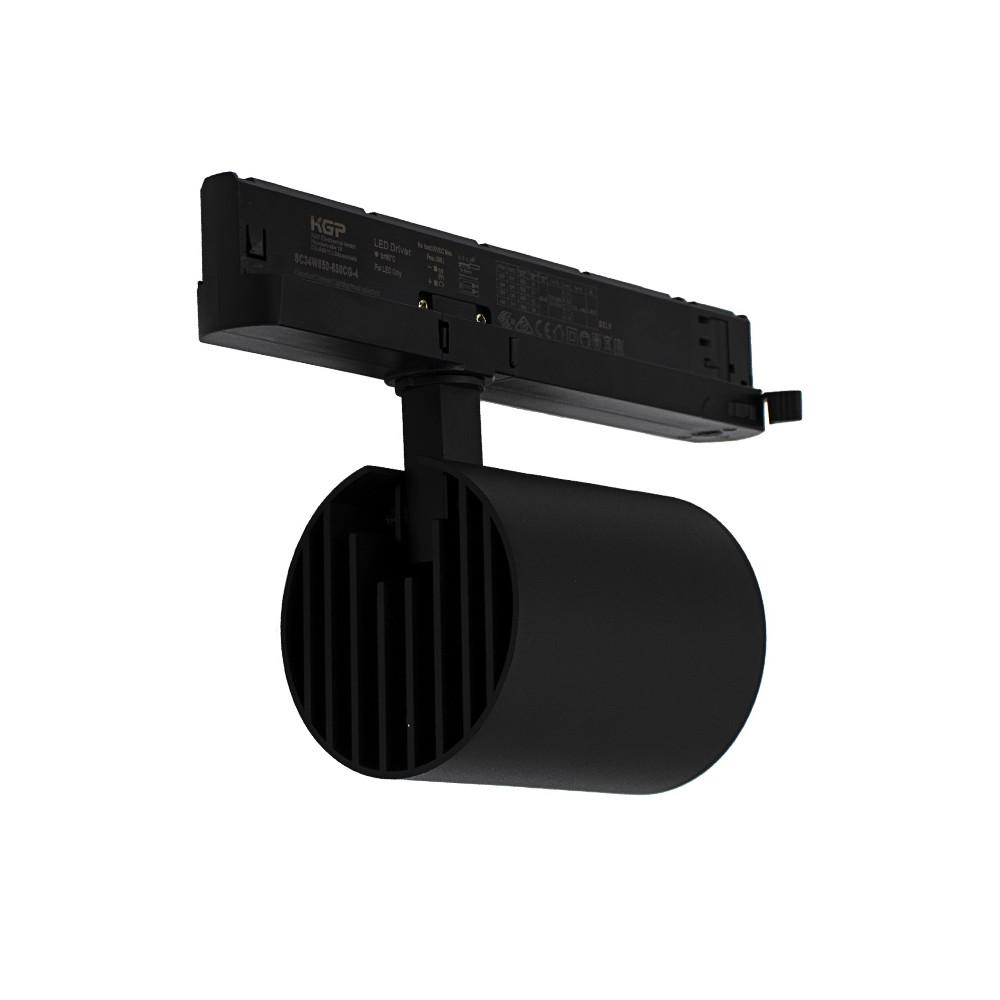

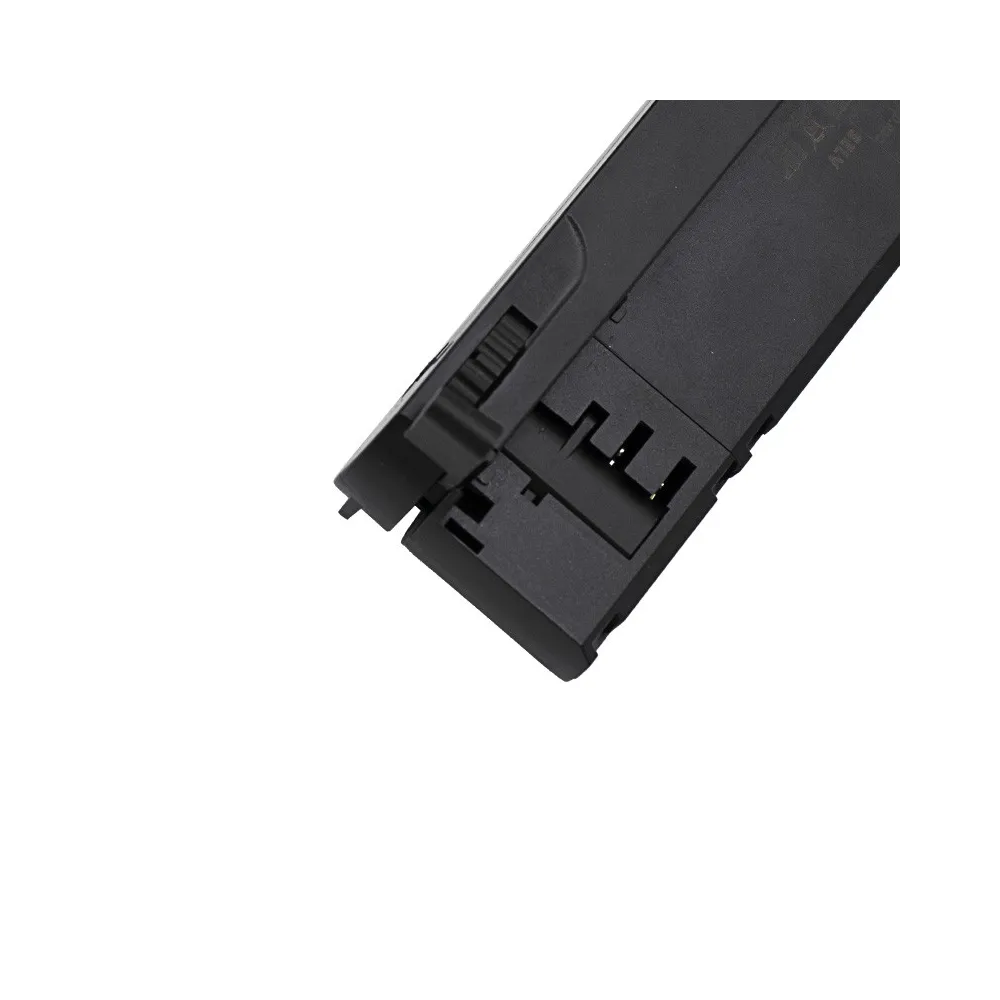

SpotRail CLAREO 15W ADVANCE 2 Black

1550 lm 1550 lm
Repairable Repairable
7 years Warranty 7 years Warranty
70 000 h 70 000 h
IRC > 90 IRC > 90
IK07 IK07
UGR < 16 UGR < 16
IP20 IP20
100 lm/W 100 lm/W
save_alt Download the technical sheet

Color

White neutral - 4000K
In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here
Sign in Sign up

General characteristics
Lifetime 70 000 h
Brand CLAREO
Range ADVANCE
Product family Track Lights
Installation environment Point of sale, Accent lighting
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 230-230 V AC
Current Up to 350 mA
Power 15 W
Electrical class Class II
Dimmable ON/OFF
Facteur de puissance > 0,9
Taux de distorsion harmonique < 20 %
Power range 0-25 W
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 1550 lm
Energy savings - 20 %
Lumens efficiency 100 lm/W
Lifetime LXBY L70B10
Diffuser Transparent
Beam Angle 36 deg
Photobiological risk GR0 - No risk
IRC > 90
UGR < 16
Lumens range 1100-1599 lm
Physical characteristics and dimensions
Diameter 83 mm
Height 153 mm
Length 90.5 mm
Net weight 0.5 kg
Materials Aluminum
Waterproof No
IP IP20
IK IK07
Product color Black
Diameter range 51-100 mm
Working temperature -10 °C to 40 °C
Detailed color Black
Type COB
