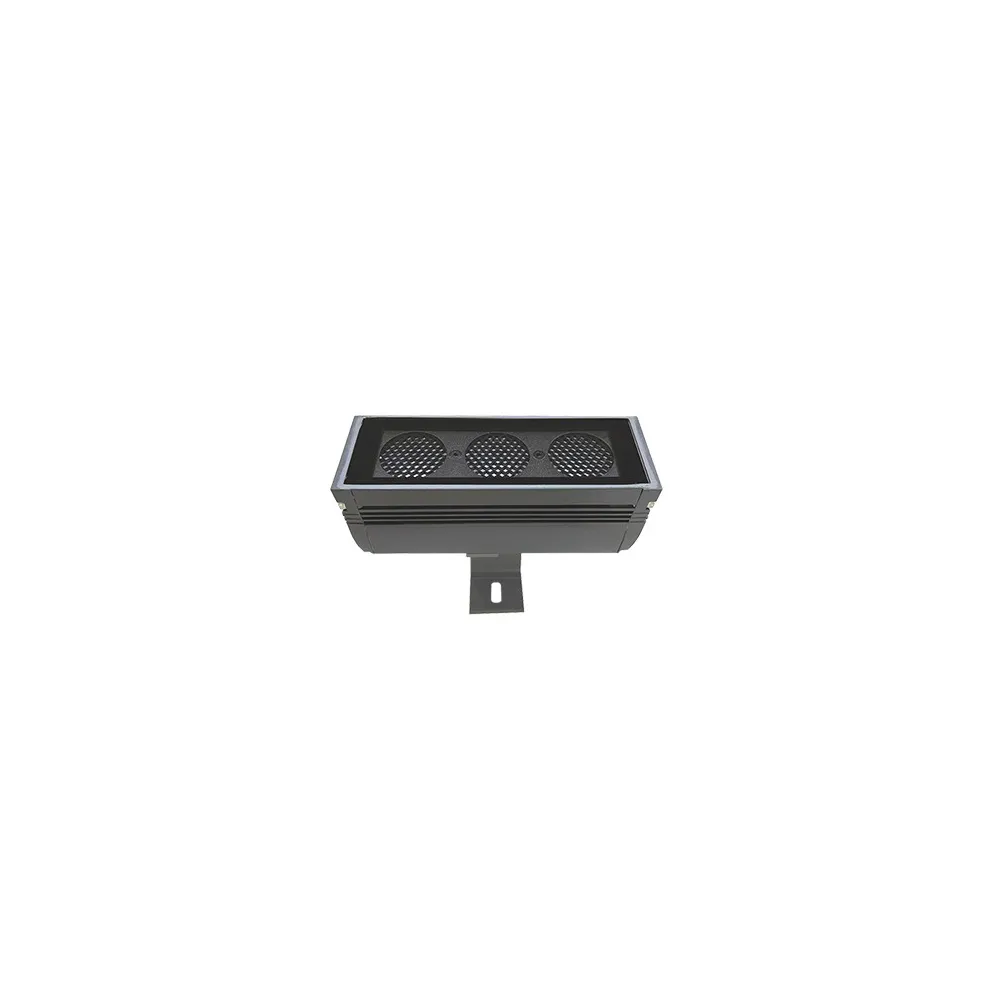

Wallwasher ZAMBELIS DESIGN Graphite Compact: 15° honeycomb beam for targeted highlighting

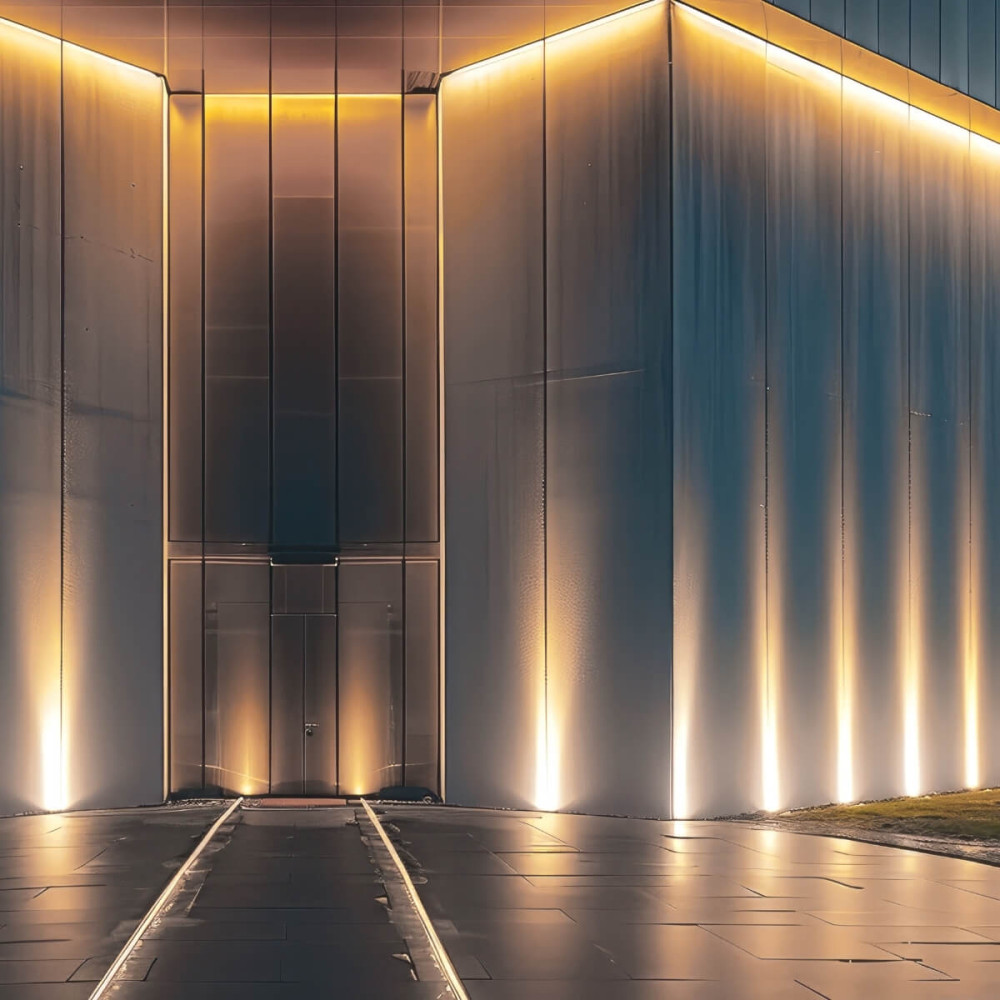

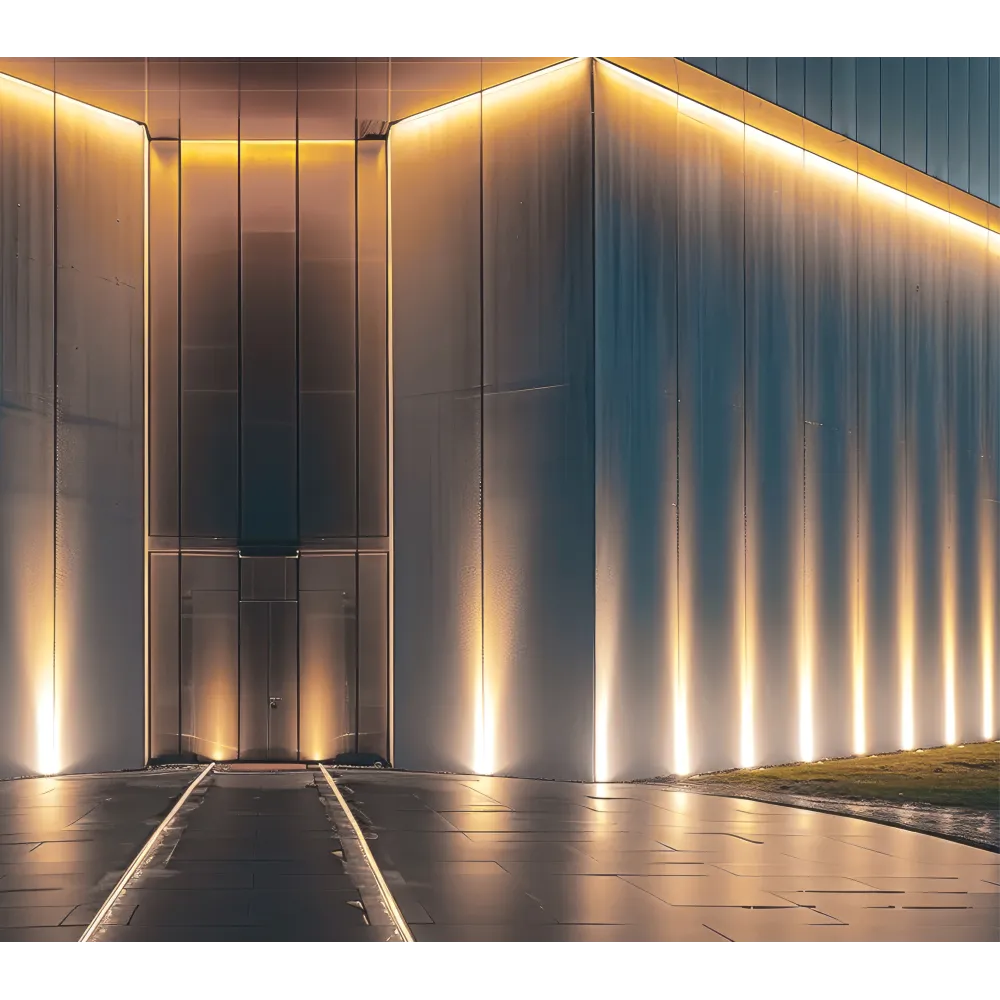

The Wallwasher ZAMBELIS DESIGN Graphite Compact E495, in graphite aluminium with a honeycomb diffuser, concentrates light into a narrow 15° beam for ultra-precise grazing effects and the revelation of textures on architectural details, decorative niches, lower façade sections and natural material partitions. Its compact 160 mm format allows for discreet integration, and its adjustable orientation of up to 120° provides great installation flexibility. Direct supply 220-240V AC, integrated driver.

LED 9W, 3000K, 420 lm, CRI> 80. Angle 15°. Honeycomb diffuser. IP65. Length 160 mm. Lifespan 30,000h. Warranty 3 years.

Accessories: ZAMBELIS connector not included, available as an accessory.

Key highlights:

  • 15° beam with honeycomb diffuser for maximum precision
  • Compact 160 mm format, orientation up to 120°
  • IP65, graphite aluminium finish
  • Integrated driver 220-240V AC
Ref: ZAM.E495

Wallwasher ZAMBELIS 9W IP65 DESIGN Grey With Driver E495

save_alt Download the technical sheet

Color

White warm - 3000K

Angle

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

Wallwasher ZAMBELIS DESIGN Graphite Compact: 15° honeycomb beam for targeted highlighting

The Wallwasher ZAMBELIS DESIGN Graphite Compact E495, in graphite aluminium with a honeycomb diffuser, concentrates light into a narrow 15° beam for ultra-precise grazing effects and the revelation of textures on architectural details, decorative niches, lower façade sections and natural material partitions. Its compact 160 mm format allows for discreet integration, and its adjustable orientation of up to 120° provides great installation flexibility. Direct supply 220-240V AC, integrated driver.

LED 9W, 3000K, 420 lm, CRI> 80. Angle 15°. Honeycomb diffuser. IP65. Length 160 mm. Lifespan 30,000h. Warranty 3 years.

Accessories: ZAMBELIS connector not included, available as an accessory.

Key highlights:

  • 15° beam with honeycomb diffuser for maximum precision
  • Compact 160 mm format, orientation up to 120°
  • IP65, graphite aluminium finish
  • Integrated driver 220-240V AC

General characteristics
Lifetime 30,000 h
Brand ZAMBELIS
Range DESIGN
Product family Wall Washers
Installation environment Exterior
Warranty 3 years
Electrical characteristics
Voltage 230-240 V AC / 25-42 V DC
Current 450 mA
Power 9 W
Electrical class Class I
EU energy class 2019/2015 F
Lighting characteristics
Technology LED
Lumens output 420 lm
Lifetime LXBY L70B50
Diffuser Honeycomb
Beam Angle 15 deg
IRC > 80
Physical characteristics and dimensions
Height 126 mm
Width 55 mm
Length 160 mm
Net weight 0.6 kg
Materials Aluminum
Waterproof YES
IP IP65
Product color Gray
Detailed color Graphite
Installation mode Wall light
Standards and regulations
Carbon footprint 54 kgCO2eq
