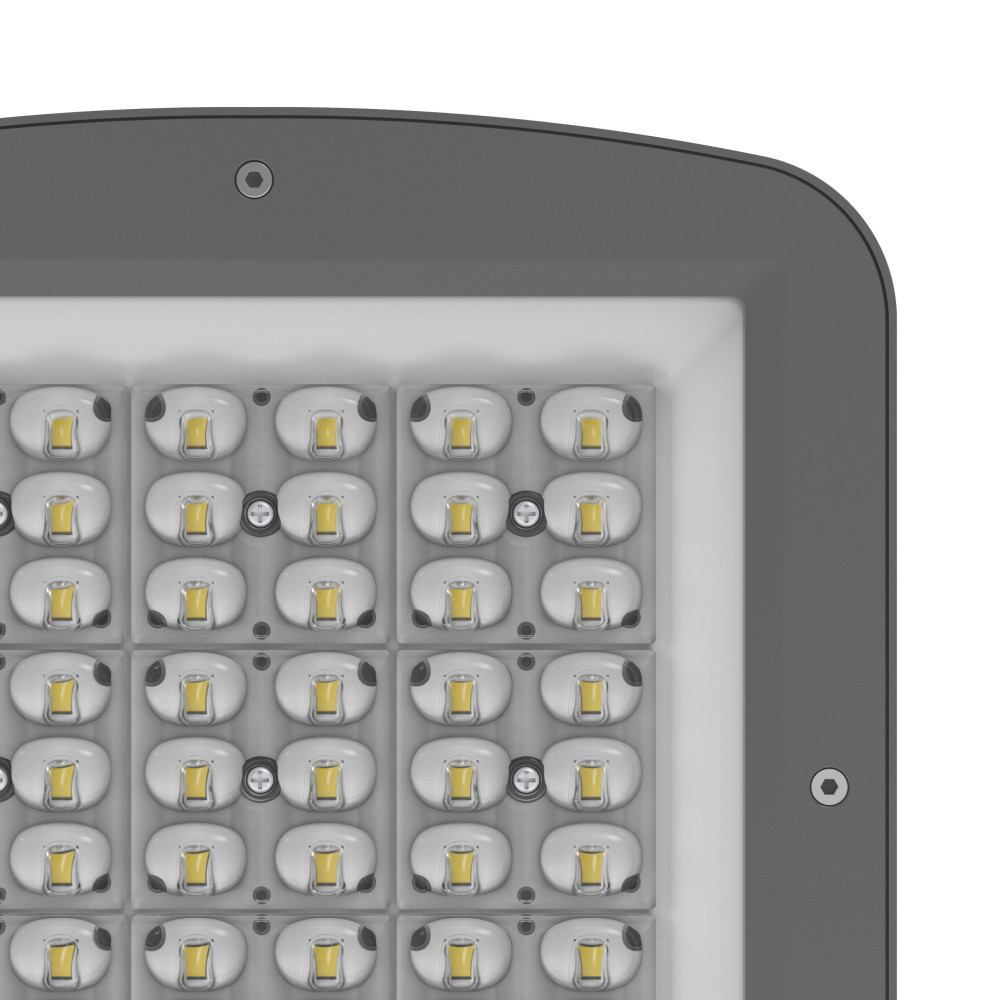

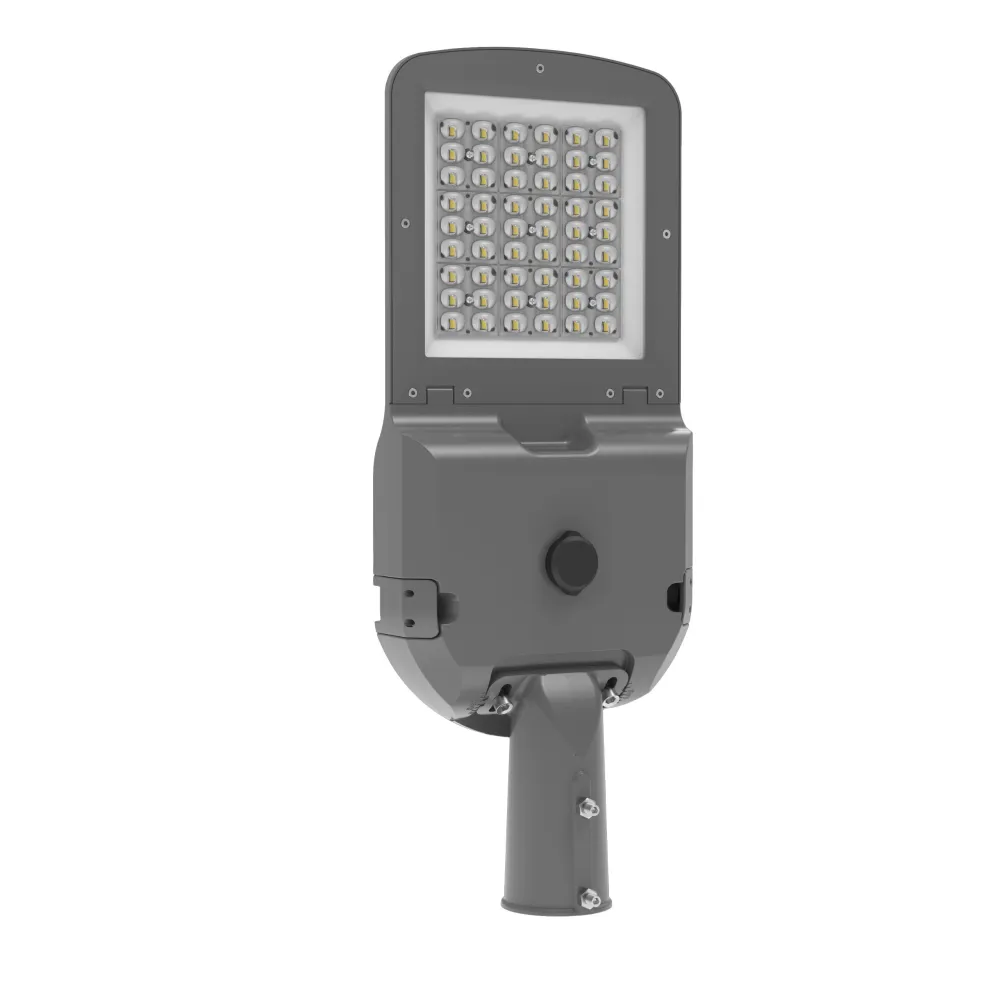

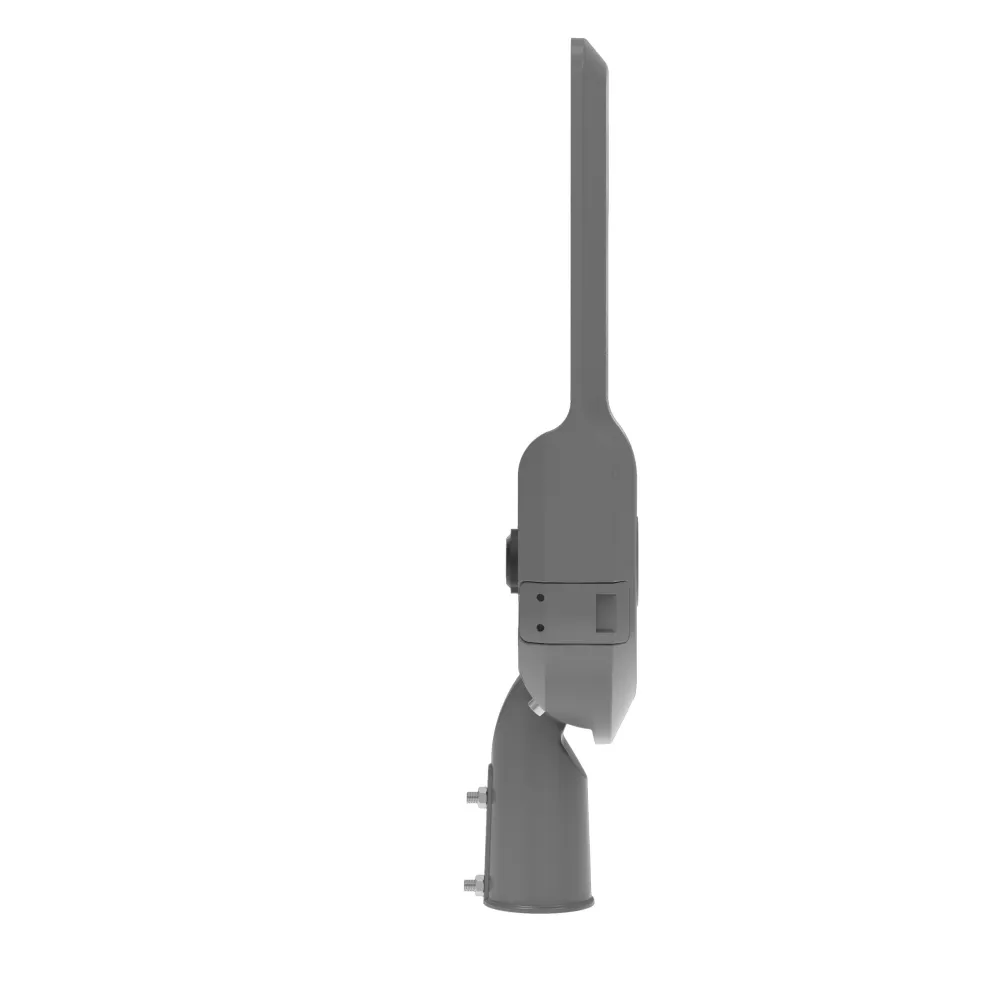

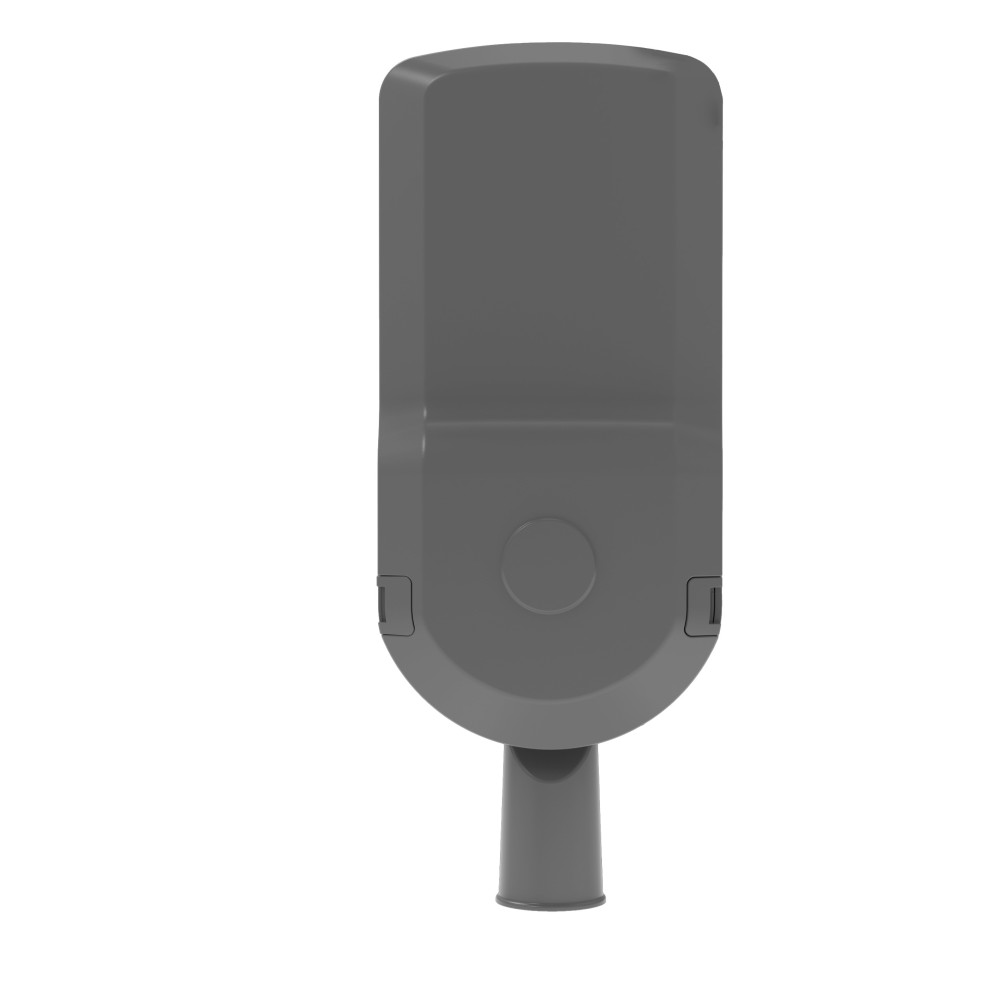

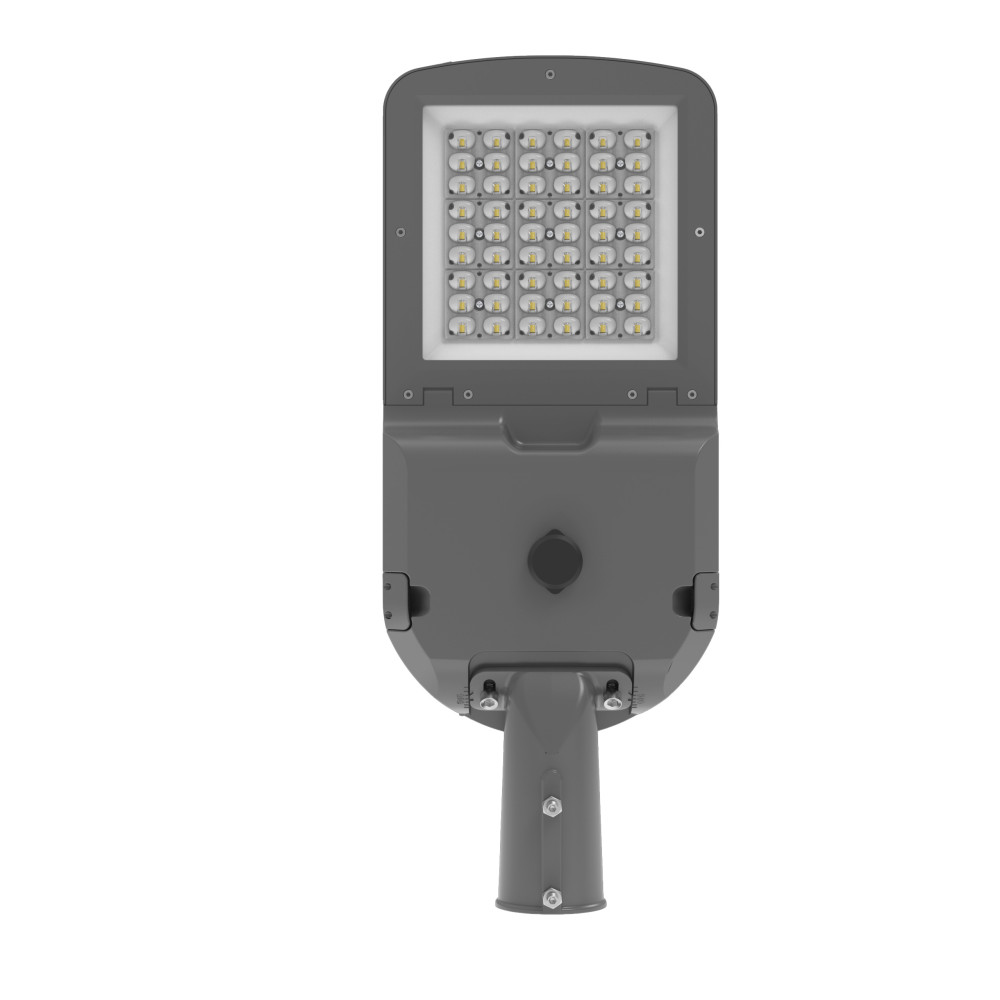

The high-performance mast head for outdoor lighting

The FloodPark TECH 2 is the ideal solution for your outdoor lighting projects for private roads and car parks: housing estates, holiday villages, supermarkets and residential areas. Combining an exceptional efficiency of 200 lm/W and IP66/IK09 robustness, it meets the requirements for performance and reliability.

With 12 000 lm for only 60W, it offers powerful and energy-efficient lighting. Its simplified installation thanks to the included mast adapter allows dual mounting: horizontal on a bracket or vertical on a mast.

Suitable for both indoor and outdoor use, the FloodPark TECH 2 withstands the most demanding environments thanks to its IP66/IK09 protection and its resistance to saline and chlorinated environments. Its dual T-adapter (installation of 2 FloodParks in opposition) and its wall adapter (surface-mounted installation) offer maximum installation flexibility.

A Zhaga slot is also integrated to allow the addition of a SENSOR One or SENSOR Bluetooth detector, depending on your needs.

Box contents: 1 FloodPark TECH 2, 1 mast adapter (Ø 43-66 mm), fixing screws

Key highlights:

  • Exceptional efficiency of 200 lm/W
  • Driver ON/OFF
  • Mast adapter included (Ø 43-66 mm)
  • IP66/IK09 and resistance to saline and chlorinated environments
  • 7-year warranty
PEP 15h18 (1).png
Ref: PRO.7100T2

FloodPark CLAREO 60W 200lm/W TECH 2

save_alt Download the technical sheet

Color

White warm - 3000K

Driver

In stock, next-day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

The high-performance mast head for outdoor lighting

The FloodPark TECH 2 is the ideal solution for your outdoor lighting projects for private roads and car parks: housing estates, holiday villages, supermarkets and residential areas. Combining an exceptional efficiency of 200 lm/W and IP66/IK09 robustness, it meets the requirements for performance and reliability.

With 12 000 lm for only 60W, it offers powerful and energy-efficient lighting. Its simplified installation thanks to the included mast adapter allows dual mounting: horizontal on a bracket or vertical on a mast.

Suitable for both indoor and outdoor use, the FloodPark TECH 2 withstands the most demanding environments thanks to its IP66/IK09 protection and its resistance to saline and chlorinated environments. Its dual T-adapter (installation of 2 FloodParks in opposition) and its wall adapter (surface-mounted installation) offer maximum installation flexibility.

A Zhaga slot is also integrated to allow the addition of a SENSOR One or SENSOR Bluetooth detector, depending on your needs.

Box contents: 1 FloodPark TECH 2, 1 mast adapter (Ø 43-66 mm), fixing screws

Key highlights:

  • Exceptional efficiency of 200 lm/W
  • Driver ON/OFF
  • Mast adapter included (Ø 43-66 mm)
  • IP66/IK09 and resistance to saline and chlorinated environments
  • 7-year warranty
PEP 15h18 (1).png

General characteristics
Lifetime 87,000 h
Brand CLAREO
Range TECH
Product family Floodlights
Installation environment Parking, Outdoor
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 220-240 V AC
Power 60 W
Electrical class Class I
Dimmable ON/OFF + 0-10V
Facteur de puissance > 0,94
Taux de distorsion harmonique < 10 %
Sensor YES
EU energy class 2019/2015 A
Detector type High frequency, PIR
Lighting characteristics
Technology LED
Lumens output 12000 lm
Energy savings - 60 %
Lumens efficiency 200 lm/W
Lifetime LXBY L80B10
Diffuser Transparent
Beam Angle 120 ° x 30 °
Photobiological risk GR1 - Low risk
IRC > 70
Physical characteristics and dimensions
Height 108 mm
Width 240 mm
Length 607 mm
Net weight 4.5 kg
Materials Aluminum
Waterproof YES
IP IP66
IK IK09
Working temperature -40 °C to 50 °C
Detailed color Anthracite Gray
Type SMD 5050
Standards and regulations
CEE RES-EC-103
Standards CE, RoHS, ENEC
Carbon footprint 740 kgCO2eq
