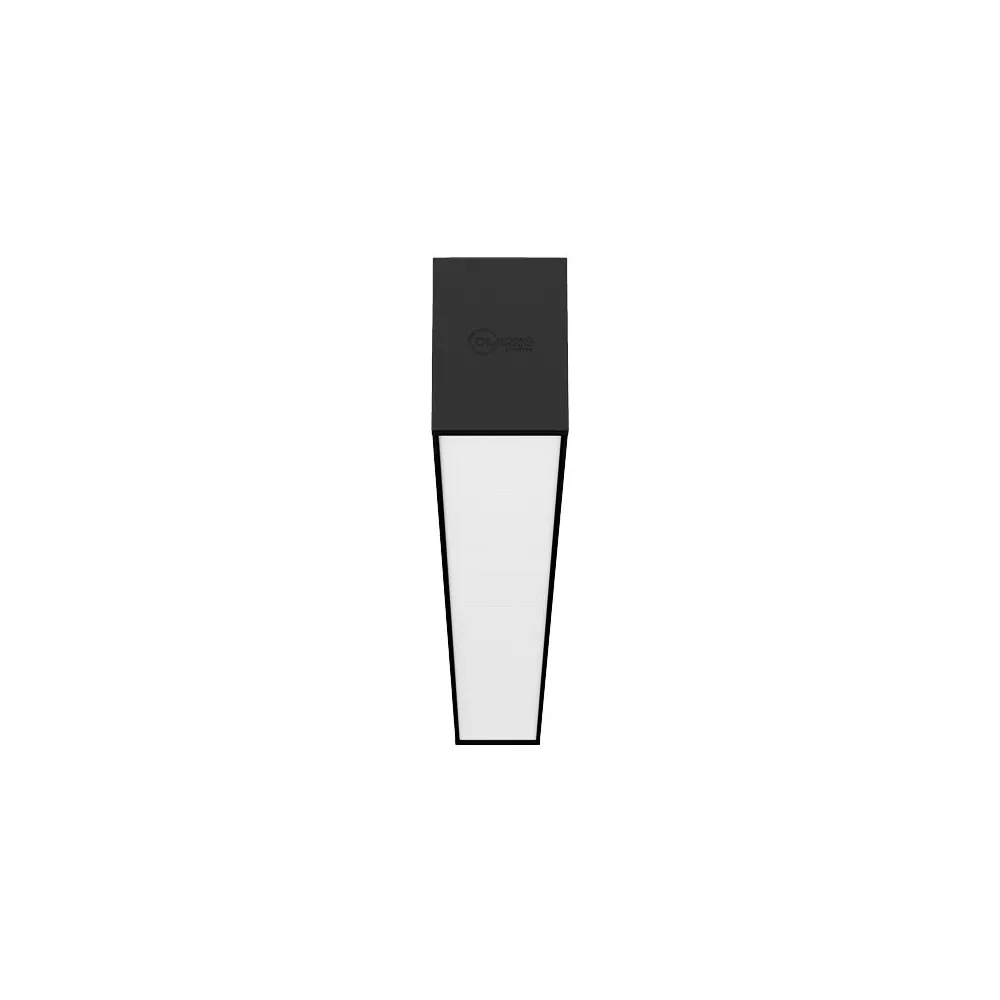

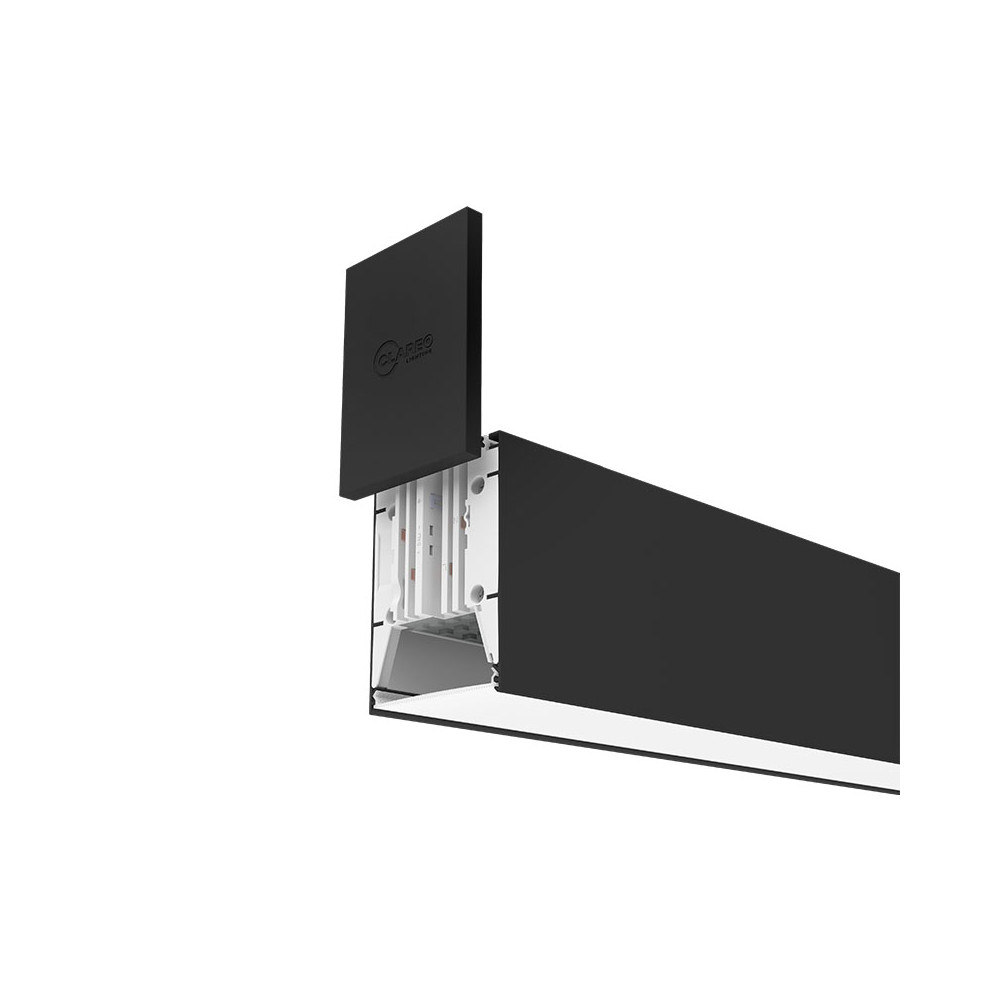

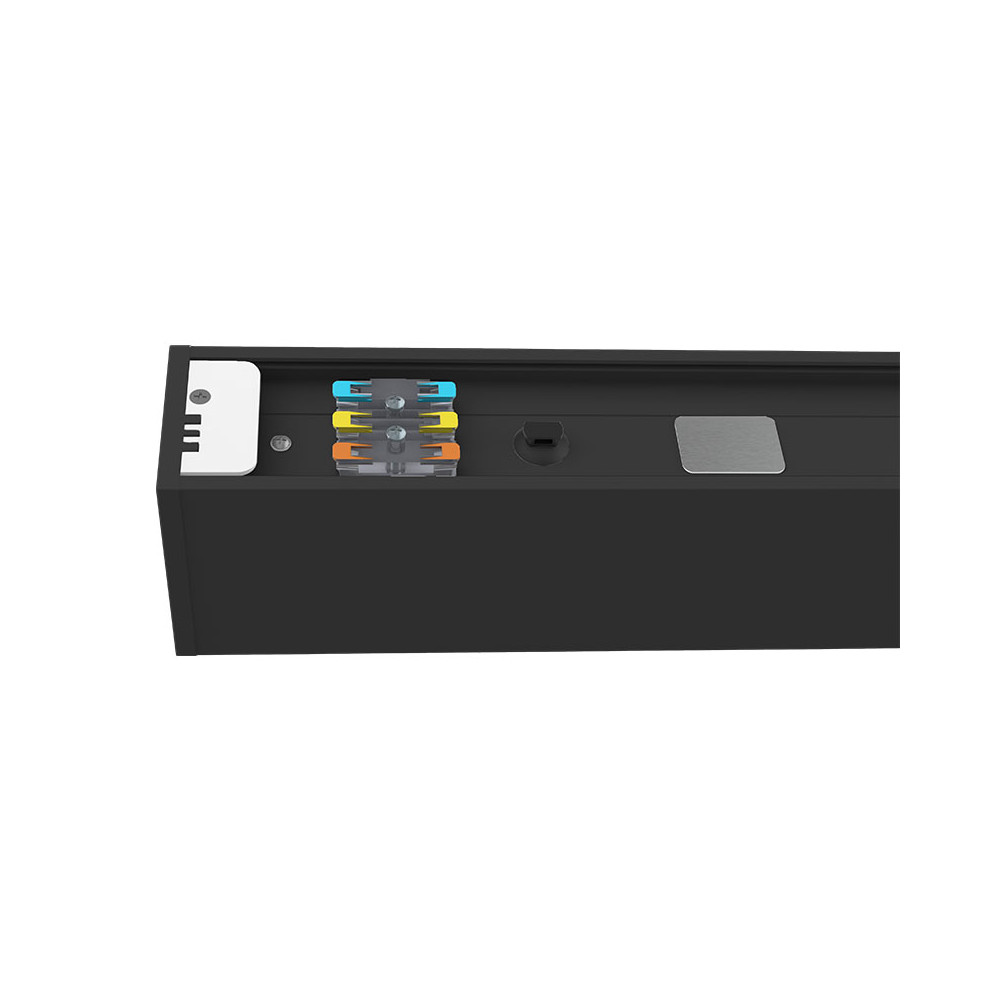

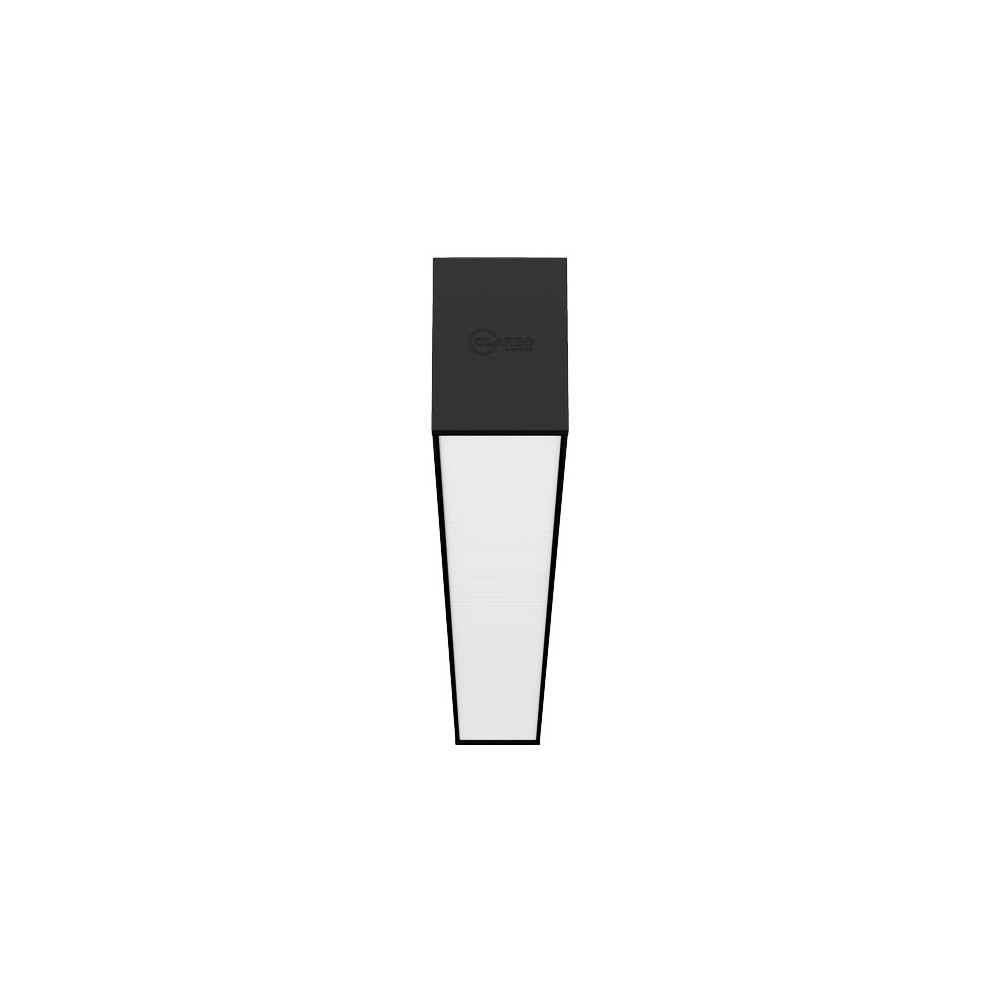

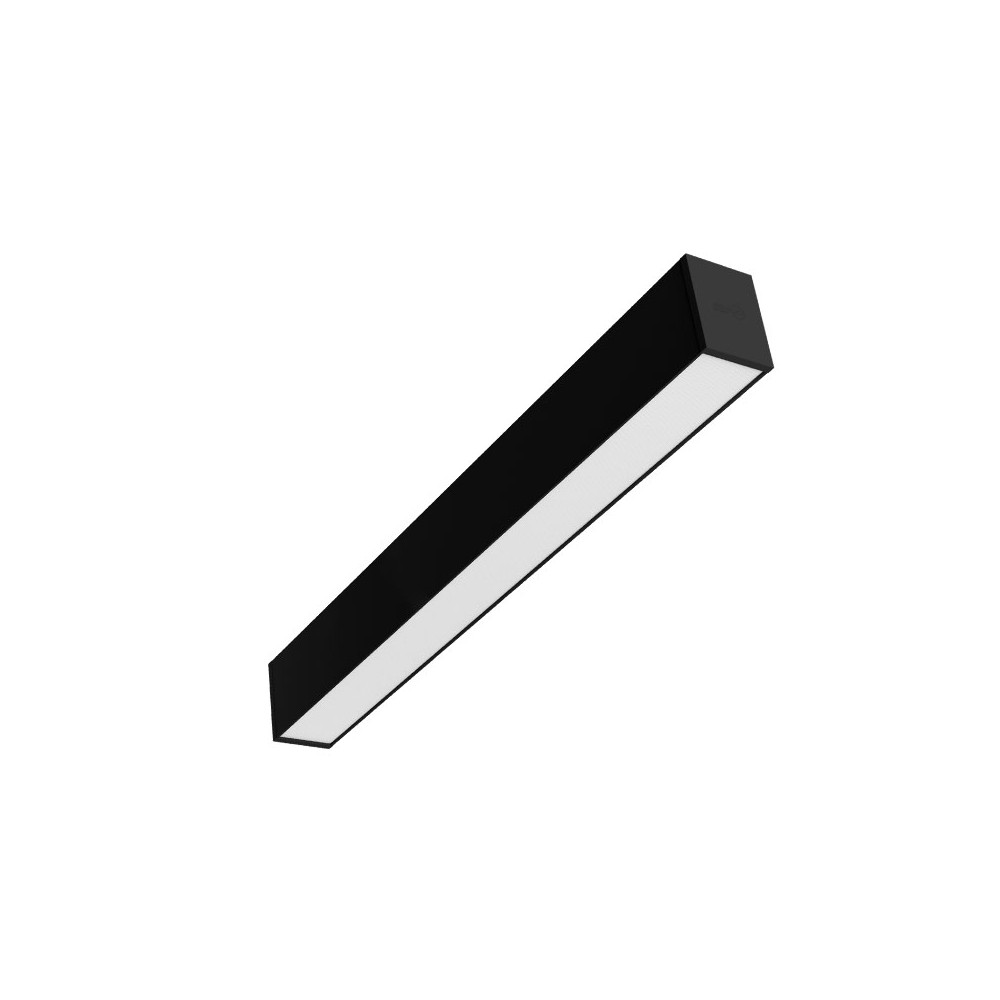

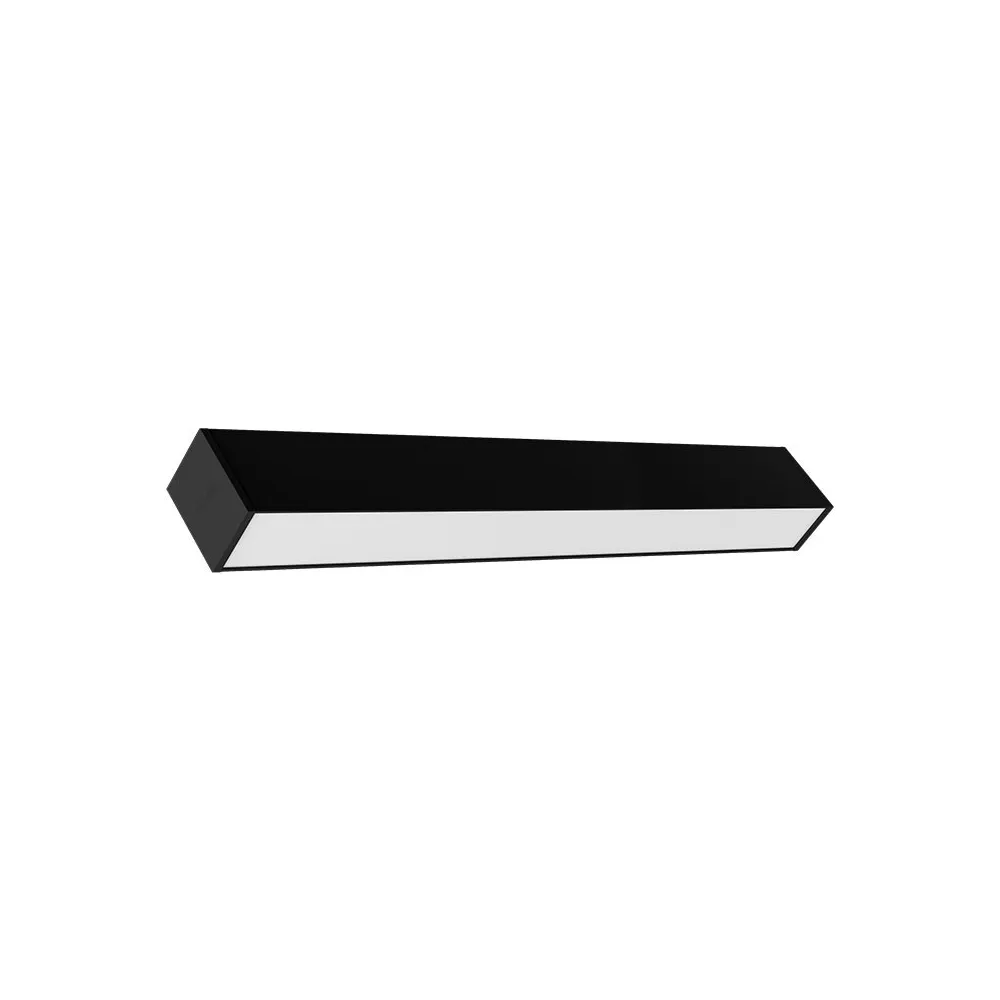

LineLED CLAREO 60cm 15W 140lm/W ADVANCE 3 Black

One line, thousands of possibilities: discover the new LineLED CLAREO ADVANCE 3

Specially designed to enhance your lighting projects in offices, retail spaces or hospitality, the new LineLED CLAREO ADVANCE 3 combines performance, flexibility and design.

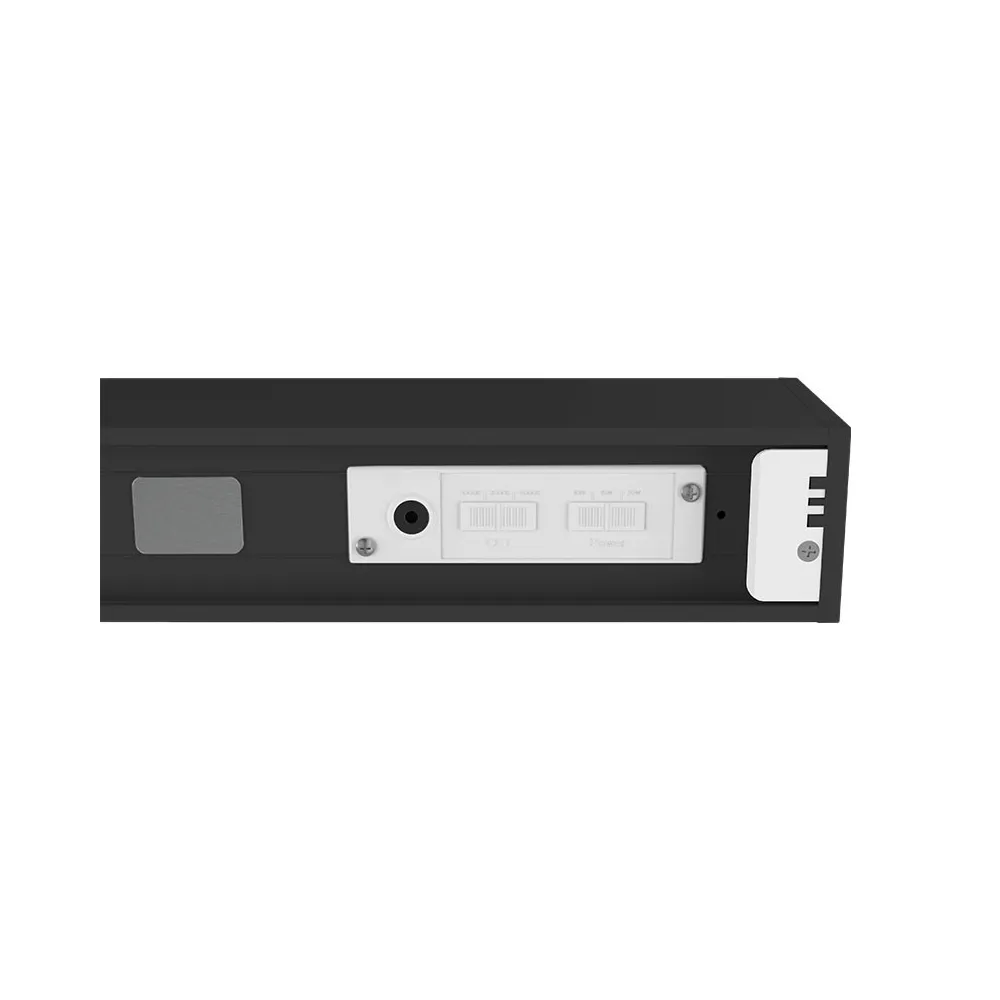

Equipped with a Power Switch (50/75/100%) and a CCT Switch (3000/3500/4000 K), it easily adapts to each configuration. The direct-indirect modules and the X, L, Y, T and 120° connectors offer numerous layout possibilities (accessories sold separately).

Available with integrated ON/OFF or DALI BP driver, it can be installed as a pendant, surface-mounted or wall-mounted fixture, thanks to dedicated accessories.

Up to 10 luminaires can be interconnected in series.

Box contents:
1 LineLED CLAREO ADVANCE 3

Key features:

Efficacy of 140 lm/W
Power switch 50/75/100% on ON/OFF version
CCT Switch 3000 - 3500 - 4000 K
Multiple diffusers available
7-year warranty

LineLED CLAREO 60cm 15W 140lm/W ADVANCE 3 Black

Pricing is only available to customers who are logged into their account and whose access request has been validated.

To request access, go here

General characteristics

Lifetime	72,000 h
Brand	CLAREO
Range	ADVANCE

Product family	Linear lights
Installation environment	Traffic, Traffic, Schools, Public space
Repairable	YES
Warranty	7 years

Electrical characteristics

Voltage	220-240 V AC
Power	7/11/15 W
Electrical class	Class I
Dimmable	Yes : depending on the reference

Facteur de puissance >	0,95
Taux de distorsion harmonique <	15%
Power range	0-25 W
EU energy class 2019/2015	C
Max power	15 W Max

Lighting characteristics

Technology	LED
Lumens output	2100 lm
Energy savings	- 40 %
Lumens efficiency	140 lm/W
Lifetime LXBY	L80B10

Diffuser	Prismatic
Beam Angle	70 deg
Photobiological risk	GR0 - No risk
IRC >	80
UGR <	19
Lumens range	800-1099 lm

Physical characteristics and dimensions

Height	75 mm
Standard length	60 cm
Width	55 mm
Length	612 mm
Net weight	0.8 kg
Materials	Aluminum

Waterproof	No
IP	IP20
IK	IK07
Product color	Black
Working temperature	-15 °C to 40 °C
Installation mode	Surface mount with accessory, Pendant with accessory, Wall sconce, Wall sconce, Wall sconce
Type	SMD2836
