The modular solution for continuous light lines

The Trackline on TECH 2 Rail is the ideal solution for your retail spaces, warehouses and industrial areas requiring modular and high-performance linear lighting. Combining an exceptional efficacy of 160 lm/W, unmatched modularity and simplified installation, it enables the creation of extended light lines with complete flexibility.

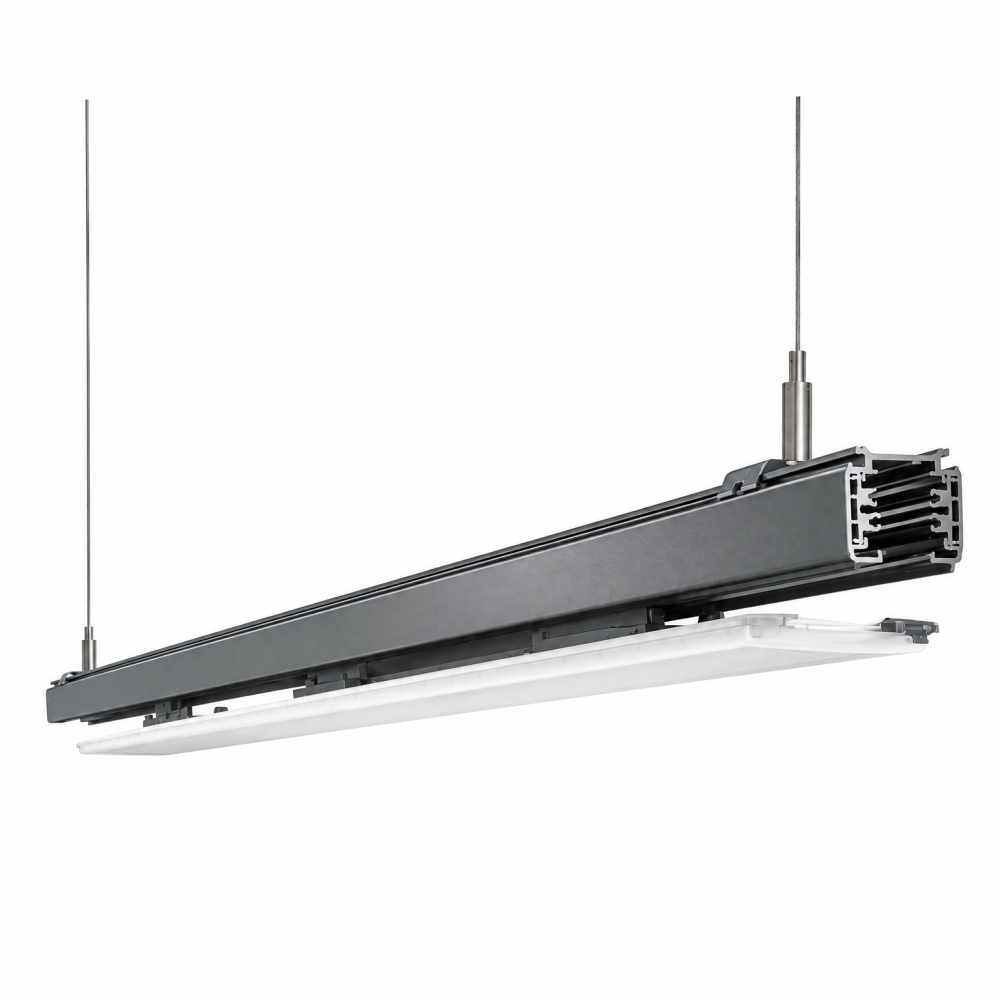

Easily integrated into CLAREO 3-circuit tracks (available as accessories), it offers total modularity to adapt your lighting to every configuration. Its Power Switch 35/40/45/50W allows you to adjust the power output to your needs without changing the fixture.

Available with 2 types of diffusers: 90° for standard lighting and double asymmetric for shelving areas and aisles, its lightweight design and quick track installation facilitate setup and future reconfigurations.

Its L80B10 lifespan of 60,000 hours and its 7-year warranty attest to its exceptional reliability for your intensive installations.

Box contents: 1 Trackline on TECH 2 Rail 150cm
Remember to add a CLAREO 3-circuit track as an accessory

Key highlights:

  • High luminous efficacy of 160 lm/W
  • Power Switch 35/40/45/50W
  • Modularity and quick installation on 3-circuit track
  • 2 diffusers available: 90° or double asymmetric
  • 7-year warranty
Ref: RST.3103T2

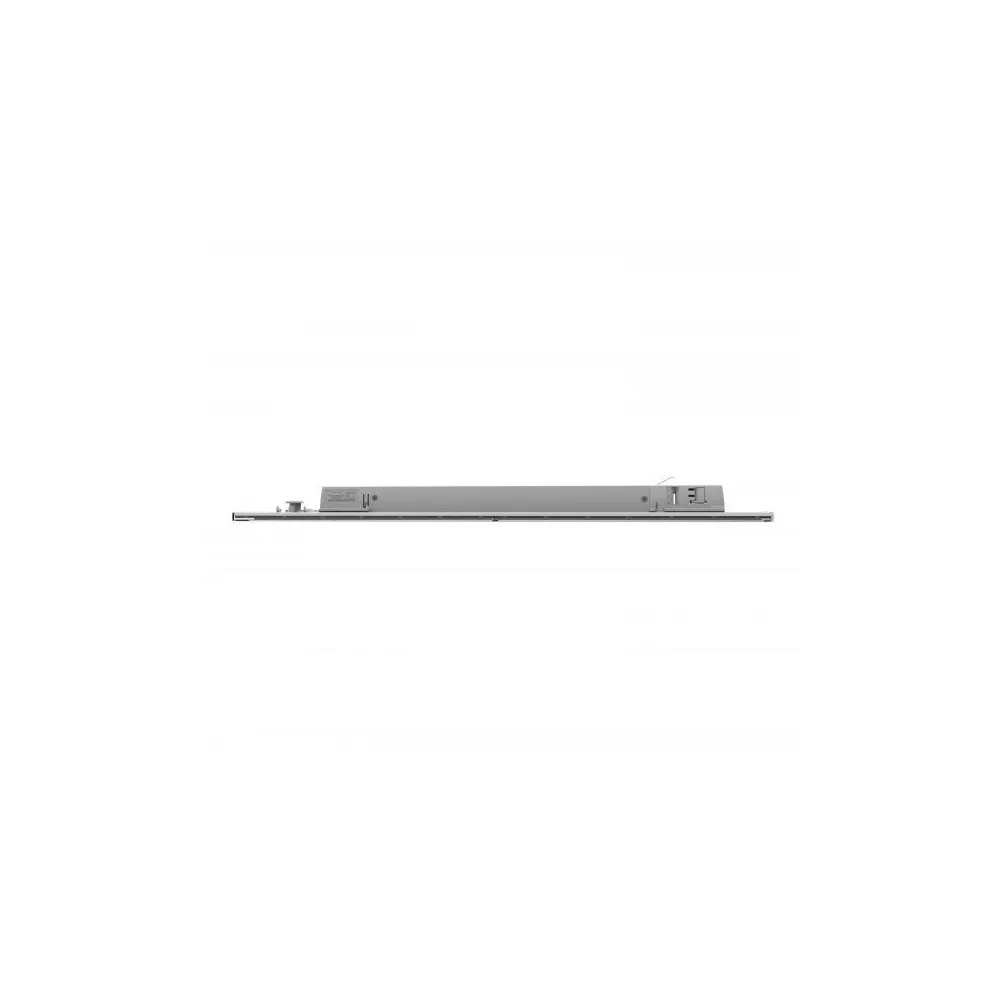

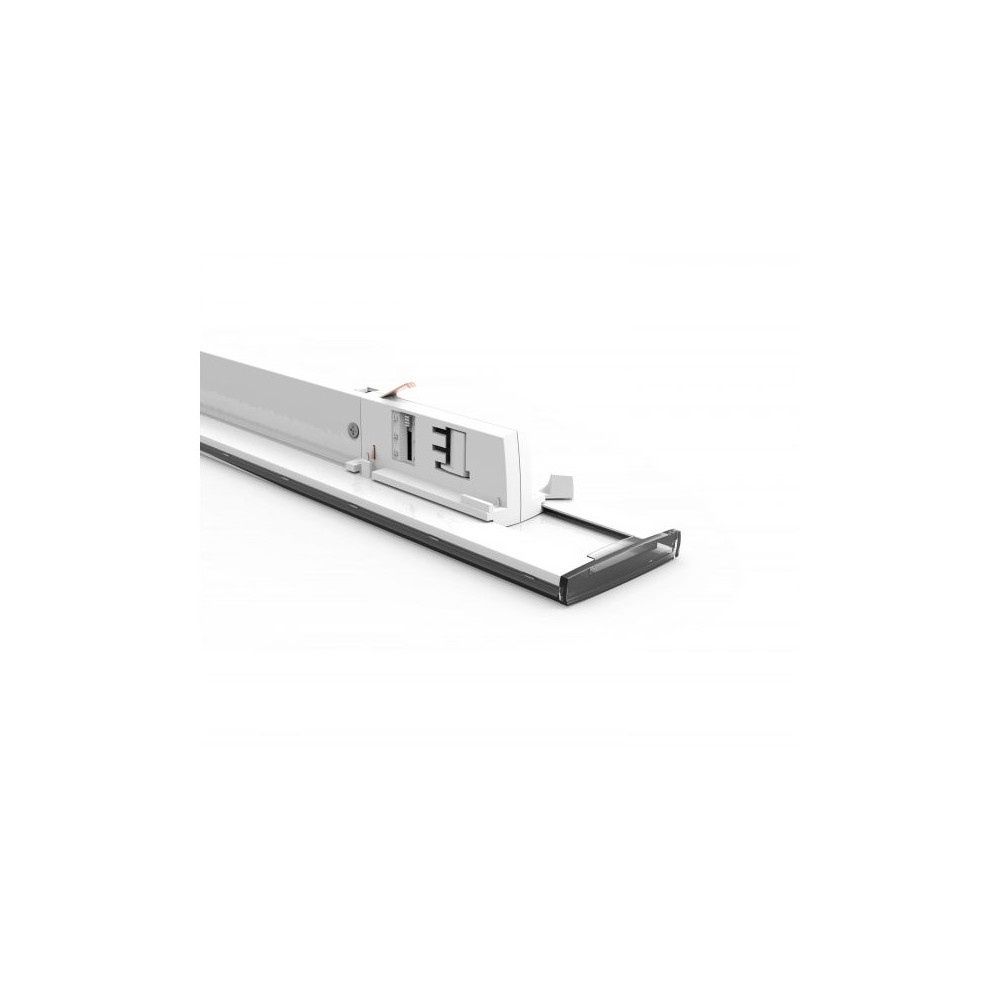

CLAREO Trackline on Rail 150cm 35/40/45/50W 160lm/W TECH 2

save_alt Download the technical sheet

Color

White neutral - 4000K

Angle

Driver

In stock, next day delivery before 1 PM
Pricing is only available to customers who are logged into their account and whose access request has been validated.
To request access, go here

The modular solution for continuous light lines

The Trackline on TECH 2 Rail is the ideal solution for your retail spaces, warehouses and industrial areas requiring modular and high-performance linear lighting. Combining an exceptional efficacy of 160 lm/W, unmatched modularity and simplified installation, it enables the creation of extended light lines with complete flexibility.

Easily integrated into CLAREO 3-circuit tracks (available as accessories), it offers total modularity to adapt your lighting to every configuration. Its Power Switch 35/40/45/50W allows you to adjust the power output to your needs without changing the fixture.

Available with 2 types of diffusers: 90° for standard lighting and double asymmetric for shelving areas and aisles, its lightweight design and quick track installation facilitate setup and future reconfigurations.

Its L80B10 lifespan of 60,000 hours and its 7-year warranty attest to its exceptional reliability for your intensive installations.

Box contents: 1 Trackline on TECH 2 Rail 150cm
Remember to add a CLAREO 3-circuit track as an accessory

Key highlights:

  • High luminous efficacy of 160 lm/W
  • Power Switch 35/40/45/50W
  • Modularity and quick installation on 3-circuit track
  • 2 diffusers available: 90° or double asymmetric
  • 7-year warranty

General characteristics
Lifetime 60 000 h
Brand CLAREO
Range TECH
Product family Linear lights
Installation environment Retail, Parking
Quick installation YES
Repairable YES
Warranty 7 years
Electrical characteristics
Voltage 230-230 V AC
Current Up to 710 mA
Power 35 / 40 / 45 / 50 W
Electrical class Class I
Dimmable Yes : depending on the reference
Facteur de puissance > 0,9
Taux de distorsion harmonique < 15%
Power range 26-50 W
EU energy class 2019/2015 B
Lighting characteristics
Technology LED
Lumens output 5400 - 8100 lm
Energy savings - 50 %
Lumens efficiency 160 lm/W
Lifetime LXBY L80B10

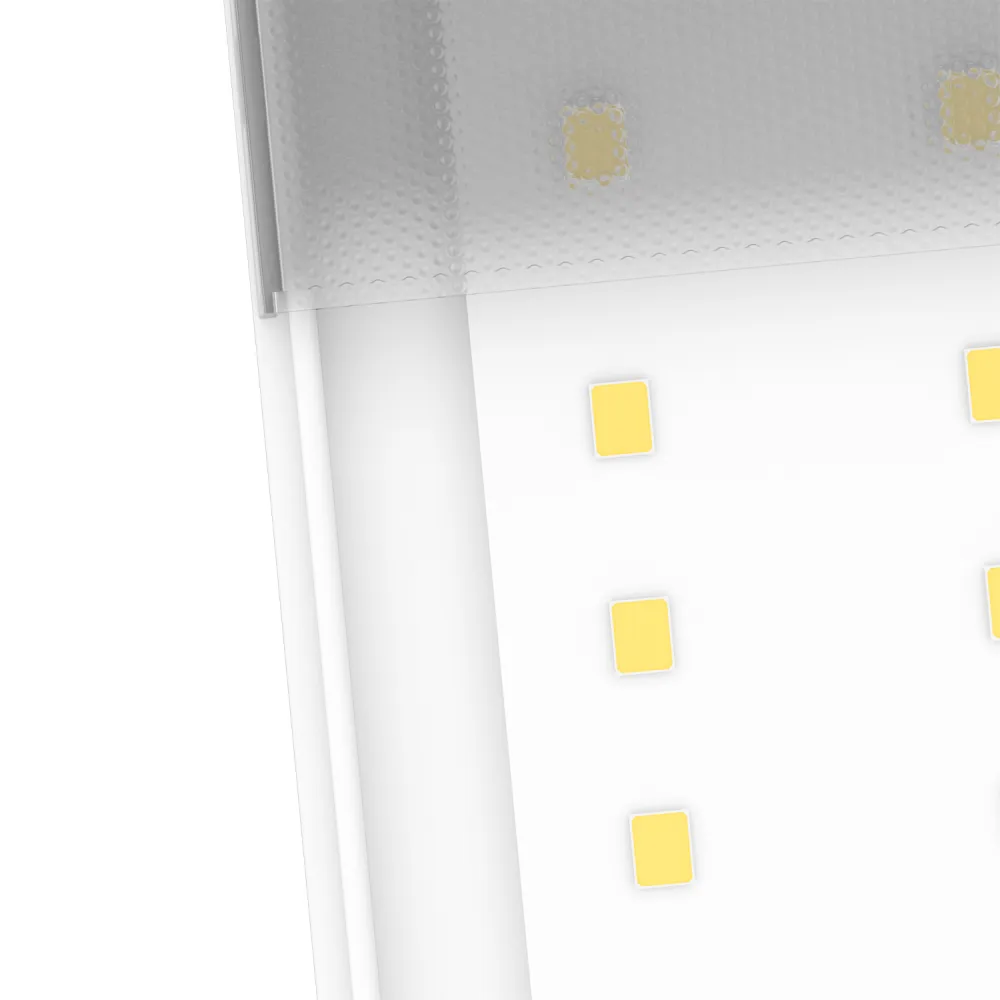

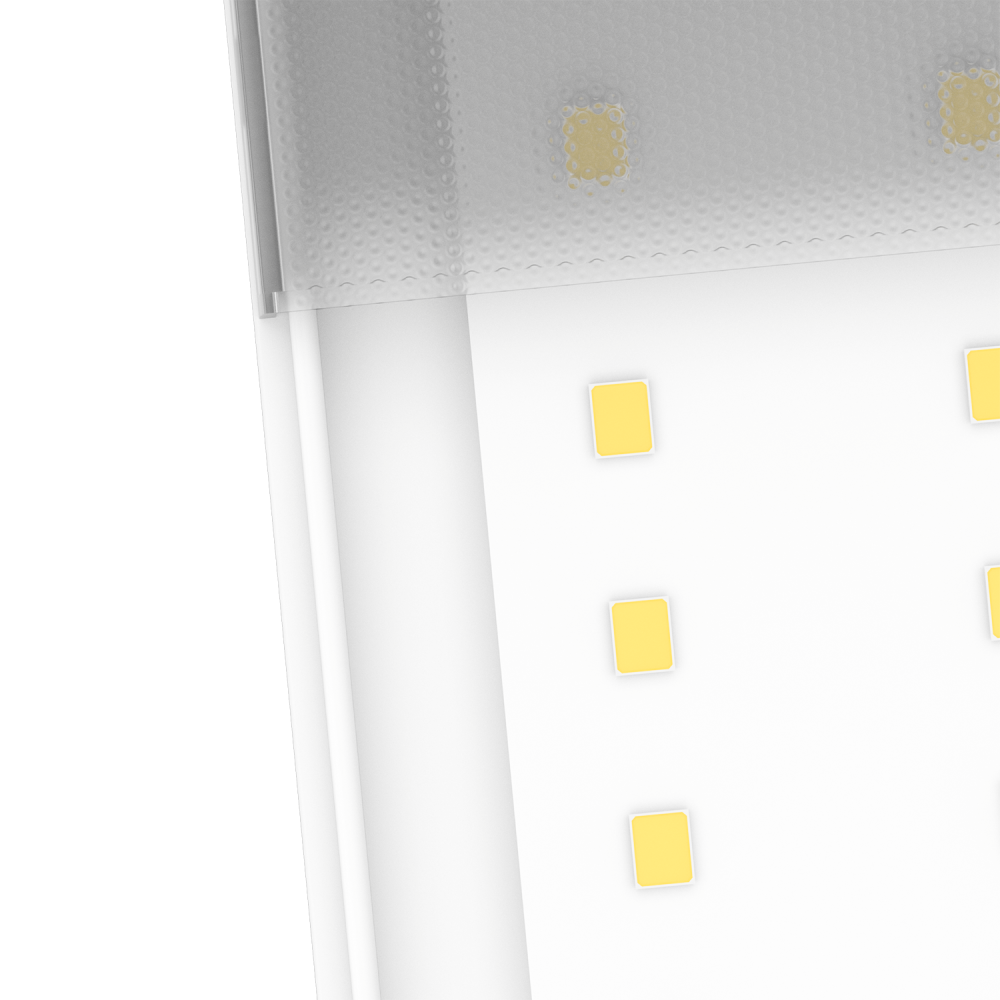

Diffuser Prismatic
Beam Angle Asymmetrical double
Photobiological risk GR1 - Low risk
IRC > 80
UGR < 19
Lumens range 5000-7499 lm
Physical characteristics and dimensions
Height 41.7 mm
Standard length 150 cm
Width 61.4 mm
Length 1 500 mm
Materials Aluminum
Waterproof No
IP IP20
IK IK04
Product color White
Working temperature -20°C to 60°C
Detailed color White
Type SMD 2835
Standards and regulations
Standards ENEC, CE
Carbon footprint 13.1 kgCO2eq
